中文分卡式缓存打印贴标机
The YIXING card-dispensing print-and-apply labeling machine with buffer separates stacked scratch cards, movie tickets, paper cards, cartons or PE bags one by one, applies a freshly printed QR code, barcode or date label to each, and collects them in a receiving tray. It runs at 30–60 pcs/min with ±1 mm accuracy.
Updated
Sample testing available Custom builds available

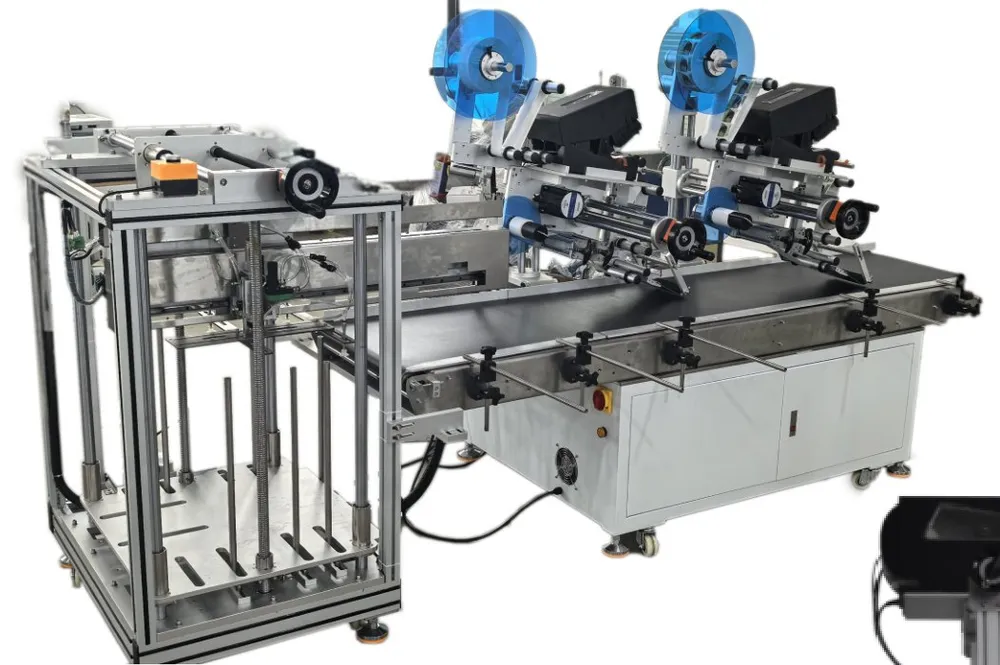

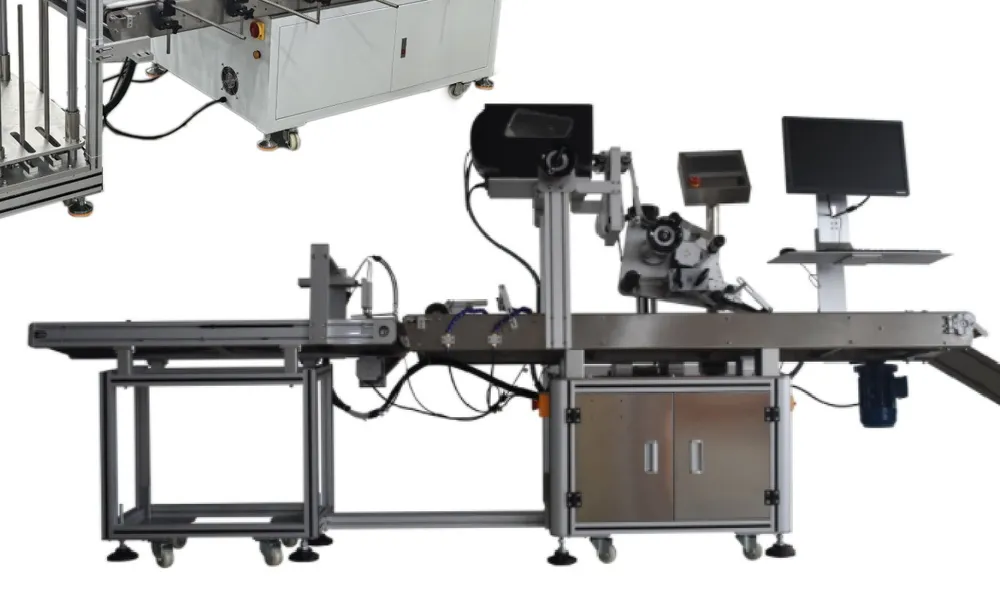

This machine labels the top surface of cards, bags and boxes — scratch cards, movie tickets, paper cards, cartons and PE bags — for the printing, stationery, food, personal care and pharmaceutical industries. It consists of a card-feeding section and a print-and-apply section: a stack is placed on the card dispenser, pieces are separated one at a time and conveyed to the labeling position, the printer prints from the data it receives and applies the label, and the receiving tray collects the output.

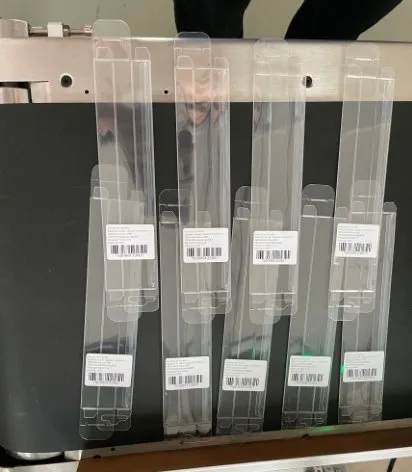

Labels can carry QR codes, barcodes, production dates or product specifications, and the printer brand and model can be chosen. Labels 20–150 mm long and 20–104 mm wide (liner width) fit the standard configuration, and other sizes call for a different printer model. Brochure samples show printed barcode labels on PE bags and paper cards stacked after print-and-apply labeling.
At 30–60 pcs/min (depending on product, label size and printer model), it labels with ±1 mm accuracy, excluding product and label tolerances. The brochure gives no fixed product size requirement, stating that it depends on the conveyor line. It works on the customer's conveyor or as a custom all-in-one unit with its own conveyor, measures approx. 2200 × 1000 × 1350 mm, weighs 200 kg and runs on 220 V / 50 Hz.
A card-feeding section and a print-and-apply section work in one machine, so stacked pieces are fed, printed and labeled in a single pass.
Handles cards, bags and boxes: scratch cards, movie tickets, paper cards, cartons and PE bags.
Prints QR codes, barcodes, production dates and specifications from the data the printer receives, with the printer brand and model left to your choice.
Card-fed print-and-apply at 30–60 pcs/min (the rate varies with product, label size and printer model) and ±1 mm accuracy, excluding product and label tolerances.
Use it on the conveyor you already run, or order the all-in-one version that brings its own conveyor.

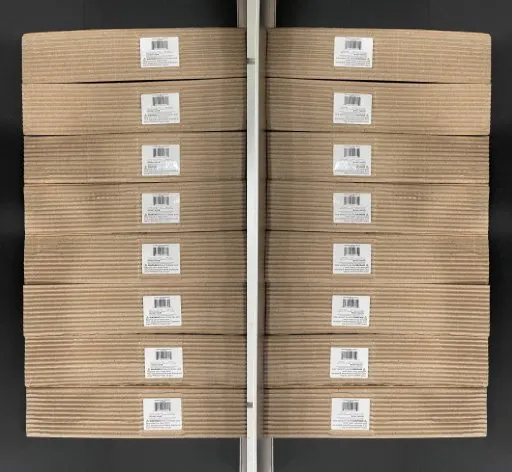

Labeled cards and bags collect in the receiving tray; the brochure sample shows paper cards stacked after labeling.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 30–60 pcs/min (depends on product, label size and printer model) |
| Applicable products | No specific limit (depends on the conveyor line) |
| Label size range | Length 20–150 mm; width (liner width) 20–104 mm; other sizes by selecting a different printer model |
| Machine dimensions | Approx. 2200 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 200 kg |
| Remarks | Can be mounted on the customer's existing conveyor, or supplied as an all-in-one unit with its own conveyor |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
The top surface of cards, bags and boxes, such as scratch cards, movie tickets, paper cards, cartons and PE bags, in the printing, stationery, food, personal care and pharmaceutical industries.
Stacked products are fed from the card dispenser one at a time to the labeling position, where the printer prints from the data it receives and applies the label; the receiving tray then collects them.
30–60 pcs/min with ±1 mm accuracy (excluding product and label tolerances). The actual rate varies with product, label size and printer model.
QR codes, barcodes, production dates and product specifications. The printer brand and model can be chosen.
Labels 20–150 mm long and 20–104 mm wide (liner width) in the standard setup; other sizes are handled with a different printer model.
Approx. 2200 × 1000 × 1350 mm and 200 kg, on 220 V / 50 Hz. Install it on your conveyor, or order it as an all-in-one unit with its own conveyor.
Brochure p. 32 ±1 mm The YIXING side print-and-apply labeling machine prints QR codes, barcodes, production dates and product specifications and applies the label to the side of packed cartons and drums. It runs at 15–30 pcs/min with ±1 mm accuracy, takes labels 20–104 mm wide, and lets you choose the printer brand and model.
Brochure p. 43 ±3 mm The YIXING real-time print-and-blow labeling machine prints QR codes, barcodes, dates and specifications from the data its printer receives, then blows each label onto uneven products such as garments, frozen food, fruit and vegetables. It runs at 10–15 pcs/min with ±3 mm accuracy and takes labels 20–104 mm wide.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
