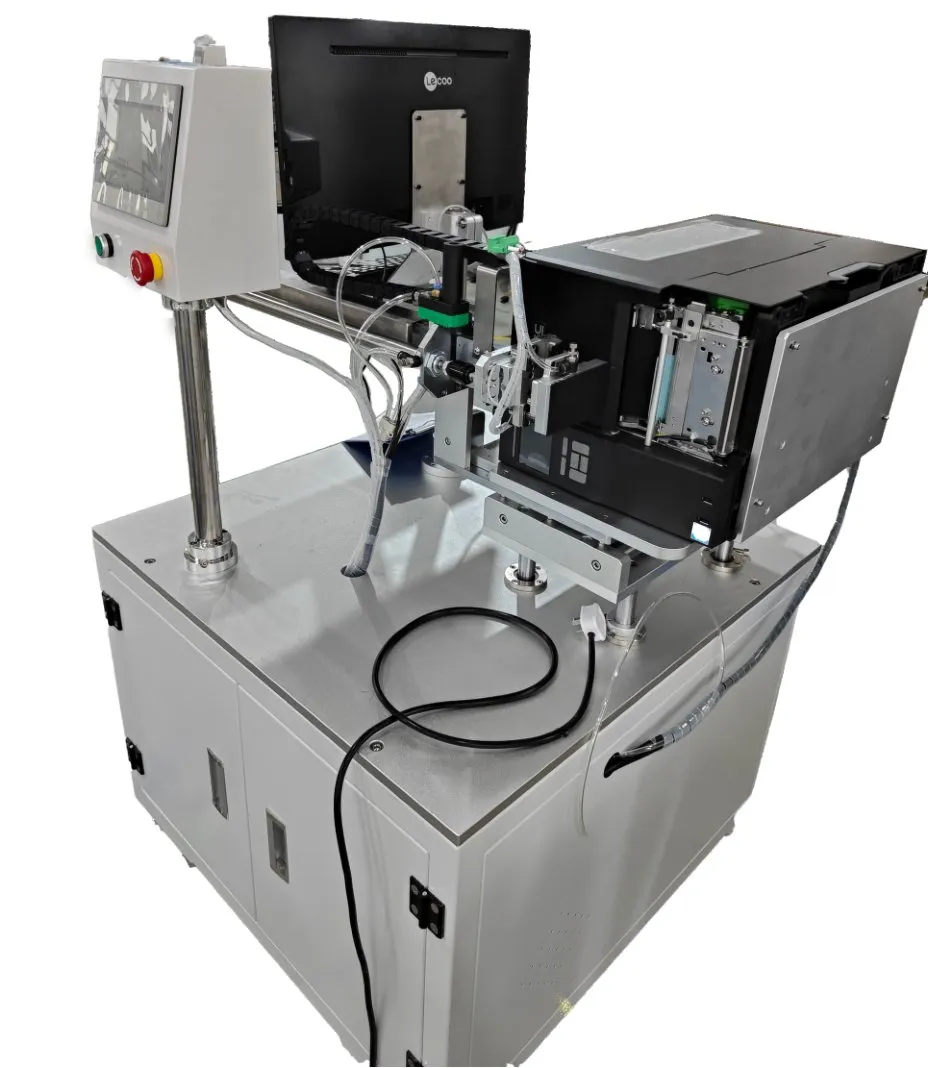

The YIXING side print-and-apply labeling machine prints QR codes, barcodes, production dates and product specifications and applies the label to the side of packed cartons and drums. It runs at 15–30 pcs/min with ±1 mm accuracy, takes labels 20–104 mm wide, and lets you choose the printer brand and model.
Updated
Sample testing available Custom builds available

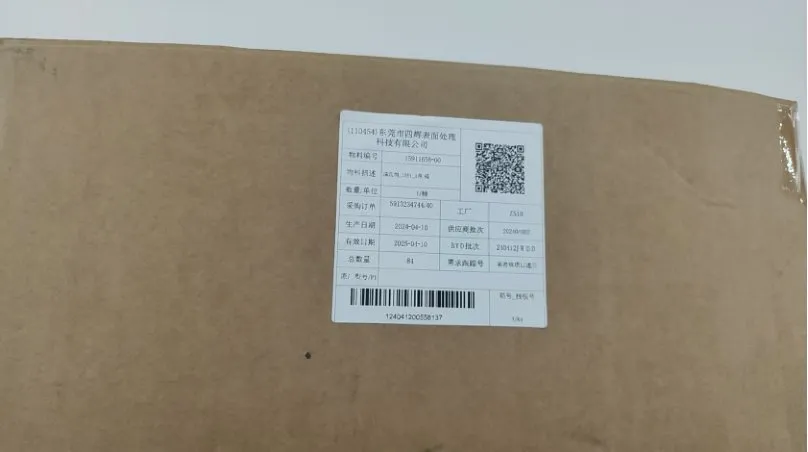

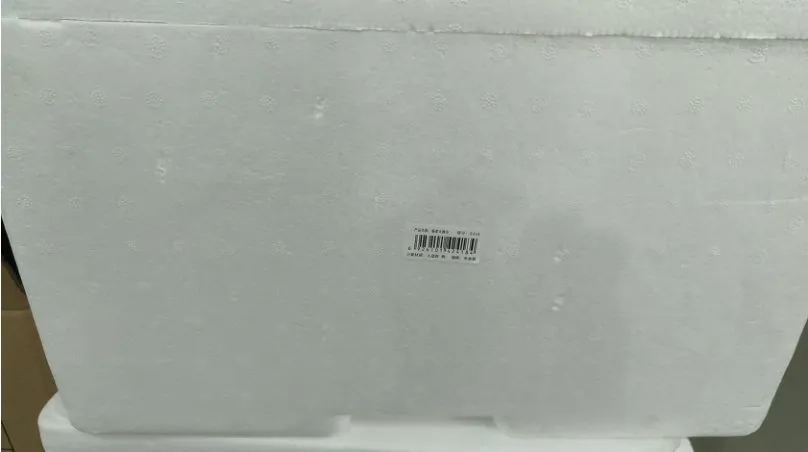

This print-and-apply machine labels the sides of products — typically cartons that have already been packed, and drums. The label can carry a QR code, barcode, production date or product specification, printed at the machine and applied to the side face. Brochure samples show a QR-code label on a carton side and a barcode label on the side of a foam box.
It can be mounted on your existing conveyor, or supplied as an all-in-one unit with its own conveyor, so product size has no fixed limit — it depends on the conveyor line. The printer brand and model can be chosen; standard labels are 20–150 mm long and 20–104 mm wide (liner width), and other sizes are handled by selecting a different printer model.
Speed is 15–30 pcs/min, depending on product, label size and printer model, and accuracy is ±1 mm (excluding product and label tolerances). The machine measures approx. 1200 × 1000 × 1350 mm, weighs 150 kg and runs on 220 V / 50 Hz.
Applies printed labels to the sides of packed cartons, drums and similar products.
Prints QR codes, barcodes, production dates and product specifications on the label.
The printer brand and model are selectable; for labels outside the 20–104 mm width range, a different printer model can be specified.
Mount it on an existing conveyor line, or order it as an all-in-one unit with its own conveyor.
Side labels are placed within ±1 mm (excluding product and label tolerances) at 15–30 pcs/min, depending on product, label size and printer model.
Product size is set by the conveyor line the machine works with, not by the labeler itself.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 15–30 pcs/min (depends on product, label size and printer model) |
| Applicable products | No specific limit (depends on the conveyor line) |
| Label size range | Length 20–150 mm; width (liner width) 20–104 mm; other sizes by selecting a different printer model |
| Machine dimensions | Approx. 1200 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 150 kg |
| Remarks | Can be mounted on the customer's existing conveyor, or supplied as an all-in-one unit with its own conveyor |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
QR codes, barcodes, production dates, product specifications and similar information, applied to the side of the product.
Yes. It can be mounted on the customer's conveyor, or supplied as an all-in-one unit with its own conveyor.
The printer brand and model are up to you. Standard labels are 20–150 mm long and 20–104 mm wide (liner width); for other sizes, a different printer model is selected.
15–30 pcs/min at ±1 mm (excluding product and label tolerances). Speed depends on product, label size and printer model.
No fixed limit — it depends on the conveyor line parameters.
Approx. 1200 × 1000 × 1350 mm, 150 kg, 220 V / 50 Hz.
