中文落地式胶头旋转贴胶机

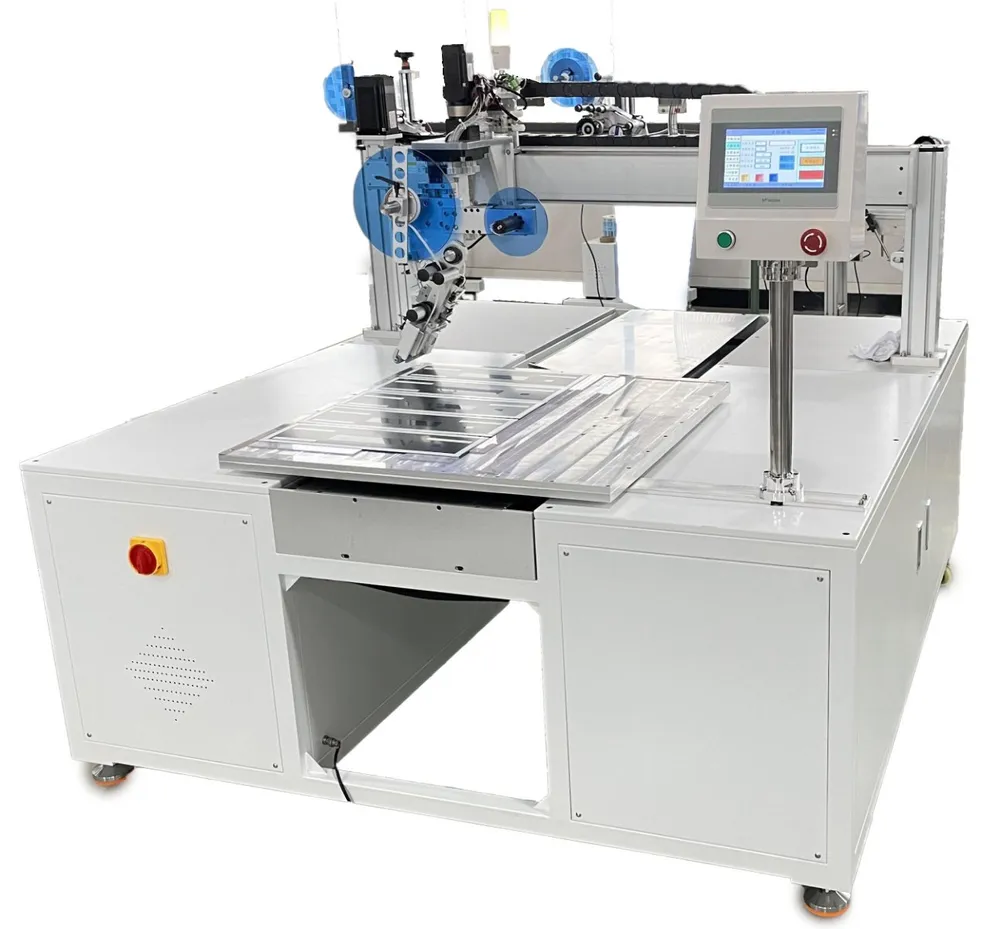

The YIXING floor-standing rotary-head tape applicator holds the part on its table by vacuum or a fixture and rotates the tape head to lay multiple horizontal and vertical strips. It covers a 500 × 1000 mm taping stroke at ±1 mm accuracy and 500 mm/s, and applies double-sided, 3M, clear and high-temperature tape.
Updated
Sample testing available Custom builds available
When one part needs tape strips running both across and along it, the floor-standing rotary-head tape applicator handles both directions. The part sits on the machine table, held by vacuum or a fixture, and the tape head rotates to switch between horizontal and vertical strips, so the part does not need to be turned by hand. It applies double-sided tape, 3M tape, clear tape and high-temperature tape from the reel.
The taping stroke is 500 × 1000 mm, and its 1000 mm long side takes large panels and frames; any strip 30 mm or longer can be applied. The brochure shows two samples: a frame-shaped workpiece on the vacuum table with strips laid both ways, and a panel with 3M double-sided tape around its edges and across the middle.
Taping accuracy is ±1 mm and speed 500 mm/s. Tape can be 3–50 mm wide (liner width) on reels with a 76 mm core ID and 250 mm OD. The machine measures approx. 1300 × 800 × 1500 mm, weighs 220 kg and runs on 220 V / 50 Hz. These are standard-model figures; other special requirements can be custom-built.

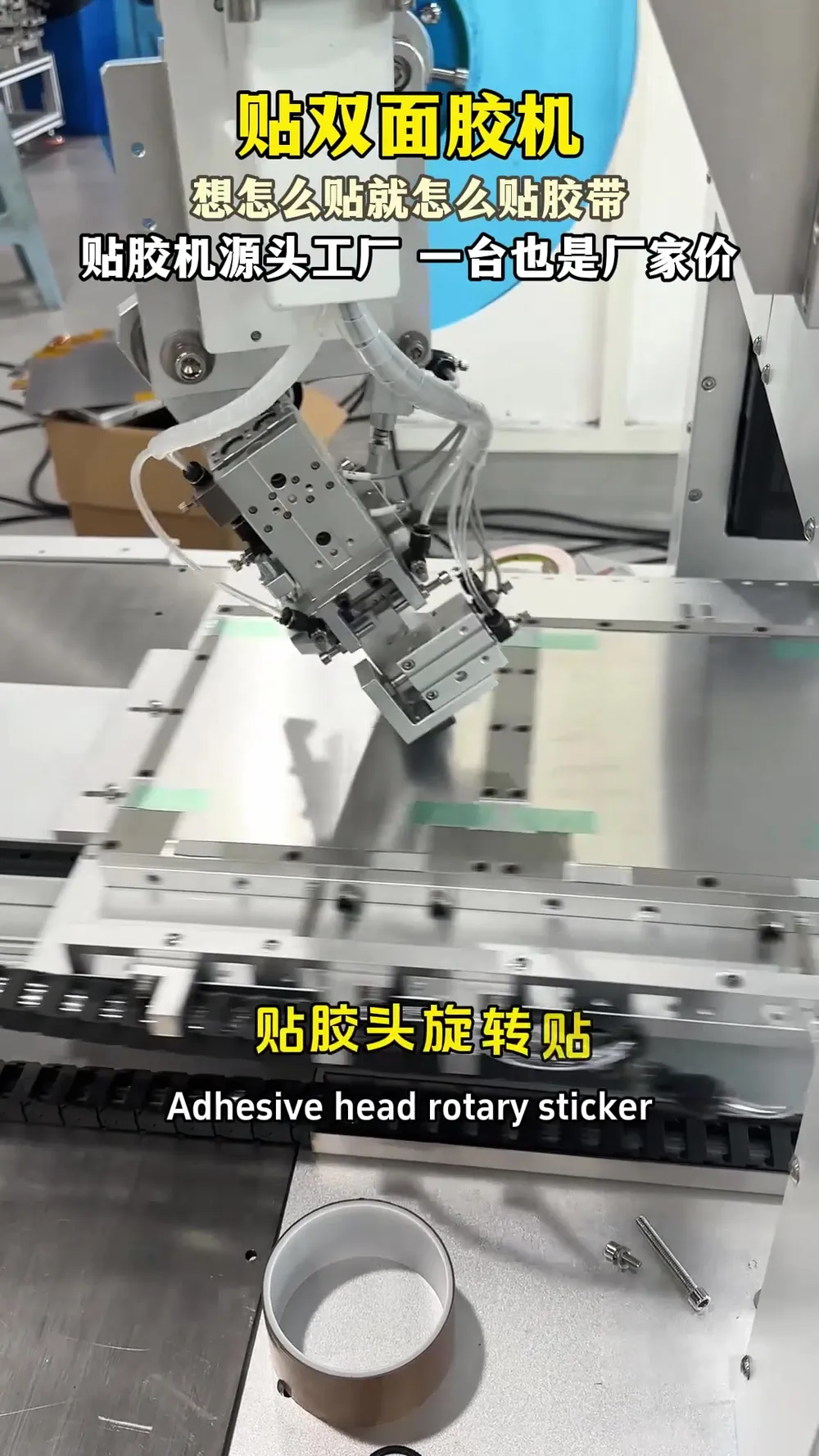

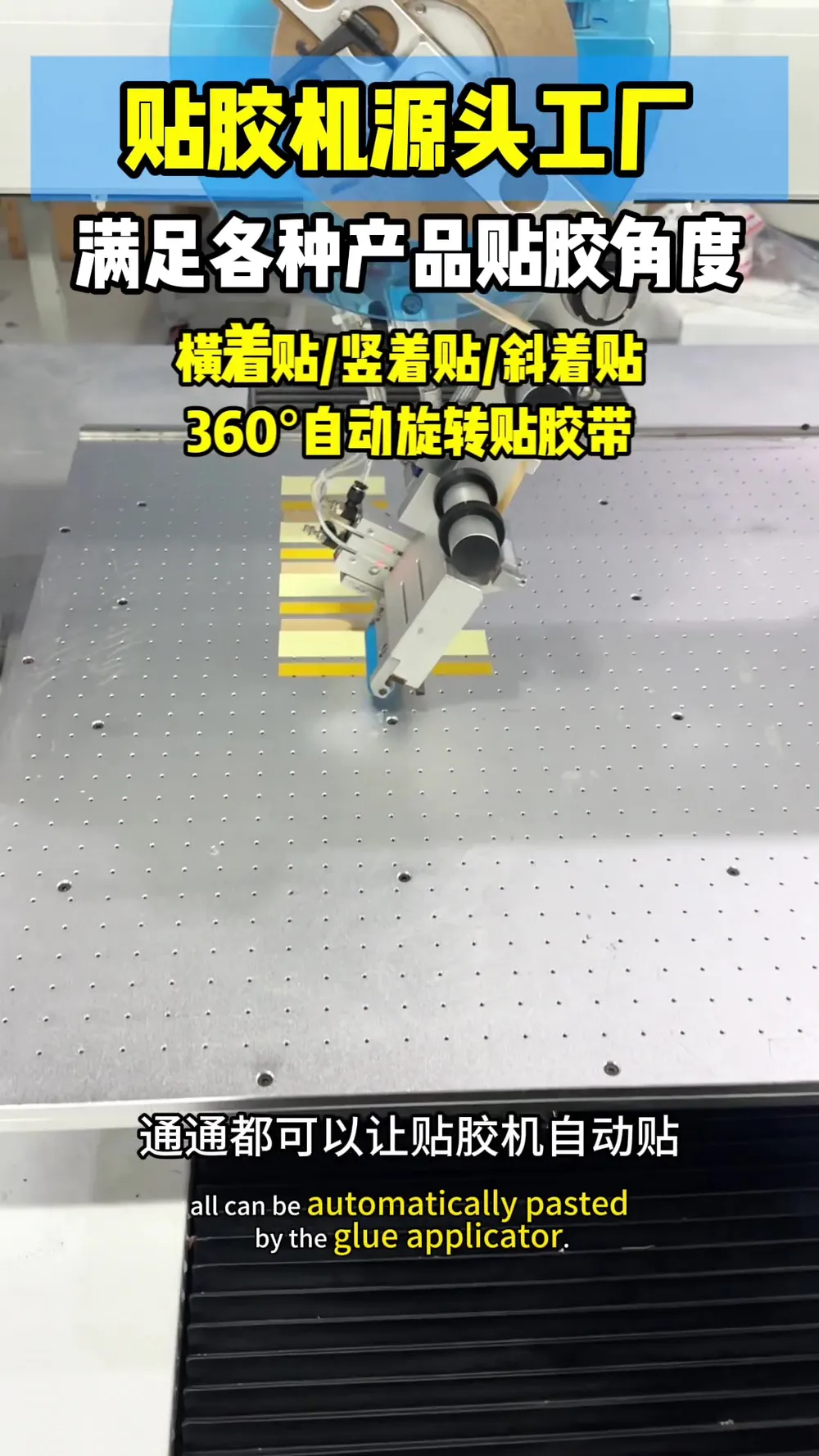

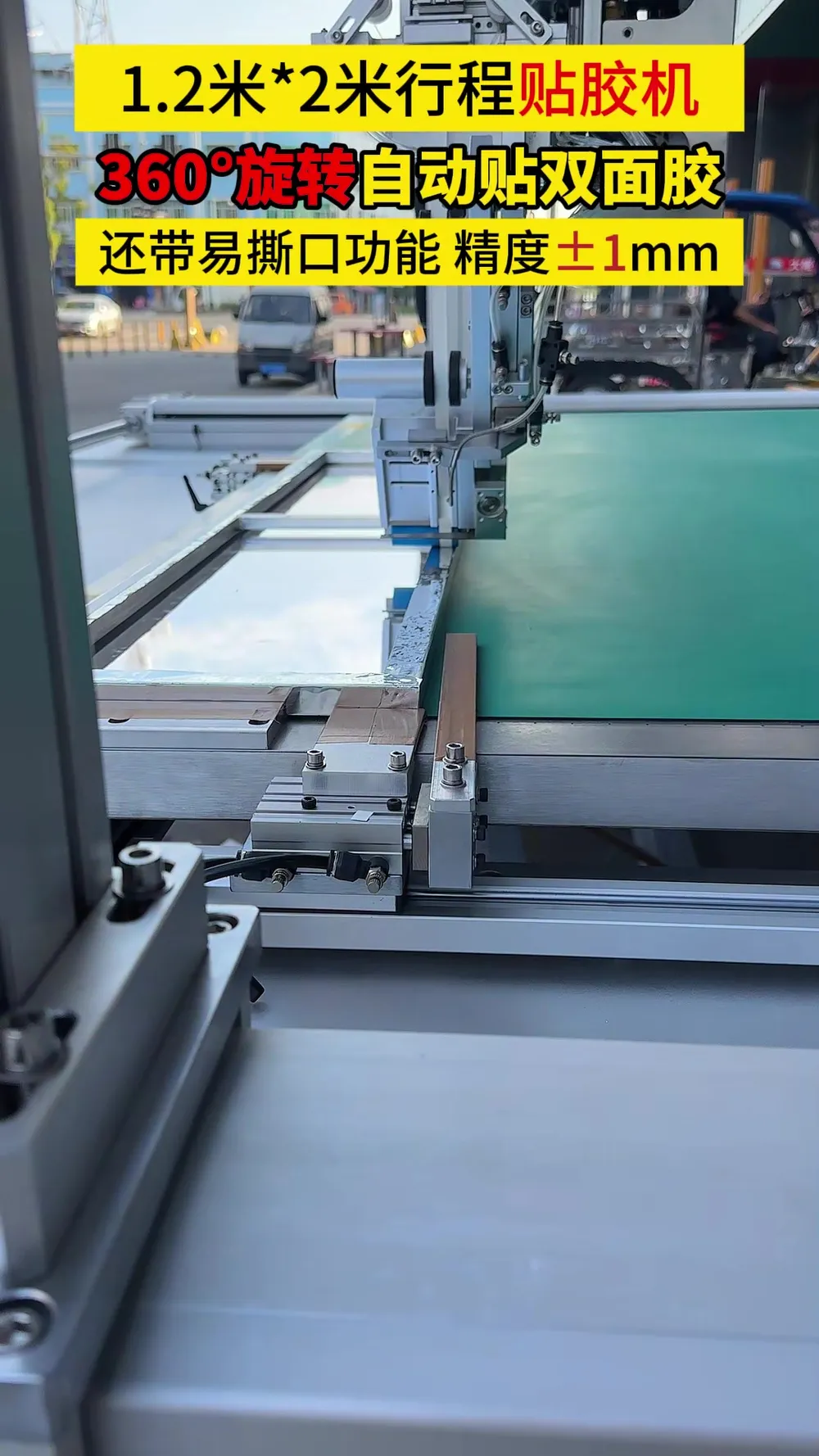

The head turns to change taping direction, so horizontal and vertical strips go on without turning the part by hand.
The 1000 mm long side of the stroke takes large panels and frames; minimum strip length is 30 mm.
Parts are held on the table by vacuum or by a fixture, whichever suits the part.
Taping accuracy is ±1 mm (excluding product and tape tolerances); speed is 500 mm/s and varies with part and tape size.

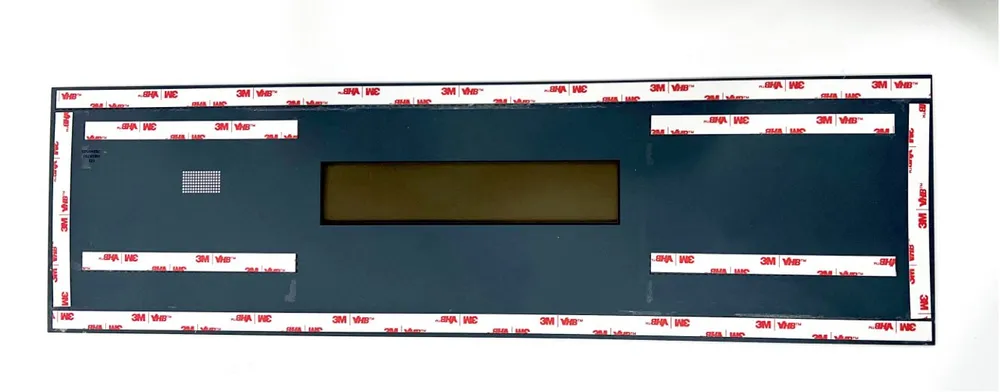

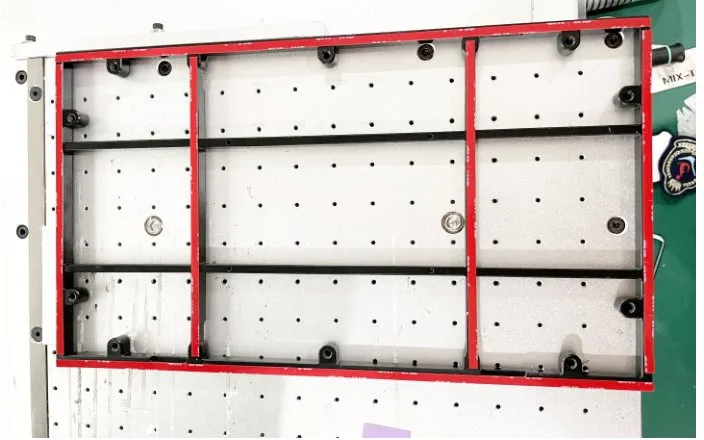

Brochure samples: a frame-shaped workpiece on the vacuum table with crossing strips, and a panel with 3M double-sided tape around the edges and across the middle.
The published figures describe the standard model; other special requirements can be built to order.
Real samples from the brochure, produced on this machine type
| Taping accuracy | ±1 mm (excluding product and tape tolerances) |
|---|---|
| Taping speed | 500 mm/s (depends on product and tape size) |
| Product size range | Taping stroke 500 × 1000 mm; minimum tape length 30 mm |
| Tape specifications | Width (liner width) 3–50 mm; reel core ID 76 mm, reel OD 250 mm |
| Machine dimensions | Approx. 1300 × 800 × 1500 mm (L × W × H) |
| Power supply | 220 V / 50 Hz |
| Machine weight | 220 kg |
Standard-model data from the brochure; accuracy excludes product and tape tolerances. Other ranges can be custom-built.
The standard model covers 500 × 1000 mm and applies strips from 30 mm long. Requirements beyond the standard model can be custom-built.
Rotation changes the taping direction, so the machine can lay several horizontal and vertical strips without the part being turned by hand — for example 3M double-sided tape around a panel's edges and across its middle.

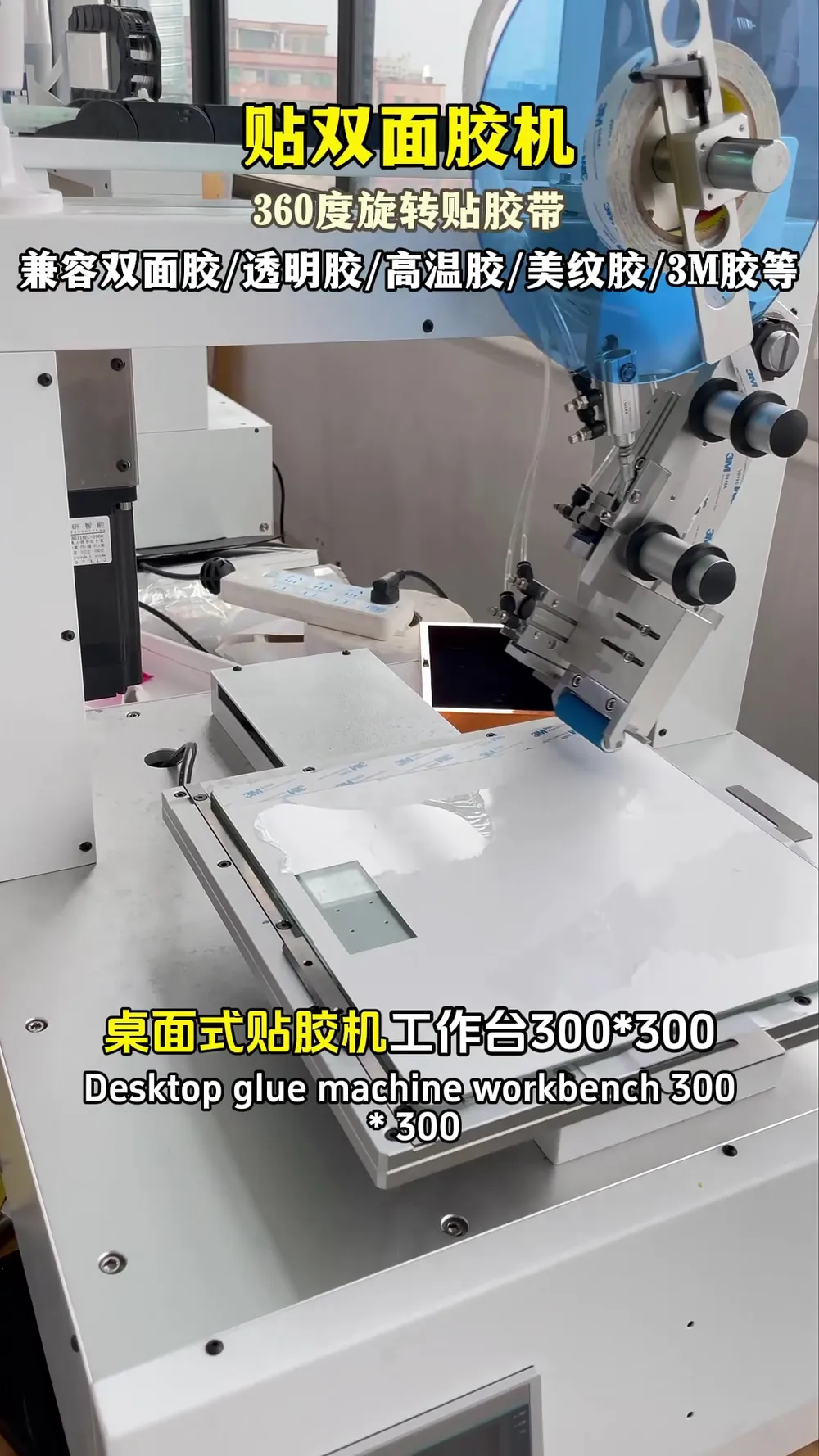

The panel sample in the brochure uses 3M double-sided tape; other double-sided, clear and high-temperature tapes can be applied too. Tape width is 3–50 mm (liner width), on reels with a 76 mm core ID and 250 mm OD.
Across its 500 × 1000 mm stroke it tapes at ±1 mm (excluding product and tape tolerances) and 500 mm/s; actual speed depends on part and tape size.
The floor-standing frame takes approx. 1300 × 800 mm of floor space and stands about 1500 mm high. It weighs 220 kg and runs on 220 V / 50 Hz.
On the machine table, either by vacuum or with a fixture. One brochure sample shows a frame-shaped workpiece on the vacuum table.
Brochure p. 8 ±1 mm The YIXING floor-standing 2-axis tape applicator splits the motion between two axes: the X axis drives the tape head and the Y axis moves the table carrying the part. It covers a 650 × 650 mm stroke at ±1 mm and 500 mm/s and suits parallel strips on sheets and foam boards.
Brochure p. 9 ±1 mm The YIXING floor-standing rotary-platform tape applicator rewinds the release liner (or waste paper) as it applies the tape, cuts the tape automatically and leaves the part ready to unload. It covers a 650 × 650 mm taping stroke at ±1 mm and 500 mm/s, with tape 3–50 mm wide.
Brochure p. 10 ±1 mm YIXING offers three tape applicator heads: a liner-peeling head, a non-peeling head that leaves the liner on the tape, and a waste-rewinding head. Customers choose the head that matches how liner and waste must be handled. Each tapes at ±1 mm and 500 mm/s, measures approx. 600 × 300 × 500 mm and weighs 8 kg.

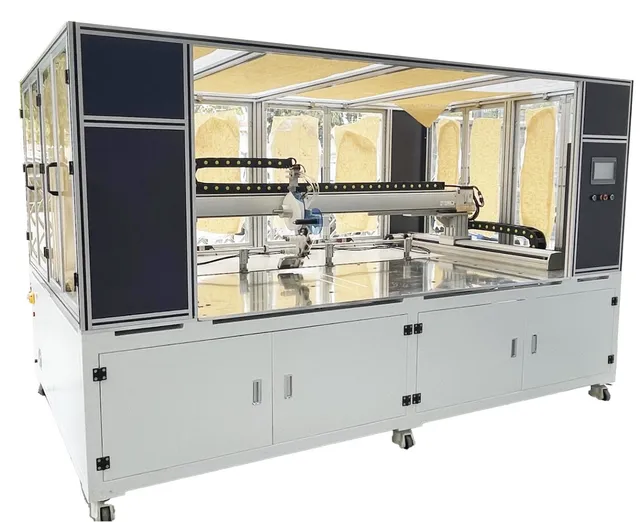

Brochure p. 11 ±1 mm The YIXING floor-standing 3-axis tape applicator is a custom-built taping machine. The X axis moves the tape head front to back while the Y and Z axes handle left-right moves, so it can tape around a panel's outline or at several positions on long panels. ±1 mm, 500 mm/s, full safety enclosure.
