中文方盒贴胶机
Compact tape applicator that clamps a square or rectangular box on a rotating fixture and wraps a band of tape around its four sides.
Updated
Sample testing available Custom builds available

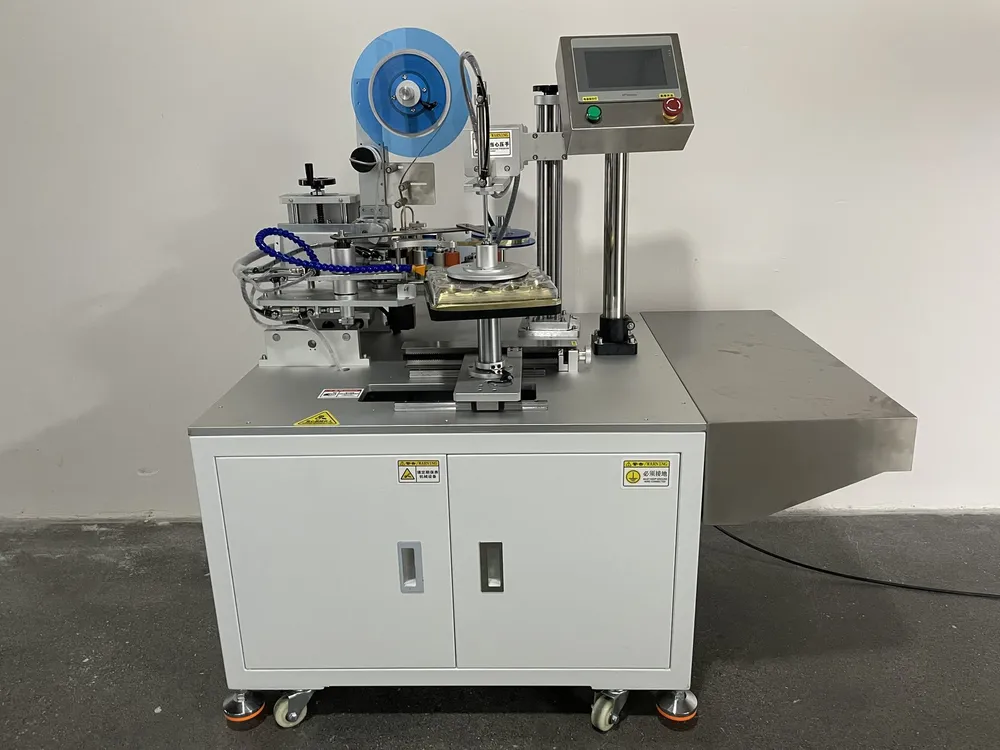

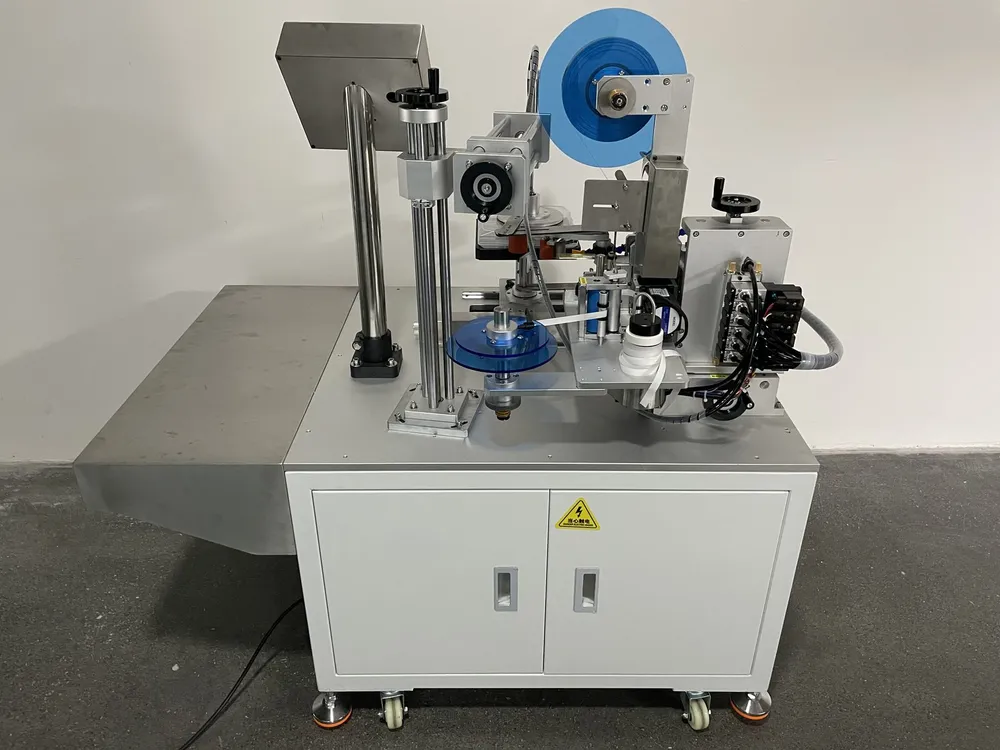

The square box tape applicator wraps tape around the sides of square and rectangular boxes. The box sits on a fixture where pneumatic clamps hold it; the fixture turns while the tape head feeds tape onto the box, so one band of tape runs around all four sides.
The tape head is mounted on a column with a handwheel for setting its height to the box. The machine is run from a touchscreen with start and emergency-stop buttons, a stainless steel chute beside the table takes finished boxes away, and the cabinet stands on casters.
The fixture is made for your box. Tell us the box dimensions, the tape width and where the tape should run, and send a sample box for a free test.
One band of tape around all four sides of the box, applied while the box turns.

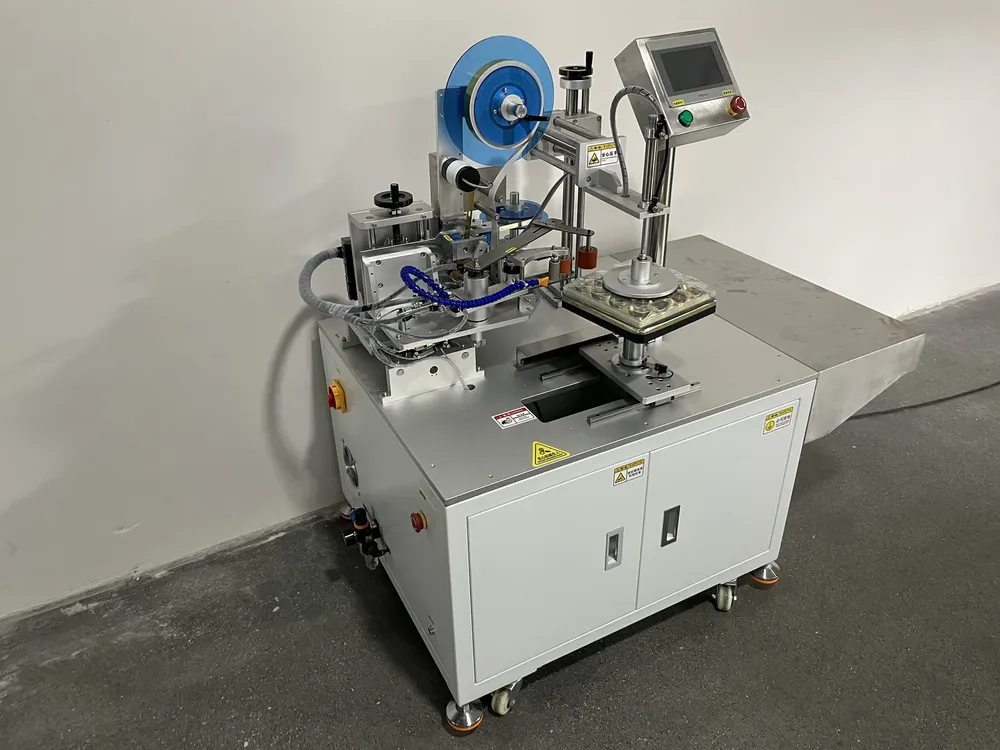

Air-operated clamps hold the box on the fixture, so the tape runs straight around it.

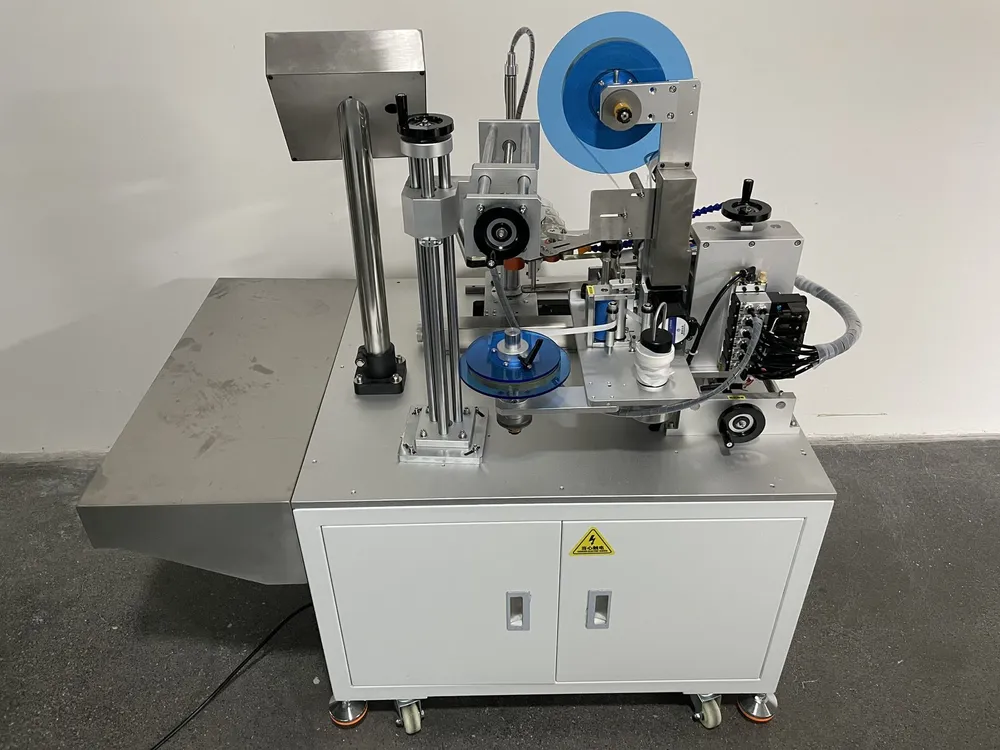

A handwheel on the column sets the head to the height where the tape should run.

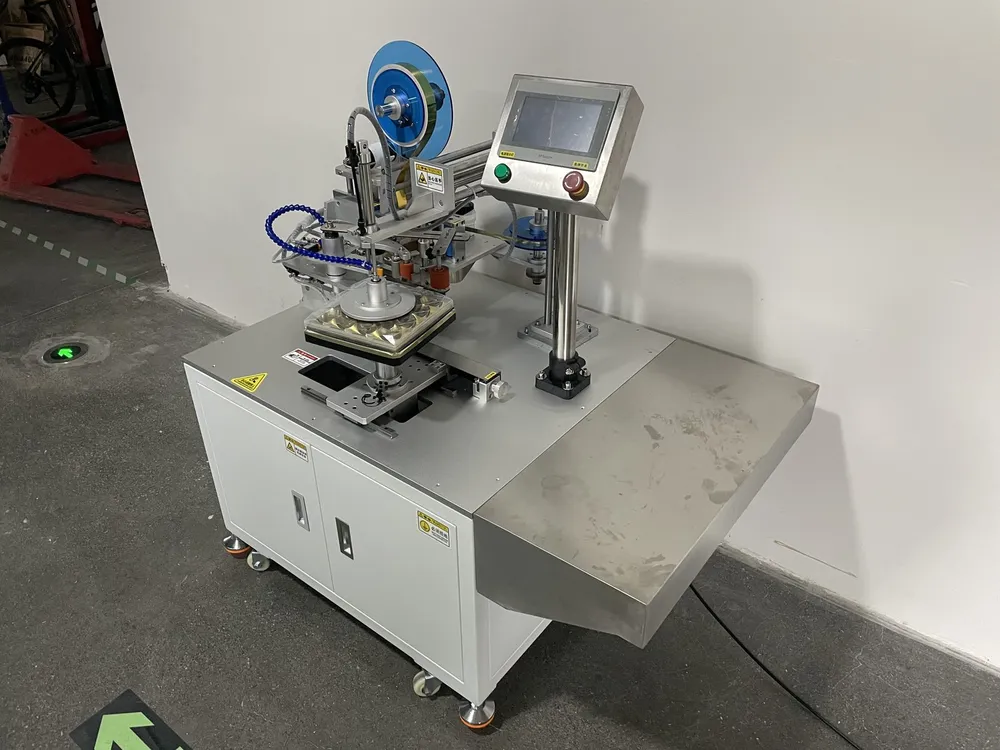

A stainless steel chute beside the table takes finished boxes away from the fixture.
A small cabinet on casters with a touchscreen, start button and emergency stop.
The fixture is made to your box dimensions; tell us every size you run.
| Applicable products | Square and rectangular boxes |
|---|---|
| Machine layout | Compact cabinet on casters: rotating box fixture with pneumatic clamps, tape head on a height-adjustable column, stainless steel discharge chute |
| Control | Touchscreen, start button and emergency stop |
| Customization | Fixture made to your box size |
It wraps a band of tape around the four sides of a square or rectangular box. The box is clamped on a rotating fixture while the tape head feeds tape onto it.
The fixture is made for your box, and the tape head height is set with a handwheel. If you run several sizes, tell us all of them so we can plan the fixtures.
They are unloaded into the stainless steel discharge chute beside the table.
Yes. The cabinet stands on casters with leveling feet, so it can be moved to where it is needed.
Cycle time depends on the box size and the tape, so we give it after testing your sample boxes free of charge.
Custom builds available Tape applicator with a motor-driven turntable: a round washing-machine panel turns in a ring fixture while the tape head presses tape around its edge.
Brochure p. 13 ±1 mm The YIXING desktop tape applicator is a benchtop taping machine: the operator loads the part, the machine applies the tape and cuts it automatically, and the part is unloaded by hand. It has a 300 × 300 mm taping stroke, takes tape 5–50 mm wide and weighs 78 kg; automatic loading and unloading can be custom-built.
Custom builds available Inline tape applicator in which belts clamp each part and carry it past two tape heads, so two strips of tape go on in a single pass along the conveyor.
Brochure p. 7 ±1 mm The YIXING floor-standing rotary-head tape applicator holds the part on its table by vacuum or a fixture and rotates the tape head to lay multiple horizontal and vertical strips. It covers a 500 × 1000 mm taping stroke at ±1 mm accuracy and 500 mm/s, and applies double-sided, 3M, clear and high-temperature tape.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
