The YIXING floor-standing 3-axis tape applicator is a custom-built taping machine. The X axis moves the tape head front to back while the Y and Z axes handle left-right moves, so it can tape around a panel's outline or at several positions on long panels. ±1 mm, 500 mm/s, full safety enclosure.
Updated
Sample testing available Custom builds available

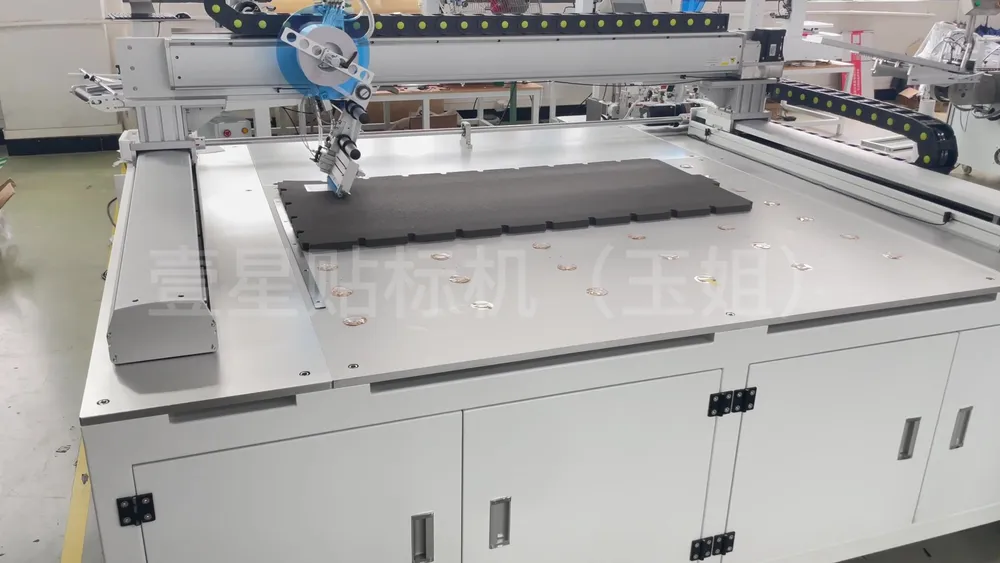

When the tape path is more than a single straight line — a full loop around a panel's outline, or several spots on one long panel — the floor-standing 3-axis tape applicator is the model to look at. The part is held on the table by vacuum or a fixture; the X axis drives the tape head front to back, and the Y and Z axes handle the left-right taping moves.

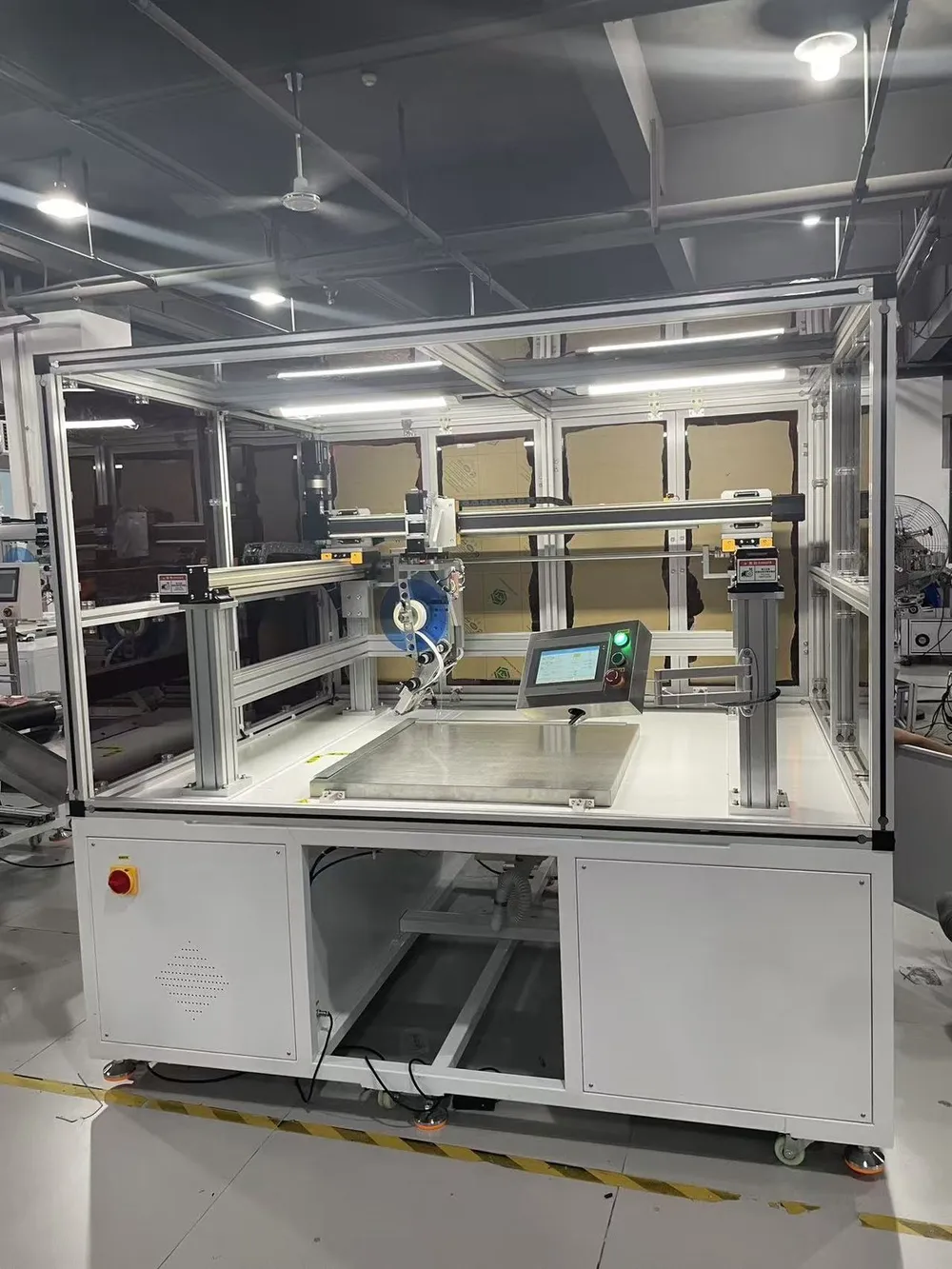

Two typical jobs appear in the brochure: tape laid along the full outline of a panel, and tape applied at several positions on long panels. The machine shown has a full safety enclosure and applies double-sided, 3M, clear and high-temperature tape.
It is a custom-built machine, so the taping stroke is set by the customer's product rather than a fixed standard. Other figures: ±1 mm accuracy, 500 mm/s, tape 3–50 mm wide (liner width) on reels with a 76 mm core ID and 250 mm OD; approx. 1500 × 1600 × 1500 mm, 220 kg, 220 V / 50 Hz.

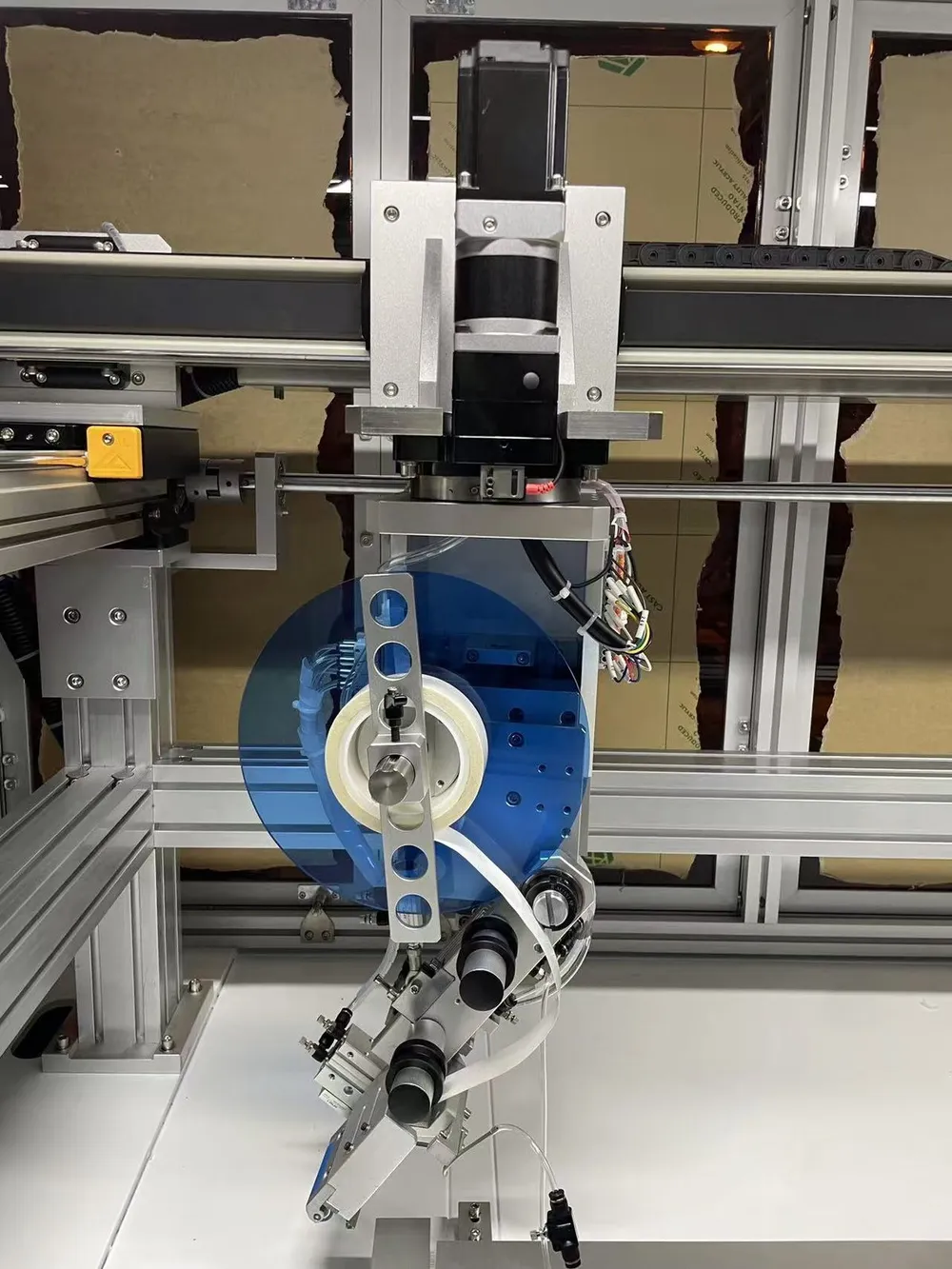

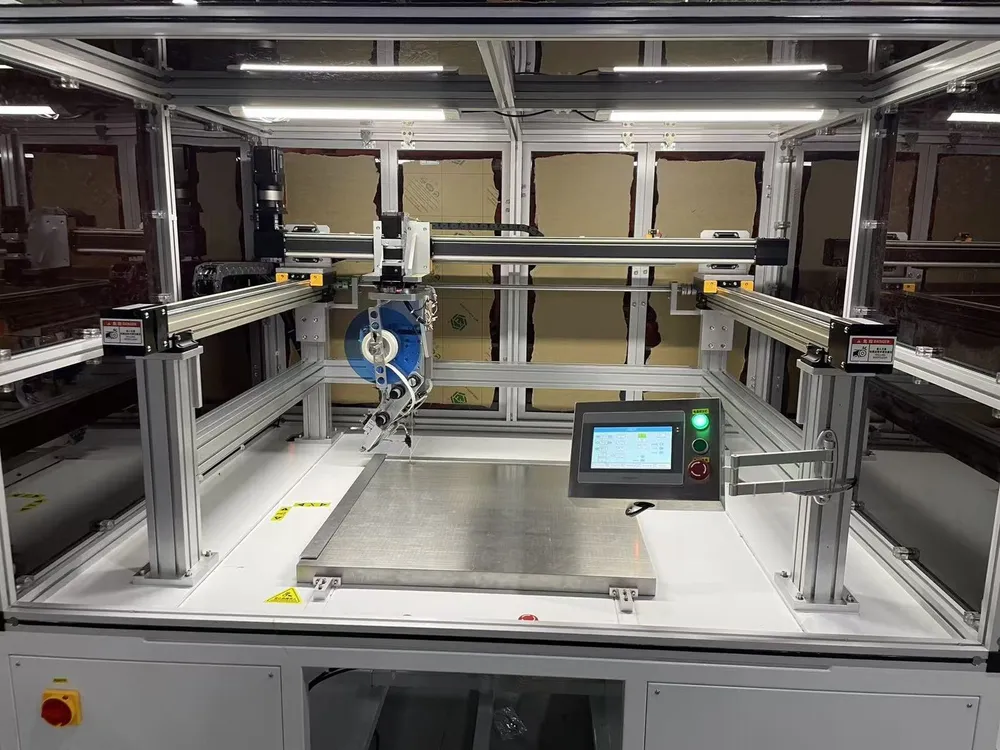

X for front-to-back head travel, Y and Z for left-right moves, so the tape path is not limited to one direction.

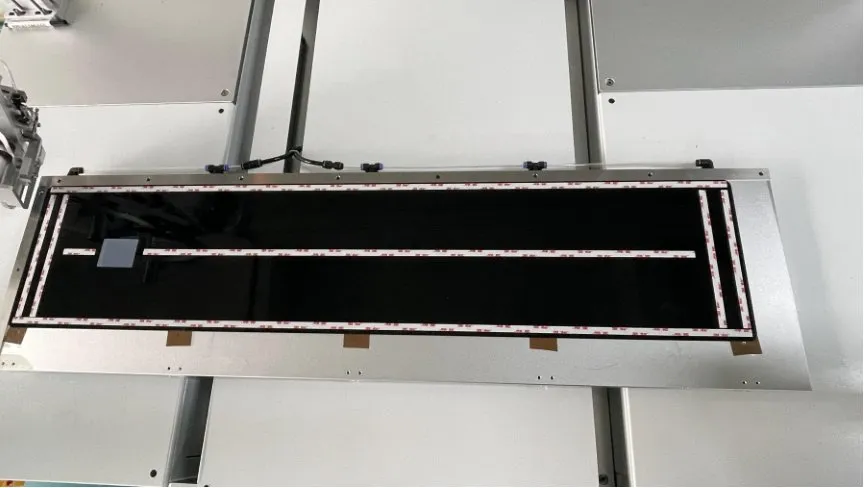

Tape can follow a panel's full outline, for parts that need tape all the way around.

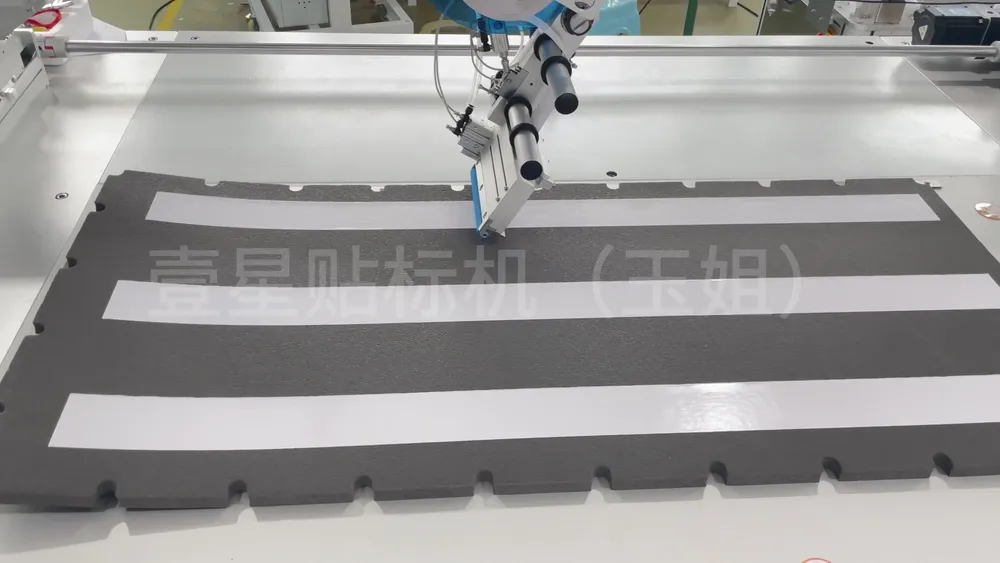

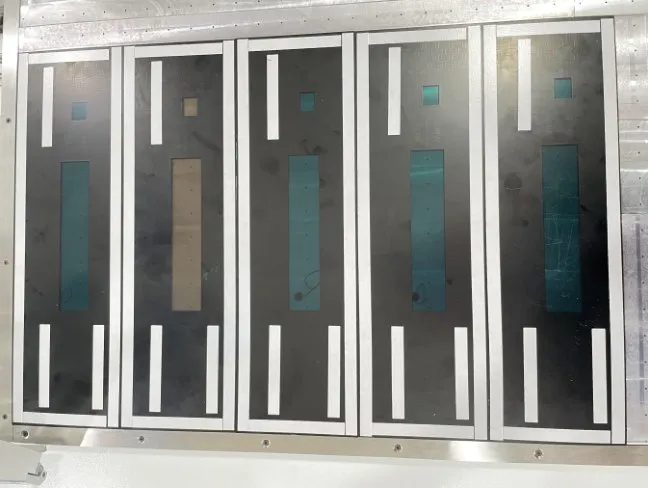

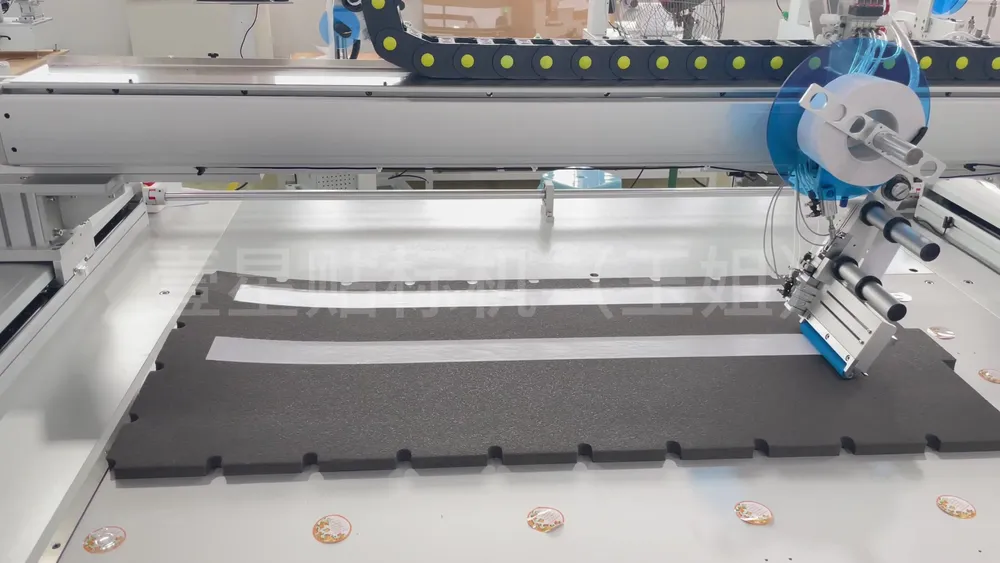

Several tape positions on one long panel, as in the brochure samples.
A custom-built model: the taping stroke is designed around the customer's part instead of a fixed standard.

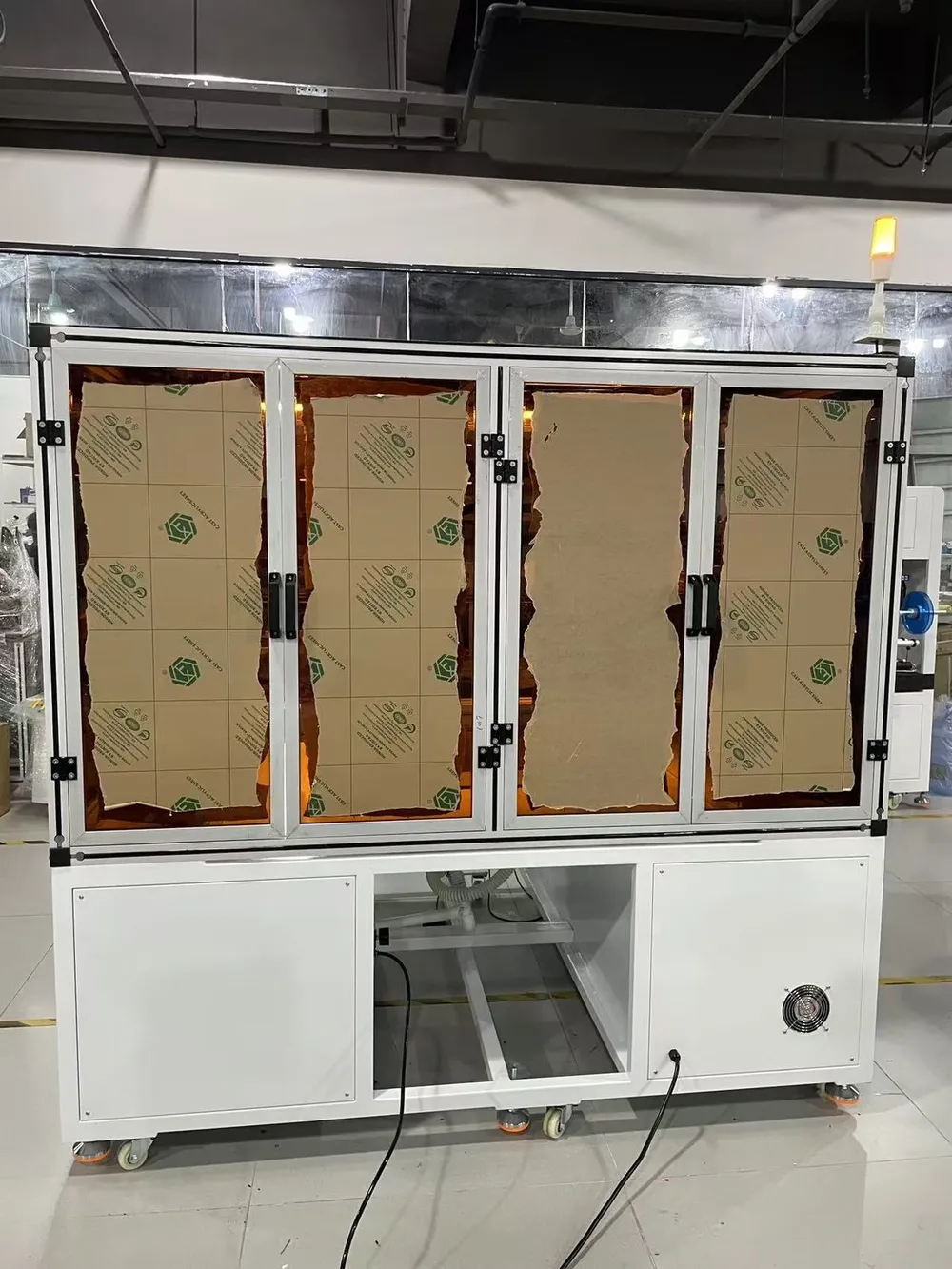

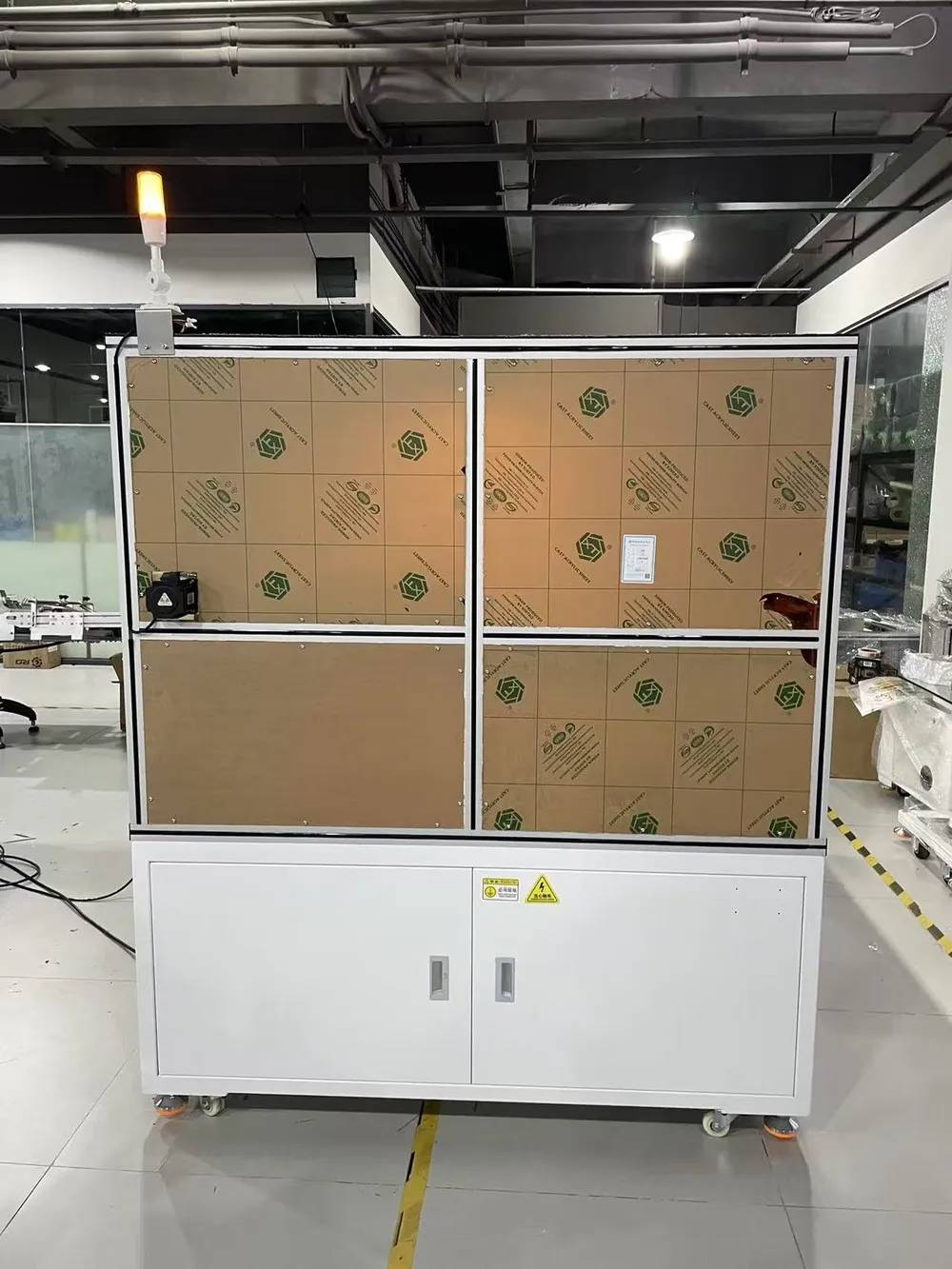

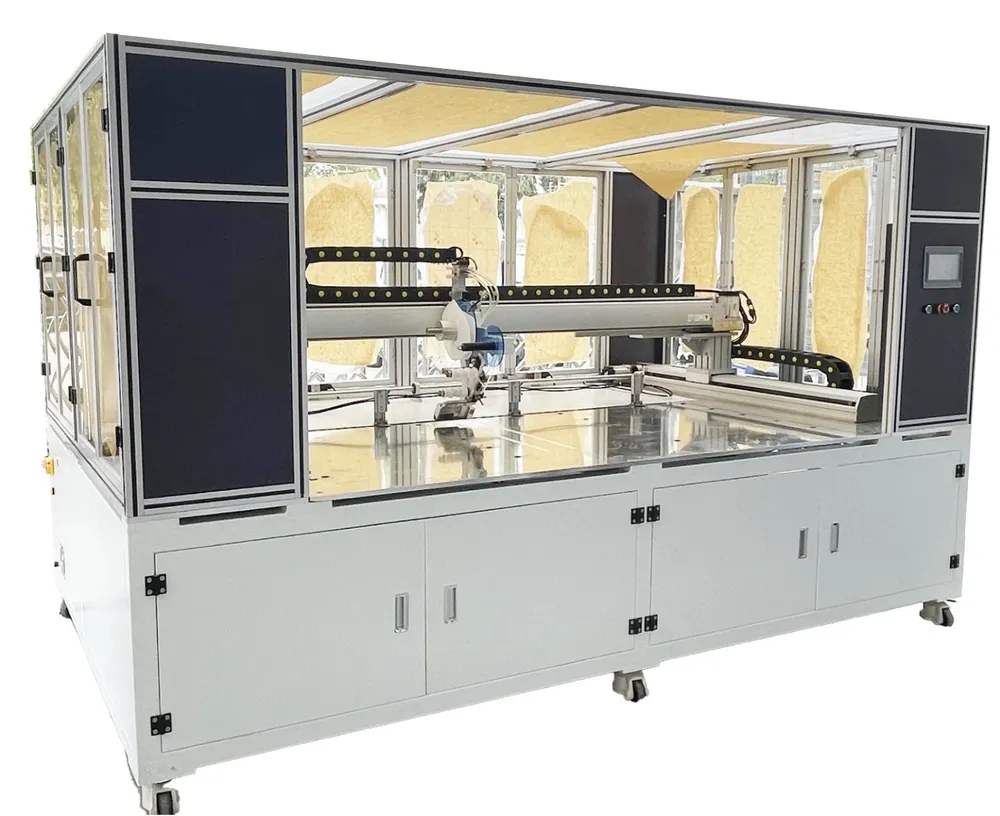

The machine in the brochure is fully enclosed, keeping moving parts inside the guard.
Although custom-built, it is rated at ±1 mm (excluding product and tape tolerances) and 500 mm/s, with tape 3–50 mm wide.
Real samples from the brochure, produced on this machine type
| Taping accuracy | ±1 mm (excluding product and tape tolerances) |
|---|---|
| Taping speed | 500 mm/s (depends on product and tape size) |
| Product size range | Custom-built to the customer's product |
| Tape specifications | Width (liner width) 3–50 mm; reel core ID 76 mm, reel OD 250 mm |
| Machine dimensions | Approx. 1500 × 1600 × 1500 mm (L × W × H) |
| Power supply | 220 V / 50 Hz |
| Machine weight | 220 kg |
Standard-model data from the brochure; accuracy excludes product and tape tolerances. Other ranges can be custom-built.
No — it is a custom-built machine, and the stroke is designed around the customer's product. The brochure unit measures approx. 1500 × 1600 × 1500 mm.
The X axis moves the tape head front to back; the Y and Z axes handle the left-right taping moves.
Yes. One brochure sample is a panel taped along its full outline; another shows tape at several positions on long panels.
Yes. The 3-axis machine shown in the brochure has a full safety enclosure.
±1 mm taping accuracy (excluding product and tape tolerances), 500 mm/s, and tape 3–50 mm wide (liner width) on reels with a 76 mm core ID and 250 mm OD.
The 2-axis model moves the head on X and the table on Y within a fixed standard stroke. The 3-axis model moves the head front to back on X and left to right on Y and Z, with a stroke built around the customer's product — suited to outline and multi-position taping.
