The YIXING semi-automatic round bottle labeling machine wraps labels around cylindrical bottles that the operator places on the machine one at a time. It labels at ±0.5 mm accuracy and 15–30 pcs/min, takes bottles from Ø10 to 120 mm, and comes in a pneumatic-electric or an all-electric version.
Updated
Sample testing available Custom builds available
This semi-automatic labeler applies wrap-around labels to cylindrical products such as xylitol gum bottles, cosmetic bottles, pharmaceutical bottles and chemical bottles. The operator lays each bottle on the machine, labeling is triggered by a sensor or a foot pedal, and the labeled bottle is taken off — one in, one out. It suits small batches with frequent product changes, and plants taking their first step away from hand labeling.

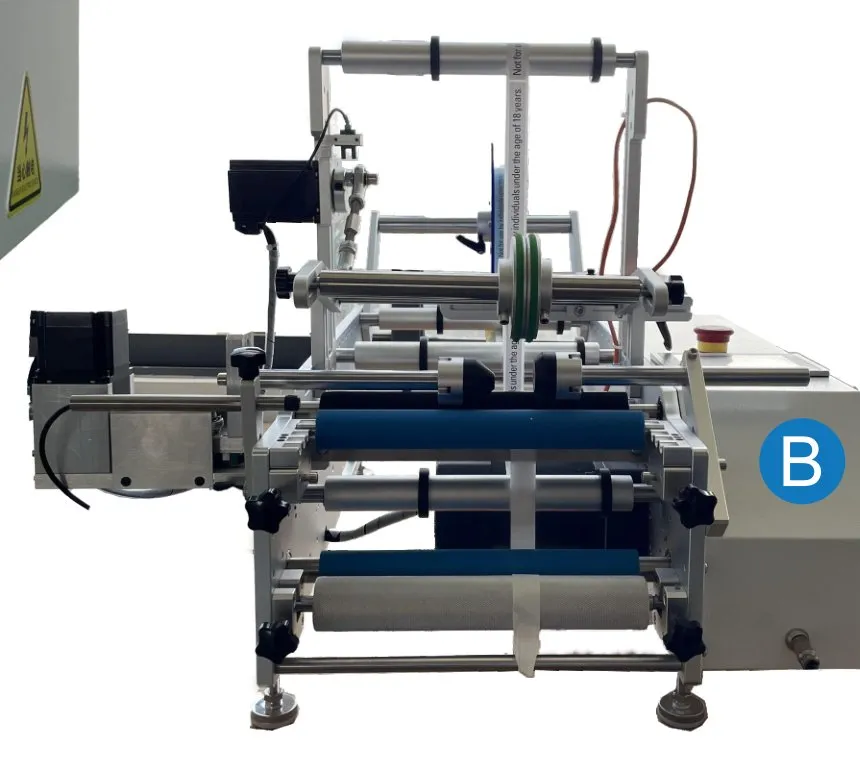

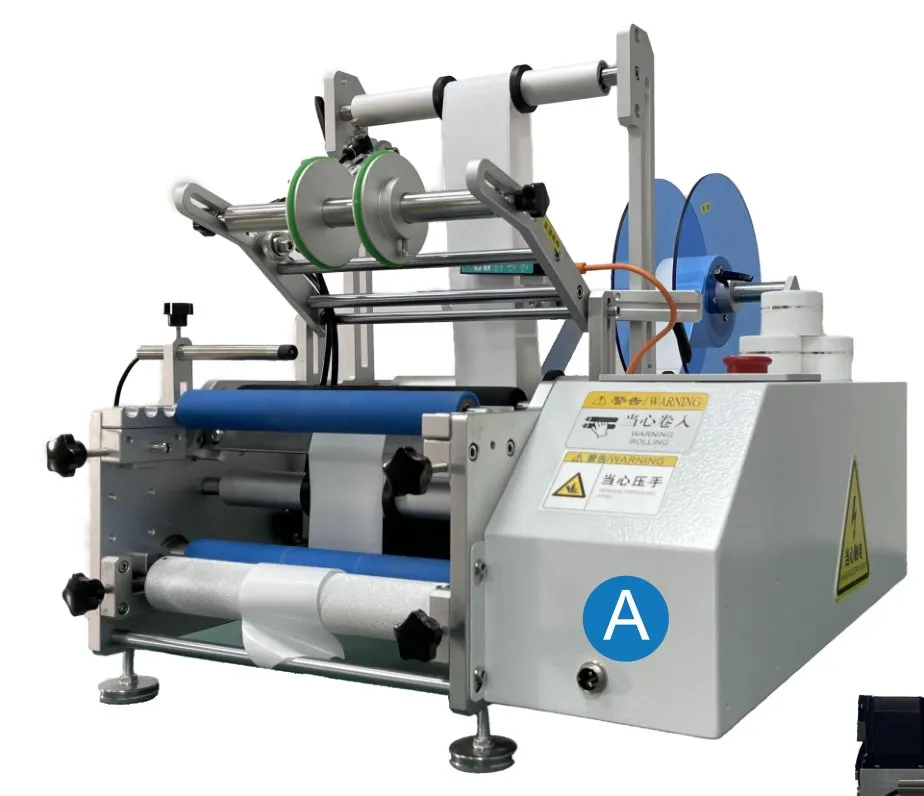

Two versions match different workshops: the pneumatic-electric version is for plants that already run an air compressor, while the all-electric version needs no compressed air at all. The machine measures approx. 920 × 480 × 500 mm, weighs 45 kg and runs on 220 V / 50 Hz, so it fits into small spaces and moves easily between lines.
It can apply a single label or two labels, with the gap between the two labels freely adjustable. An optional circumferential positioning sensor places the label at a fixed point on the bottle, and an optional ribbon coder prints batch numbers and dates on the label in the same step. Labels from 20 to 400 mm long and 20 to 220 mm wide (liner width) are supported; anything beyond these ranges can be custom-built.
Pneumatic-electric for plants with compressed air, all-electric for plants without an air compressor.
±0.5 mm (excluding product and label tolerances) — precise enough for cosmetic and pharmaceutical bottles.
Apply one label or a front-and-back pair; the spacing between the two labels is freely adjustable.
The optional circumferential positioning sensor puts the label at the same spot on every bottle, clear of seams or artwork.
An optional ribbon coder prints batch numbers and dates onto the label, removing a separate coding step.
Two trigger modes keep operation simple, so new operators learn it quickly.

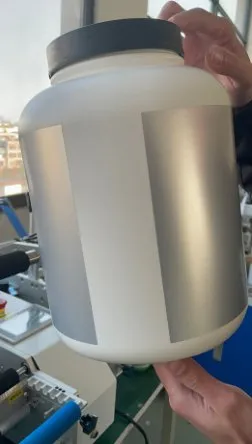

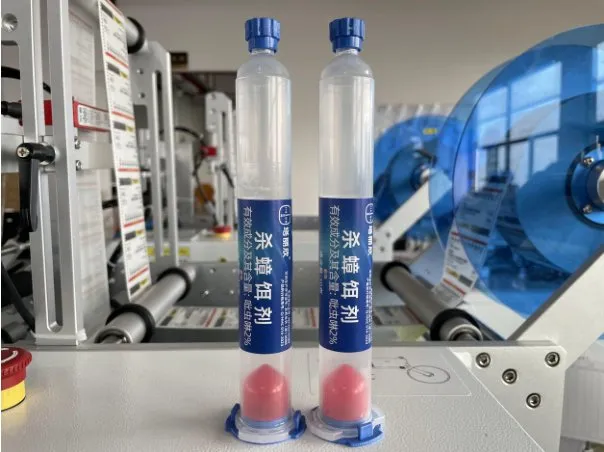

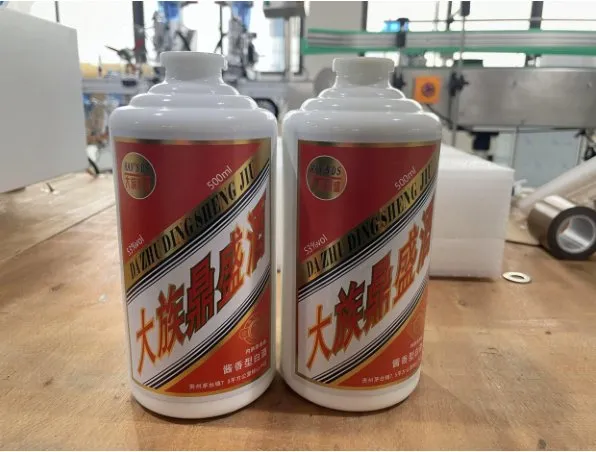

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.5 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 15–30 pcs/min (depends on product and label size) |
| Product diameter | Ø10–120 mm |
| Label size range | Length 20–400 mm; width (liner width) 20–220 mm |
| Machine dimensions | Approx. 920 × 480 × 500 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 45 kg |
| Remarks | Requirements beyond these ranges can be custom-built |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Products from Ø10 to 120 mm in diameter, with labels 20–400 mm long and 20–220 mm wide (liner width). Larger requirements can be custom-built.
Yes. Choose the all-electric version, which needs no compressed air. Plants that already have a compressor can choose the pneumatic-electric version.
15–30 pcs/min at ±0.5 mm accuracy (excluding product and label tolerances). Actual speed depends on product and label size.
Yes, with the optional ribbon coder, which prints batch numbers and dates onto the label as it is applied.
It supports single and double labels with adjustable spacing, and the optional circumferential positioning sensor places the label at a fixed point on the circumference.
Approx. 920 × 480 × 500 mm and 45 kg, powered by 220 V / 50 Hz.
Brochure p. 18 ±1 mm The YIXING automatic positioning round bottle labeling machine labels cylindrical bottles that stand on their own. Each bottle is conveyed upright to the labeling station, rotated one full turn as the label goes on, then discharged — at 30–60 pcs/min and ±1 mm, with single or double labels in partial or full wrap.
Brochure p. 19 ±2 mm The YIXING automatic roll-rubbing wrap-around labeling machine is a high-speed single-label labeler for upright cylindrical bottles and jars. Products are conveyed to the labeling station, labeled, then roll-rubbed so the label wraps onto the body before discharge — at 60–120 pcs/min and ±2 mm, for Ø20–100 mm.
Brochure p. 21 ±1 mm The YIXING automatic horizontal round bottle labeling machine labels cylindrical products that will not stand steadily, such as filter cartridges, oral liquid vials, injection vials, syringes and lipstick tubes. A feed structure separates them one by one for full or partial wrap labeling at 100–200 pcs/min and ±1 mm.
Brochure p. 29 ±0.5 mm The YIXING semi-automatic roll-on + rotary multi-face labeling machine combines front-and-back roll-on and rotary labeling in one unit. It labels round, square, flat, hexagonal and triangular bottles on one face or several, applies labels by rolling to avoid bubbles, and works at ±0.5 mm and 15–25 pcs/min.
