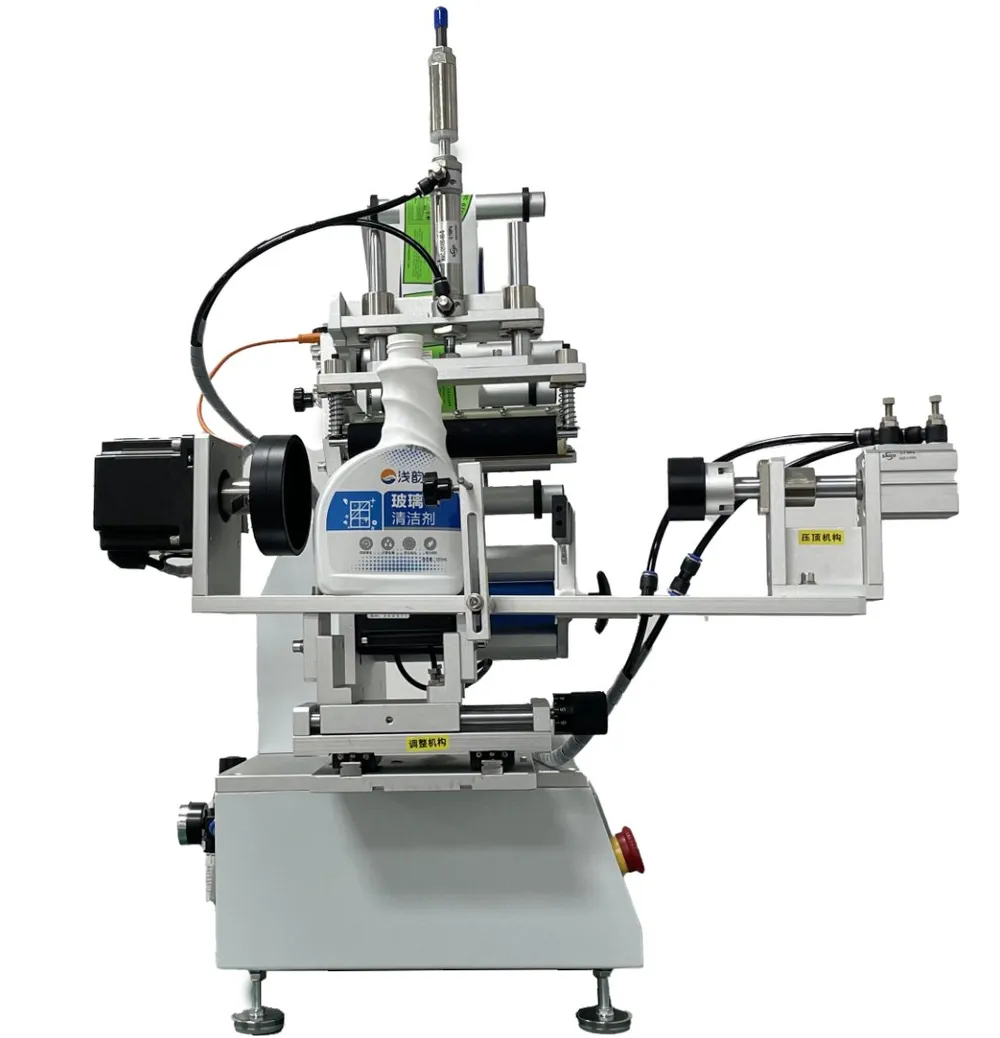

The YIXING semi-automatic roll-on + rotary multi-face labeling machine combines front-and-back roll-on and rotary labeling in one unit. It labels round, square, flat, hexagonal and triangular bottles on one face or several, applies labels by rolling to avoid bubbles, and works at ±0.5 mm and 15–25 pcs/min.
Updated
Sample testing available Custom builds available
This semi-automatic labeler is for plants that run many bottle shapes: one machine labels round, square, flat, hexagonal and triangular bottles, on a single face or on several faces. It is used mainly in cosmetics, food and household products, for example shampoo bottles, red wine bottles, medicine bottles and food bottles, and the brochure samples include trigger spray bottles and other shaped plastic bottles.
As the name says, it combines front-and-back roll-on labeling with rotary labeling. The operator places each product in a fixture and the label is applied by rolling, which avoids air bubbles under the label. Labeling accuracy is ±0.5 mm (excluding product and label tolerances) and speed is 15–25 pcs/min depending on product and label size, a good match for small batches of many SKUs.
It accepts products 20–150 mm long, 20–150 mm wide and 0.2–300 mm high, with labels 15–100 mm long and 15–170 mm wide (liner width); larger labels are available as a custom build. A ribbon coder can be added to print production dates and batch numbers. The unit is approx. 850 × 410 × 720 mm and 59 kg, on 220 V / 50 Hz.

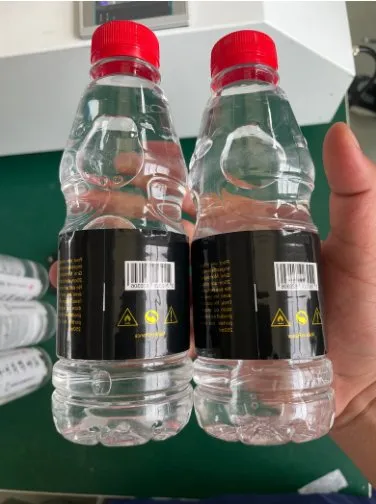

Round, square, flat, hexagonal and triangular bottles all run on the same labeler.
Apply a single label to one face, or label several faces of the same bottle.

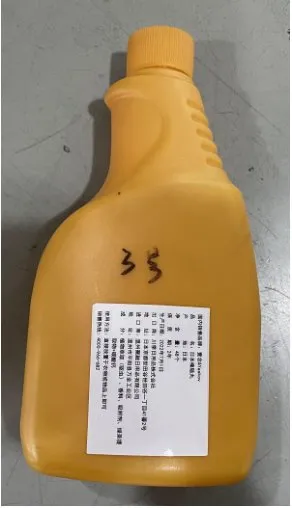

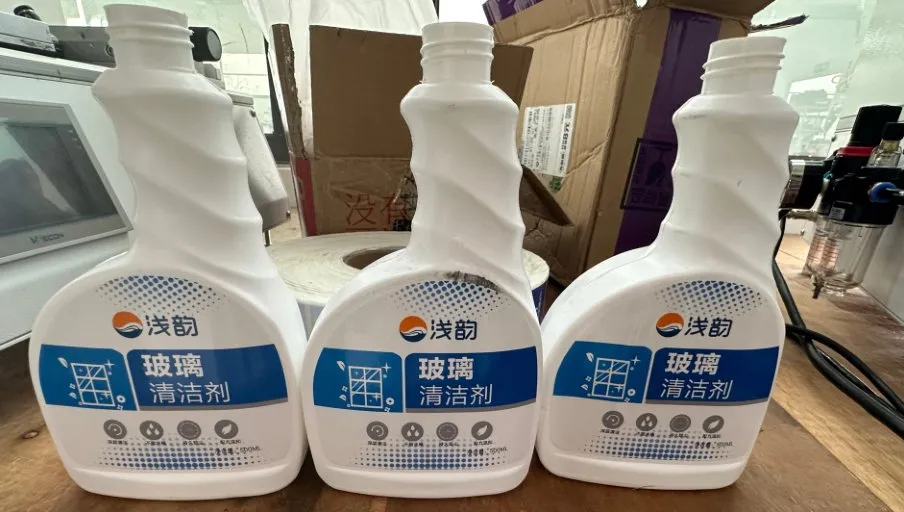

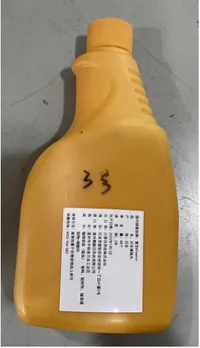

Labels are applied by rolling, which avoids air bubbles, as on the trigger spray and shaped plastic bottle samples.

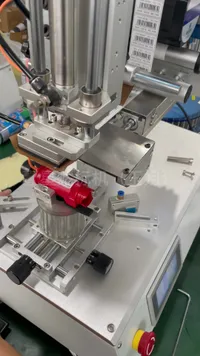

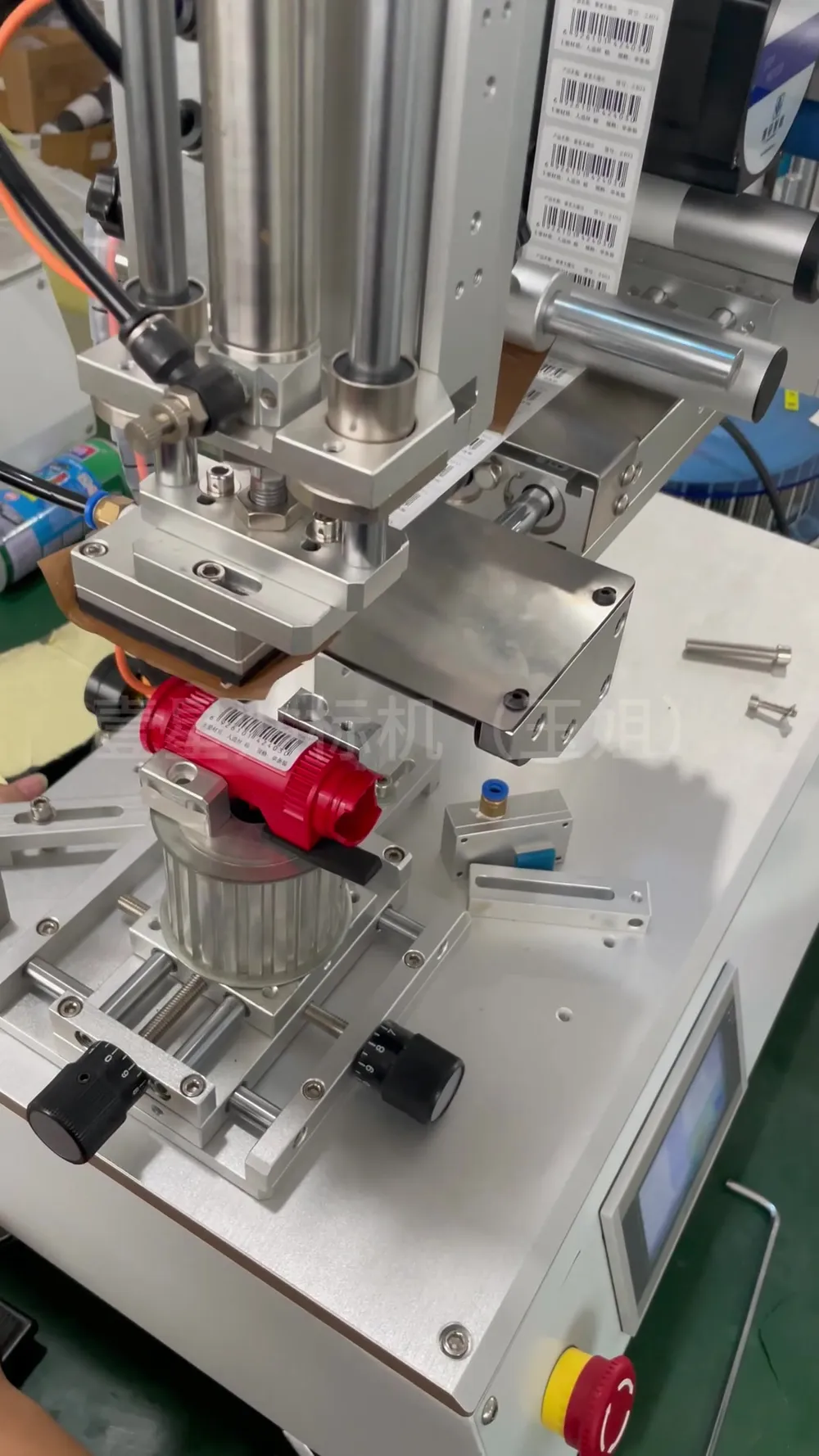

Each product sits in a fixture during labeling, for ±0.5 mm accuracy (excluding product and label tolerances).
Print production dates and batch numbers on the label during labeling.
Approx. 850 × 410 × 720 mm and 59 kg, on 220 V / 50 Hz.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.5 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 15–25 pcs/min (depends on product and label size) |
| Product size range | Length 20–150 mm; width 20–150 mm; height 0.2–300 mm |
| Label size range | Length 15–100 mm; width (liner width) 15–170 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 850 × 410 × 720 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 59 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Round, square, flat, hexagonal and triangular bottles, labeled on one face or on several faces.
The machine applies labels by rolling, and the roll-on method avoids air bubbles under the label.
Bottles 20–150 mm in length and width and 0.2–300 mm high, with labels 15–100 mm long on a 15–170 mm liner. Bigger labels can be made to order.
It labels 15–25 bottles per minute, depending on bottle and label size, at ±0.5 mm (excluding product and label tolerances).
Both hold the product in a fixture and apply labels by rolling. This model also labels flat bottles, can label just one face, and targets cosmetics, food and household products. The rotary model focuses on multi-face labeling of round, square, hexagonal and triangular bottles for electronics and food, and can be custom-built for tapered bottles.
Approx. 850 × 410 × 720 mm, 59 kg, 220 V / 50 Hz. A ribbon coder can be added to print production dates and batch numbers.
