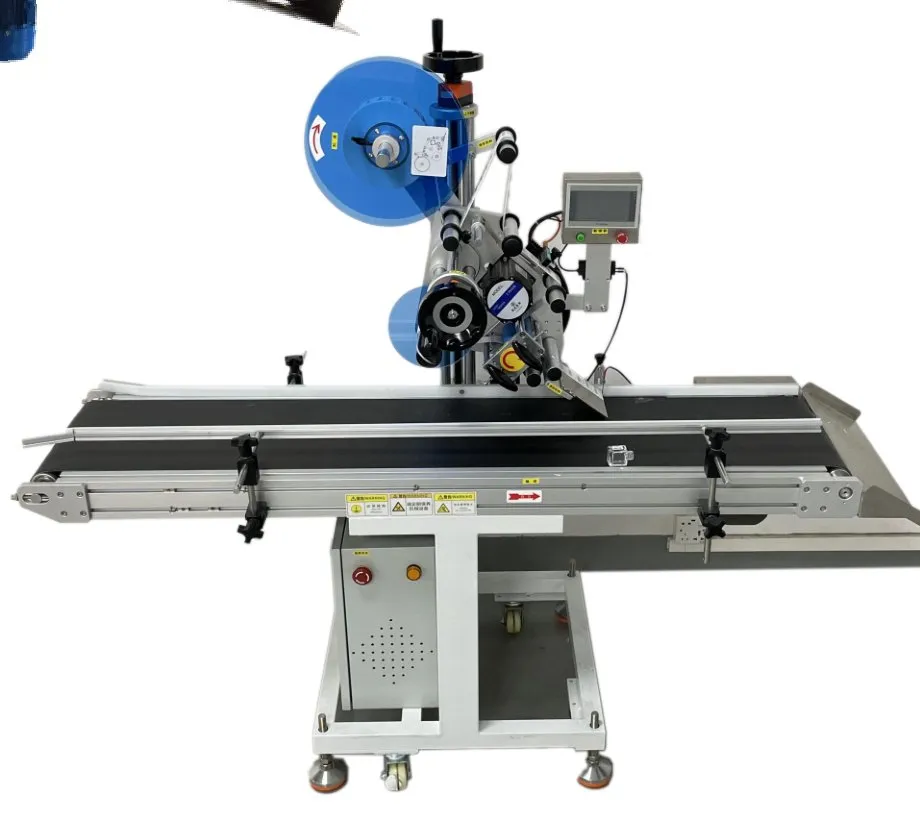

The YIXING automatic flat top-surface labeling machine labels the top of products carried one by one on a conveyor — books, folders, boxes, cartons and more. It works at ±1 mm accuracy and 40–120 pcs/min, takes products up to 400 × 300 mm and 0.2–150 mm high, and comes in a basic and a standard version.
Updated
Sample testing available Custom builds available
This conveyor labeler applies labels to the top surface of all kinds of items. Typical products are books, folders, boxes and cartons; the brochure samples also include gift boxes, food pouches, plastic parts, round tin lids and carded retail packs. Products are placed on the conveyor one by one and labeled as they reach the labeling station, a good fit for continuous production in printing, stationery, food, personal care, electronics and pharmaceuticals.
It handles products 10–400 mm long, 10–300 mm wide and 0.2–150 mm high, from thin sheets to deep boxes, with labels 6–250 mm long and 6–150 mm wide (liner width); larger labels can be custom-built. Accuracy is ±1 mm (excluding product and label tolerances) and speed is 40–120 pcs/min, depending on product and label size.
The machine is offered in a basic and a standard version. For coding there are two routes: add a ribbon coder or inkjet coder to print dates, batch numbers or barcodes on the label, or mount an inkjet coder on the conveyor to print directly on the product before or after labeling. Either way, a separate coding step disappears. The machine measures approx. 1500 × 1000 × 1350 mm and runs on 220 V / 50 Hz.

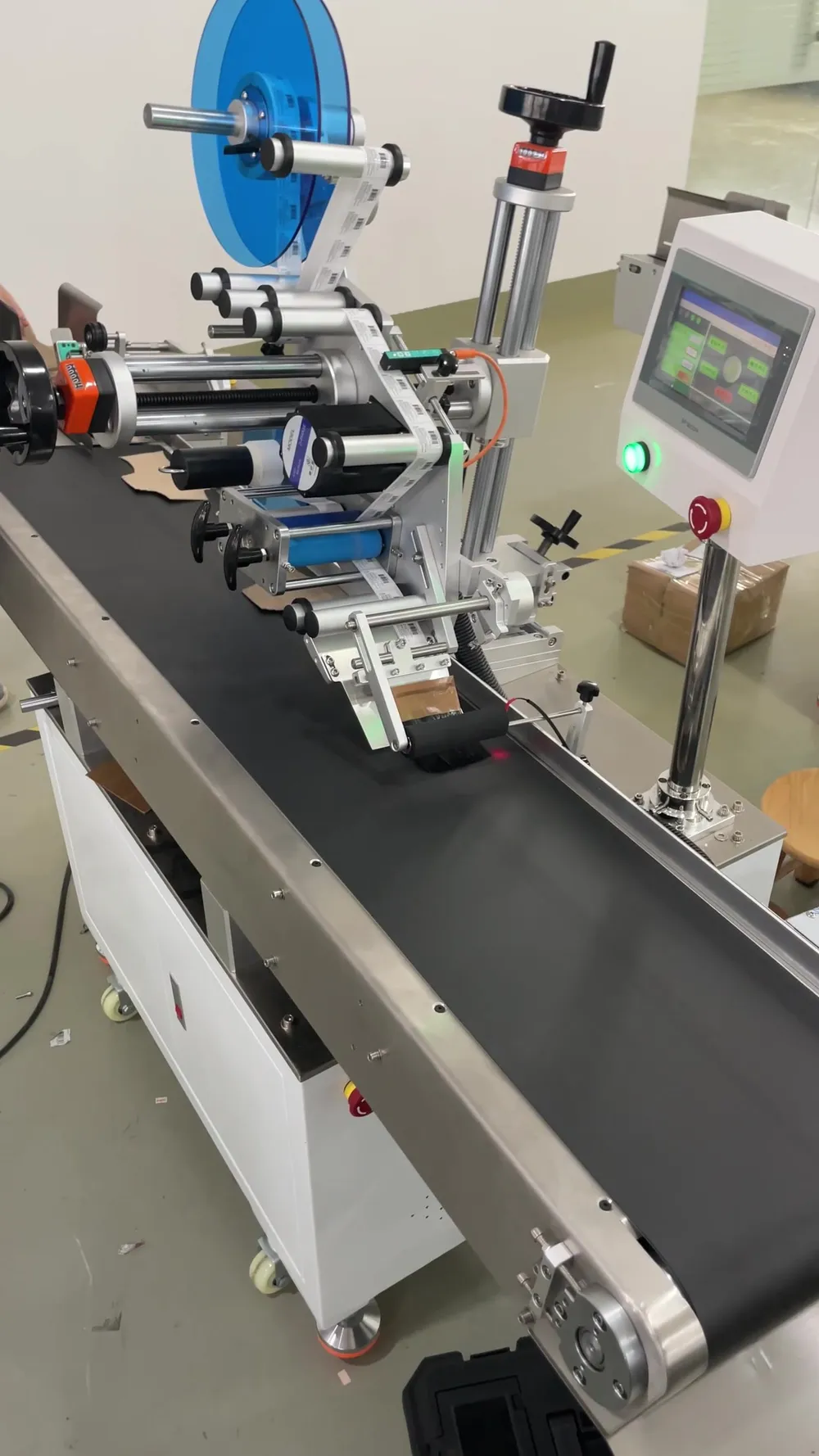

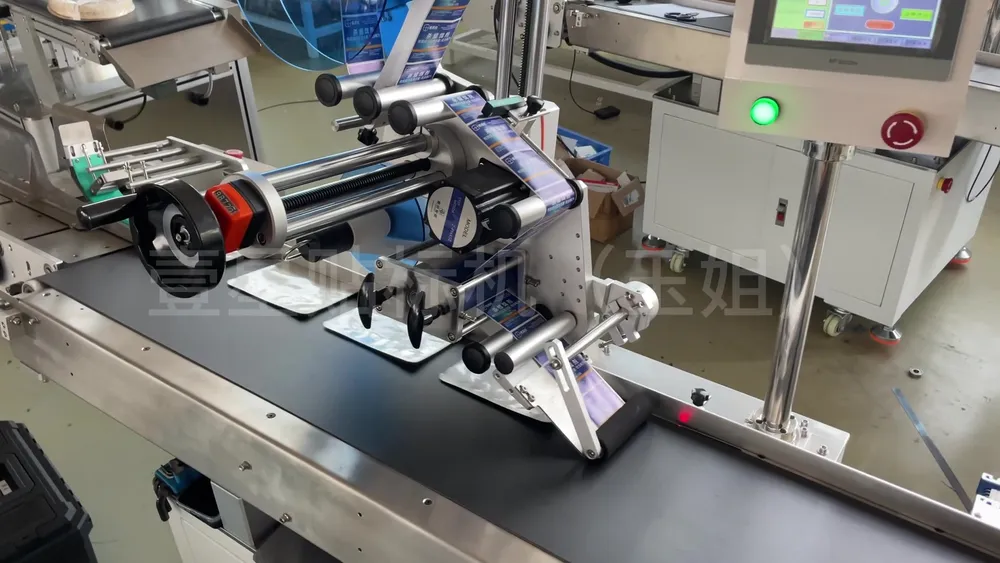

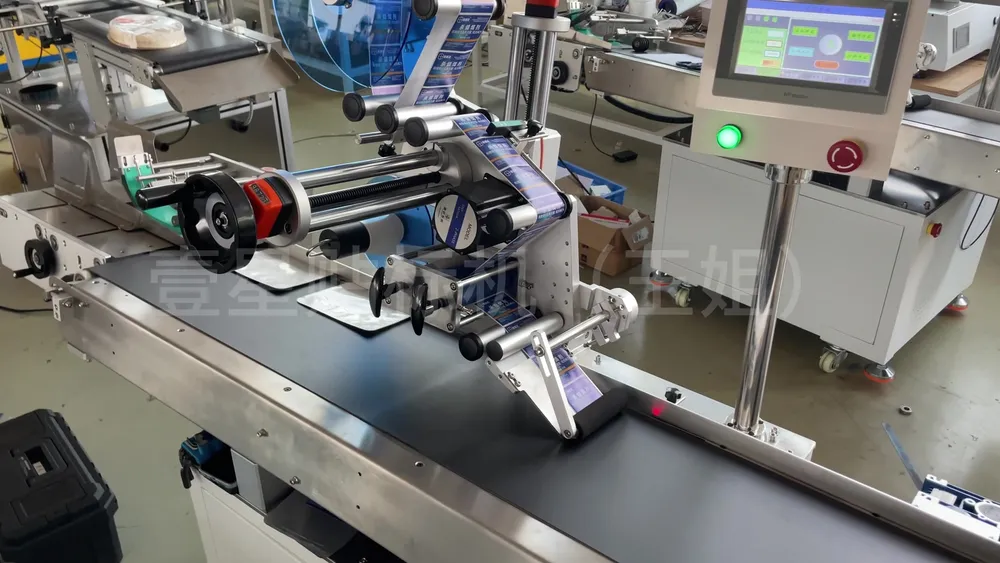

Products placed on the conveyor one by one are labeled on top automatically at 40–120 pcs/min.
Products 10–400 mm long, 10–300 mm wide and 0.2–150 mm high, covering books, folders, boxes and cartons.
Two versions are available; choose according to your product and line requirements.
±1 mm (excluding product and label tolerances), with labels 6–250 mm long and 6–150 mm wide (liner width).
A ribbon or inkjet coder prints dates, batch numbers and barcodes on the label; a conveyor inkjet coder prints on the product before or after labeling.
Top-surface labeling for printing, stationery, food, personal care, electronics and pharmaceutical products.

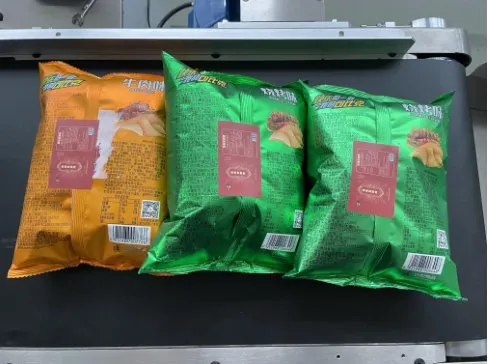

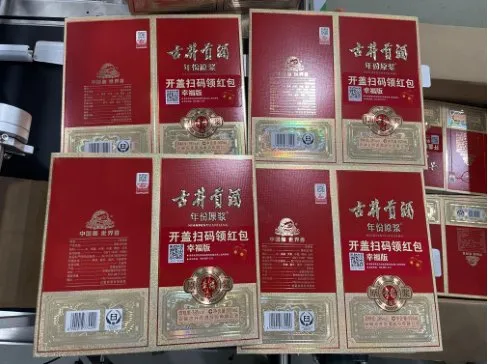

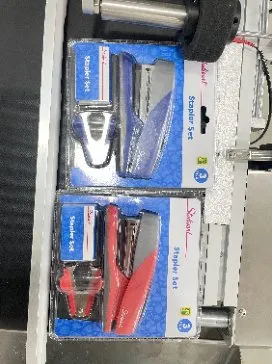

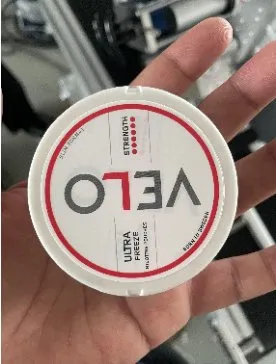

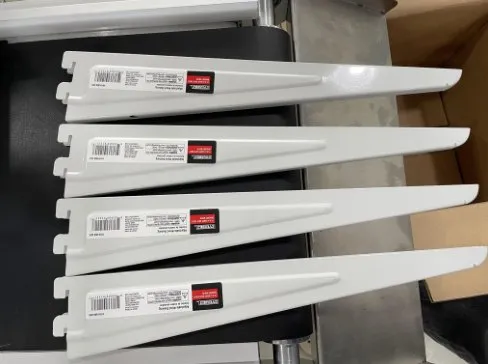

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 40–120 pcs/min (depends on product and label size) |
| Product size range | Length 10–400 mm; width 10–300 mm; height 0.2–150 mm |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 1500 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Top labeling of books, folders, boxes, cartons, gift boxes, food pouches, carded packs and similar items 10–400 mm long, 10–300 mm wide and 0.2–150 mm high.
40–120 pcs/min at ±1 mm (excluding product and label tolerances); the real rate depends on product and label size.

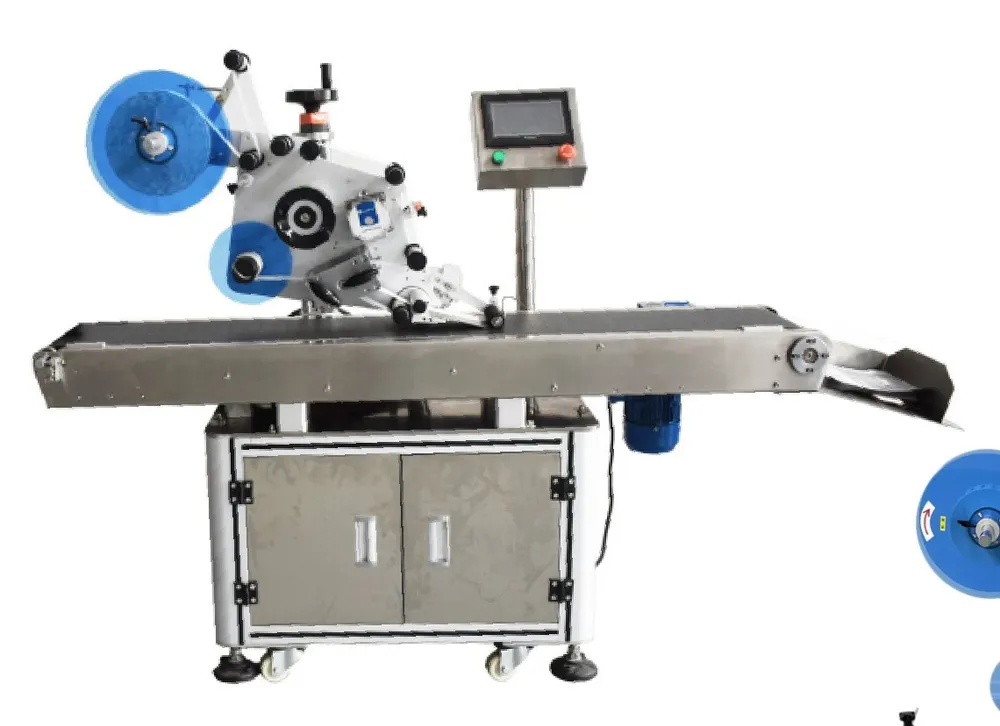

A basic version and a standard version. The brochure shows two machine builds; choose based on your product and line requirements.
Yes. An optional ribbon or inkjet coder prints them on the label, or an inkjet coder mounted on the conveyor prints them on the product before or after labeling.
Labels 6–250 mm long and 6–150 mm wide (liner width). Larger labels can be custom-built.
Approx. 1500 × 1000 × 1350 mm, powered by 220 V / 50 Hz.

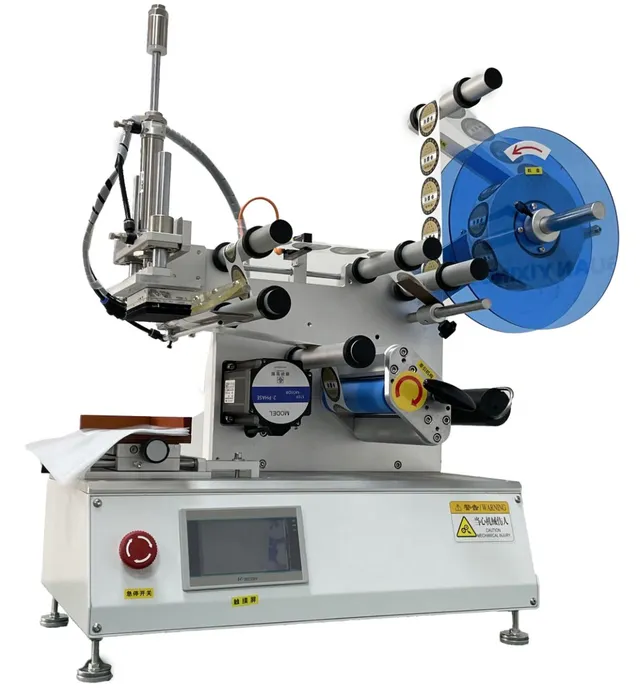

Brochure p. 22 ±0.5 mm The YIXING semi-automatic flat surface labeling machine applies labels to the top surface of bags, boxes and plastic lids by suction, with vacuum and air-blow working together. Products are placed one at a time in a fixture; accuracy is ±0.5 mm at 15–25 pcs/min, for items up to 200 × 200 mm and 120 mm tall.

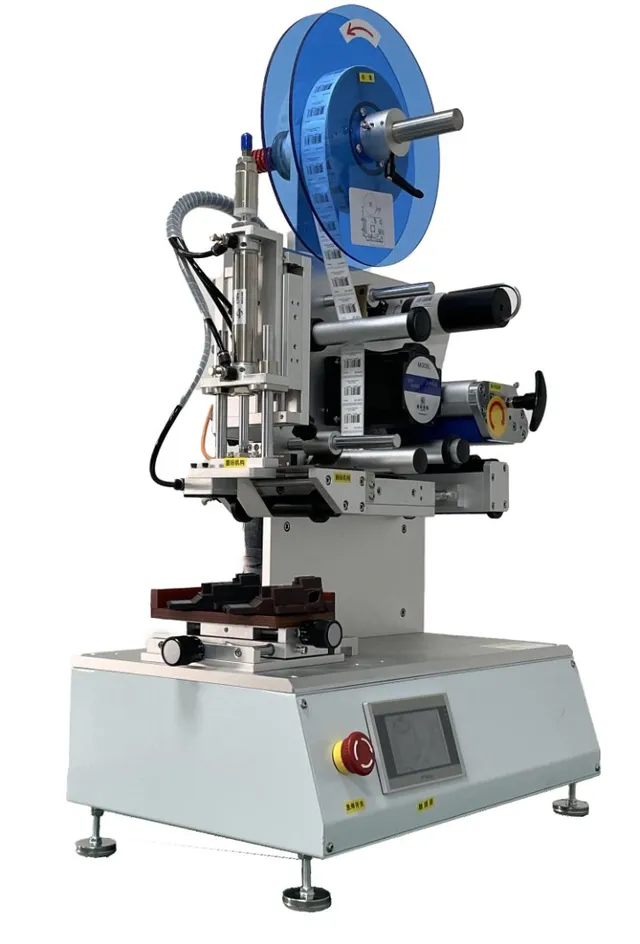

Brochure p. 23 ±0.3 mm The YIXING semi-automatic high-precision labeling machine applies small labels to the top surface of electronic components, bags, boxes and plastic lids at ±0.3 mm accuracy. Products sit one at a time in a fixture and labels are applied by suction (vacuum + air-blow) at 15–25 pcs/min. It needs 0.4–0.6 MPa air.

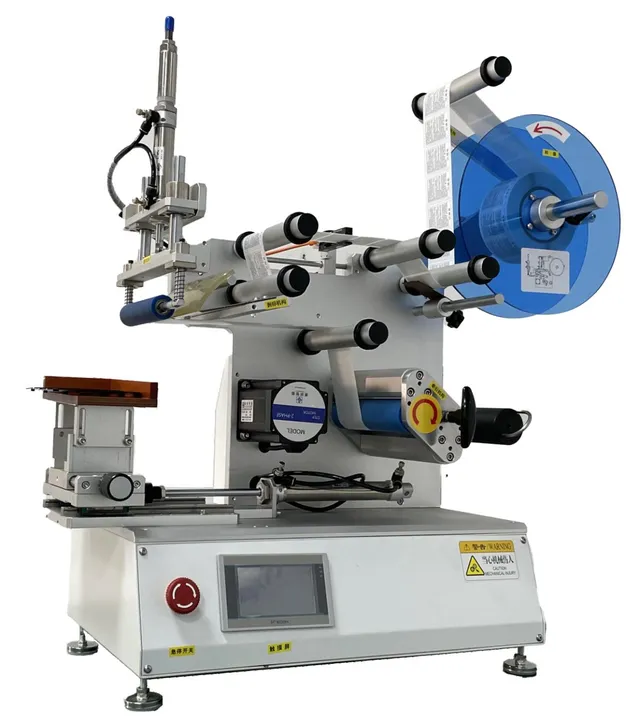

Brochure p. 24 ±0.5 mm The YIXING semi-automatic front-and-back roll-on labeling machine is for phone-case film and products with large labels. The product is held in a fixture and the label is rolled on, which avoids air bubbles. It works at ±0.5 mm and 15–25 pcs/min, takes products up to 300 mm high and weighs 55 kg.

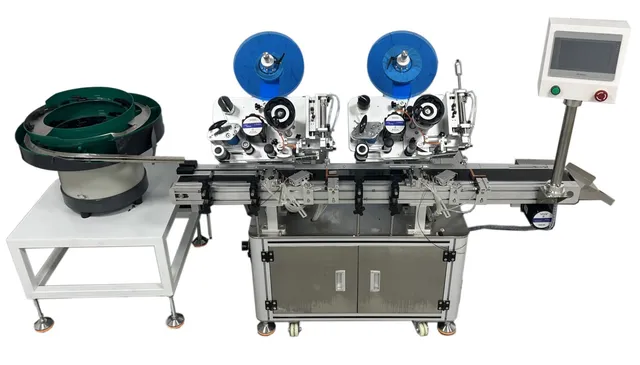

Brochure p. 20 ±0.5 mm The YIXING automatic high-precision labeling machine applies labels by suction (vacuum plus air blow) to products held one by one in a fixture. It reaches ±0.5 mm accuracy at 25–35 pcs/min and can be configured to label the top, the bottom or both surfaces of parts up to 150 × 150 mm.
