中文半自动高精度贴标机

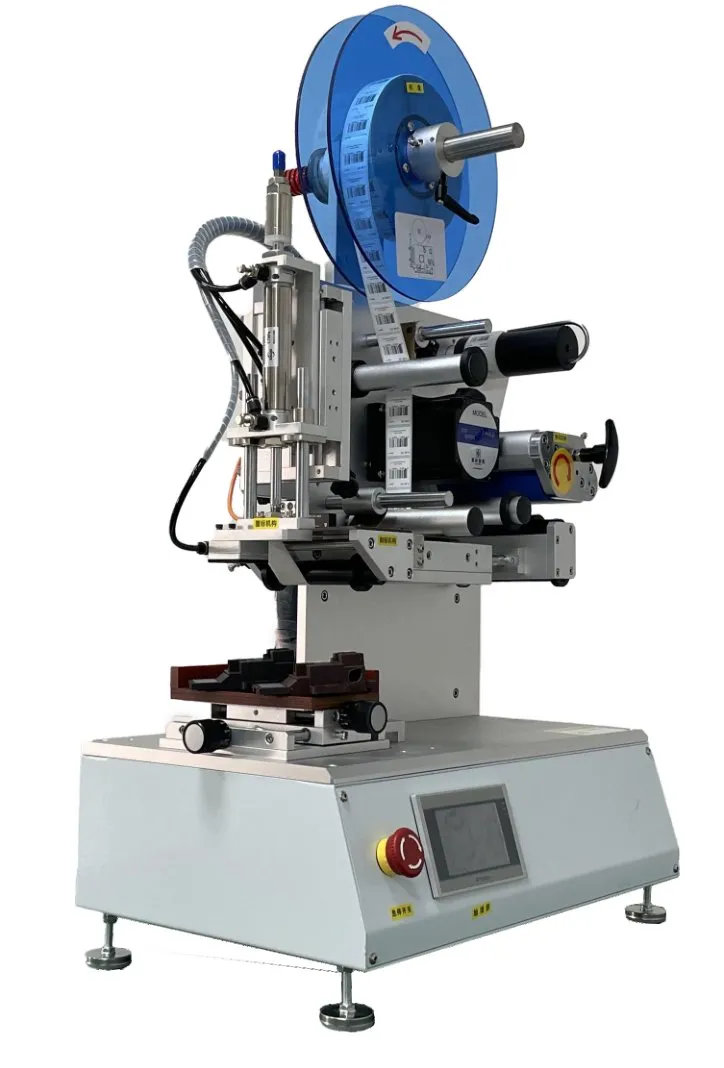

The YIXING semi-automatic high-precision labeling machine applies small labels to the top surface of electronic components, bags, boxes and plastic lids at ±0.3 mm accuracy. Products sit one at a time in a fixture and labels are applied by suction (vacuum + air-blow) at 15–25 pcs/min. It needs 0.4–0.6 MPa air.
Updated
Sample testing available Custom builds available

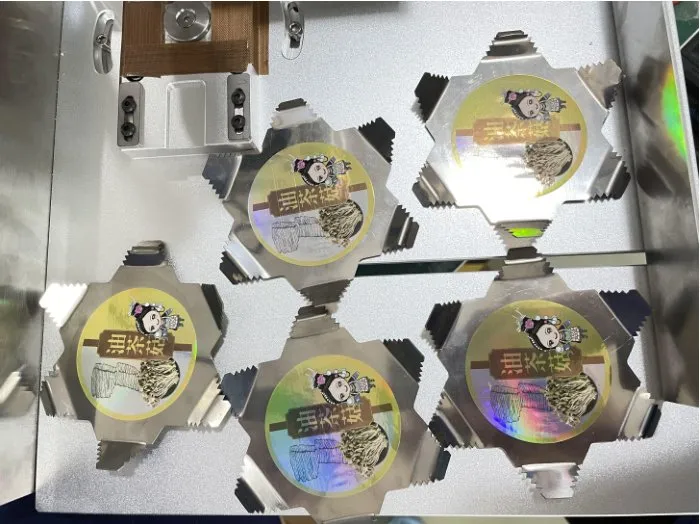

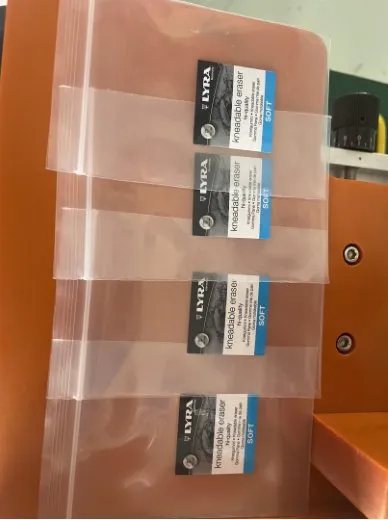

When label position really matters, this machine delivers ±0.3 mm labeling accuracy (excluding product and label tolerances) on flat top surfaces. It is suited to electronic components as well as packaging bags, boxes and plastic lids; the brochure samples show plastic trays, clear bags and hexagonal parts.
Each part is placed in a fixture, and the machine applies the label by suction, with vacuum and air-blow acting together, at 15–25 pcs/min depending on product and label size. Its label range favors small labels, 10–60 mm long and 6–70 mm wide (liner width), with larger labels available as custom builds. Products 20–200 mm long, 20–180 mm wide and 0.2–75 mm high are supported.

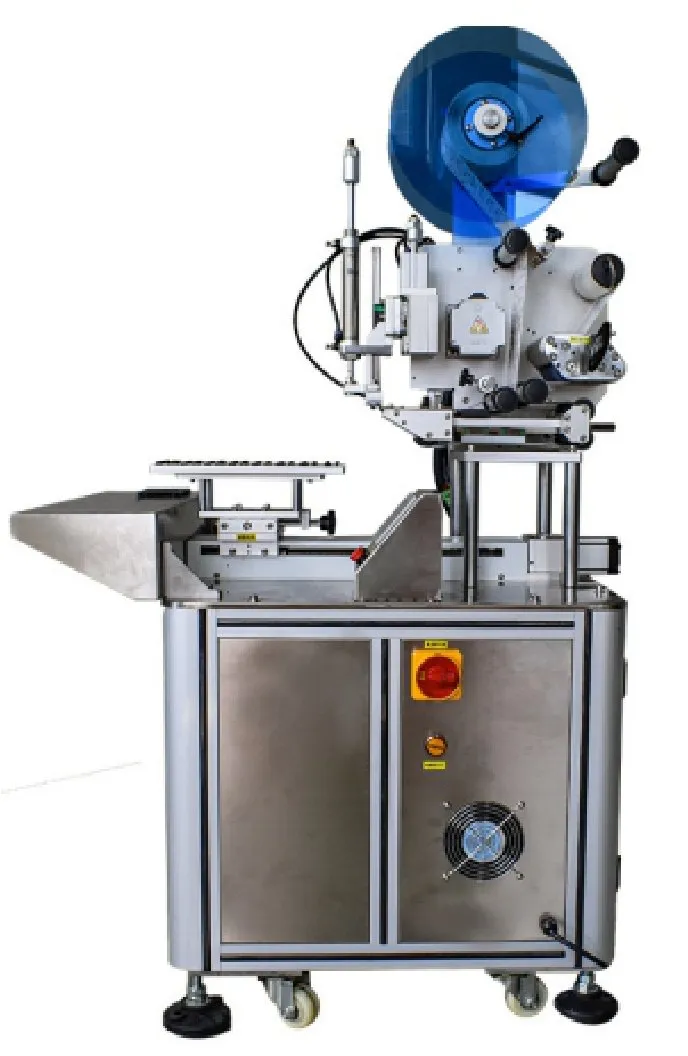

The machine measures approx. 550 × 420 × 780 mm, weighs 67 kg, runs on 220 V / 50 Hz and needs compressed air at 0.4–0.6 MPa. The brochure also shows it mounted on a floor cabinet. An optional coder prints production dates and batch numbers on the label.
±0.3 mm labeling accuracy (excluding product and label tolerances) for jobs where label position is critical.
Labels 10–60 mm long and 6–70 mm wide are applied by vacuum suction and air-blow, suited to electronic components.
Approx. 550 × 420 × 780 mm and 67 kg; the brochure also shows it on a floor cabinet.
Parts 20–200 mm long, 20–180 mm wide and 0.2–75 mm high are located in a fixture for each label.
Runs on 220 V / 50 Hz with compressed air at 0.4–0.6 MPa.
Prints production dates and batch numbers onto the label.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.3 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 15–25 pcs/min (depends on product and label size) |
| Product size range | Length 20–200 mm; width 20–180 mm; height 0.2–75 mm |
| Label size range | Length 10–60 mm; width (liner width) 6–70 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 550 × 420 × 780 mm |
| Power supply | 220 V / 50 Hz |
| Air pressure | 0.4–0.6 MPa |
| Machine weight | 67 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
±0.3 mm (excluding product and label tolerances), at 15–25 pcs/min.
The top surface of electronic components, packaging bags, boxes and plastic lids. Brochure samples include plastic trays, clear bags and hexagonal parts.
Labels from 10 to 60 mm long and 6 to 70 mm wide (liner width). Larger labels can be built to order.
Yes. It uses an air supply of 0.4–0.6 MPa and power of 220 V / 50 Hz.
Products 20–200 mm long, 20–180 mm wide and 0.2–75 mm high. The machine is approx. 550 × 420 × 780 mm and weighs 67 kg.
Both locate the product in a fixture and apply labels by suction. This model is more accurate (±0.3 mm) and aimed at small labels and electronic components; the flat surface labeler takes larger labels and taller products.
Brochure p. 22 ±0.5 mm The YIXING semi-automatic flat surface labeling machine applies labels to the top surface of bags, boxes and plastic lids by suction, with vacuum and air-blow working together. Products are placed one at a time in a fixture; accuracy is ±0.5 mm at 15–25 pcs/min, for items up to 200 × 200 mm and 120 mm tall.
Brochure p. 24 ±0.5 mm The YIXING semi-automatic front-and-back roll-on labeling machine is for phone-case film and products with large labels. The product is held in a fixture and the label is rolled on, which avoids air bubbles. It works at ±0.5 mm and 15–25 pcs/min, takes products up to 300 mm high and weighs 55 kg.
Brochure p. 20 ±0.5 mm The YIXING automatic high-precision labeling machine applies labels by suction (vacuum plus air blow) to products held one by one in a fixture. It reaches ±0.5 mm accuracy at 25–35 pcs/min and can be configured to label the top, the bottom or both surfaces of parts up to 150 × 150 mm.
Brochure p. 25 ±1 mm The YIXING automatic flat top-surface labeling machine labels the top of products carried one by one on a conveyor — books, folders, boxes, cartons and more. It works at ±1 mm accuracy and 40–120 pcs/min, takes products up to 400 × 300 mm and 0.2–150 mm high, and comes in a basic and a standard version.
