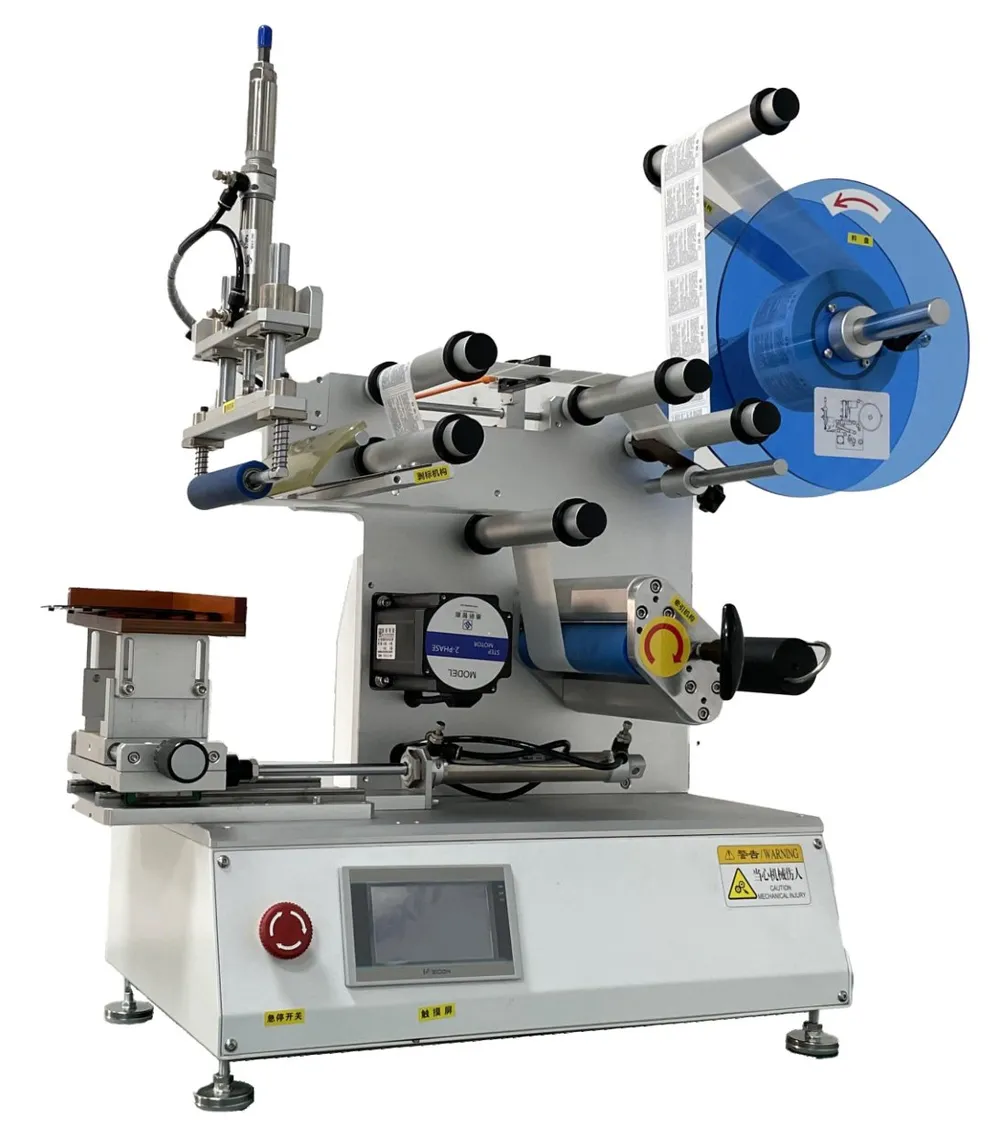

The YIXING semi-automatic front-and-back roll-on labeling machine is for phone-case film and products with large labels. The product is held in a fixture and the label is rolled on, which avoids air bubbles. It works at ±0.5 mm and 15–25 pcs/min, takes products up to 300 mm high and weighs 55 kg.
Updated
Sample testing available Custom builds available

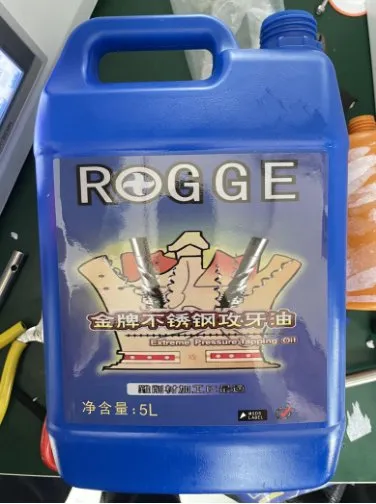

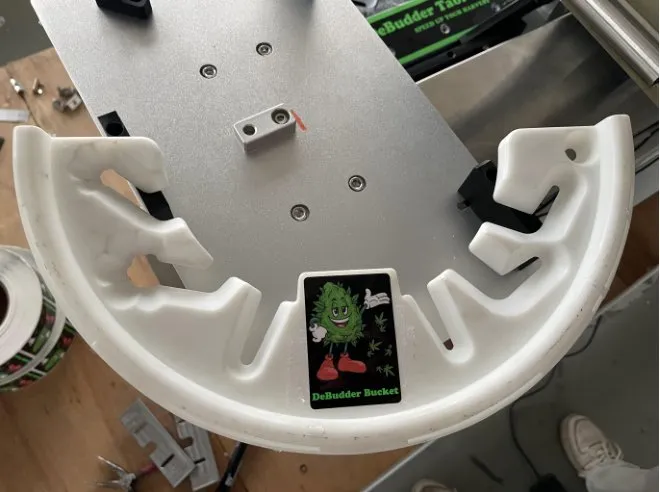

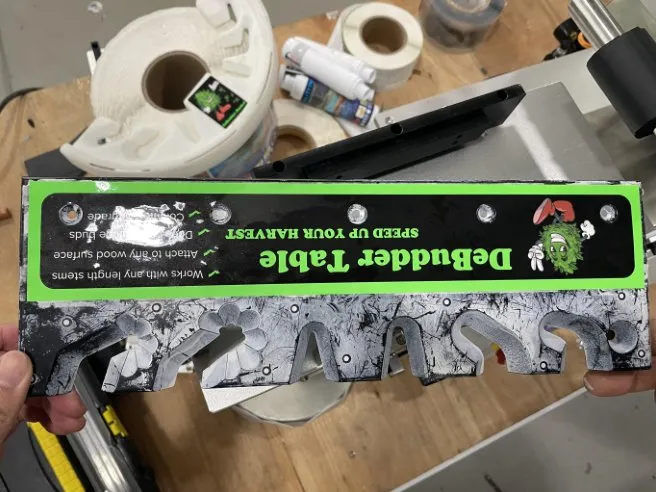

This semi-automatic labeler is intended for two jobs: applying phone-case film, and labeling products that carry fairly large labels. It applies labels by rolling rather than by suction, which avoids air bubbles on large labels. Brochure samples include long, large-format labels, a large label on a plastic jerry can and a product positioned in a fixture.
Held in a fixture, the product is labeled at ±0.5 mm accuracy (excluding product and label tolerances) and 15–25 pcs/min, depending on product and label size. Products can be 20–150 mm long and 20–150 mm wide, with a height range of 0.2–300 mm, enough for thin flat items as well as taller containers like the jerry can in the samples.
Labels from 15 to 100 mm long and 15 to 170 mm wide (liner width) are supported; larger labels can be custom-built. A ribbon coder can be added to print production dates and batch numbers, cutting out a process step. Machine size is approx. 850 × 410 × 720 mm, weight 55 kg, power 220 V / 50 Hz.
Labels are rolled on rather than applied by suction, which avoids air bubbles on larger labels.
Suited to applying phone-case film as well as long, large-format labels.
Products 20–150 mm long and wide with heights from 0.2 to 300 mm fit the fixture.
Each product is held in a fixture for ±0.5 mm accuracy (excluding product and label tolerances).
Prints production dates and batch numbers on the label in the same operation.
Approx. 850 × 410 × 720 mm, running on 220 V / 50 Hz.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.5 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 15–25 pcs/min (depends on product and label size) |
| Product size range | Length 20–150 mm; width 20–150 mm; height 0.2–300 mm |
| Label size range | Length 15–100 mm; width (liner width) 15–170 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 850 × 410 × 720 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 55 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Use roll-on application. The semi-automatic front-and-back roll-on labeler rolls the label onto the product, which avoids bubbles on larger labels.
Yes. It is suited to phone-case film: the case sits in a fixture and the film is rolled on.
Products 20–150 mm long, 20–150 mm wide and 0.2–300 mm high; labels 15–100 mm long and 15–170 mm wide (liner width). Larger labels can be custom-built.
15–25 pcs/min at ±0.5 mm (excluding product and label tolerances); actual speed depends on product and label size.
The flat surface labeler applies labels by suction. This machine rolls them on, which avoids bubbles on larger labels, and it takes products up to 300 mm high.
Approx. 850 × 410 × 720 mm and 55 kg on 220 V / 50 Hz. A ribbon coder can be added for production dates and batch numbers.
