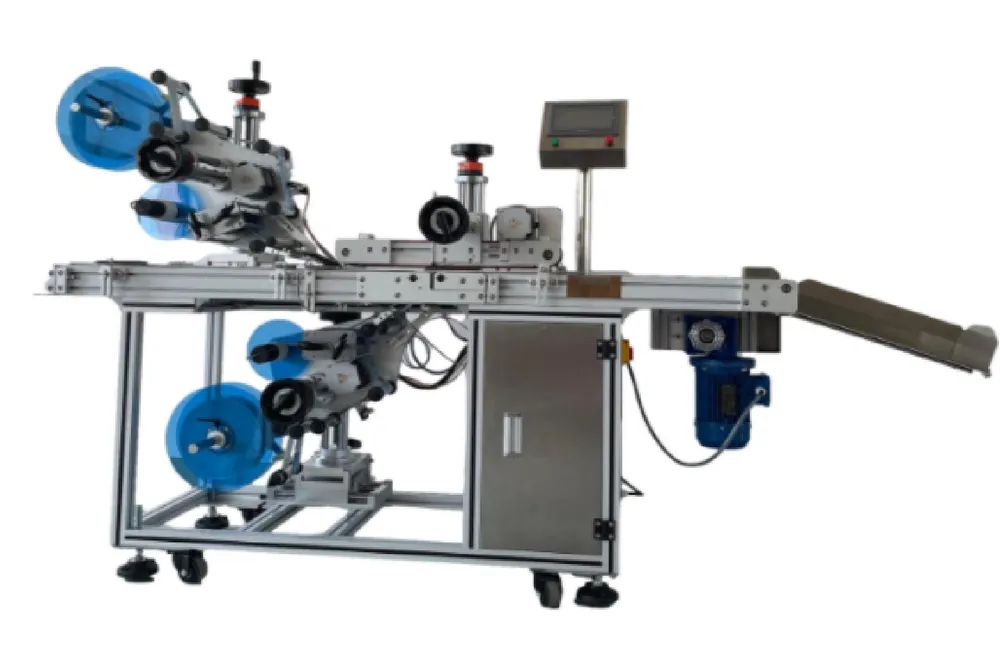

The YIXING automatic top-and-bottom labeling machine labels the top and bottom surfaces of a product at the same station and at the same time. It works at ±1 mm accuracy (±2 mm on the bottom surface) and 30–60 pcs/min, uses a label pressing mechanism matched to the product, and suits paper and plastic boxes.
Updated
Sample testing available Custom builds available
This machine is for boxes that need a label on both the top and the bottom: paper boxes, plastic boxes and floss pick boxes, with round plastic boxes shown in the brochure samples. Products are placed on the conveyor one by one and receive their top and bottom labels simultaneously at the labeling station, so both faces are done in a single pass. It is widely used in the food, stationery and personal care industries.
After application, a label pressing (wipe-down) mechanism presses the labels down; different products use different pressing mechanisms, and the product is then discharged. Accuracy is ±1 mm, with ±2 mm on the bottom surface (excluding product and label tolerances), and speed is 30–60 pcs/min depending on product and label size. Product handling is customized to your samples; labels can be 6–250 mm long and 6–150 mm wide (liner width), and larger labels can be custom-built.
Coding is optional: a ribbon coder, inkjet coder or label printer can print production dates, batch numbers or barcodes on the label, and an inkjet coder mounted on the conveyor can print on the product before or after labeling. The machine measures approx. 2000 × 1000 × 1350 mm, weighs 230 kg and runs on 220 V / 50 Hz.
Both faces are labeled at the same station at the same time, so there is no second pass for the other face.
Different products use different label pressing mechanisms, chosen for paper boxes, plastic boxes and similar items.
±1 mm overall and ±2 mm on the bottom surface (excluding product and label tolerances).
Labeling speed of 30–60 pcs/min, depending on product and label size.
Besides a ribbon or inkjet coder, a label printer can be added to print dates, batch numbers and barcodes on the label.
An inkjet coder on the conveyor prints dates, batch numbers and barcodes on the product before or after labeling.

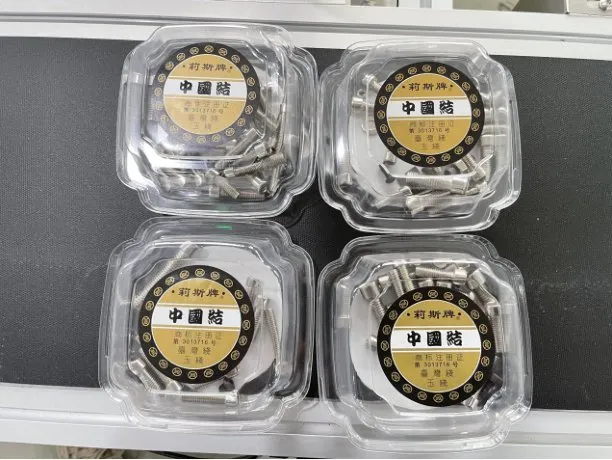

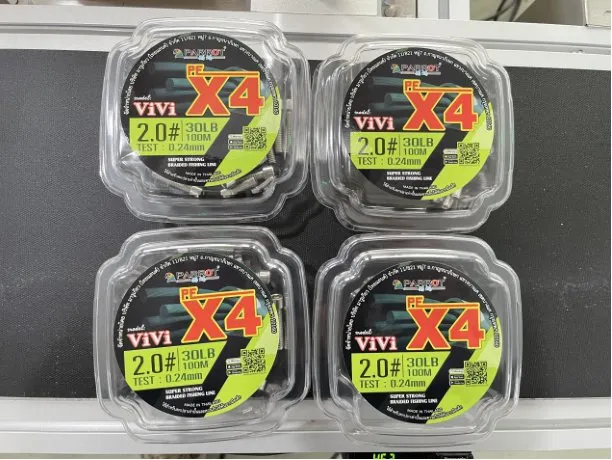

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (bottom surface ±2 mm; excluding product and label tolerances) |
|---|---|
| Labeling speed | 30–60 pcs/min (depends on product and label size) |
| Applicable products | Customized to the customer's sample size |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 2000 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 230 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Yes. At the labeling station the top and bottom surfaces are labeled simultaneously, then a label pressing mechanism presses the labels down and the product is discharged.
Not quite. Labeling accuracy is ±1 mm, and ±2 mm on the bottom surface, both excluding product and label tolerances.
All kinds of paper boxes and plastic boxes, such as floss pick boxes, with product handling sized to your samples.
30–60 pcs/min, depending on product and label size.
Yes. Add a ribbon coder, inkjet coder or label printer to print on the label, or an inkjet coder on the conveyor to print on the product before or after labeling.
Approx. 2000 × 1000 × 1350 mm and 230 kg, powered by 220 V / 50 Hz.
Brochure p. 22 ±0.5 mm The YIXING semi-automatic flat surface labeling machine applies labels to the top surface of bags, boxes and plastic lids by suction, with vacuum and air-blow working together. Products are placed one at a time in a fixture; accuracy is ±0.5 mm at 15–25 pcs/min, for items up to 200 × 200 mm and 120 mm tall.
Brochure p. 23 ±0.3 mm The YIXING semi-automatic high-precision labeling machine applies small labels to the top surface of electronic components, bags, boxes and plastic lids at ±0.3 mm accuracy. Products sit one at a time in a fixture and labels are applied by suction (vacuum + air-blow) at 15–25 pcs/min. It needs 0.4–0.6 MPa air.
Brochure p. 24 ±0.5 mm The YIXING semi-automatic front-and-back roll-on labeling machine is for phone-case film and products with large labels. The product is held in a fixture and the label is rolled on, which avoids air bubbles. It works at ±0.5 mm and 15–25 pcs/min, takes products up to 300 mm high and weighs 55 kg.
Brochure p. 20 ±0.5 mm The YIXING automatic high-precision labeling machine applies labels by suction (vacuum plus air blow) to products held one by one in a fixture. It reaches ±0.5 mm accuracy at 25–35 pcs/min and can be configured to label the top, the bottom or both surfaces of parts up to 150 × 150 mm.
