The YIXING high-speed incline (climbing) labeling machine is a custom build that labels the top and bottom surfaces of products at the same time. It runs at 120–200 pcs/min with ±2 mm accuracy, takes products 10–400 mm long, 10–300 mm wide and 0.2–150 mm high, and can be customized to any size.
Updated
Sample testing available Custom builds available

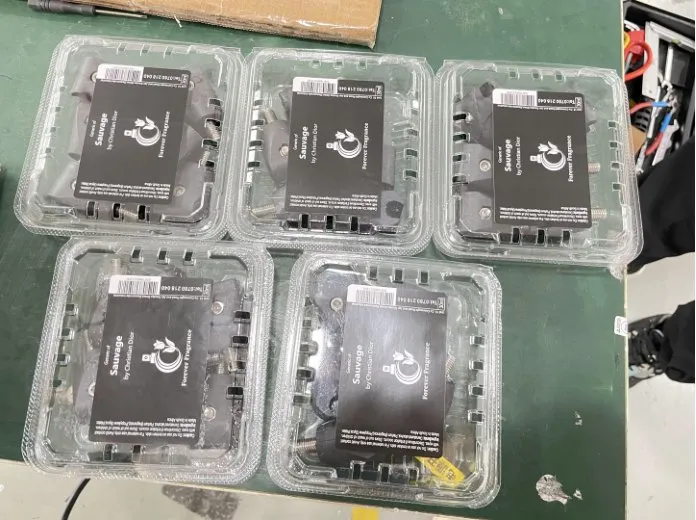

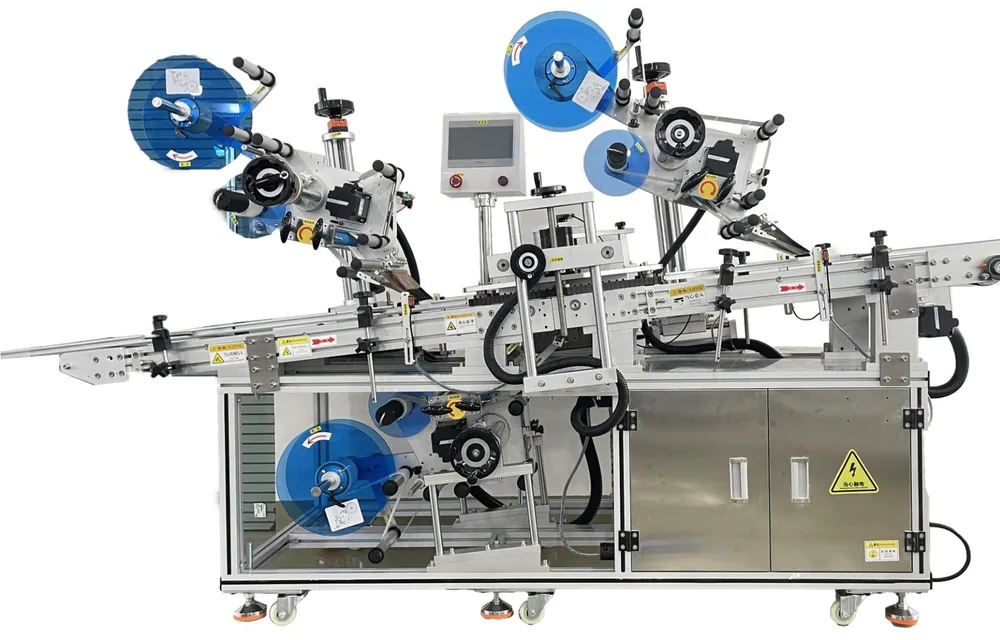

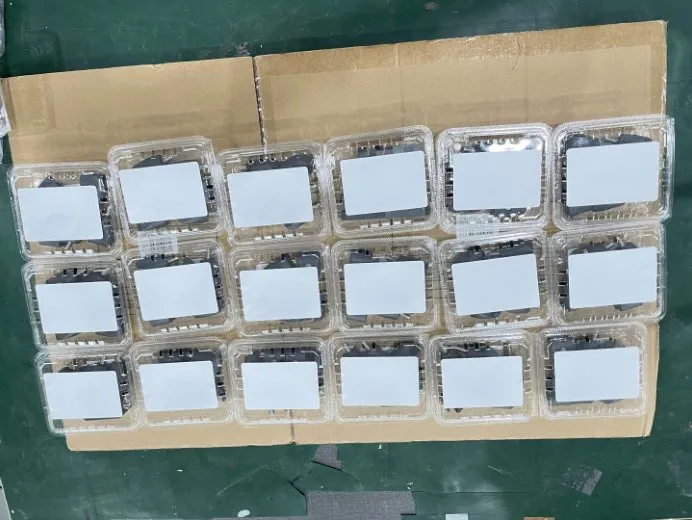

The high-speed incline labeler is a custom-built machine that applies labels to the top and bottom surfaces of a product at the same time. With a labeling speed of 120–200 pcs/min (depending on product and label size), it is aimed at high-volume lines where both faces need a label. The brochure samples show clear clamshell boxes labeled on top and bottom, and clamshell boxes labeled in volume.
The standard range covers products 10–400 mm long, 10–300 mm wide and 0.2–150 mm high, and the machine can be customized to any product size. Labels can be 6–250 mm long and 6–150 mm wide (liner width), with larger labels custom-built. Accuracy is ±2 mm (excluding product and label tolerances). The machine measures approx. 2800 × 1000 × 1500 mm, weighs 300 kg and runs on 220 V / 50 Hz, so plan the line layout around its length.
An inkjet coder can be added to the conveyor to print production dates, batch numbers or barcodes on the product before or after labeling, so coding and labeling happen on one line and a separate step is removed. Because every machine is a custom build, send product samples, label specifications and your target output so the configuration can be defined.
A labeling speed of 120–200 pcs/min (depending on product and label size) for high-volume items such as clamshell boxes.
Labels go onto the top and bottom surfaces at the same time, so both faces are finished in one pass.
Every machine is built to order and can be customized to any product size.
The standard range covers products 10–400 mm long, 10–300 mm wide and 0.2–150 mm high.
An optional conveyor inkjet coder prints dates, batch numbers and barcodes on the product before or after labeling.
Labels 6–250 mm long on liners 6–150 mm wide, applied within ±2 mm (excluding product and label tolerances).
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±2 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 120–200 pcs/min (depends on product and label size) |
| Product size range | Length 10–400 mm; width 10–300 mm; height 0.2–150 mm |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 2800 × 1000 × 1500 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 300 kg |
| Remarks | Any product size can be customized |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
120–200 pcs/min, with the actual rate depending on product and label size.
Yes. It labels the top and bottom surfaces simultaneously, at ±2 mm accuracy (excluding product and label tolerances).
Products 10–400 mm long, 10–300 mm wide and 0.2–150 mm high, and any size can be customized. Label range: 6–250 mm long, 6–150 mm liner width, with larger labels custom-built.
The brochure lists it as a custom machine that can be built to any product size, so the final configuration depends on your samples, label specifications and target output.
Yes. An inkjet coder can be added to the conveyor to print dates, batch numbers and barcodes on the product before or after labeling.
Approx. 2800 × 1000 × 1500 mm, 300 kg, 220 V / 50 Hz.
