中文全自动下平面贴标机
The YIXING automatic bottom-surface labeling machine labels the underside of products as they travel on the conveyor, so nothing has to be flipped beforehand. It runs at ±2 mm accuracy and 40–80 pcs/min, is sized to the customer's samples, and can be linked to equipment before and after it.
Updated
Sample testing available Custom builds available

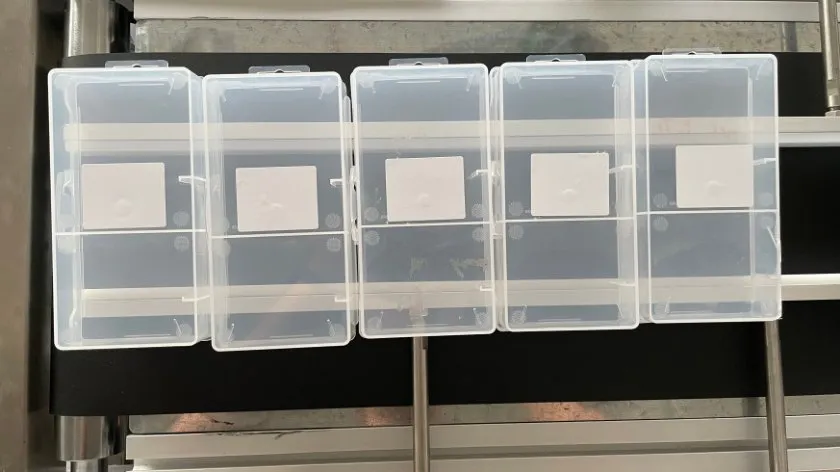

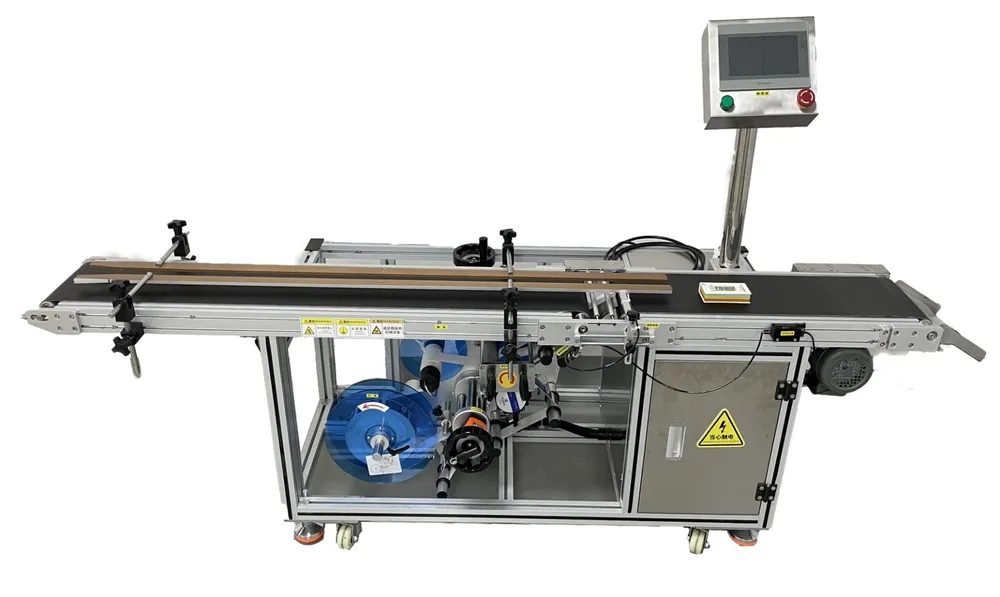

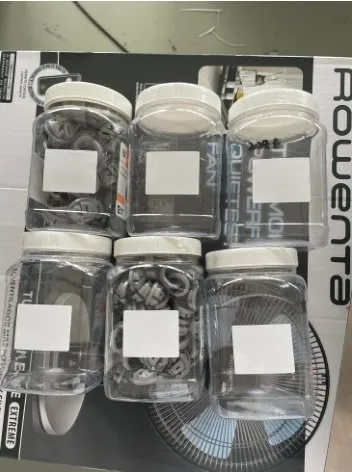

This machine is dedicated to labeling the bottom (underside) of products. Its main advantage is that products do not need to be turned over upstream: they travel on the conveyor in their normal orientation and receive the label on the bottom surface at the labeling station. Brochure samples include clear plastic boxes and clear jars labeled on the bottom.
The labeler can be connected to other equipment before and after it, so it slots into an existing line, and product handling is sized to the samples the customer provides. Accuracy is ±2 mm (excluding product and label tolerances) and speed is 40–80 pcs/min, depending on product and label size. It accepts labels 6–250 mm long on liners 6–150 mm wide, and larger labels can be custom-built.
Add a ribbon coder or inkjet coder to print production dates, batch numbers or barcodes on the label, or fit an inkjet coder to the conveyor to print on the product itself before or after labeling. The machine measures approx. 1700 × 1000 × 1350 mm, weighs 150 kg, runs on 220 V / 50 Hz, and is widely used in the food, stationery and personal care industries.
No upstream turning of the product: the label goes on the underside while the product travels on the conveyor.
Can be connected to machines before and after it, working as the bottom-labeling station in a line.
Product handling is customized to the samples you provide, from clear plastic boxes to clear jars.
Labels at 40–80 pcs/min with ±2 mm accuracy (excluding product and label tolerances).
A ribbon or inkjet coder marks the label, or a conveyor-mounted inkjet coder prints dates, batch numbers and barcodes on the product before or after labeling.
Labels 6–250 mm long and 6–150 mm wide (liner width); larger labels can be custom-built.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±2 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 40–80 pcs/min (depends on product and label size) |
| Applicable products | Customized to the customer's sample size |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 1700 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 150 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
No. The automatic bottom-surface labeler applies the label to the underside while the product travels on the conveyor, so no flipping is needed beforehand.
40–80 pcs/min at ±2 mm (excluding product and label tolerances). Speed depends on product and label size.
Product handling is customized to the samples you provide. Labels may be 6–250 mm long with a 6–150 mm liner width; larger labels can be custom-built.
Yes. The machine can be connected to other equipment before and after it.
Yes. Add a ribbon or inkjet coder to print on the label, or an inkjet coder on the conveyor to print dates, batch numbers and barcodes on the product before or after labeling.
Approx. 1700 × 1000 × 1350 mm and 150 kg, powered by 220 V / 50 Hz.
