The YIXING automatic high-precision labeling machine applies labels by suction (vacuum plus air blow) to products held one by one in a fixture. It reaches ±0.5 mm accuracy at 25–35 pcs/min and can be configured to label the top, the bottom or both surfaces of parts up to 150 × 150 mm.
Updated
Sample testing available Custom builds available
This labeler is built for small products where label position matters: plastic lids and caps, boxes, bags and electronic parts. Each product is placed in a fixture, and the label is applied by suction — vacuum and air blow working together — at ±0.5 mm accuracy (excluding product and label tolerances), which suits lids, housings and other small label areas.

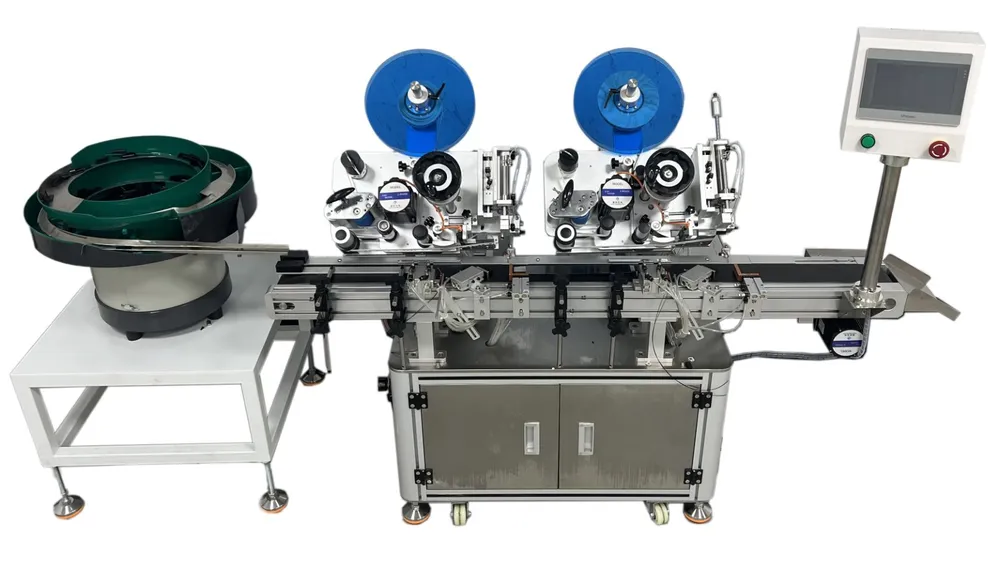

The labeling surface is configured to your requirement: top, bottom, or top and bottom. Labeling speed is 25–35 pcs/min and depends on product and label size as well as on the number of labeling heads; the machine pictured in the brochure has a dual-head configuration.
It takes products 20–150 mm long, 20–150 mm wide and 0.2–75 mm high, with labels 10–60 mm long and 8–70 mm wide (liner width); larger labels can be custom-built. The machine needs compressed air at 0.4–0.6 MPa, measures approx. 1800 × 1000 × 1450 mm, weighs 185 kg and runs on 220 V / 50 Hz. An optional ribbon coder prints production dates and batch numbers on the label, saving a separate step.
Vacuum and air blow work together to apply the label at ±0.5 mm (excluding product and label tolerances), suited to small label areas on lids and housings.
Configure the machine to label the top surface, the bottom surface, or both, all with the same suction method.
Products are placed one by one in a fixture before labeling, which suits round lids, caps and plastic housings.
25–35 pcs/min, depending on product and label size and on the number of labeling heads; the brochure shows a dual-head configuration.
Handles products 0.2–75 mm high and 20–150 mm long and wide, from thin items to lids and small boxes.
Add a ribbon coder to print production dates and batch numbers on the label as part of the labeling step.

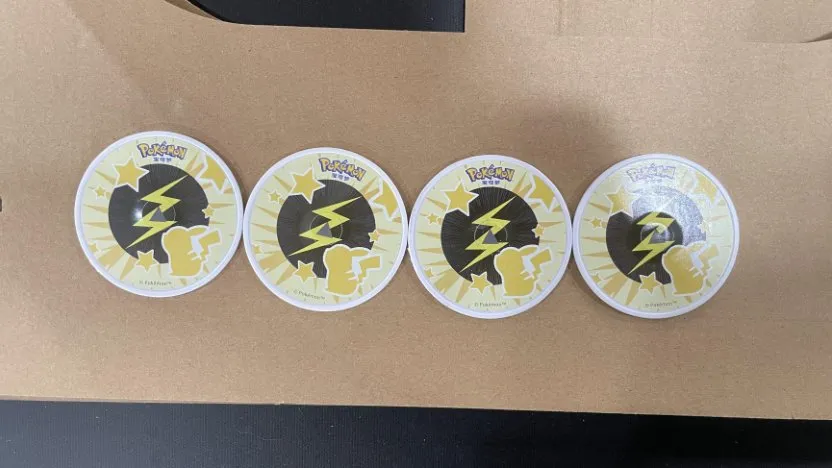

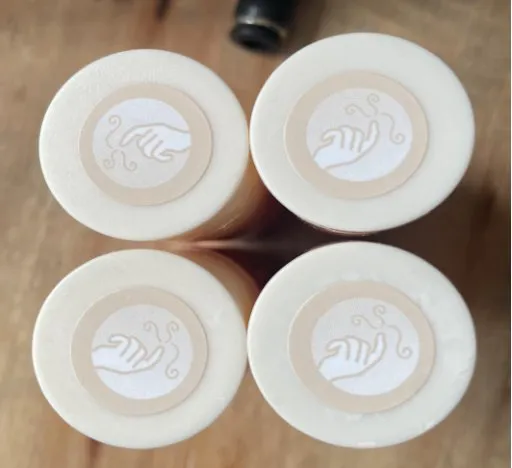

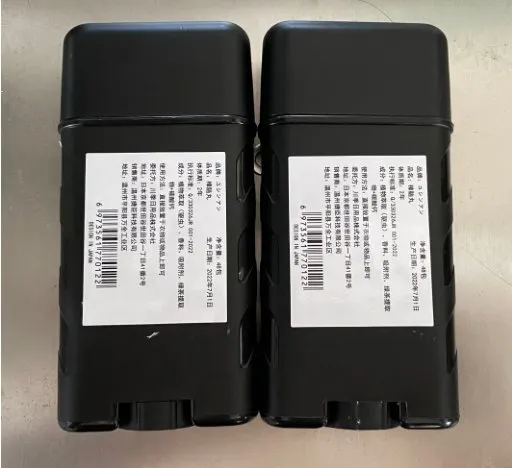

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.5 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 25–35 pcs/min (depends on product and label size, and on the number of labeling heads) |
| Product size range | Length 20–150 mm; width 20–150 mm; height 0.2–75 mm |
| Label size range | Length 10–60 mm; width (liner width) 8–70 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 1800 × 1000 × 1450 mm |
| Power supply | 220 V / 50 Hz |
| Air pressure | 0.4–0.6 MPa |
| Machine weight | 185 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
It can be configured for the top surface, the bottom surface, or both, and uses suction application (vacuum plus air blow) in every configuration.
±0.5 mm (excluding product and label tolerances) at 25–35 pcs/min. Speed depends on product and label size and on the number of labeling heads.
Products 20–150 mm long, 20–150 mm wide and 0.2–75 mm high; labels 10–60 mm long and 8–70 mm wide (liner width). Larger labels can be custom-built.
Yes. Suction application uses vacuum and air blow, and the machine is specified for 0.4–0.6 MPa air pressure and 220 V / 50 Hz power.
Yes, with the optional ribbon coder, which prints production dates and batch numbers on the label.
Approx. 1800 × 1000 × 1450 mm and 185 kg.
Brochure p. 22 ±0.5 mm The YIXING semi-automatic flat surface labeling machine applies labels to the top surface of bags, boxes and plastic lids by suction, with vacuum and air-blow working together. Products are placed one at a time in a fixture; accuracy is ±0.5 mm at 15–25 pcs/min, for items up to 200 × 200 mm and 120 mm tall.
Brochure p. 23 ±0.3 mm The YIXING semi-automatic high-precision labeling machine applies small labels to the top surface of electronic components, bags, boxes and plastic lids at ±0.3 mm accuracy. Products sit one at a time in a fixture and labels are applied by suction (vacuum + air-blow) at 15–25 pcs/min. It needs 0.4–0.6 MPa air.
Brochure p. 24 ±0.5 mm The YIXING semi-automatic front-and-back roll-on labeling machine is for phone-case film and products with large labels. The product is held in a fixture and the label is rolled on, which avoids air bubbles. It works at ±0.5 mm and 15–25 pcs/min, takes products up to 300 mm high and weighs 55 kg.
Brochure p. 25 ±1 mm The YIXING automatic flat top-surface labeling machine labels the top of products carried one by one on a conveyor — books, folders, boxes, cartons and more. It works at ±1 mm accuracy and 40–120 pcs/min, takes products up to 400 × 300 mm and 0.2–150 mm high, and comes in a basic and a standard version.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
