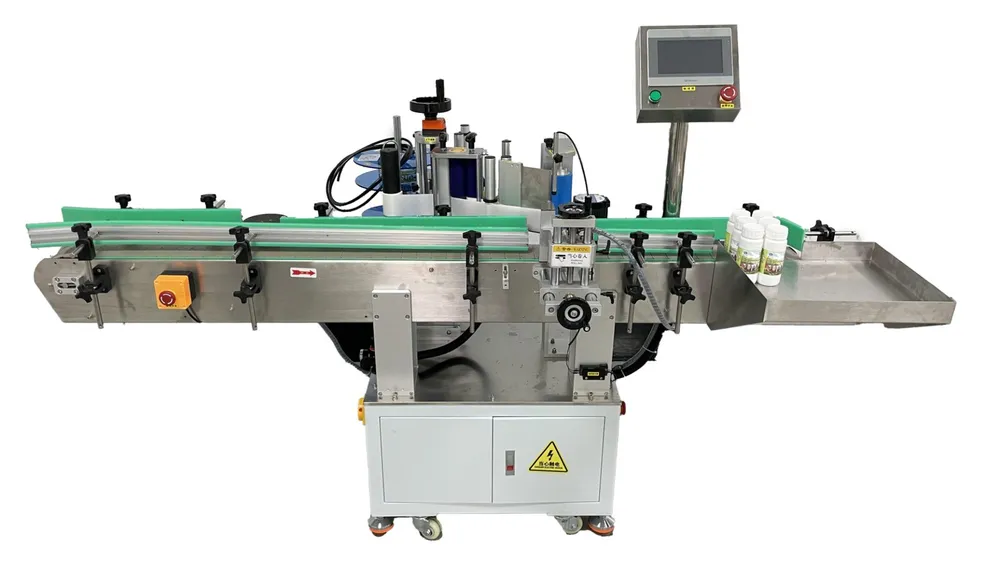

The YIXING automatic positioning round bottle labeling machine labels cylindrical bottles that stand on their own. Each bottle is conveyed upright to the labeling station, rotated one full turn as the label goes on, then discharged — at 30–60 pcs/min and ±1 mm, with single or double labels in partial or full wrap.
Updated
Sample testing available Custom builds available
This automatic labeler is built for larger cylindrical products that stand upright: xylitol gum bottles, cosmetic bottles, pharmaceutical bottles, chemical bottles and liquor bottles. Bottles are placed upright on the machine, conveyed to the labeling station, rotated one full turn while the label is applied, and then discharged. Output is 30–60 pcs/min depending on product and label size, a step up for plants whose volumes have outgrown semi-automatic labeling.
Its focus is control over where the label lands. The machine applies a single label or two labels with freely adjustable spacing, for example a front and a back label on the same bottle. It runs partial-wrap and full-wrap labels, and the optional circumferential positioning sensor places each label at a fixed point on the circumference, so the label sits in the same spot on every bottle. Labeling accuracy is ±1 mm (excluding product and label tolerances).
The standard range covers bottles Ø20–100 mm in diameter and 25–300 mm tall, with labels 20–320 mm long and 15–160 mm wide (liner width). Larger labels can be custom-built, and the machine can be customized to any product size. An optional ribbon coder prints batch numbers and dates on the label in the same process. The machine measures approx. 2100 × 1100 × 1300 mm, weighs 185 kg and runs on 220 V / 50 Hz.
Bottles travel upright to the labeling station, turn once as the label is applied and are discharged by the machine.
Fully automatic output of 30–60 pcs/min, depending on product and label size.
Run a single label, or two labels on the same bottle with freely adjustable spacing between them.
Run partial-wrap or full-wrap labels on the same machine, with label lengths from 20 to 320 mm.
With the optional circumferential positioning sensor, every label lands at the same point on the bottle's circumference.
Standard range Ø20–100 mm and 25–300 mm tall; larger labels and any product size can be custom-built.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 30–60 pcs/min (depends on product and label size) |
| Product diameter | Ø20–100 mm; height 25–300 mm |
| Label size range | Length 20–320 mm; width (liner width) 15–160 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 2100 × 1100 × 1300 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 185 kg |
| Remarks | Any product size can be customized |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Bottles that stand upright, Ø20–100 mm in diameter and 25–300 mm tall, with labels 20–320 mm long and 15–160 mm wide (liner width). Larger labels and other product sizes can be custom-built.
30–60 pcs/min at ±1 mm (excluding product and label tolerances); where a job falls in that range depends on product and label size.
Yes. It supports single and double labels with freely adjustable spacing, in partial-wrap or full-wrap mode.
Add the optional circumferential positioning sensor. It enables fixed-point labeling on the circumference, so each label is placed at the same spot.
Yes. Fit the optional ribbon coder and batch numbers and dates are printed on the label in the same process.
Choose this machine when you need double labels, partial or full wrap, or fixed-point placement. If you apply only a single label and want more speed, the roll-rubbing model is the better fit. Both are for products that stand upright.
