The YIXING automatic horizontal round bottle labeling machine labels cylindrical products that will not stand steadily, such as filter cartridges, oral liquid vials, injection vials, syringes and lipstick tubes. A feed structure separates them one by one for full or partial wrap labeling at 100–200 pcs/min and ±1 mm.
Updated
Sample testing available Custom builds available
Some cylindrical products simply do not stand steadily: filter cartridges, oral liquid vials, injection vials, syringes and lipstick tubes. This horizontal labeler handles them lying down instead of upright, and is widely used in the food, cosmetics and medical industries.
Products are loaded into the feed structure, which separates them one at a time and passes each to full-wrap or partial-wrap labeling. Output is 100–200 pcs/min depending on product and label size, with ±1 mm labeling accuracy (excluding product and label tolerances), which suits high-volume lines of small vials and slim tubes. Two feed structures are available: Version A with a bottle-separating feed and Version B with a roller feed.
Product size is customized to the samples you supply. Labels from 6 to 250 mm long and 6 to 150 mm wide (liner width) are supported, and larger labels can be custom-built. An optional coder or inkjet coder prints production dates and batch numbers on the label, or inkjet-prints barcodes. It occupies approx. 2000 × 780 × 1400 mm, weighs 180 kg and runs on 220 V / 50 Hz.
Products are labeled lying horizontally, which suits filters, oral liquid vials, injection vials, syringes and lipstick tubes.
High output for small vials and slim tubes, depending on product and label size.

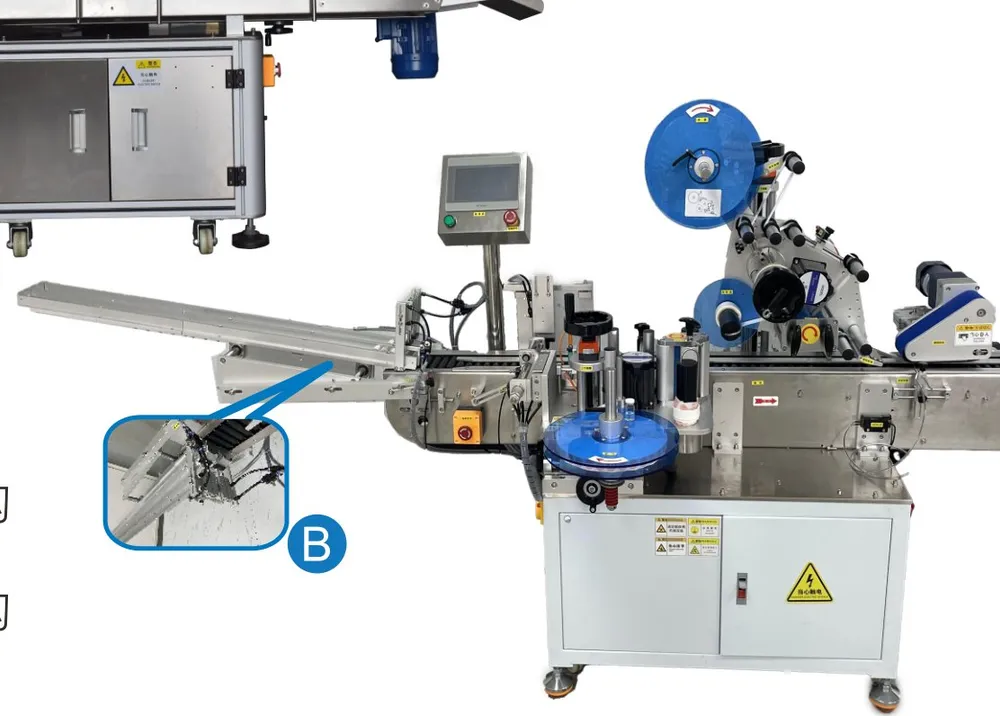

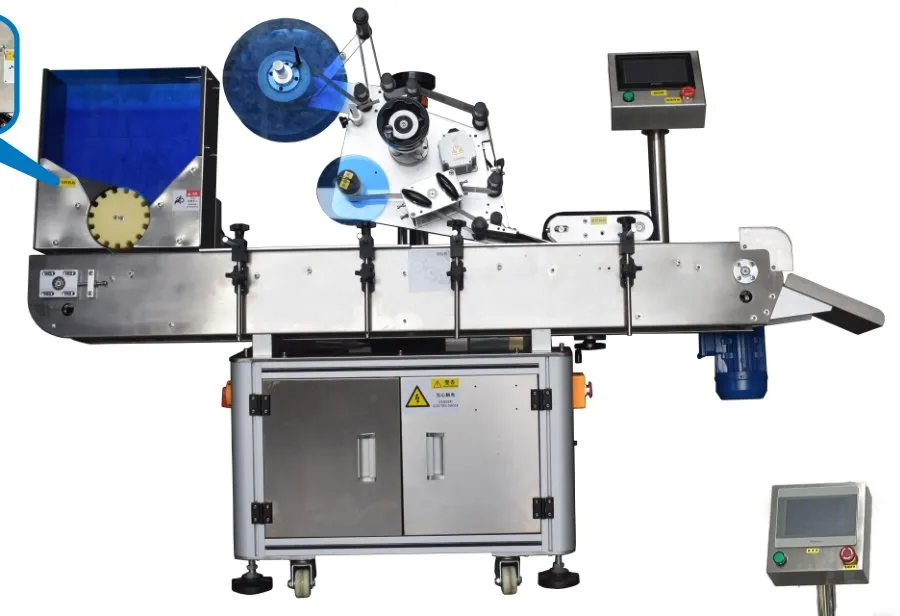

Choose Version A bottle-separating feed or Version B roller feed; either way, products are separated one by one before labeling.
Full-wrap and partial-wrap labeling on one machine at ±1 mm accuracy (excluding product and label tolerances).
Handles labels 6–250 mm long and 6–150 mm wide, including the narrow labels used on vials.
Add a coder or inkjet coder to print dates and batch numbers on the label, or to inkjet-print barcodes.

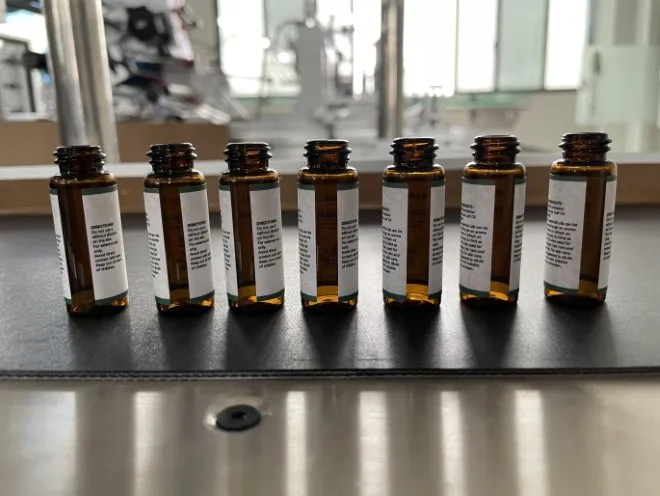

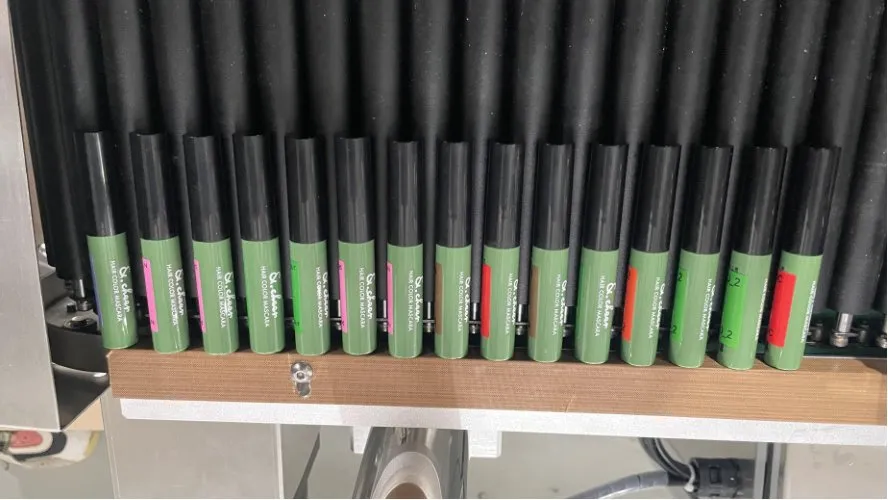

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 100–200 pcs/min (depends on product and label size) |
| Applicable products | Customized to the customer's sample size |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 2000 × 780 × 1400 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 180 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Cylindrical products that do not stand steadily, such as filter cartridges, oral liquid vials, injection vials, syringes and lipstick tubes. On this machine they are labeled lying down.
100–200 pcs/min at ±1 mm (excluding product and label tolerances). The exact rate varies with product and label size.
Product size is customized to the samples you supply. Labels can be 6–250 mm long and 6–150 mm wide (liner width), and larger labels can be custom-built.
They use different feed structures: Version A has a bottle-separating feed, Version B a roller feed. Both separate the products one by one for labeling; the right choice is confirmed against your product samples.
Yes. With an optional coder or inkjet coder it prints production dates and batch numbers on the label, or inkjet-prints barcodes.
Approx. 2000 × 780 × 1400 mm and 180 kg, powered by 220 V / 50 Hz.
