The YIXING vision-guided labeling machine places labels and precision converted components at ±0.05 mm. A label feeder presents each label, an XYZR-axis module picks it up, and upper and lower cameras take positioning images before application. It runs at 15–25 pcs/min on chargers, PCBs and irregular-shaped products.
Updated
Sample testing available Custom builds available
This is YIXING's precision positioning labeler for the electronics industry. It is aimed at the hard cases, where precision converted components (die-cut parts) and labels are difficult to place on chargers, PCBs and irregular-shaped products, and it works at ±0.05 mm accuracy (excluding product and label tolerances) and 15–25 pcs/min, depending on product and label size.
The sequence is: product loading → vision-guided label stop / alignment position → the label feeder presents the label → the XYZR-axis module (X, Y, Z plus rotation) picks it up → the upper camera takes a positioning image → the lower camera takes a positioning image → the label is applied. Two camera checks happen before every placement.
Products 10–200 mm long, 10–200 mm wide and 0.2–150 mm high are supported, with labels 6–90 mm long and 6–100 mm wide (liner width); labels larger than this can be built to order. The machine can run with multiple heads and can have a printing function added. It is housed in an enclosed cabinet of approx. 1500 × 1000 × 1350 mm, weighs 180 kg and runs on 220 V / 50 Hz.
Labeling accuracy of ±0.05 mm (excluding product and label tolerances) for precision converted components in electronics.

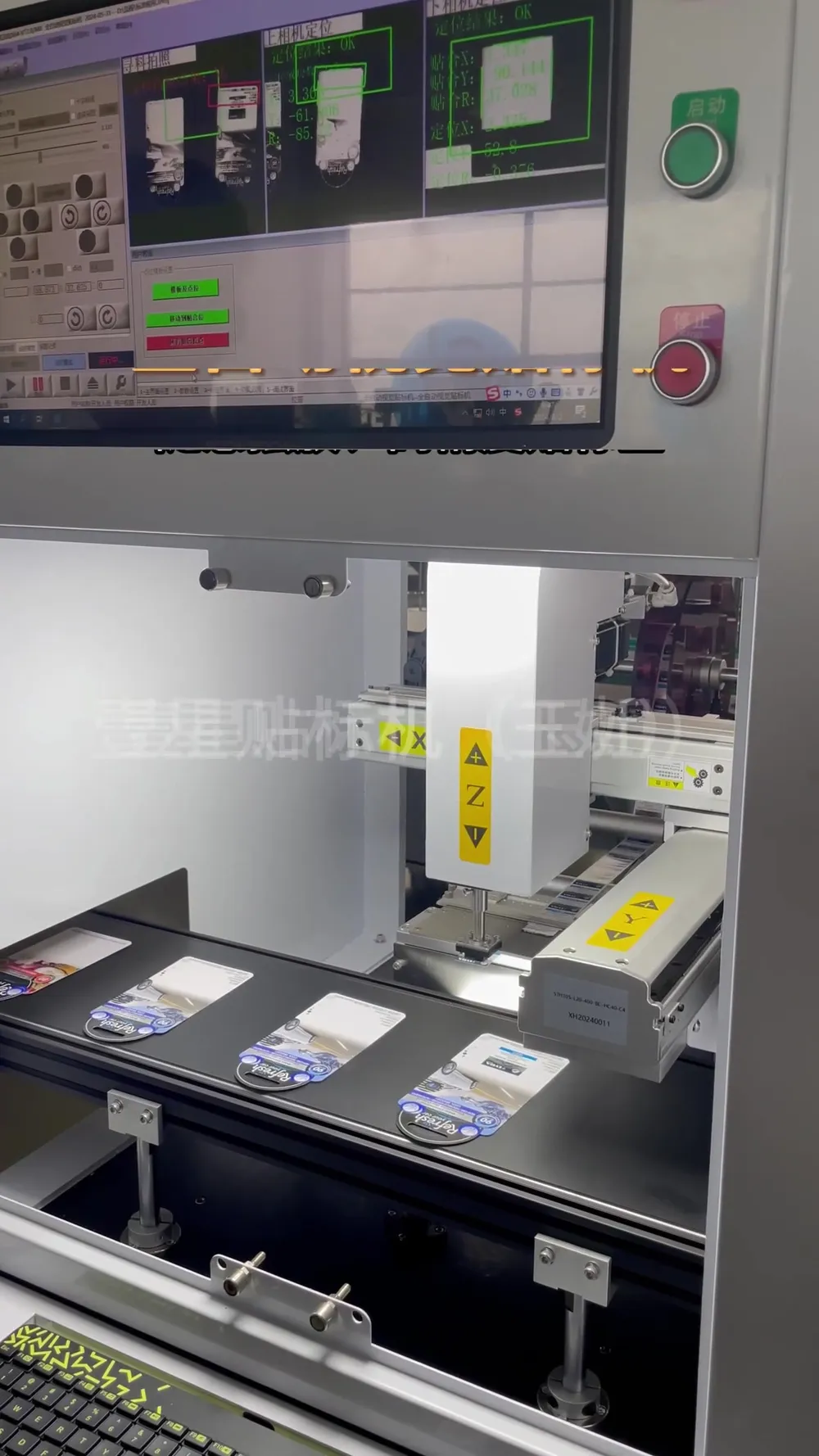

After pick-up, positioning images are taken by an upper camera and then a lower camera before the label goes on.

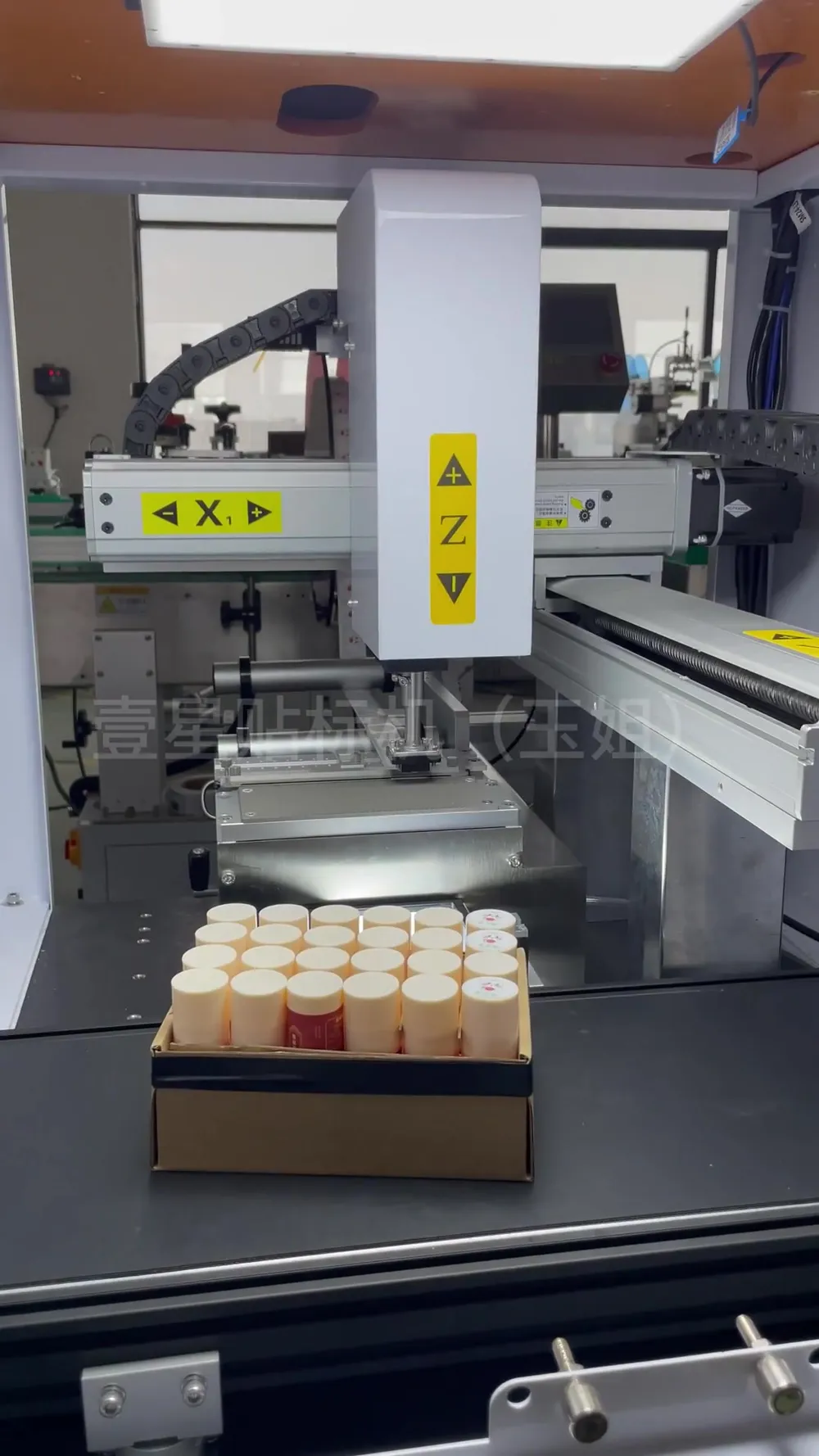

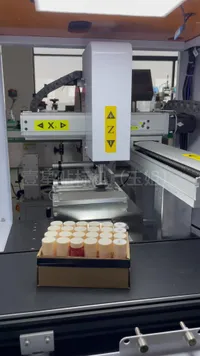

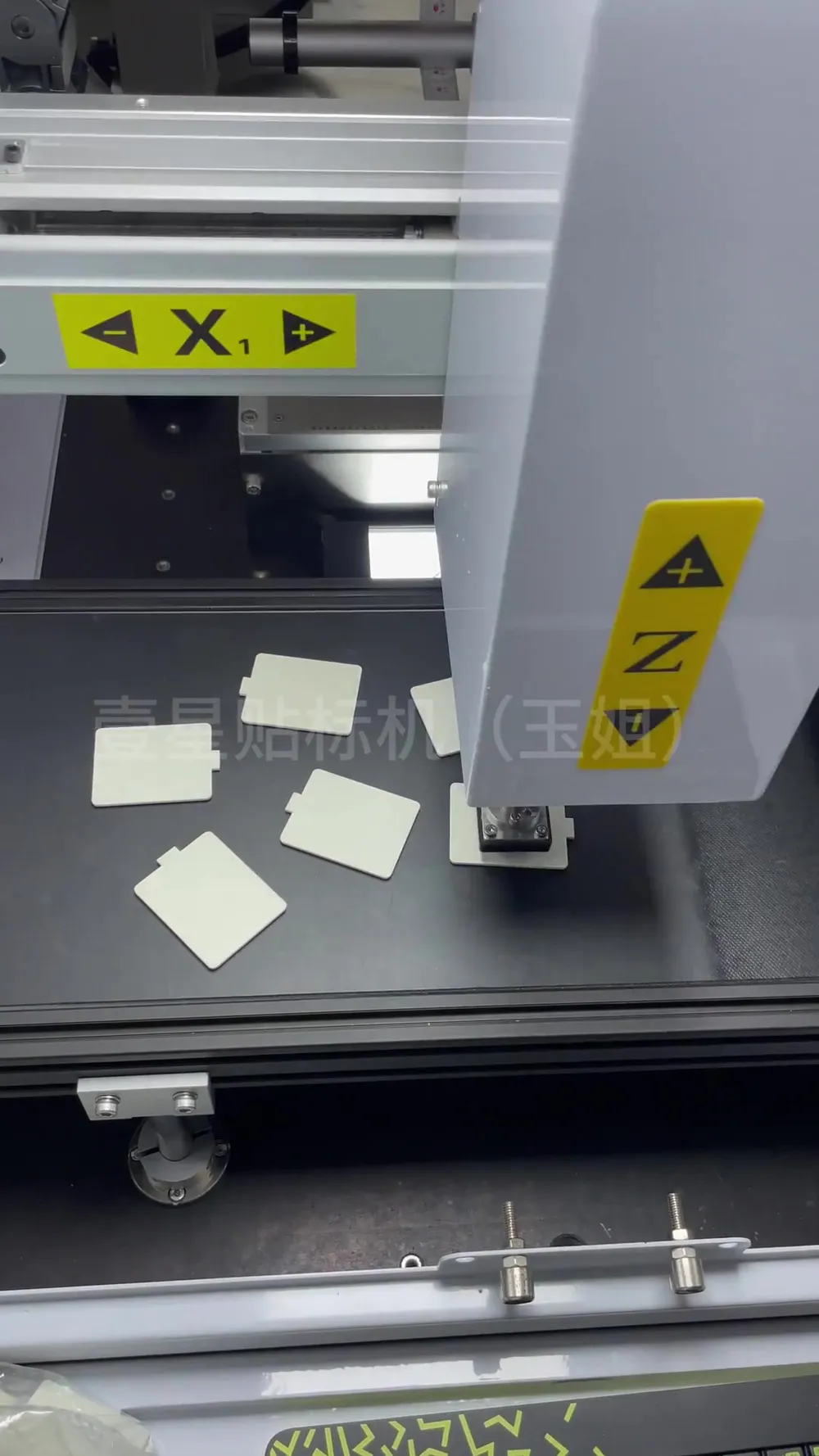

An X, Y, Z plus rotation module takes the label from the feeder, so the label can be turned as well as moved.
Runs with multiple heads where a product needs several labels, and a printing function can be added.
Handles products 10–200 mm long and wide and 0.2–150 mm high, including chargers, PCBs and irregular-shaped parts.

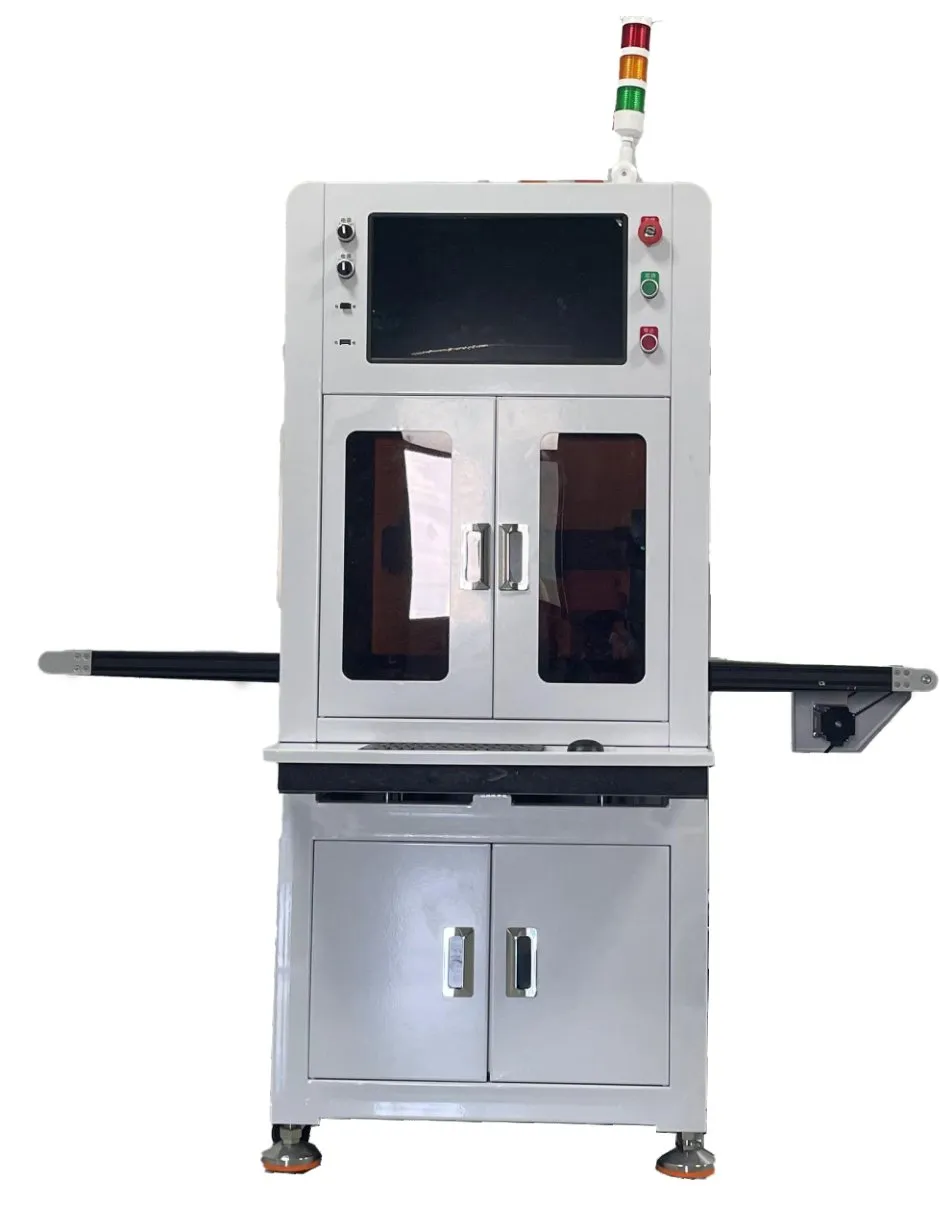

Fully enclosed machine body, approx. 1500 × 1000 × 1350 mm, 180 kg, 220 V / 50 Hz.

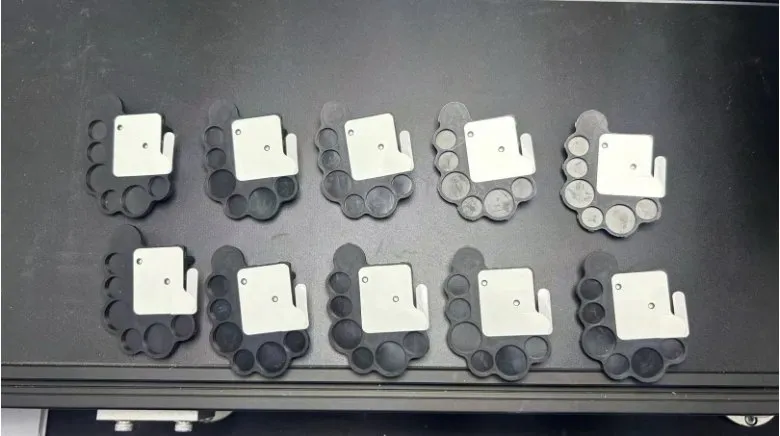

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.05 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 15–25 pcs/min (depends on product and label size) |
| Product size range | Length 10–200 mm; width 10–200 mm; height 0.2–150 mm |
| Label size range | Length 6–90 mm; width (liner width) 6–100 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 1500 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 180 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
±0.05 mm, excluding product and label tolerances, at 15–25 pcs/min; the exact rate varies with product and label size.

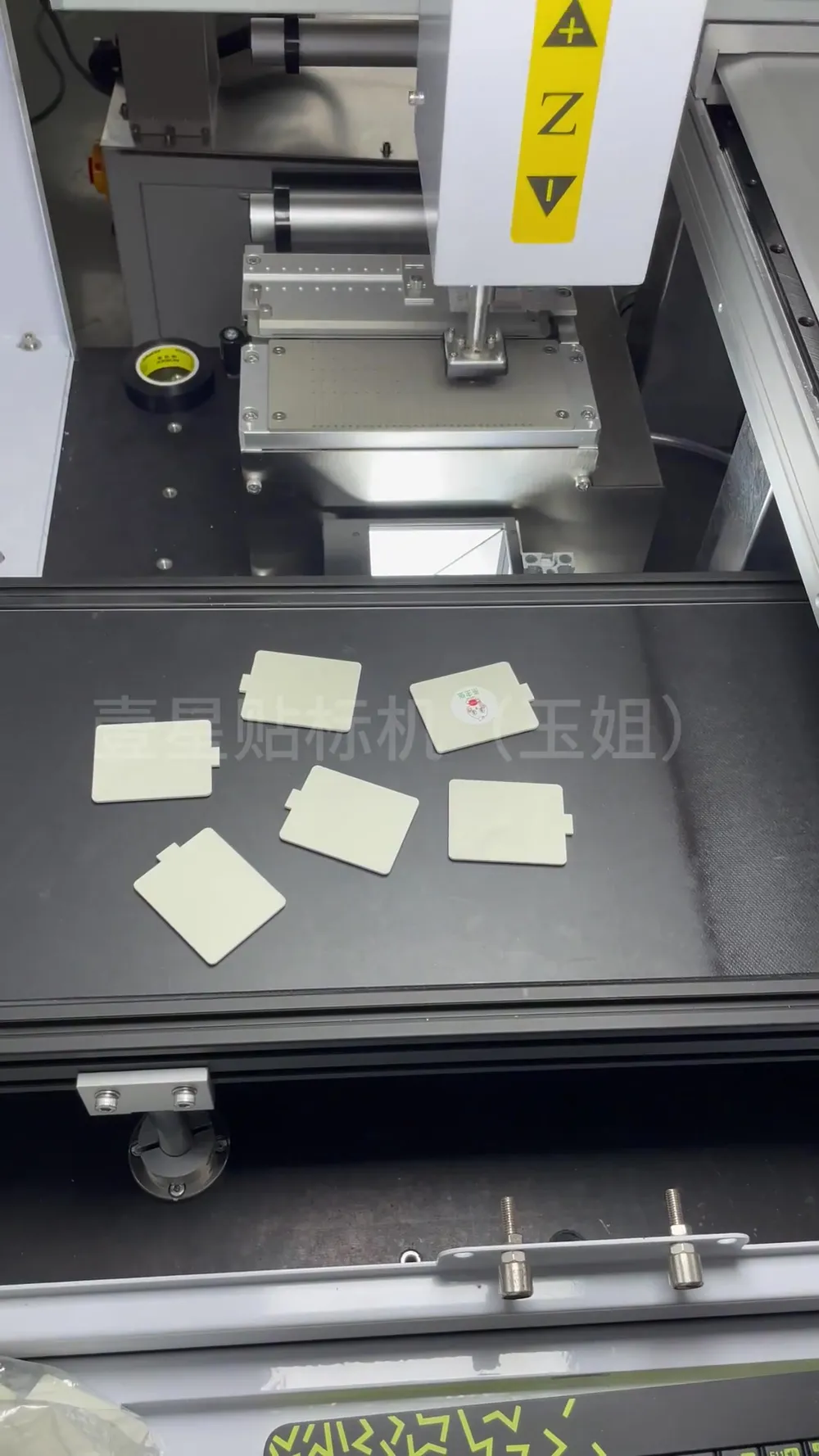

The loaded product stops at the vision-guided alignment position, the feeder presents the label, the XYZR-axis module picks it up, and the upper and lower cameras each take a positioning image before the label is applied.
Products 10–200 mm long, 10–200 mm wide and 0.2–150 mm high; labels 6–90 mm long and 6–100 mm wide (liner width). Oversized labels can be handled with a custom build.
Yes. It can be configured with multiple heads, and a printing function can be added.
Mainly electronics: precision converted components and labels on chargers, PCBs and irregular-shaped products.
An enclosed cabinet of approx. 1500 × 1000 × 1350 mm, weighing 180 kg, powered by 220 V / 50 Hz.
Brochure p. 33 ±0.5 mm The YIXING roll-to-roll labeling machine applies labels onto another label web or onto film. The base material runs from unwind to rewind, and the labeler in the middle detects each labeling point and applies the label. It runs at 100–200 pcs/min with ±0.5 mm accuracy and takes rolls up to 300 mm in outer diameter.
Brochure p. 36 ±1 mm YIXING inline labeling heads add a labeling station to an existing conveyor. Mounted beside the customer's line, they label the top or side of each product at the labeling position. Five head types (A–E) cover roll-on application for flat products and suction for recessed ones, at 1–120 pcs/min and ±1 mm.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
