YIXING inline labeling heads add a labeling station to an existing conveyor. Mounted beside the customer's line, they label the top or side of each product at the labeling position. Five head types (A–E) cover roll-on application for flat products and suction for recessed ones, at 1–120 pcs/min and ±1 mm.
Updated
Sample testing available Custom builds available
These labeling heads are for plants that already run a conveyor and only need a labeling station. Configured to the customer's requirements, a head is mounted beside the line and labels the top or the side of each product when it arrives at the labeling position. The product size range is set by the width of the customer's conveyor.

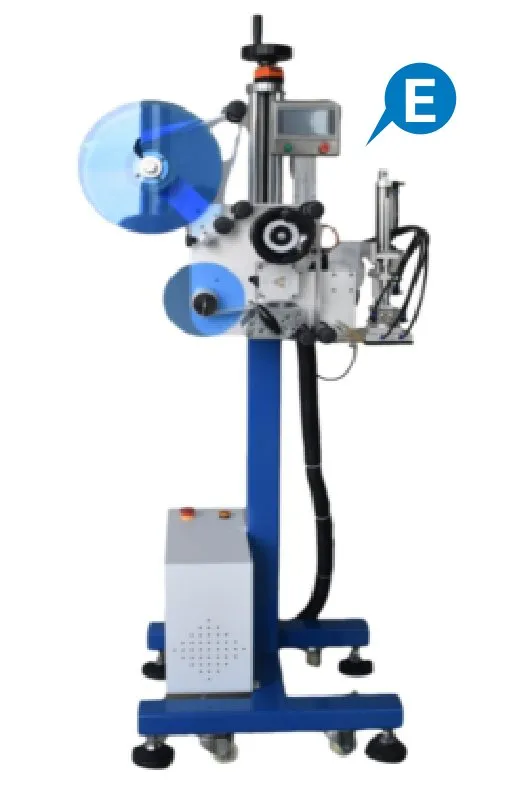

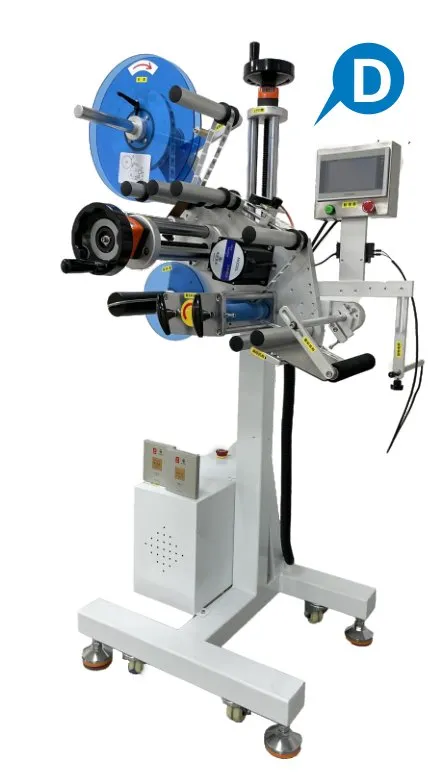

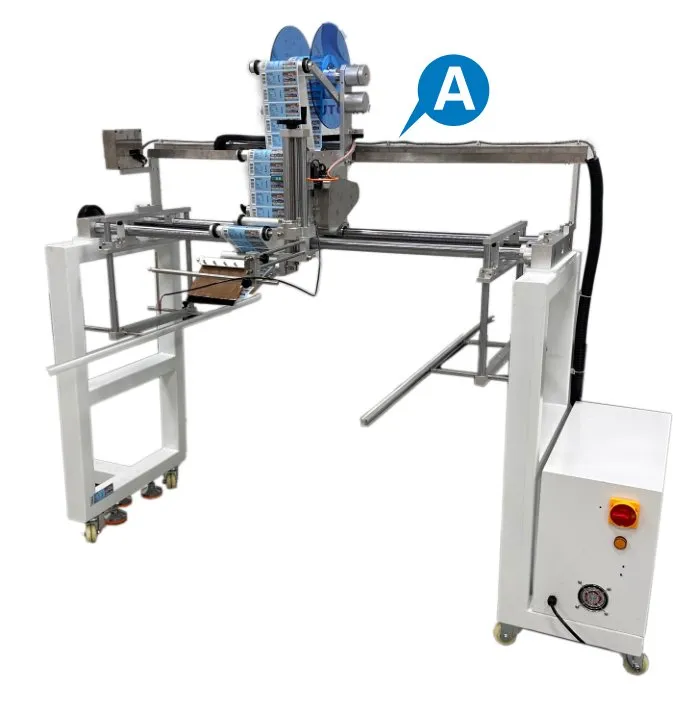

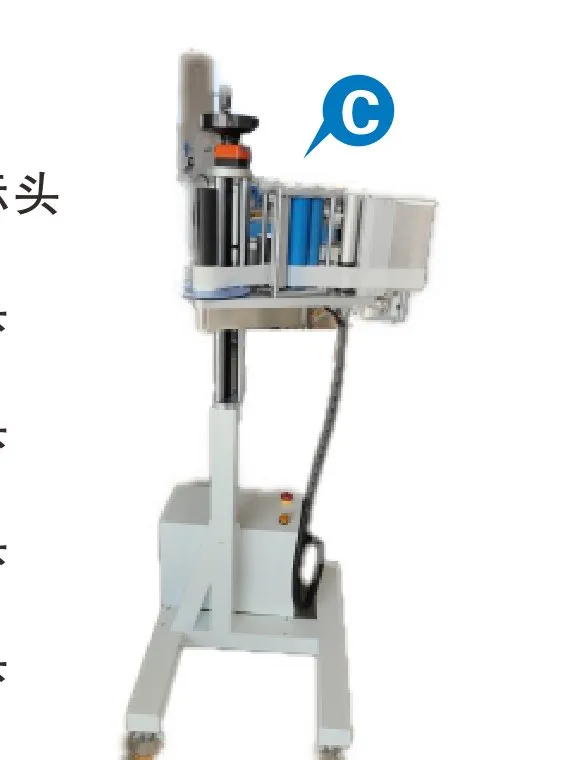

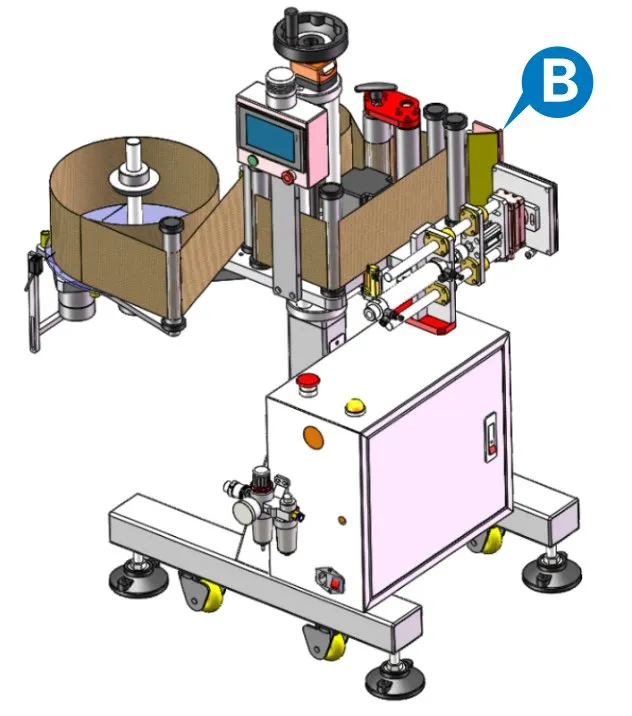

Five head types are available: A, gantry-mounted top labeling head; B, side suction (tamp) head; C, side roll-on head; D, top roll-on head; and E, top suction (tamp) head. Choose by product surface first (roll-on application suits flat products, suction application suits products with recesses), then by whether the label goes on the top or the side.
Speed ranges from 1 to 120 pcs/min at ±1 mm accuracy (excluding product and label tolerances). With suction application the label can be 6–100 mm in both length and liner width; roll-on application accepts longer labels, 6–250 mm long and 6–150 mm wide. The listed unit size is approx. 1000 × 800 × 1350 mm, with a weight of 80 kg and a 220 V / 50 Hz supply.
A gantry top, B side suction, C side roll-on, D top roll-on and E top suction, matched to the labeling face and product surface.
Mounted beside the customer's conveyor to add a top or side labeling station to the line.
Roll-on application for flat products; suction (tamp) application for products with recesses.
A wide speed range of 1–120 pcs/min at ±1 mm accuracy, excluding product and label tolerances.
Roll-on heads take labels 6–250 mm long by 6–150 mm wide (liner width), longer than the 6–100 mm limit for suction heads.
The product size range depends on the conveyor width; the unit is approx. 1000 × 800 × 1350 mm, 80 kg, 220 V / 50 Hz.
The brochure shows no sample photos for this machine — send us your product for a test.
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 1–120 pcs/min |
| Product size range | Depends on the width of the customer's conveyor |
| Label size (suction / tamp application) | Length 6–100 mm; width (liner width) 6–100 mm |
| Label size (roll-on application) | Length 6–250 mm; width (liner width) 6–150 mm |
| Machine dimensions | Approx. 1000 × 800 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 80 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Five: A gantry-mounted top head, B side suction (tamp) head, C side roll-on head, D top roll-on head and E top suction (tamp) head.
Roll-on suits flat products; suction suits products with recesses. The two methods also accept different label sizes.
The product size range depends on the width of your conveyor.
For roll-on heads, 6–250 mm long and 6–150 mm wide (liner width). For suction heads, 6–100 mm long and 6–100 mm wide.
Anywhere from 1 to 120 pcs/min, with labels placed within ±1 mm (excluding product and label tolerances).
The head is mounted beside the customer's conveyor and labels the top or side of each product as it reaches the labeling position. The unit is approx. 1000 × 800 × 1350 mm, 80 kg, 220 V / 50 Hz.
