The YIXING desktop tape applicator is a benchtop taping machine: the operator loads the part, the machine applies the tape and cuts it automatically, and the part is unloaded by hand. It has a 300 × 300 mm taping stroke, takes tape 5–50 mm wide and weighs 78 kg; automatic loading and unloading can be custom-built.
Updated
Sample testing available Custom builds available

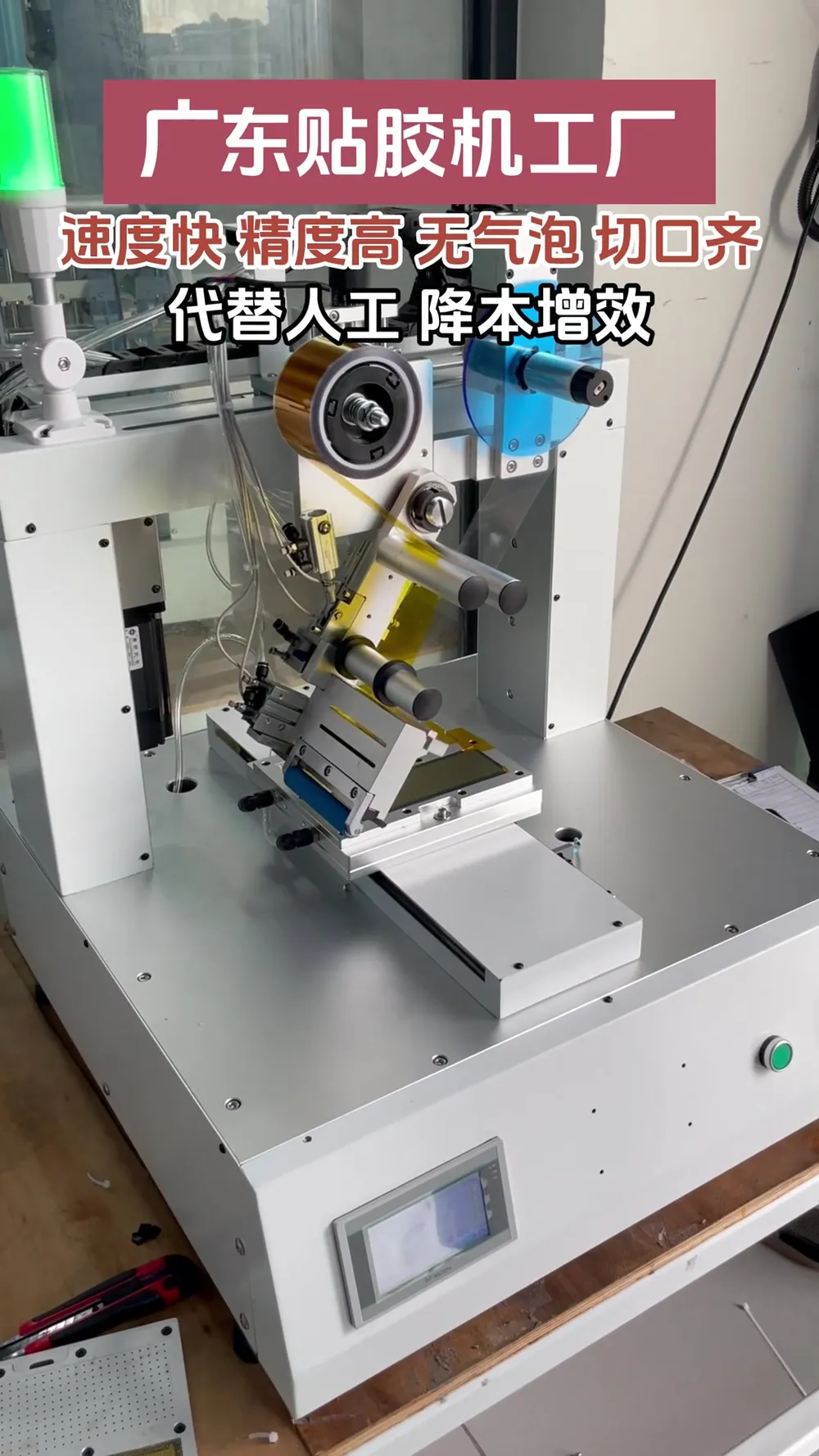

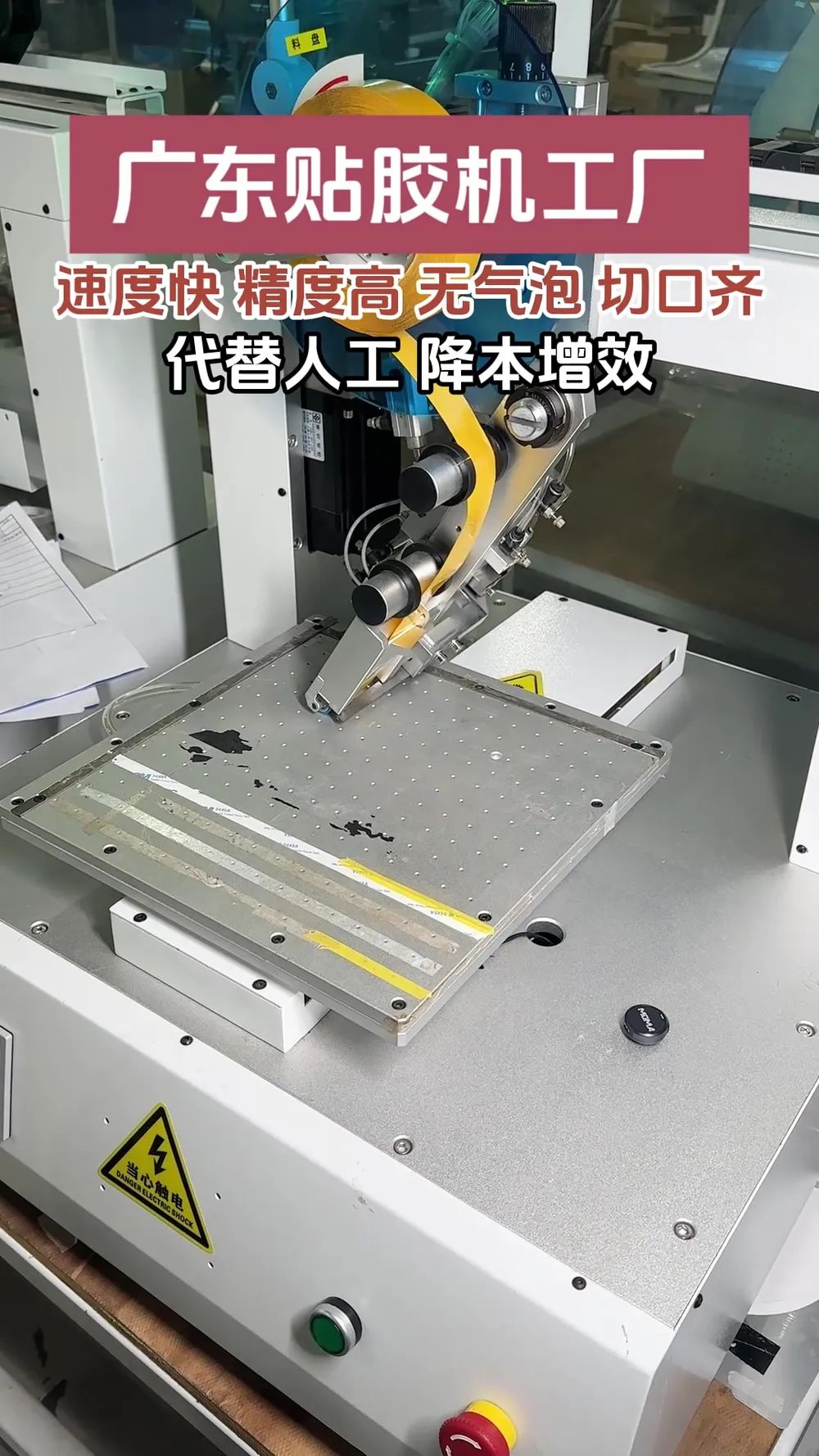

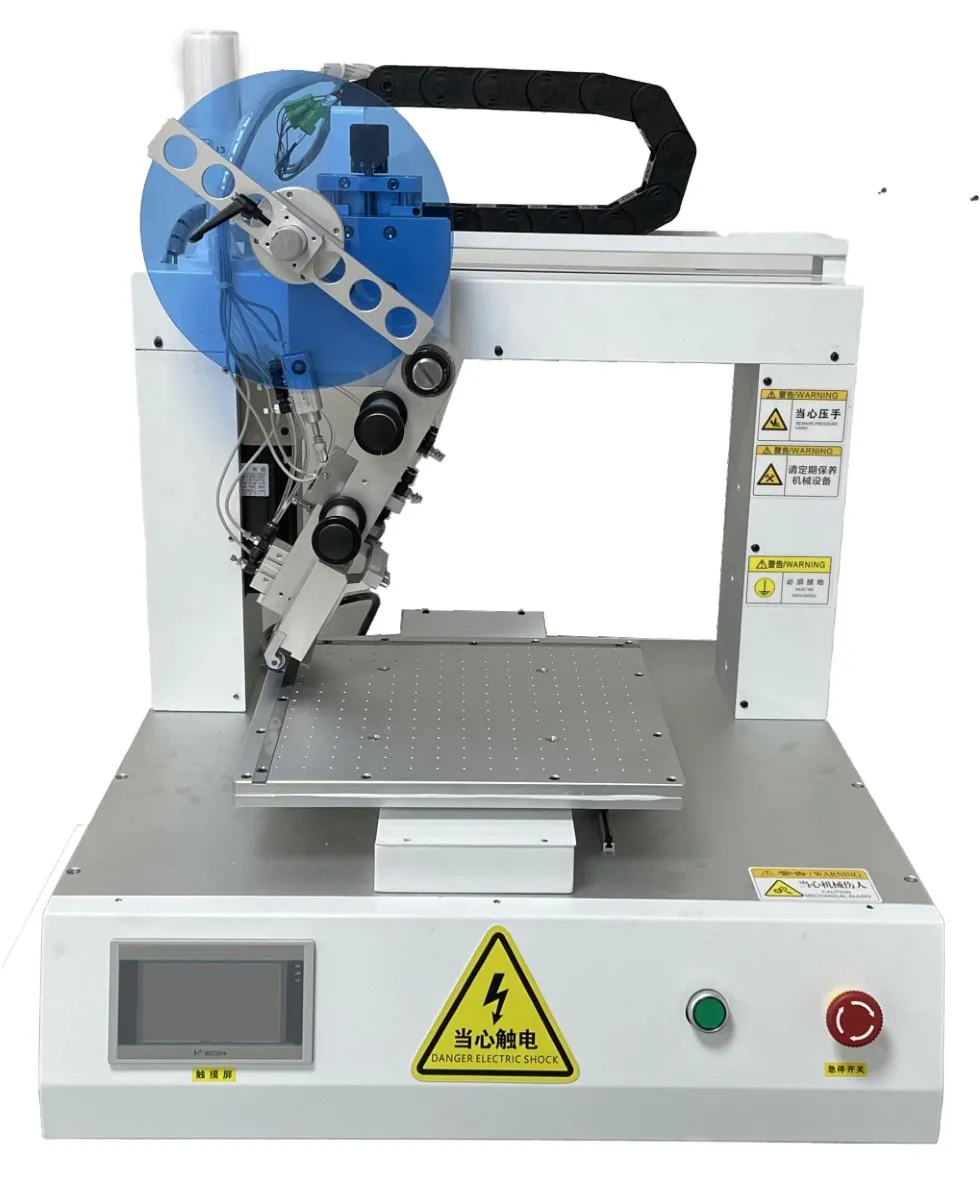

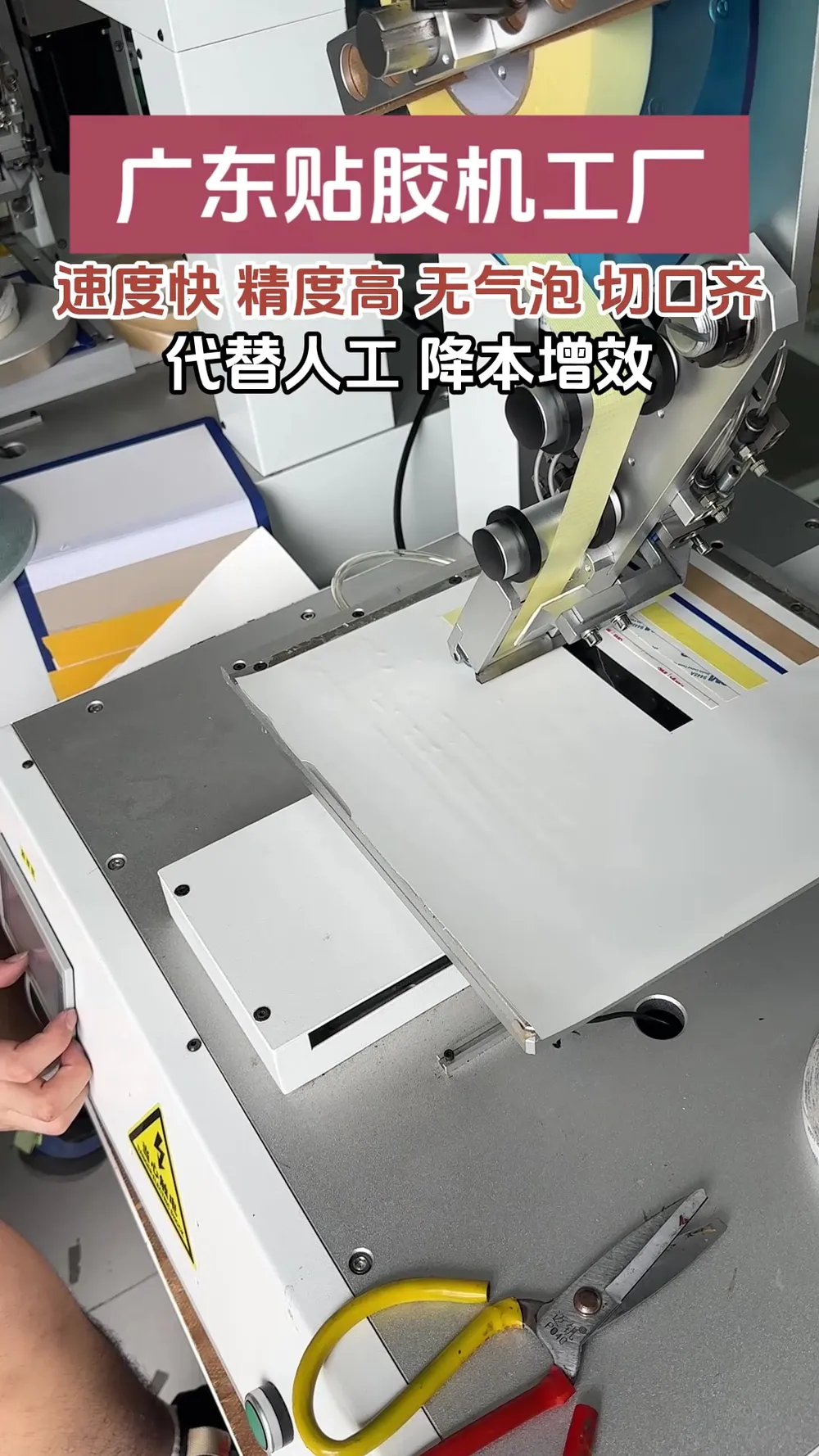

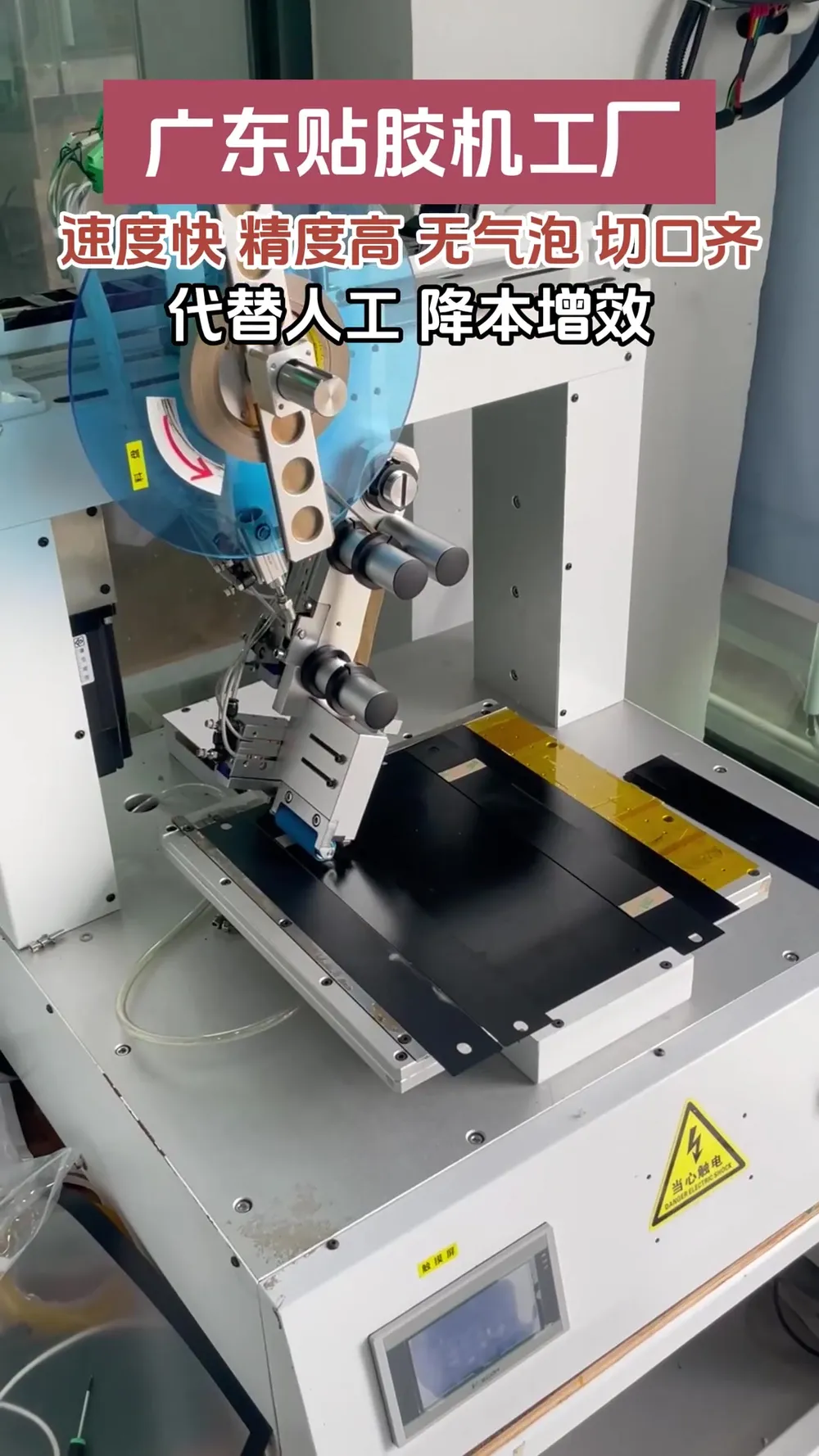

The desktop model is the compact complete machine in the YIXING taping range: approx. 800 × 800 × 720 mm and 78 kg, it sits on a workbench. The part is held on the platform by vacuum or a fixture; after the operator loads it, the machine applies the tape, cuts it automatically once it is laminated, and the part is taken off by hand.
The taping stroke is 300 × 300 mm and strips must be at least 30 mm long. Usable tape widths run from 5 mm up to 50 mm (liner width), and reels need a 76 mm core ID and a 250 mm OD. Brochure samples show yellow high-temperature tape on PCB panels and high-temperature tape strips on white sheets; double-sided, 3M and clear tape can be applied as well.
Taping accuracy is ±1 mm and speed 500 mm/s, on a 220 V / 50 Hz supply. Loading and unloading are manual as standard; if you need automatic loading and unloading, it can be custom-built.
Approx. 800 × 800 × 720 mm and 78 kg, so it works on a bench and takes little space.
The tape is cut automatically after it is applied; the operator only loads and unloads.
Sized for small sheets and PCB panels; minimum strip length 30 mm.

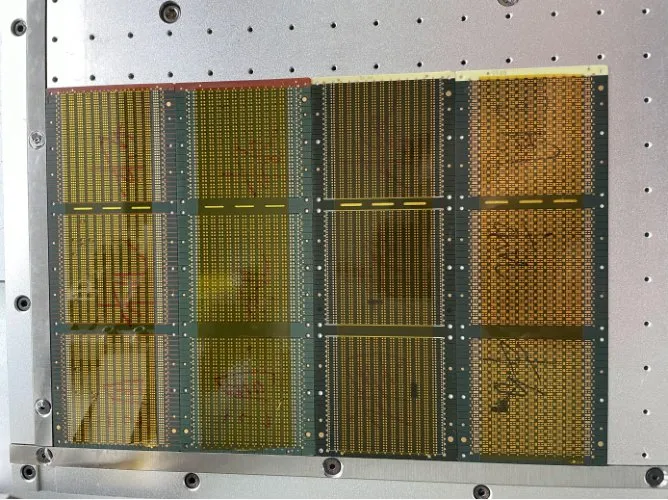

Brochure samples: yellow high-temperature tape on PCB panels and high-temperature strips on white sheets.
Takes tape from 5 mm up to 50 mm wide (liner width) — note the 5 mm lower limit. Reels: 76 mm core ID, 250 mm OD.
Manual loading and unloading as standard; automatic loading and unloading can be custom-built.
Real samples from the brochure, produced on this machine type
| Taping accuracy | ±1 mm (excluding product and tape tolerances) |
|---|---|
| Taping speed | 500 mm/s (depends on product and tape size) |
| Product size range | Taping stroke 300 × 300 mm; minimum tape length 30 mm |
| Tape specifications | Width (liner width) 5–50 mm; reel core ID 76 mm, reel OD 250 mm |
| Machine dimensions | Approx. 800 × 800 × 720 mm (L × W × H) |
| Power supply | 220 V / 50 Hz |
| Machine weight | 78 kg |
Standard-model data from the brochure; accuracy excludes product and tape tolerances. Other ranges can be custom-built.
The taping stroke is 300 × 300 mm, with a minimum strip length of 30 mm. Larger parts call for a floor-standing model.
5–50 mm by liner width — note the lower limit is 5 mm on this model — on reels with a 76 mm core ID and 250 mm OD.
Taping and cutting are automatic; loading and unloading are manual as standard. Automatic loading and unloading can be custom-built.
Yes. A brochure sample shows yellow high-temperature tape applied on PCB panels. It also applies double-sided, 3M and clear tape.
±1 mm taping accuracy (excluding product and tape tolerances) and 500 mm/s — the same figures the brochure lists for the floor-standing models, in a benchtop frame.
Approx. 800 × 800 × 720 mm (L × W × H) and 78 kg, running on 220 V / 50 Hz — sized for a workbench.
Brochure p. 7 ±1 mm The YIXING floor-standing rotary-head tape applicator holds the part on its table by vacuum or a fixture and rotates the tape head to lay multiple horizontal and vertical strips. It covers a 500 × 1000 mm taping stroke at ±1 mm accuracy and 500 mm/s, and applies double-sided, 3M, clear and high-temperature tape.
Brochure p. 8 ±1 mm The YIXING floor-standing 2-axis tape applicator splits the motion between two axes: the X axis drives the tape head and the Y axis moves the table carrying the part. It covers a 650 × 650 mm stroke at ±1 mm and 500 mm/s and suits parallel strips on sheets and foam boards.
Brochure p. 9 ±1 mm The YIXING floor-standing rotary-platform tape applicator rewinds the release liner (or waste paper) as it applies the tape, cuts the tape automatically and leaves the part ready to unload. It covers a 650 × 650 mm taping stroke at ±1 mm and 500 mm/s, with tape 3–50 mm wide.
Brochure p. 10 ±1 mm YIXING offers three tape applicator heads: a liner-peeling head, a non-peeling head that leaves the liner on the tape, and a waste-rewinding head. Customers choose the head that matches how liner and waste must be handled. Each tapes at ±1 mm and 500 mm/s, measures approx. 600 × 300 × 500 mm and weighs 8 kg.
