YIXING offers three tape applicator heads: a liner-peeling head, a non-peeling head that leaves the liner on the tape, and a waste-rewinding head. Customers choose the head that matches how liner and waste must be handled. Each tapes at ±1 mm and 500 mm/s, measures approx. 600 × 300 × 500 mm and weighs 8 kg.
Updated
Sample testing available Custom builds available
Besides complete machines, YIXING supplies tape applicator heads as separate units in three versions: liner-peeling, non-peeling and waste-rewinding. They differ in what happens to the release liner and the waste during taping, and customers pick the version that fits their needs and use it with their equipment.

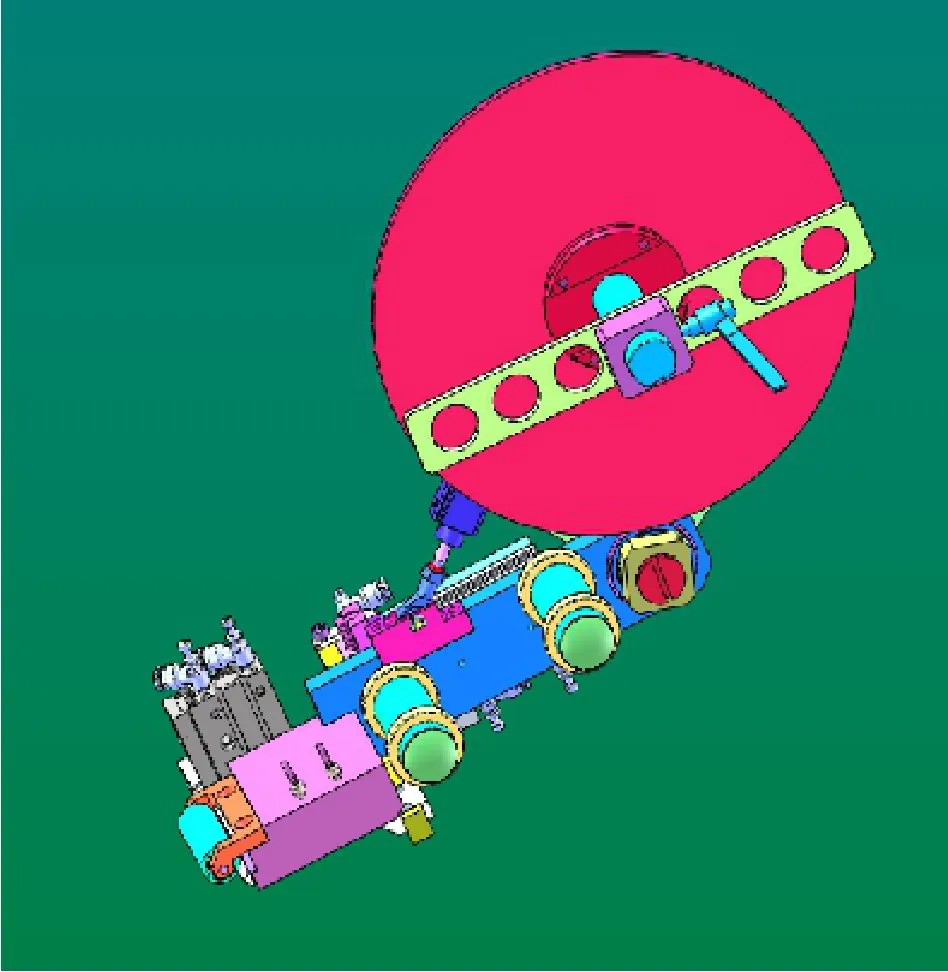

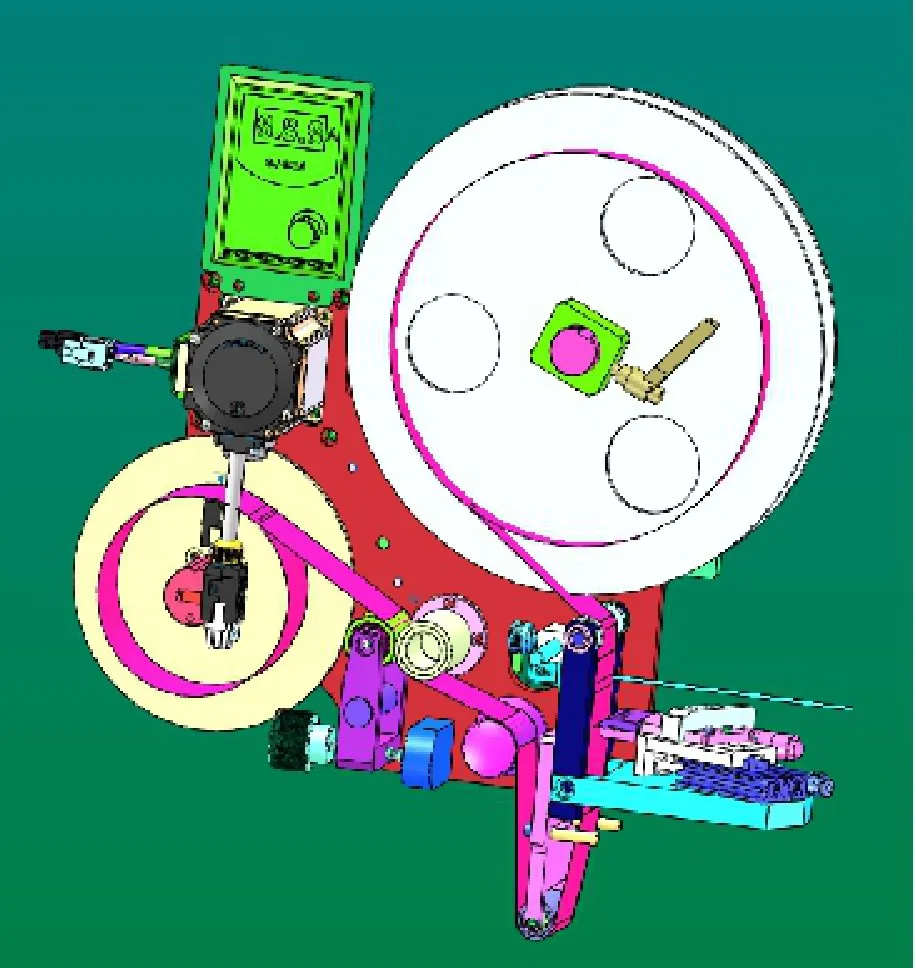

The liner-peeling head strips the release liner off as the tape is applied. The non-peeling head applies the tape with its liner still in place, for jobs where the liner has to stay on after taping. The waste-rewinding head winds up the waste material. To choose, decide whether the liner comes off and whether waste must be collected, then match the head.
Each head weighs 8 kg and measures approx. 600 × 300 × 500 mm (L × W × H). The brochure rates the heads at ±1 mm taping accuracy (excluding product and tape tolerances) and 500 mm/s, for tape 3–50 mm wide (liner width) wound on 76 mm cores with a 250 mm reel OD.
Liner-peeling, non-peeling and waste-rewinding versions, chosen by how the liner and waste must be handled.
Take the liner-peeling head when the liner must come off, or the non-peeling head when it has to stay on the tape.

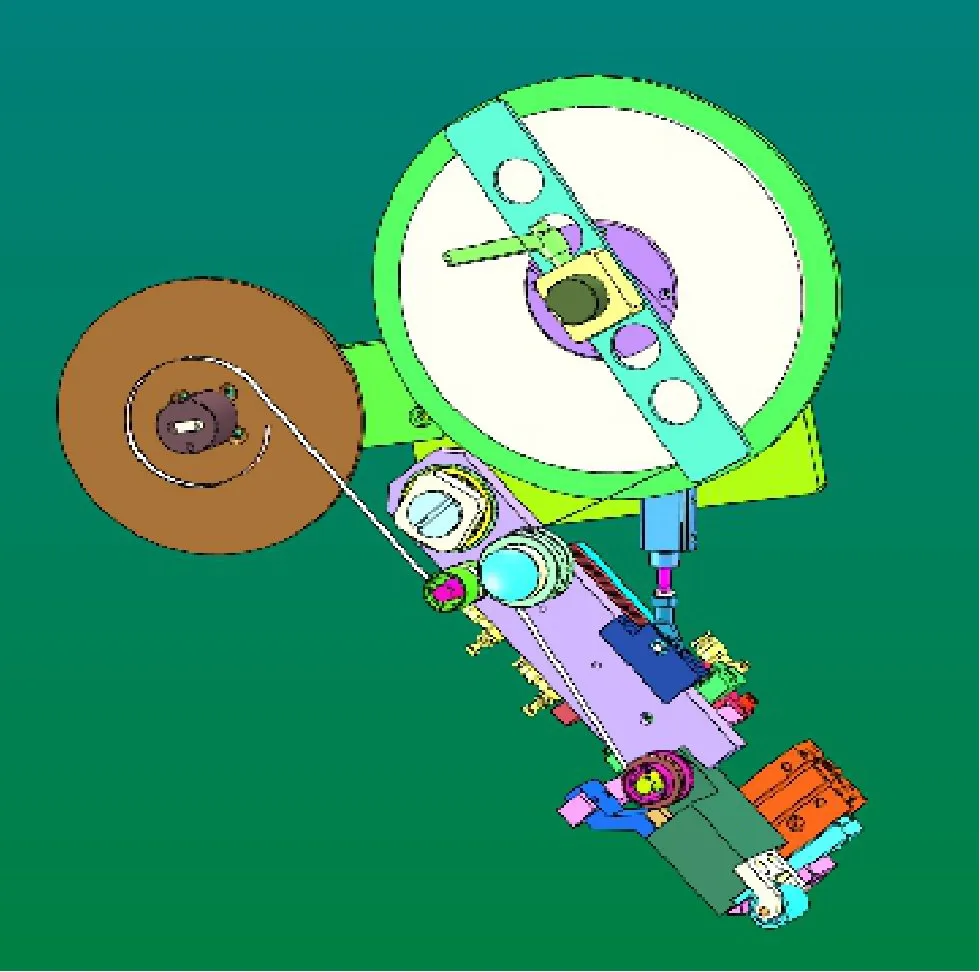

The waste-rewinding head winds up waste material, for taping steps where waste has to be collected.
Rated at ±1 mm taping accuracy and 500 mm/s; speed varies with part and tape size.
Approx. 600 × 300 × 500 mm and 8 kg, supplied as a component for use with matching equipment.
Works with tape 3 to 50 mm wide (liner width) wound on 76 mm cores, with a reel OD of 250 mm.
The brochure shows no sample photos for this machine — send us your product for a test.
| Taping accuracy | ±1 mm (excluding product and tape tolerances) |
|---|---|
| Taping speed | 500 mm/s (depends on product and tape size) |
| Tape specifications | Width (liner width) 3–50 mm; reel core ID 76 mm, reel OD 250 mm |
| Machine dimensions | Approx. 600 × 300 × 500 mm (L × W × H) |
| Machine weight | 8 kg |
Standard-model data from the brochure; accuracy excludes product and tape tolerances. Other ranges can be custom-built.
The liner-peeling head strips the release liner off during taping, the non-peeling head leaves the liner on the tape, and the waste-rewinding head winds up the waste.
Match it to your process: liner must come off → liner-peeling head; liner must stay on → non-peeling head; waste must be collected → waste-rewinding head.
They tape at ±1 mm, not counting product and tape tolerances, and at 500 mm/s, which varies with part and tape size.
Tape from 3 to 50 mm wide, measured by liner width. The reel core ID is 76 mm and the reel OD 250 mm.
Approx. 600 × 300 × 500 mm (L × W × H) and 8 kg.
