中文自动下料裁切贴胶机
Inline tape applicator above a belt conveyor that tapes each passing part, cuts the tape automatically and hands the parts on to discharge conveyors.
Updated
Sample testing available Custom builds available

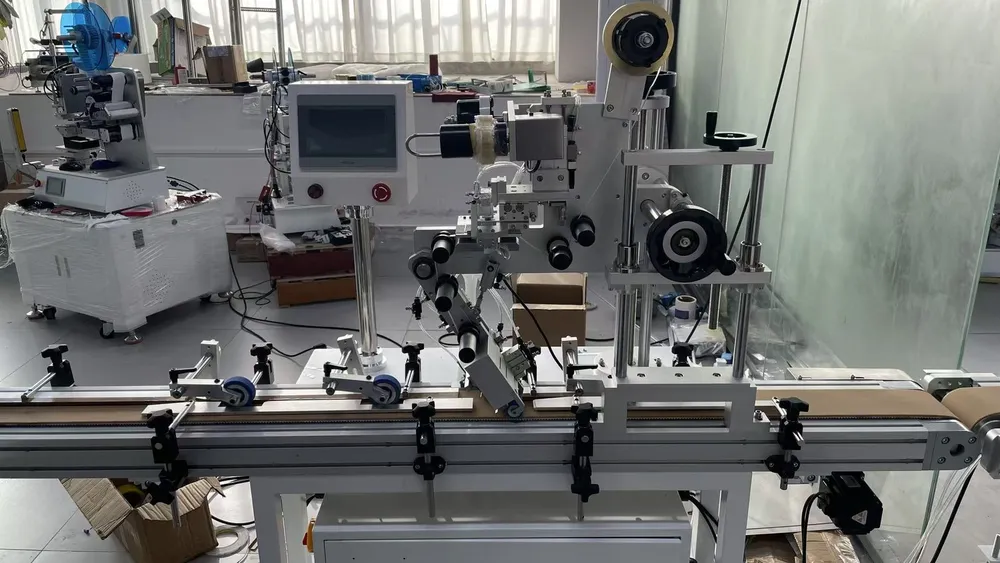

This inline machine applies tape to parts as they travel on a belt conveyor. The tape head sits on twin columns above the belt, with a handwheel to set its height; it feeds tape onto each part and cuts it automatically, and the part moves on.

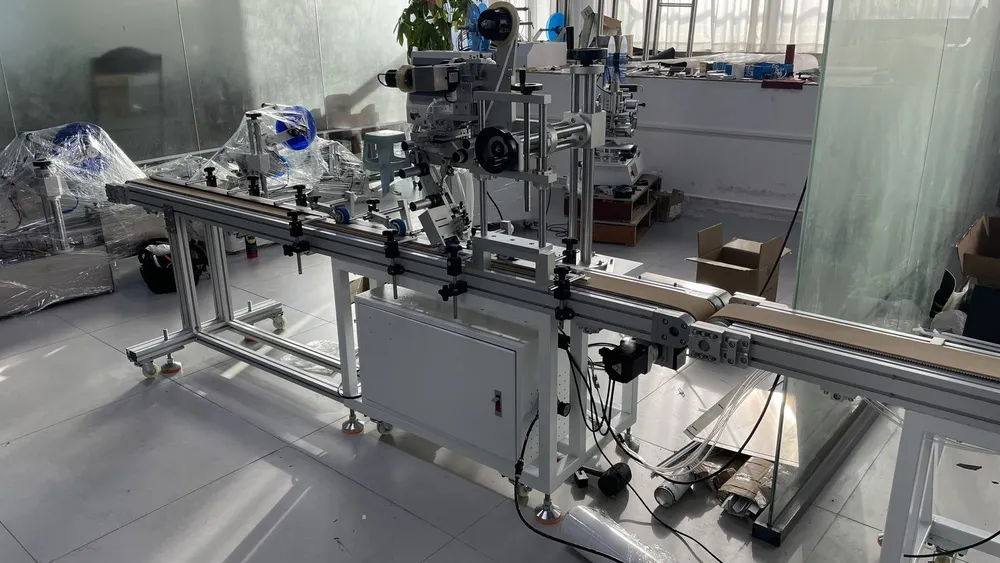

Adjustable side guides keep parts on track through the taping station, a touchscreen beside the head controls the machine and the electrical cabinet sits under the conveyor. Separate discharge conveyors take finished parts away, so taping becomes one step of a continuous line.
Conveyor width and length, tape width and cut length are set up for your parts. Send us samples and we will test the taping free of charge.
The tape is cut automatically for each part, so no manual trimming is needed.
Twin columns and a handwheel set the head height to the part.

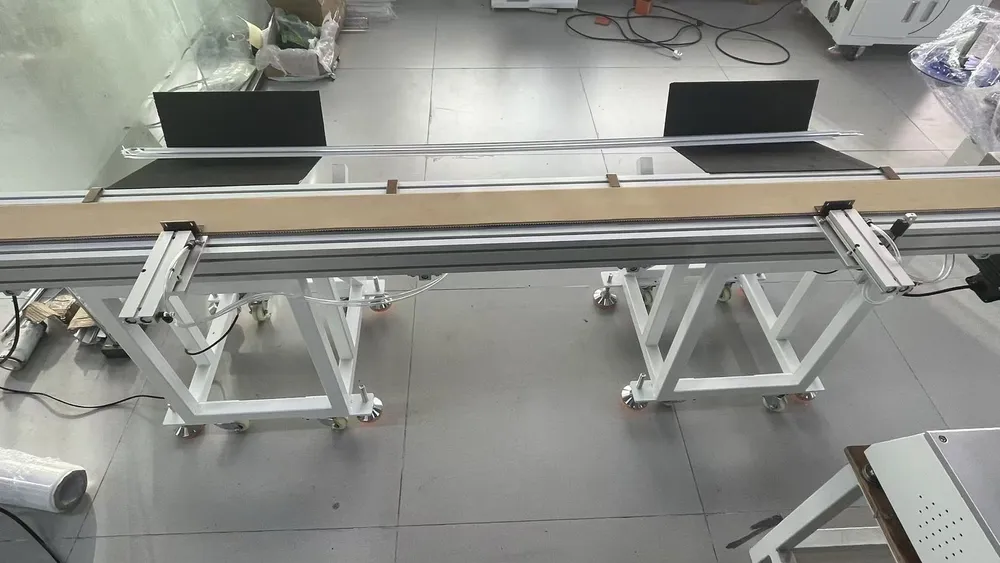

Guides along the belt keep parts lined up under the tape head.

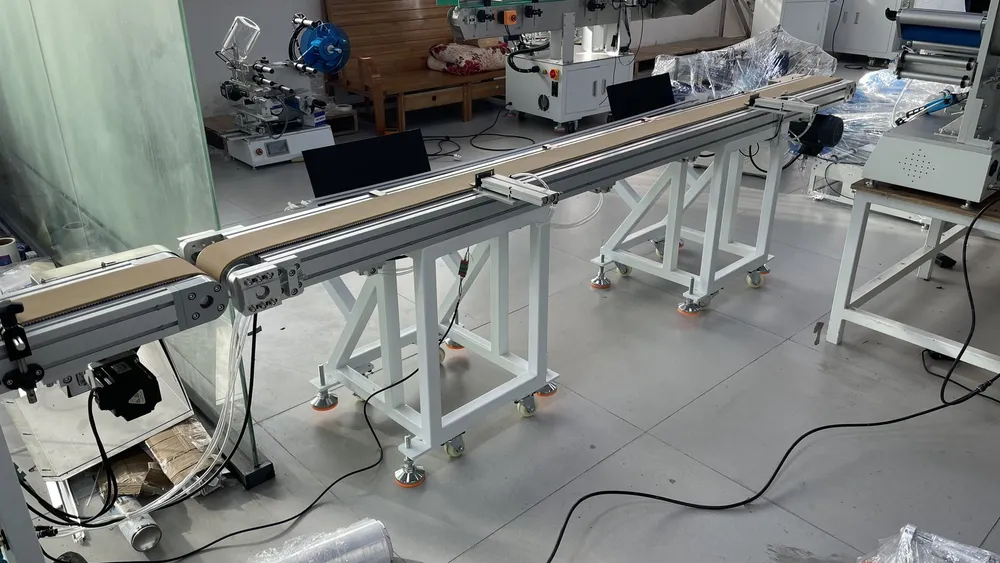

Separate conveyors carry the taped parts away, to a packing point or the next process.
A touchscreen next to the tape head sets and runs the machine; the electrical cabinet sits under the conveyor.
Conveyor length and width and the discharge layout are designed around your parts and floor space.
| Applicable products | Parts carried on a belt conveyor |
|---|---|
| Machine layout | Belt conveyor with side guides; tape head with automatic cutter on twin columns; separate discharge conveyors |
| Control | Touchscreen |
| Customization | Conveyor, tape width, cut length and discharge layout made to your line |
It applies tape to parts moving on a belt conveyor, cuts the tape to length automatically and passes the parts on to discharge conveyors.
Yes. The head cuts the tape for each part, so parts leave the machine ready for the next step.
The head height is set with a handwheel on its twin columns, and the side guides are adjusted to the part width.
This machine was built to order for one customer's line, including its discharge conveyors. The inline conveyor tape applicator is our catalog model with published specifications. Tell us about your parts and we will recommend one or the other.
That depends on your part and tape, so we state speed and accuracy after testing your samples free of charge.
Brochure p. 14 ±2 mm The YIXING inline conveyor tape applicator tapes flat parts in one continuous sequence: the part is loaded, the tape is cut automatically and applied, and the part is unloaded. An automatic part-separating function can be added and any size can be custom-built. It tapes at ±2 mm and 500 mm/s and weighs 150 kg.
Custom builds available Inline tape applicator in which belts clamp each part and carry it past two tape heads, so two strips of tape go on in a single pass along the conveyor.
Custom builds available Automation unit with two stacking stations and a pick-and-place axis: it takes parts from a stack for the next process and stacks the finished parts again.
Brochure p. 7 ±1 mm The YIXING floor-standing rotary-head tape applicator holds the part on its table by vacuum or a fixture and rotates the tape head to lay multiple horizontal and vertical strips. It covers a 500 × 1000 mm taping stroke at ±1 mm accuracy and 500 mm/s, and applies double-sided, 3M, clear and high-temperature tape.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
