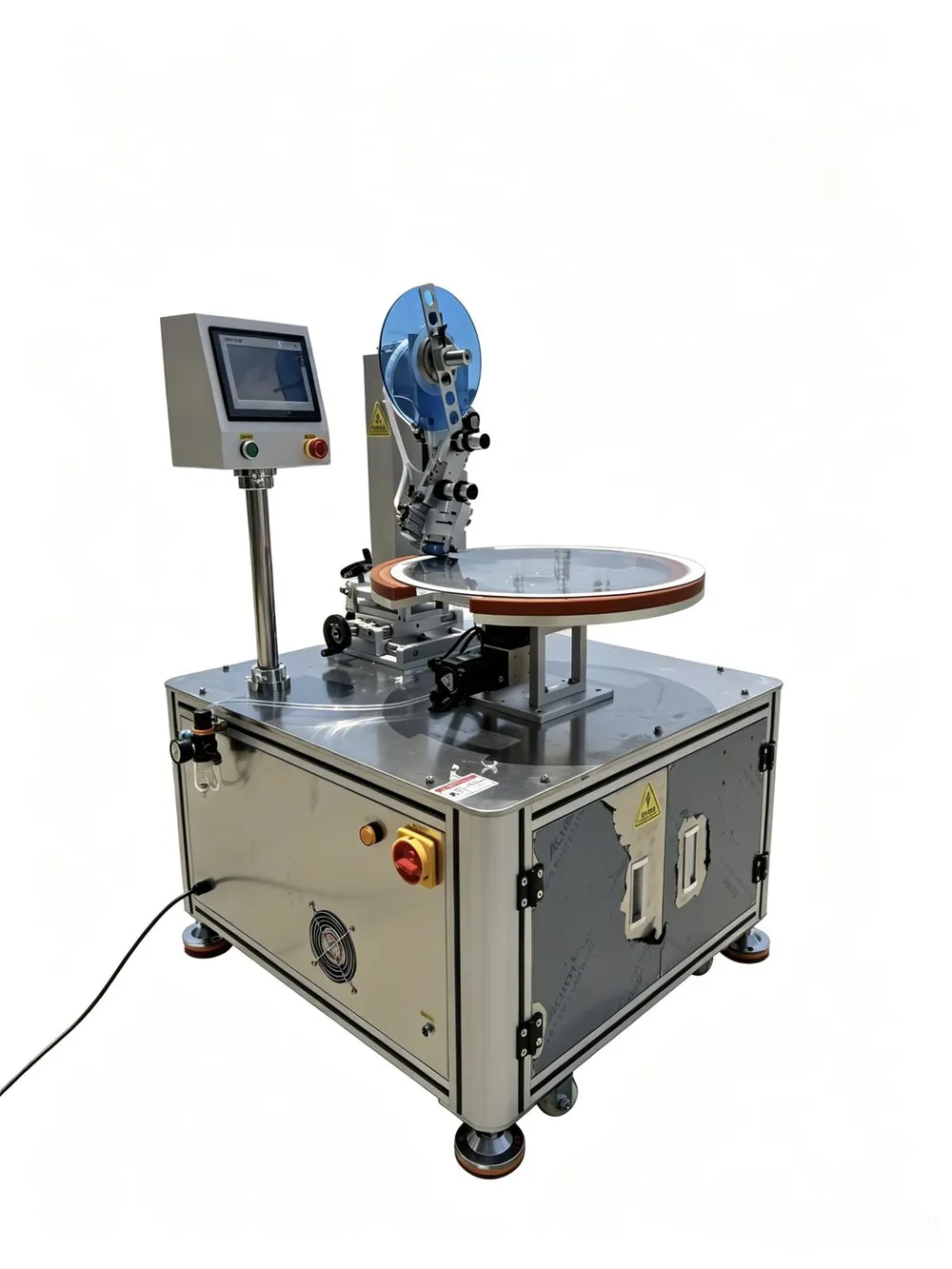

Rotary Tape Applicator for Washing-Machine Panels (T-803)
中文洗衣机面板平台旋转贴胶机（T-803）
Tape applicator with a motor-driven turntable: a round washing-machine panel turns in a ring fixture while the tape head presses tape around its edge.
Updated
- Applicable products
- Round washing-machine panels and similar round parts
Sample testing available Custom builds available
Overview

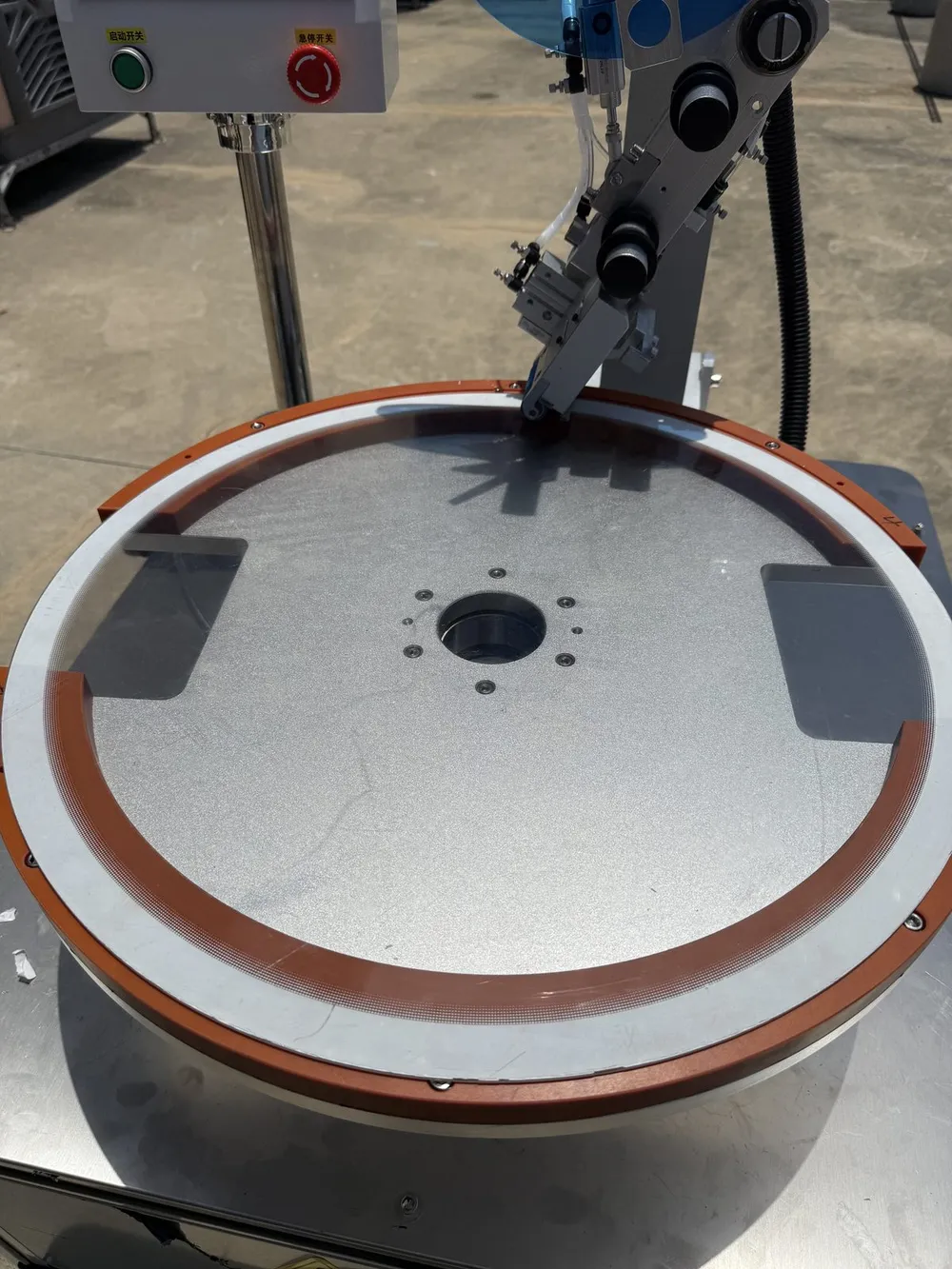

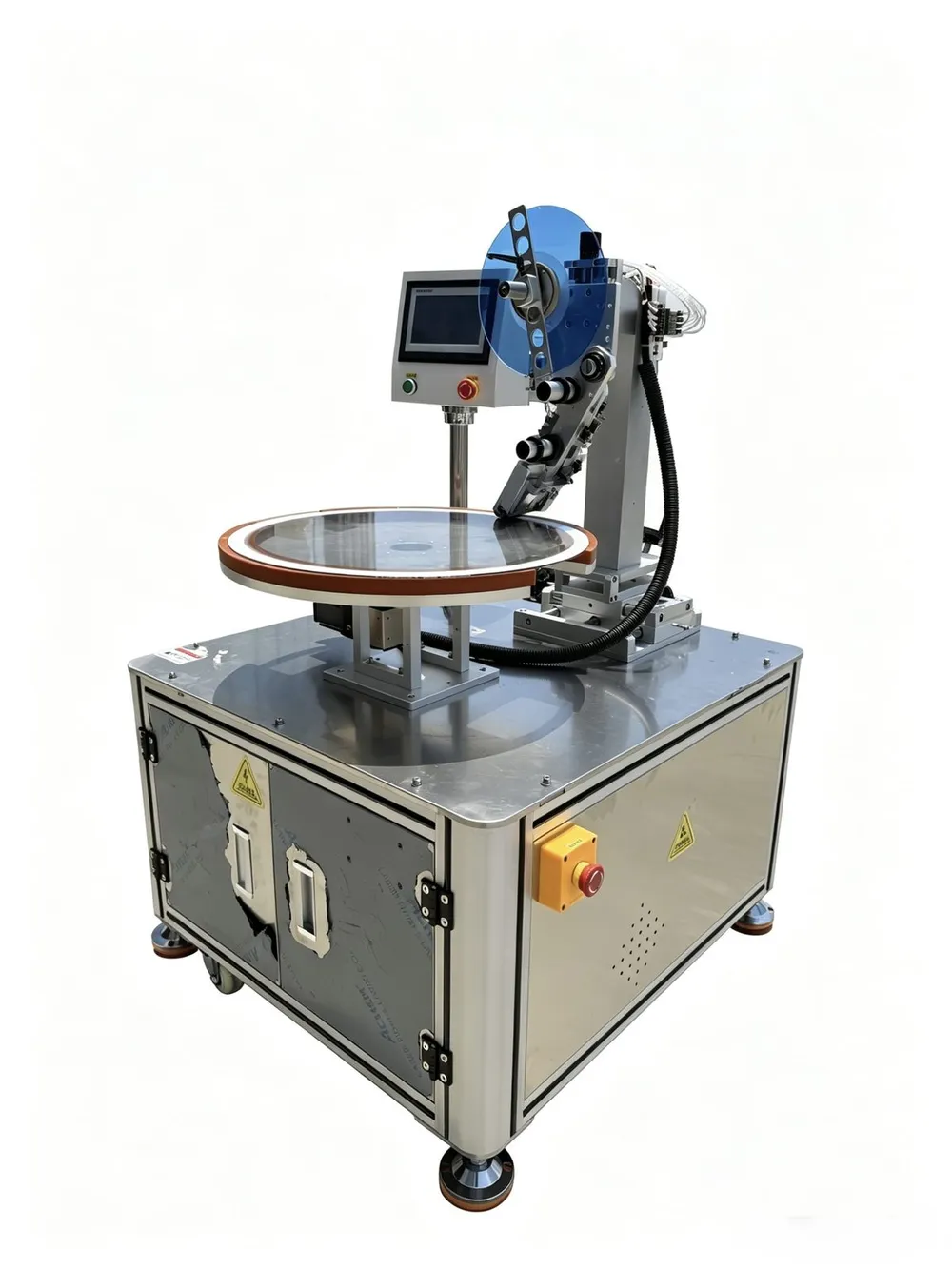

The T-803 applies tape around the edge of round parts. It was built for washing-machine panels: the panel is placed in a segmented ring fixture on the turntable, the tape head on its arm presses tape onto the edge, and a drive motor under the table turns the part so the tape runs all the way round.

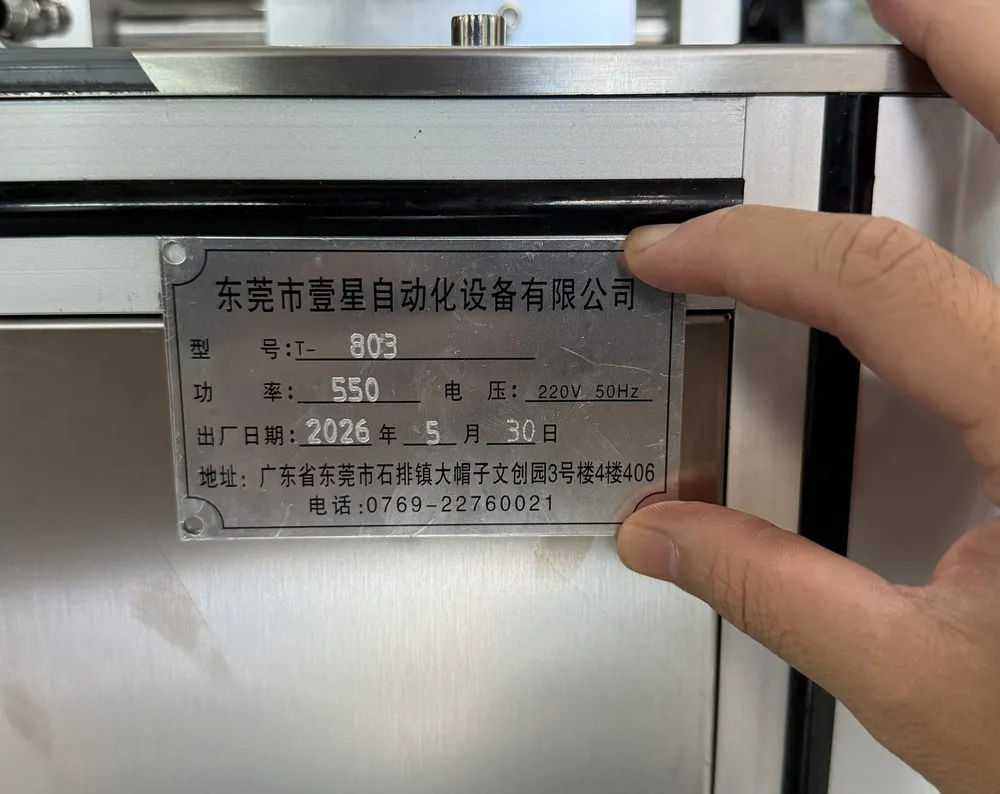

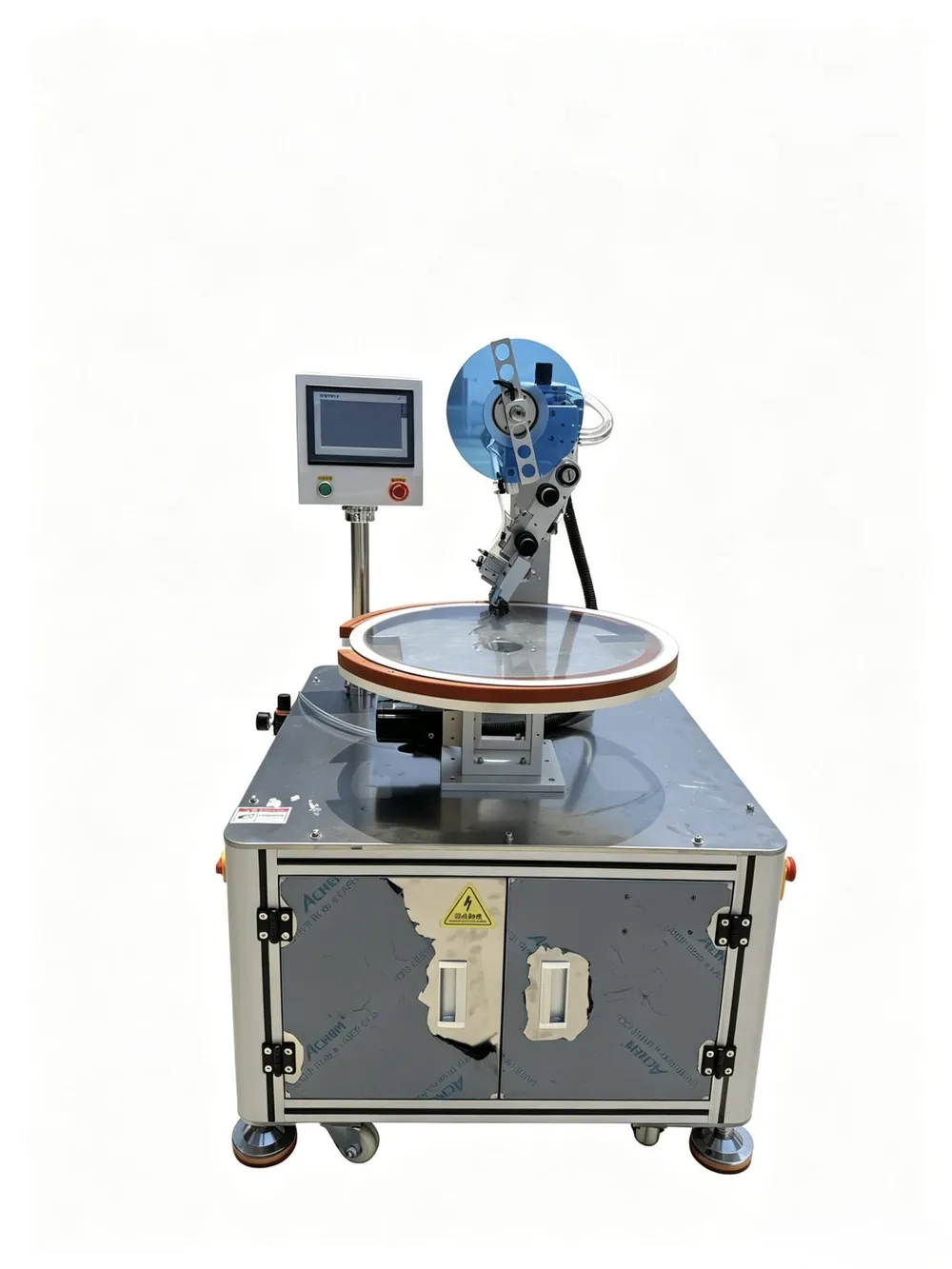

The machine has a compact square cabinet on casters and leveling feet, a touchscreen on a post with start and emergency-stop buttons, and a foot switch that comes with it, so the operator can start a cycle while both hands hold the part. Nameplate data: model T-803, 550 W, 220 V 50 Hz.
Ring fixtures are made to the part diameter. The same layout suits other round parts that need tape along the rim — send us a sample or a drawing.
Key advantages
Tape around the whole edge

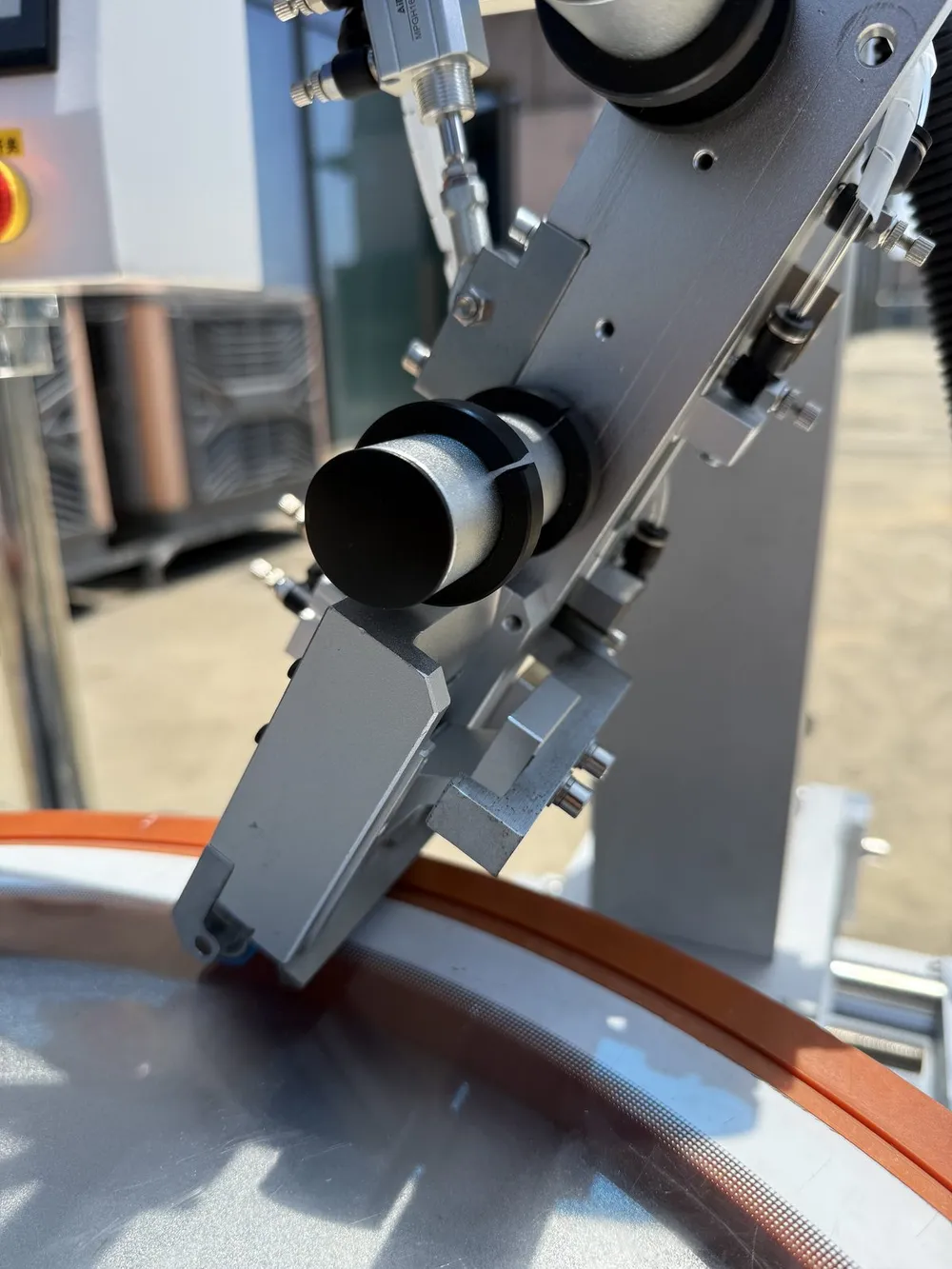

The part turns under the tape head, so the tape follows the round edge in one continuous run.
Motor-driven turntable

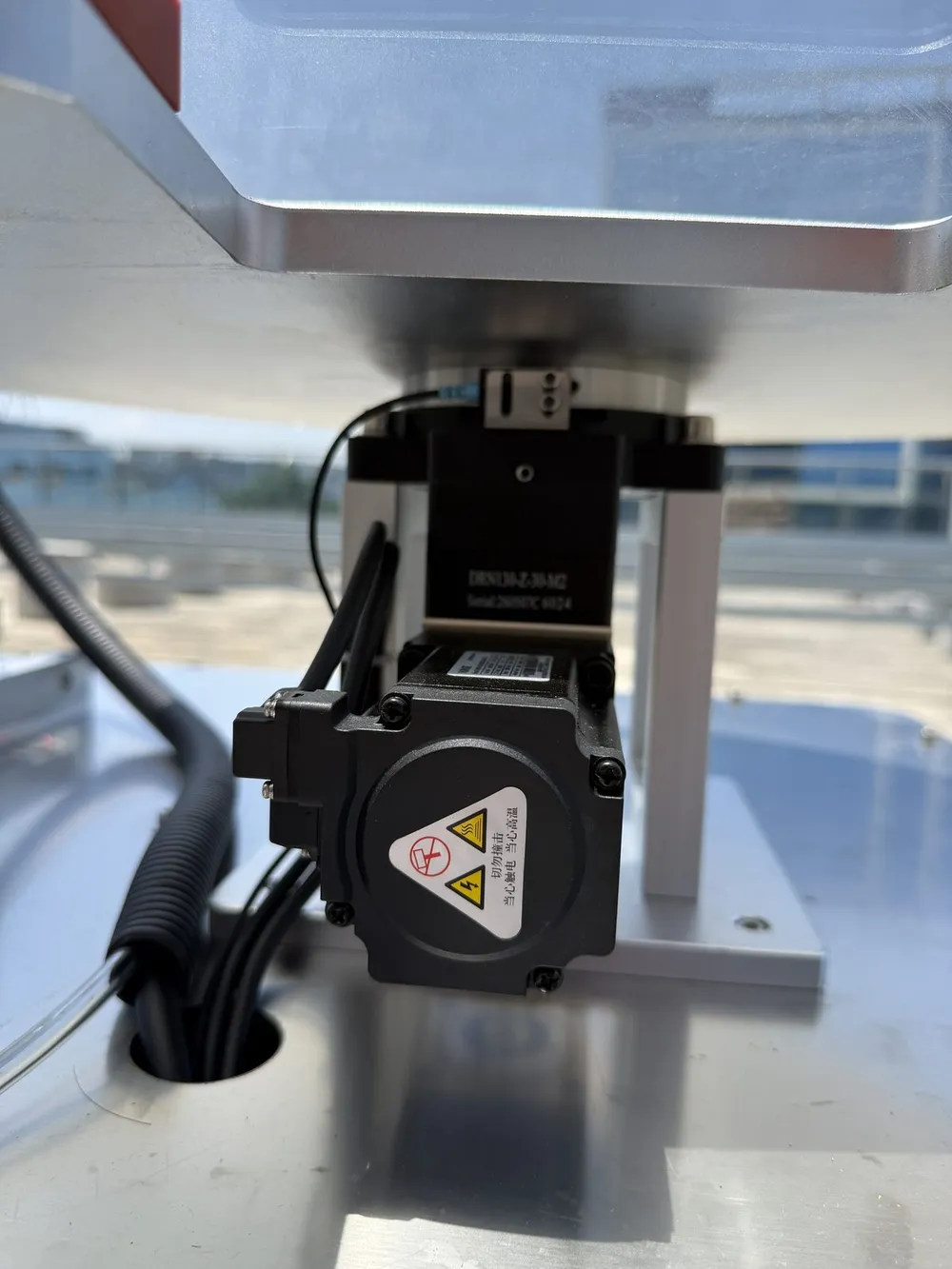

A drive motor under the table turns the part at an even speed.
Segmented ring fixture

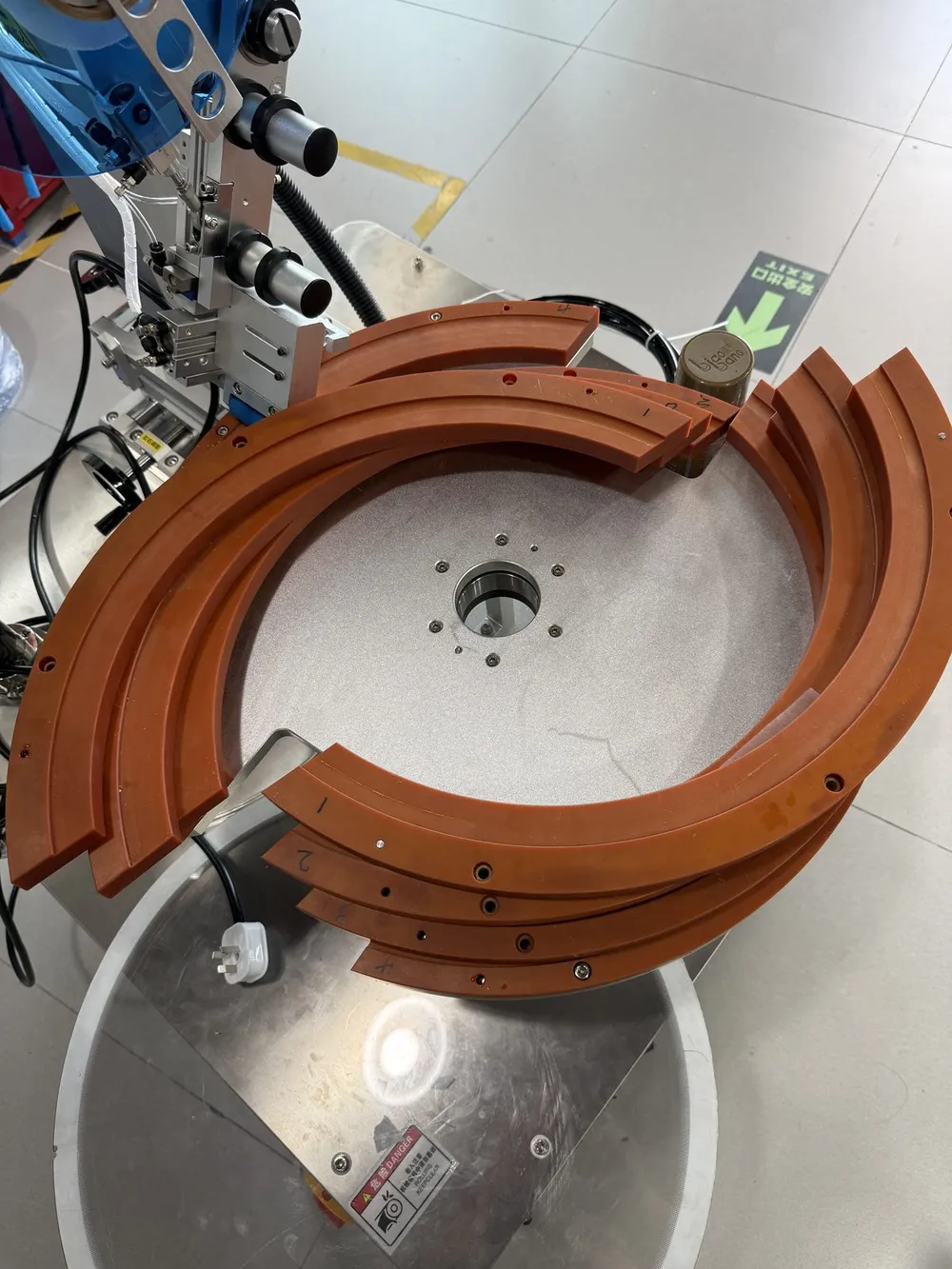

An orange ring fixture made of segments locates the round panel on the turntable.
Foot-switch start

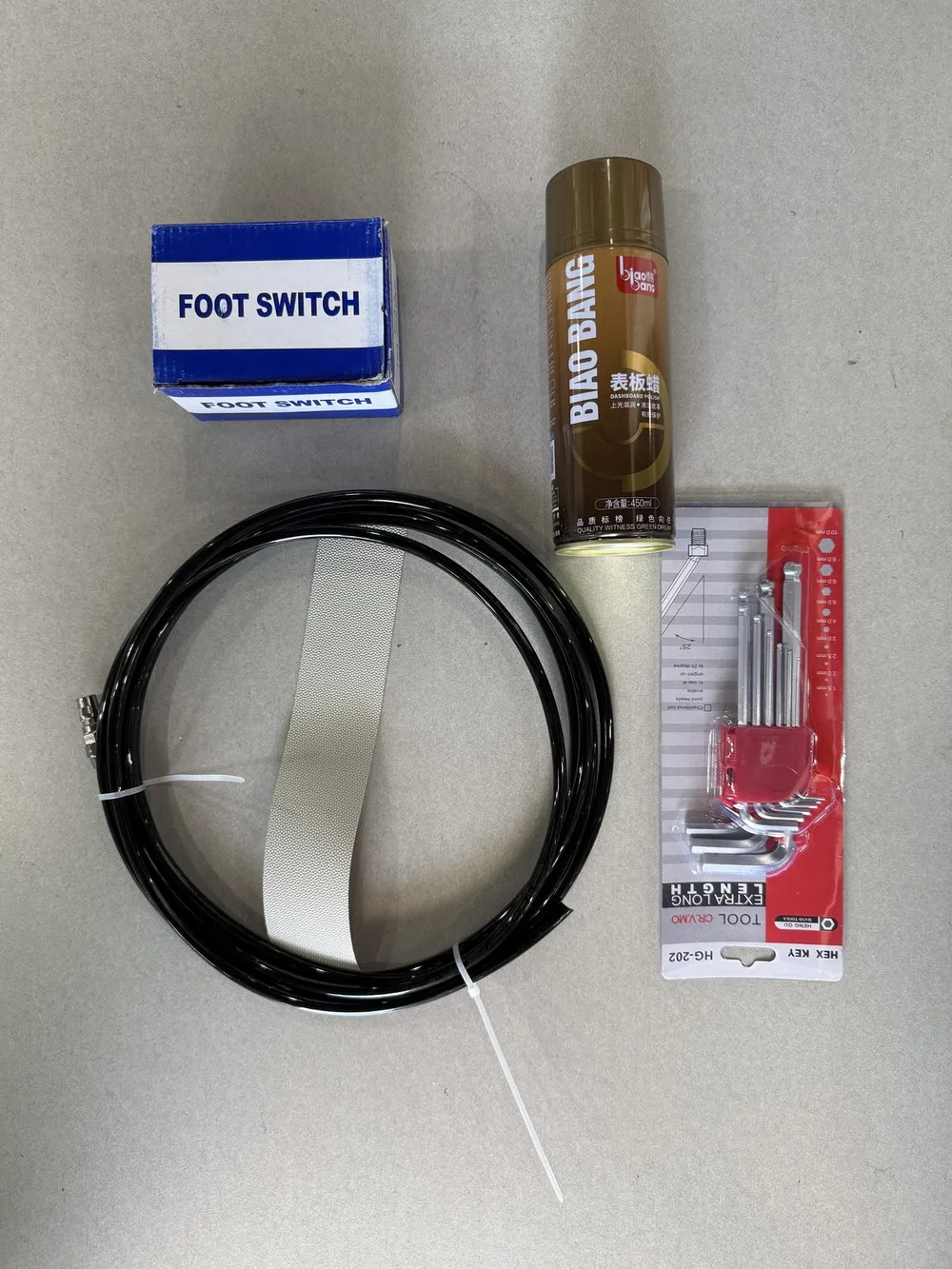

The supplied foot switch keeps both hands free for placing and holding the part.
Compact cabinet
A square cabinet on casters with the touchscreen on a post and an emergency stop on the front.
550 W on 220 V
Rated 550 W on a 220 V, 50 Hz supply, according to the nameplate.
Applications
Suitable products
Washing-machine panelsRound appliance panels and coversRound plastic partsRing-shaped parts
Industries
Home appliancesPlastics
Typical scenarios
- Tape around the rim of a round panel
- Edge tape on round covers before assembly
Technical specifications
| Model | T-803 |
|---|---|
| Applicable products | Round washing-machine panels and similar round parts |
| Machine layout | Motor-driven turntable with a segmented ring fixture; tape head on an arm |
| Control | Touchscreen, start button, emergency stop, foot switch |
| Rated power | 550 W |
| Power supply | 220 V / 50 Hz |
| Customization | Ring fixture made to the part diameter |
Options and customization
- Ring fixtures for your part diameters
- Tape head set up for your tape width and edge position
Selection tips
- Tell us the panel diameter, the tape width and where on the edge the tape goes.
- For square or rectangular parts that need tape around the sides, see the square box tape applicator.
- For tape on the flat face of round parts rather than on the edge, ask about the floor-standing rotary-platform tape applicator.
FAQ
What is the T-803 used for?
Applying tape around the edge of round parts. It was built for washing-machine panels, which turn in a ring fixture while the tape head presses tape onto the rim.
What power supply does it need?
According to its nameplate, the T-803 is rated 550 W and runs on 220 V, 50 Hz.
Can it tape other round parts?
Yes, if the part can sit in a ring fixture on the turntable. We make the fixture to the diameter of your part.
How is a cycle started?
With the supplied foot switch or the start button, so both hands stay free to place the part.
How fast and how accurate is it?
That depends on the diameter and the tape, so we state cycle time and accuracy after testing your samples free of charge.
