中文双胶头磁吸下料贴胶机
The YIXING dual-head tape applicator is a custom build for taping flat faces on uneven parts that do not sit steadily. Parts are loaded into fixtures by hand, four strips go on at once, and a magnetic pick-up on a motion module unloads them; the two heads work in turn. Approx. 2000 × 1600 × 1500 mm, 260 kg.
Updated
Sample testing available Custom builds available
This custom machine targets parts that are uneven and will not sit steadily, yet need tape on a flat face. The operator places each part in a fixture, and the machine applies four tape strips at the same time, using double-sided, 3M, clear or high-temperature tape.
Two tape heads work in turn. When the first head has finished, the taped part is unloaded magnetically; once the other head has applied its tape, the magnetic pick-up travels on a motion module and unloads again. Unloading is handled by the machine, leaving the operator to load parts.
As a custom build, it is designed around the customer's product; the unit in the brochure has a fully enclosed frame. On taping performance it matches the standard floor-standing models — ±1 mm at 500 mm/s — and it takes tape 3–50 mm wide (liner width) wound on 76 mm cores, reel OD 250 mm. Overall size is approx. 2000 × 1600 × 1500 mm, with a weight of 260 kg and a 220 V / 50 Hz supply.
Four tape strips go on in a single step instead of one after another.
The two tape heads take turns, and each finished part is unloaded by the magnetic pick-up.
A magnetic pick-up on a motion module removes taped parts, so they are not unloaded by hand.
Uneven parts that do not sit steadily are located in fixtures for flat-face taping.

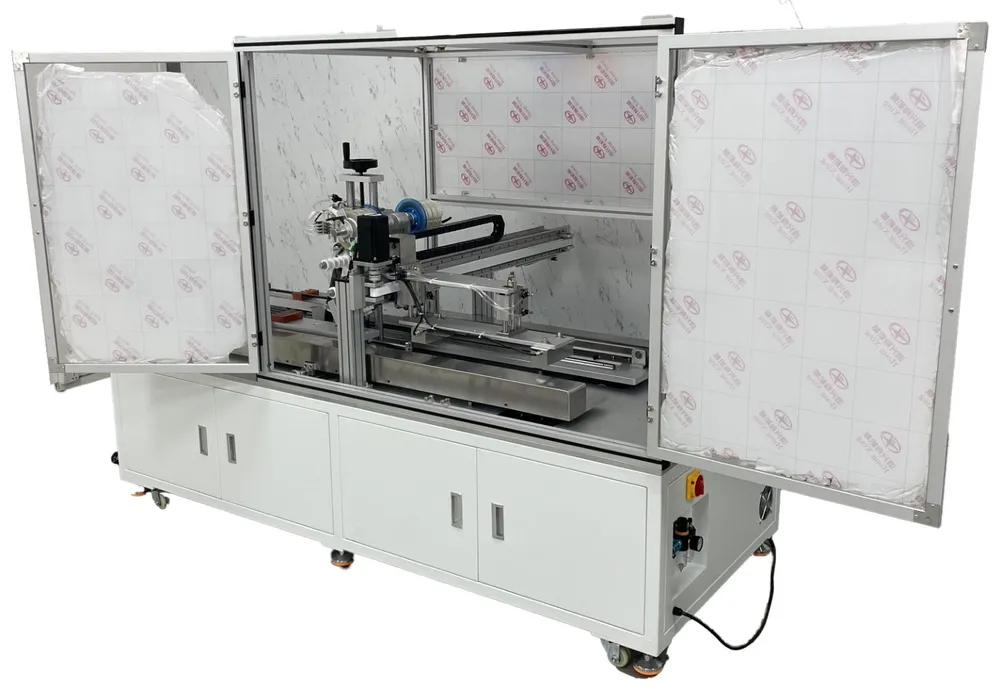

Designed around the customer's product; the brochure unit has a fully enclosed frame.
Rated in the brochure at ±1 mm taping accuracy (excluding product and tape tolerances) and 500 mm/s.

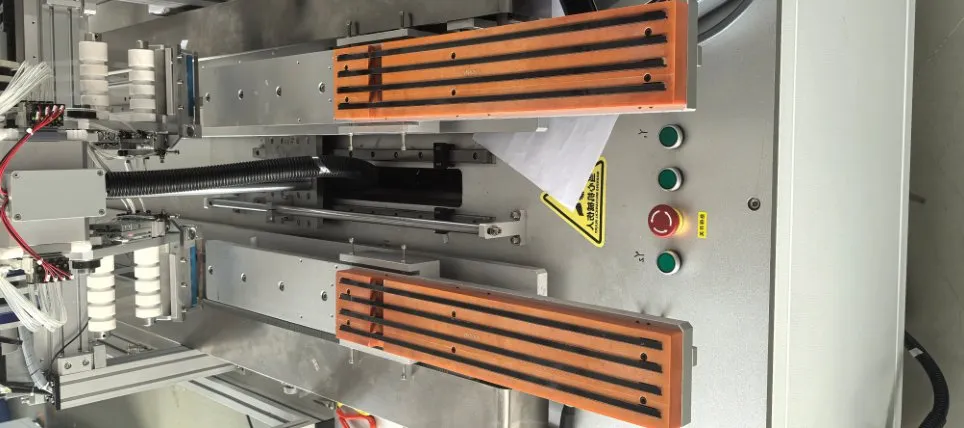

Real samples from the brochure, produced on this machine type
| Taping accuracy | ±1 mm (excluding product and tape tolerances) |
|---|---|
| Taping speed | 500 mm/s (depends on product and tape size) |
| Product size range | Custom-built to the customer's product |
| Tape specifications | Width (liner width) 3–50 mm; reel core ID 76 mm, reel OD 250 mm |
| Machine dimensions | Approx. 2000 × 1600 × 1500 mm (L × W × H) |
| Power supply | 220 V / 50 Hz |
| Machine weight | 260 kg |
Standard-model data from the brochure; accuracy excludes product and tape tolerances. Other ranges can be custom-built.
Parts that are uneven and do not sit steadily but need tape on a flat face, using double-sided, 3M, clear or high-temperature tape.
Four tape strips at the same time.
After the first head finishes, the parts are unloaded magnetically; after the other head applies its tape, the magnetic pick-up travels on a motion module and unloads again.
No. Parts are loaded into the fixture by hand; taping and unloading are done by the machine.
No, it is a custom build designed around the customer's product. It tapes at ±1 mm and 500 mm/s.
Approx. 2000 × 1600 × 1500 mm (L × W × H) and 260 kg — one of the larger machines in the taping range, so plan floor space accordingly. Power is 220 V / 50 Hz.
Brochure p. 7 ±1 mm The YIXING floor-standing rotary-head tape applicator holds the part on its table by vacuum or a fixture and rotates the tape head to lay multiple horizontal and vertical strips. It covers a 500 × 1000 mm taping stroke at ±1 mm accuracy and 500 mm/s, and applies double-sided, 3M, clear and high-temperature tape.
Brochure p. 8 ±1 mm The YIXING floor-standing 2-axis tape applicator splits the motion between two axes: the X axis drives the tape head and the Y axis moves the table carrying the part. It covers a 650 × 650 mm stroke at ±1 mm and 500 mm/s and suits parallel strips on sheets and foam boards.
Brochure p. 9 ±1 mm The YIXING floor-standing rotary-platform tape applicator rewinds the release liner (or waste paper) as it applies the tape, cuts the tape automatically and leaves the part ready to unload. It covers a 650 × 650 mm taping stroke at ±1 mm and 500 mm/s, with tape 3–50 mm wide.
Brochure p. 10 ±1 mm YIXING offers three tape applicator heads: a liner-peeling head, a non-peeling head that leaves the liner on the tape, and a waste-rewinding head. Customers choose the head that matches how liner and waste must be handled. Each tapes at ±1 mm and 500 mm/s, measures approx. 600 × 300 × 500 mm and weighs 8 kg.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
