Custom builds available Wide-Format Film & Tape Applicator (450 mm)
Wide-format applicator that laminates protective film or tape up to 450 mm wide onto flat parts held on a vacuum platform, then cuts it automatically.
Custom builds available
Tape Applicators (Taping Machines) Not in the printed catalog — built to order
Custom Wide-Format Tape Applicator with Outfeed Conveyor
中文定制宽幅贴胶机（带出料输送线）

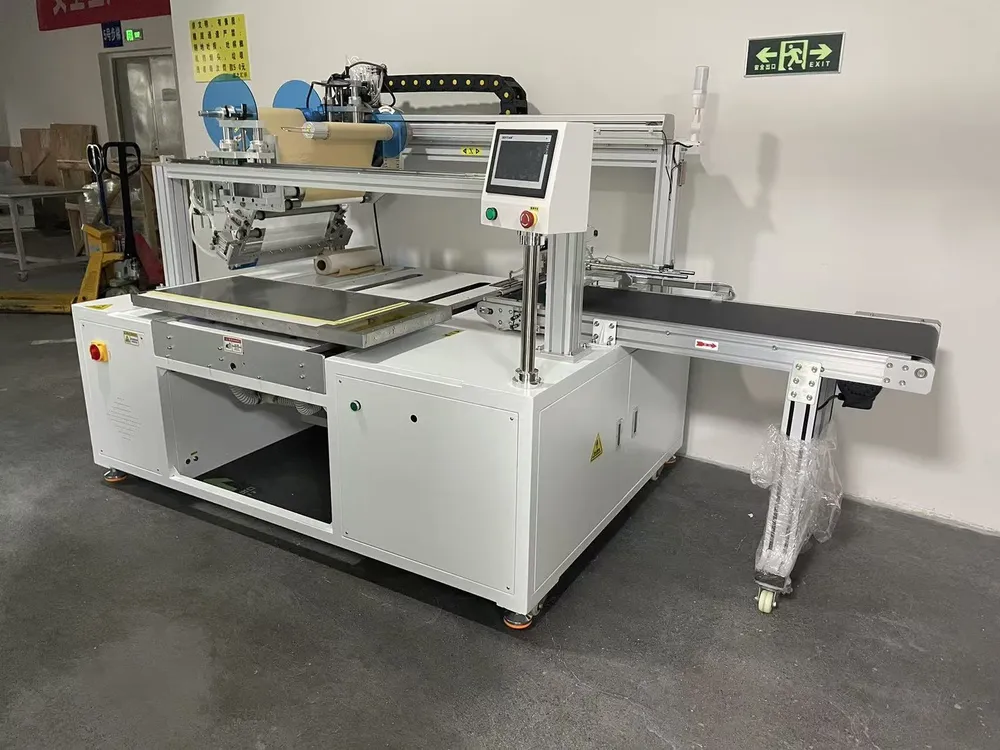

Custom-built tape applicator with a gantry-mounted wide multi-roller head that applies wide tape or film to parts on a fixture table, plus an outfeed conveyor that carries finished parts away.
Updated
- Applicable products
- Flat parts that need wide tape or film
Sample testing available Custom builds available
Overview

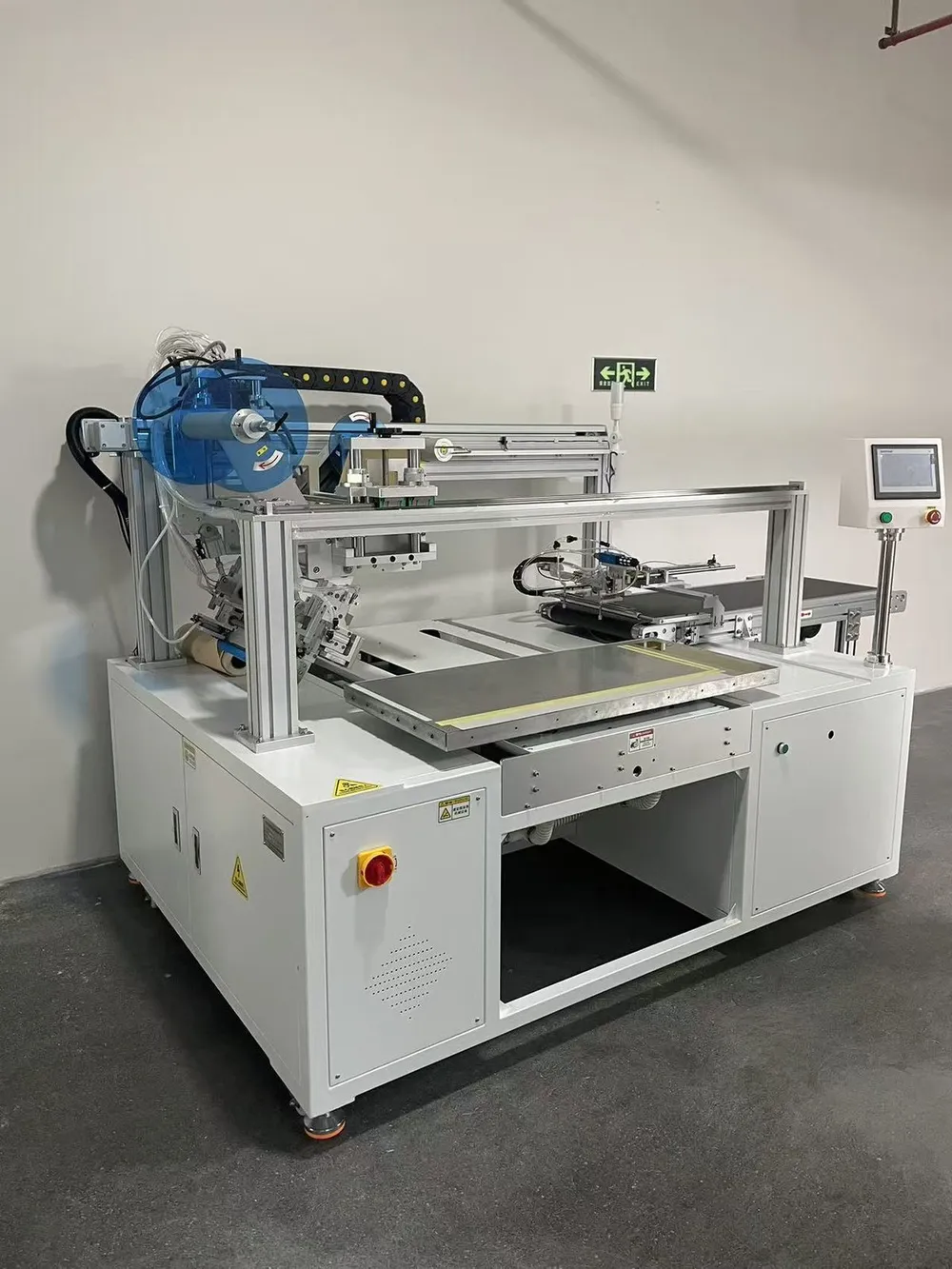

This tape applicator was built to order for one customer's flat parts. An aluminium gantry spans a fixture table on a closed steel base; the tape head travels along the gantry, and its wide multi-roller head presses wide tape or film across the part.

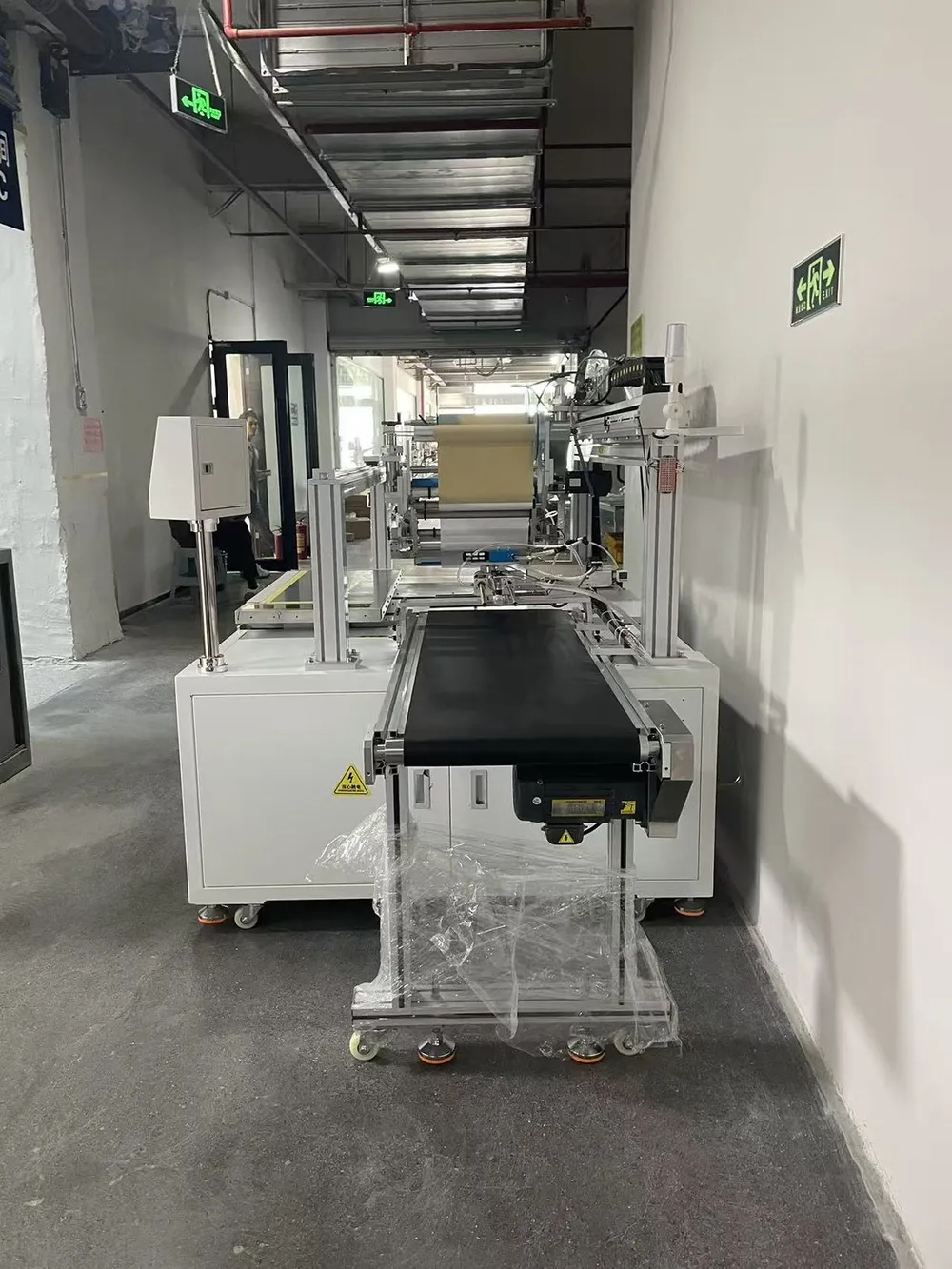

A cable carrier guides the cables and air lines of the moving head, a touchscreen on a post controls the machine and an emergency stop sits on the front of the base. A separate belt conveyor at the end of the machine takes finished parts away, so the machine can pass parts straight on to the next step.
Table size, head width, gantry travel and the conveyor are all made to your parts. If you need wide tape or film on flat parts and no standard model fits, send us a drawing or samples.
Key advantages
Wide multi-roller head

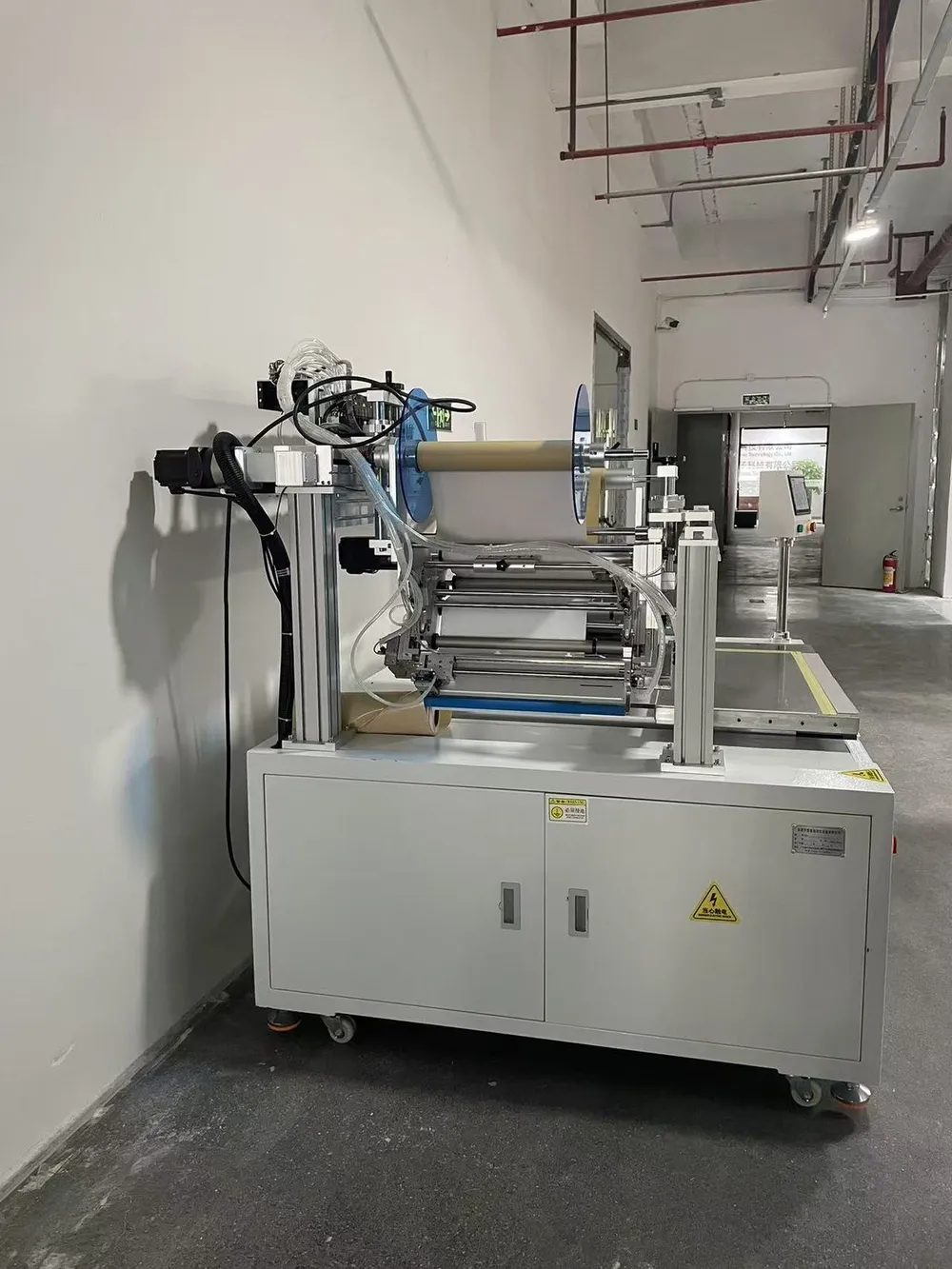

Several rollers across the head press wide tape or film flat over the full width of the part.
Gantry-mounted head
The head travels on a gantry above the fixture table for a straight, even run of tape or film.
Fixture table

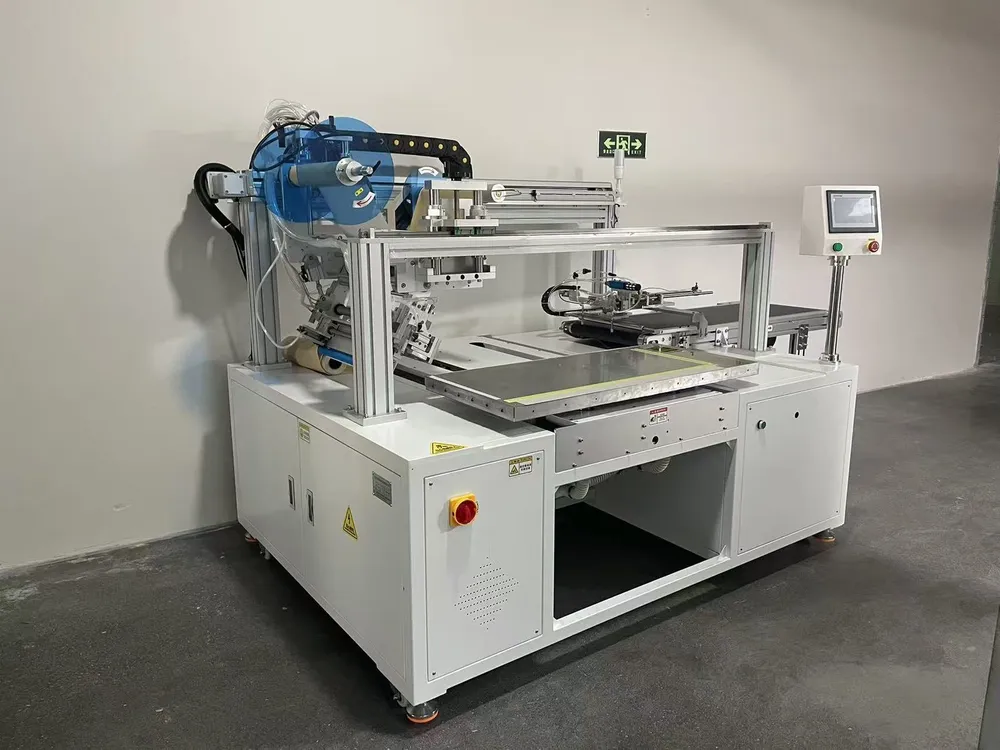

Parts are placed in a fixture on the table, so each one sits in the same position under the head.
Outfeed conveyor included
A belt conveyor at the end of the machine takes finished parts away and can link the machine to your line.
Touchscreen and emergency stop
Cycles are started and set on a touchscreen; an emergency stop is on the front of the base.
Made to order
Table size, head width, gantry travel and conveyor length are designed for your parts.
Applications
Suitable products
Flat panels and boardsPlastic and metal platesElectronic panels and housingsSheet parts that need wide tape or film
Industries
Typical scenarios
- Wide double-sided tape or protective film on flat parts
- A taping station that feeds a conveyor line
Technical specifications
| Applicable products | Flat parts that need wide tape or film |
|---|---|
| Machine layout | Gantry with a wide multi-roller head over a fixture table; separate outfeed belt conveyor |
| Control | Touchscreen and emergency stop |
| Customization | Table size, head width, gantry travel and conveyor made to order |
Options and customization
- Table and fixture size to suit your parts
- Head width for your tape or film
- Conveyor length and height to match your line
Selection tips
- Tell us the part size, the tape or film width and where it goes; that sets the table size, head width and gantry travel.
- For protective film or tape up to 450 mm wide on a vacuum platform, see the wide-format film and tape applicator.
- For narrow tape strips at several positions, a floor-standing 2-axis or 3-axis tape applicator is usually faster.
FAQ
What is this custom wide-format tape applicator for?
Applying wide tape or film to flat parts on a fixture table. The head travels on a gantry and presses the material down with several rollers, and an outfeed conveyor takes the parts away.
Is it a standard model?
No. It was designed for one customer's parts. We build machines like it to your part size, tape or film and line layout.
What does the outfeed conveyor do?
It carries finished parts away from the machine, to a collection point or to the next step on your line.
How wide can the tape or film be?
The head is made to the width of your material, so tell us what you need. For reference, our standard wide-format film and tape applicator handles widths up to 450 mm.
How fast and how accurate is it?
That depends on your part and material, so we state cycle time and accuracy after testing your samples free of charge.
