中文视觉纠偏自动上下料贴胶机
Tape applicator with CCD vision alignment and automatic loading and unloading, for PCBs, sheets and hardware or plastic parts from 50 × 50 mm to 350 × 350 mm.
Updated
Sample testing available Custom builds available

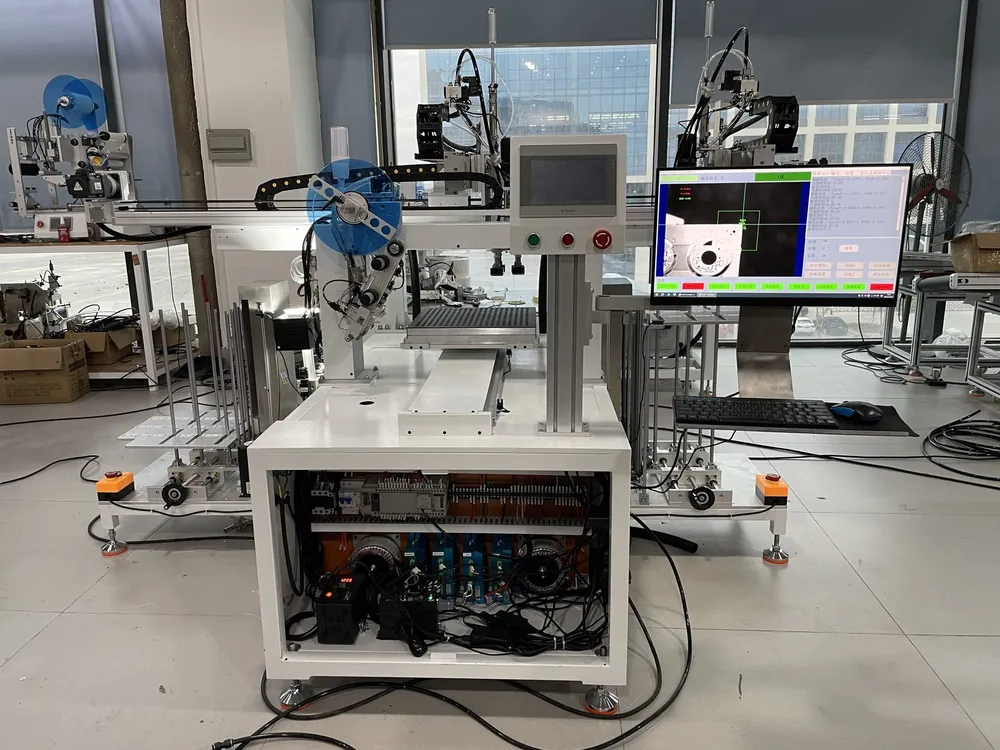

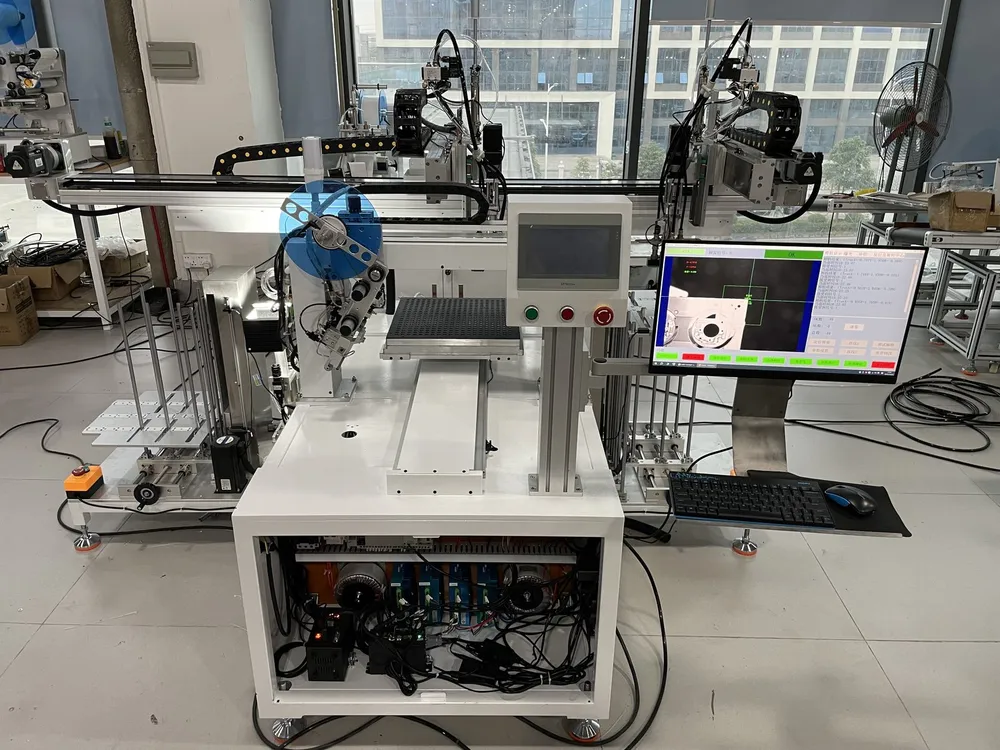

A CCD camera measures the position of each part and corrects the taping path, reaching ±0.5 mm on parts from 50 × 50 mm to 350 × 350 mm. Automatic loading and unloading keep the machine running at about 1,200 pieces per hour.
The machine can run standalone or be integrated into a complete production line, including connection to a factory MES.
Each part is measured and its offset corrected, for a taping accuracy of ±0.5 mm.
Parts are fed and removed automatically, for about 1,200 pieces per hour.
Can be built into a complete line and connected to an MES.
Handles parts from 50 × 50 mm to 350 × 350 mm.
| Taping accuracy | ±0.5mm |
|---|---|
| Taping speed | About 1,200 pcs/hour |
| Product size range | 50 × 50 mm to 350 × 350 mm |
The CCD vision system corrects the position of each part, for a taping accuracy of ±0.5 mm.
Parts from 50 × 50 mm to 350 × 350 mm, such as PCBs, sheets and hardware or plastic parts.

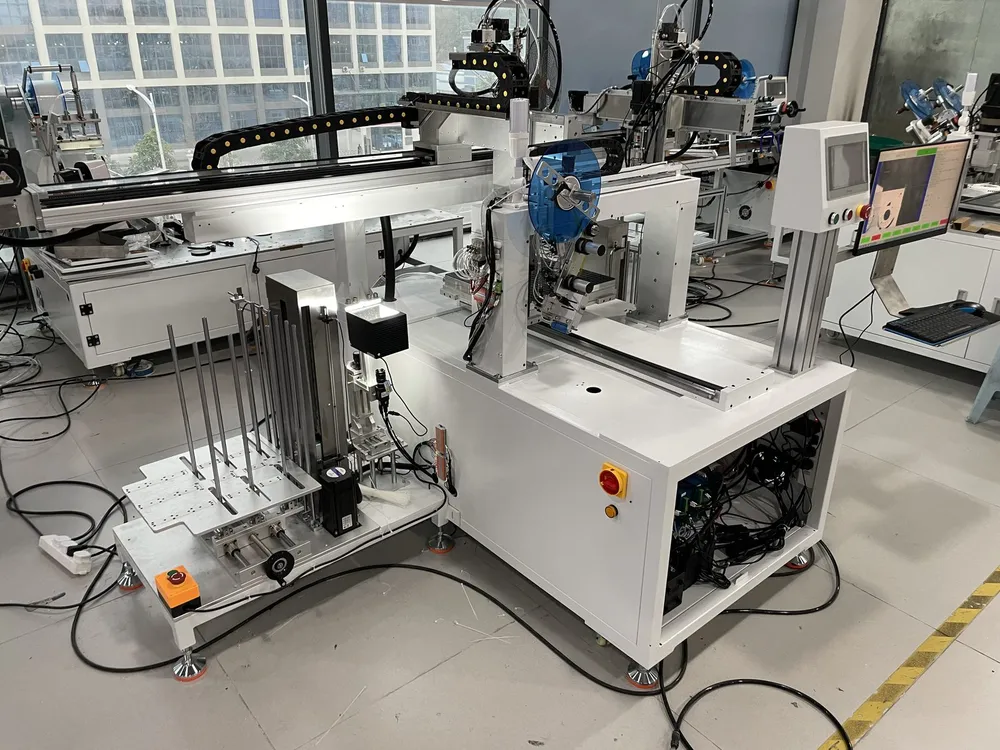

Custom builds available Automation unit with two stacking stations and a pick-and-place axis: it takes parts from a stack for the next process and stacks the finished parts again.
Brochure p. 11 ±1 mm The YIXING floor-standing 3-axis tape applicator is a custom-built taping machine. The X axis moves the tape head front to back while the Y and Z axes handle left-right moves, so it can tape around a panel's outline or at several positions on long panels. ±1 mm, 500 mm/s, full safety enclosure.
Brochure p. 14 ±2 mm The YIXING inline conveyor tape applicator tapes flat parts in one continuous sequence: the part is loaded, the tape is cut automatically and applied, and the part is unloaded. An automatic part-separating function can be added and any size can be custom-built. It tapes at ±2 mm and 500 mm/s and weighs 150 kg.
Brochure p. 12 ±1 mm The YIXING dual-head tape applicator is a custom build for taping flat faces on uneven parts that do not sit steadily. Parts are loaded into fixtures by hand, four strips go on at once, and a magnetic pick-up on a motion module unloads them; the two heads work in turn. Approx. 2000 × 1600 × 1500 mm, 260 kg.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
