中文落地式平台旋转撕离型纸贴胶机

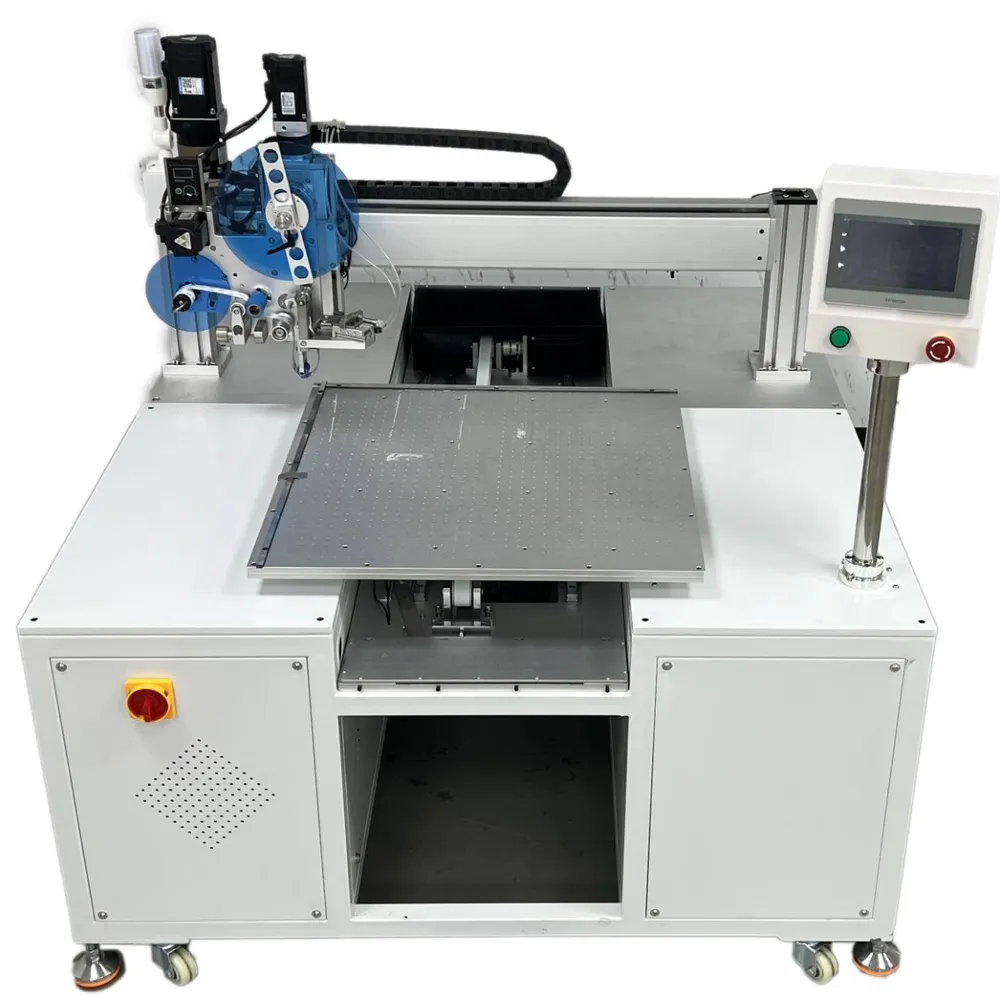

The YIXING floor-standing rotary-platform tape applicator rewinds the release liner (or waste paper) as it applies the tape, cuts the tape automatically and leaves the part ready to unload. It covers a 650 × 650 mm taping stroke at ±1 mm and 500 mm/s, with tape 3–50 mm wide.
Updated
Sample testing available Custom builds available
Tape on a release liner leaves two jobs: peeling the liner off and getting rid of it. The floor-standing rotary-platform tape applicator folds both into the taping cycle. It rewinds the liner as the tape goes on — waste paper on the tape can be collected the same way — then cuts the tape automatically so the part is ready to unload, with no manual liner peeling.
The part is located in a fixture or held by vacuum on the table, and any of the four brochure tape types can be used — double-sided, 3M, clear or high-temperature. “Rotary platform” means the platform carrying the part rotates, whereas the floor-standing rotary-head model rotates the tape head. The taping stroke is 650 × 650 mm; brochure samples show a strip part taped on the vacuum table and a taped cardboard part.
Its footprint, approx. 1100 × 1600 × 1500 mm, matches the floor-standing 2-axis tape applicator; it weighs 220 kg and runs on 220 V / 50 Hz. Taping accuracy is ±1 mm at 500 mm/s, and the tape can be 3–50 mm wide (liner width) on reels with a 76 mm core ID and 250 mm OD.
The release liner is collected as the tape goes on, removing the manual peeling step.
The machine cuts the tape itself, so taping, liner rewinding and cutting run as one sequence before unloading.
The platform carrying the part rotates, a different approach from the rotary-head model; compare both against your part.
Brochure samples show a strip part taped on the vacuum table and a taped cardboard part, within a 650 × 650 mm stroke.
The liner-peeling model is rated at ±1 mm (excluding product and tape tolerances) and 500 mm/s, which varies with part and tape size.
Besides the release liner, waste paper on the tape can also be collected by the machine.

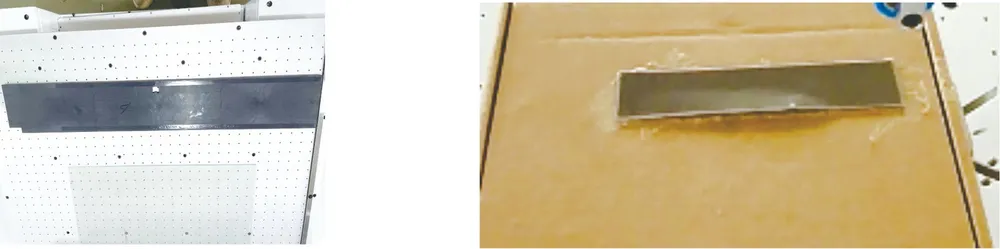

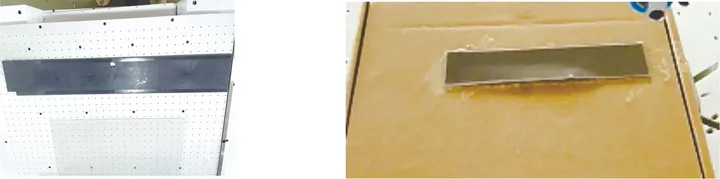

Real samples from the brochure, produced on this machine type
| Taping accuracy | ±1 mm (excluding product and tape tolerances) |
|---|---|
| Taping speed | 500 mm/s (depends on product and tape size) |
| Product size range | Taping stroke 650 × 650 mm |
| Tape specifications | Width (liner width) 3–50 mm; reel core ID 76 mm, reel OD 250 mm |
| Machine dimensions | Approx. 1100 × 1600 × 1500 mm (L × W × H) |
| Power supply | 220 V / 50 Hz |
| Machine weight | 220 kg |
Standard-model data from the brochure; accuracy excludes product and tape tolerances. Other ranges can be custom-built.
Yes. It rewinds the release liner while taping and can also collect waste paper from the tape, so nobody has to peel liners by hand.
No. The cycle is: place the part on the table → tape while the liner is rewound, with automatic cutting → unload.
A 650 × 650 mm stroke; while rewinding the liner it tapes at ±1 mm (excluding product and tape tolerances) and 500 mm/s.
Both have a 650 × 650 mm stroke and an approx. 1100 × 1600 × 1500 mm footprint. This model rewinds the liner while taping, cuts automatically and uses a rotating platform; the 2-axis model moves the head on the X axis and the table on the Y axis.
Double-sided, 3M, clear and high-temperature tape can all be applied; when the tape carries a release liner, the liner is rewound during taping. Liner widths from 3 to 50 mm are accepted, and the reel should have a 76 mm core ID and a 250 mm OD.
The platform carrying the part rotates. On the floor-standing rotary-head model it is the tape head that rotates instead, so compare both structures against your part.
