中文落地式两轴贴胶机

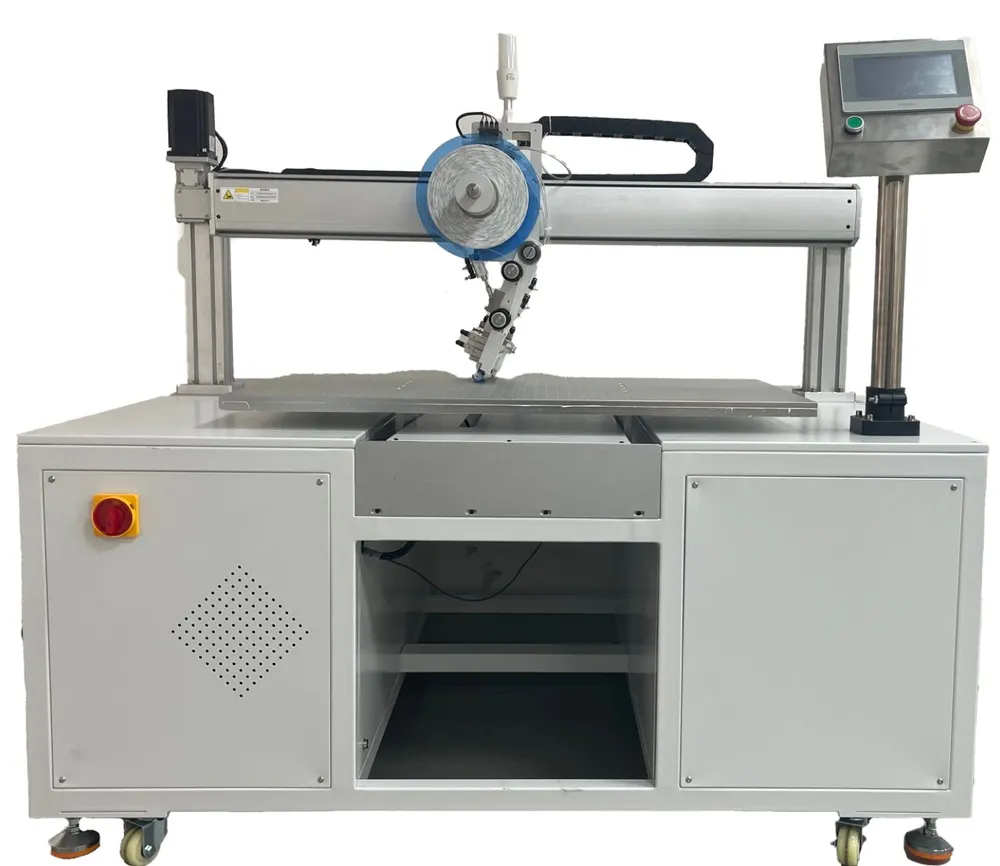

The YIXING floor-standing 2-axis tape applicator splits the motion between two axes: the X axis drives the tape head and the Y axis moves the table carrying the part. It covers a 650 × 650 mm stroke at ±1 mm and 500 mm/s and suits parallel strips on sheets and foam boards.
Updated
Sample testing available Custom builds available
The 2-axis model divides the work between two axes. The X axis moves the tape head, the Y axis moves the machine table, and the part rides on the table while the head lays the tape. Parts are held by vacuum or a fixture, and the machine applies double-sided, 3M, clear and high-temperature tape.
Its working area is a square 650 × 650 mm stroke, and strips must be at least 30 mm long. The brochure sample shows parallel tape strips on a sheet part and on foam boards — neat rows of strips that a two-axis layout lays down one after another.
Within that stroke, taping accuracy is ±1 mm at 500 mm/s. The machine uses roll tape 3–50 mm wide (measured by liner width) on reels with a 76 mm core ID and 250 mm OD. It measures approx. 1100 × 1600 × 1500 mm (L × W × H), weighs 220 kg and runs on 220 V / 50 Hz.
The X axis drives the tape head and the Y axis drives the table; together they trace the tape path.
Equal length and width suit square or near-square sheets and boards; strips from 30 mm long.

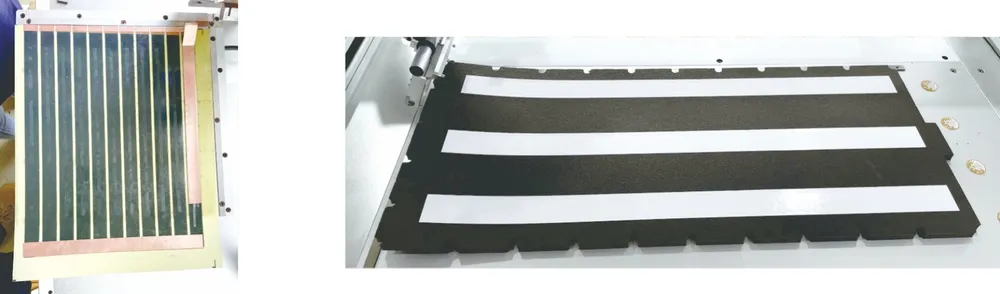

The brochure sample shows several parallel strips on sheet parts and foam boards.
Anywhere in the 650 × 650 mm stroke, taping accuracy is ±1 mm (excluding product and tape tolerances) at 500 mm/s.
Real samples from the brochure, produced on this machine type
| Taping accuracy | ±1 mm (excluding product and tape tolerances) |
|---|---|
| Taping speed | 500 mm/s (depends on product and tape size) |
| Product size range | Taping stroke 650 × 650 mm; minimum tape length 30 mm |
| Tape specifications | Width (liner width) 3–50 mm; reel core ID 76 mm, reel OD 250 mm |
| Machine dimensions | Approx. 1100 × 1600 × 1500 mm (L × W × H) |
| Power supply | 220 V / 50 Hz |
| Machine weight | 220 kg |
Standard-model data from the brochure; accuracy excludes product and tape tolerances. Other ranges can be custom-built.
The X axis moves the tape head and the Y axis moves the machine table; the part travels with the table while the two axes work together.
The stroke is 650 × 650 mm and strips need to be at least 30 mm long. Within that area it tapes at ±1 mm (excluding product and tape tolerances) and 500 mm/s.
Flat parts that can be held on the table by vacuum or a fixture. The brochure sample shows parallel strips applied on a sheet part and on foam boards.
This model has a 650 × 650 mm stroke with separate head and table axes, suited to parallel strips. If you need alternating horizontal and vertical strips or longer parts, look at the rotary-head model.
About 1100 mm long, 1600 mm wide and 1500 mm high; it weighs 220 kg and needs a 220 V / 50 Hz supply.
Brochure p. 7 ±1 mm The YIXING floor-standing rotary-head tape applicator holds the part on its table by vacuum or a fixture and rotates the tape head to lay multiple horizontal and vertical strips. It covers a 500 × 1000 mm taping stroke at ±1 mm accuracy and 500 mm/s, and applies double-sided, 3M, clear and high-temperature tape.
Brochure p. 9 ±1 mm The YIXING floor-standing rotary-platform tape applicator rewinds the release liner (or waste paper) as it applies the tape, cuts the tape automatically and leaves the part ready to unload. It covers a 650 × 650 mm taping stroke at ±1 mm and 500 mm/s, with tape 3–50 mm wide.
Brochure p. 10 ±1 mm YIXING offers three tape applicator heads: a liner-peeling head, a non-peeling head that leaves the liner on the tape, and a waste-rewinding head. Customers choose the head that matches how liner and waste must be handled. Each tapes at ±1 mm and 500 mm/s, measures approx. 600 × 300 × 500 mm and weighs 8 kg.
Brochure p. 11 ±1 mm The YIXING floor-standing 3-axis tape applicator is a custom-built taping machine. The X axis moves the tape head front to back while the Y and Z axes handle left-right moves, so it can tape around a panel's outline or at several positions on long panels. ±1 mm, 500 mm/s, full safety enclosure.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
