Automatic and semi-automatic labelers for round and multi-face bottles, flat and side surfaces, corner seals, cards and bags, print-and-apply, cable flags and vision-guided jobs.
Updated
The YIXING brochure lists 31 labeling machines covering round bottles, top / bottom / top-and-bottom surfaces, side and multi-side labeling, corner seals, card and page feeding, print-and-apply, fold-over cable labels, vision-guided placement and roll-to-roll labeling. Accuracy ranges from ±3 mm down to ±0.05 mm and speed from 10–15 up to 120–200 pcs/min. This folder groups them into 7 sub-categories by labeling method.
Between ±0.05 mm and ±3 mm, depending on the model. The most accurate is the Vision-Guided Precision Labeling Machine at ±0.05 mm; ±1 mm is the most common rating, shared by 15 of our 31 labeling machines. The figures come from our printed catalog and exclude product and label tolerances.
Semi-automatic models, where an operator loads each product, run at 15–60 pcs/min. Automatic models reach up to 200 pcs/min; the fastest is the High-Speed Incline (Climbing) Top-and-Bottom Labeling Machine at 120–200 pcs/min.
Yes. Send us your products with the labels or tape you use, and we test them on a matching machine free of charge before you decide.
For wrap-around labeling of cylindrical bottles and jars, and for one-face or multi-face labeling of round, square, flat, hexagonal and triangular bottles. Semi-automatic models suit small batches with frequent changeovers; upright automatic models handle larger bottles that stand on their own; the horizontal automatic model handles slim items that cannot stand — filters, oral-liquid vials, injection vials, syringes and lipstick tubes.
Brochure p. 17 ±0.5 mm The YIXING semi-automatic round bottle labeling machine wraps labels around cylindrical bottles that the operator places on the machine one at a time. It labels at ±0.5 mm accuracy and 15–30 pcs/min, takes bottles from Ø10 to 120 mm, and comes in a pneumatic-electric or an all-electric version.
Brochure p. 18 ±1 mm The YIXING automatic positioning round bottle labeling machine labels cylindrical bottles that stand on their own. Each bottle is conveyed upright to the labeling station, rotated one full turn as the label goes on, then discharged — at 30–60 pcs/min and ±1 mm, with single or double labels in partial or full wrap.

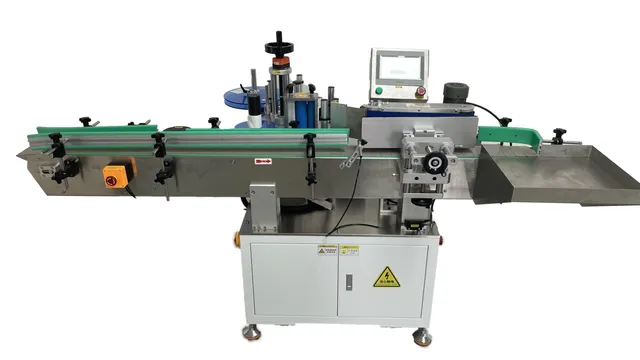

Brochure p. 19 ±2 mm The YIXING automatic roll-rubbing wrap-around labeling machine is a high-speed single-label labeler for upright cylindrical bottles and jars. Products are conveyed to the labeling station, labeled, then roll-rubbed so the label wraps onto the body before discharge — at 60–120 pcs/min and ±2 mm, for Ø20–100 mm.

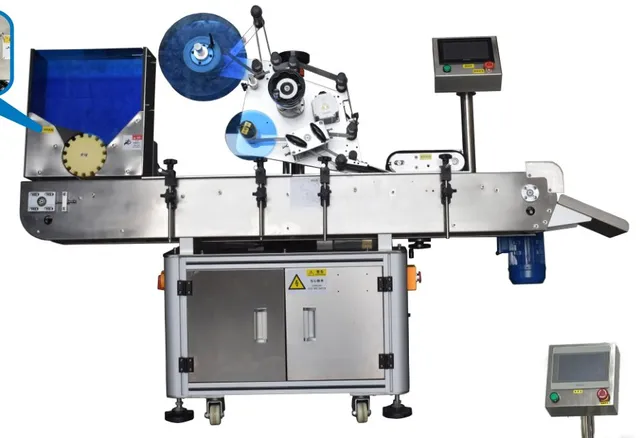

Brochure p. 21 ±1 mm The YIXING automatic horizontal round bottle labeling machine labels cylindrical products that will not stand steadily, such as filter cartridges, oral liquid vials, injection vials, syringes and lipstick tubes. A feed structure separates them one by one for full or partial wrap labeling at 100–200 pcs/min and ±1 mm.

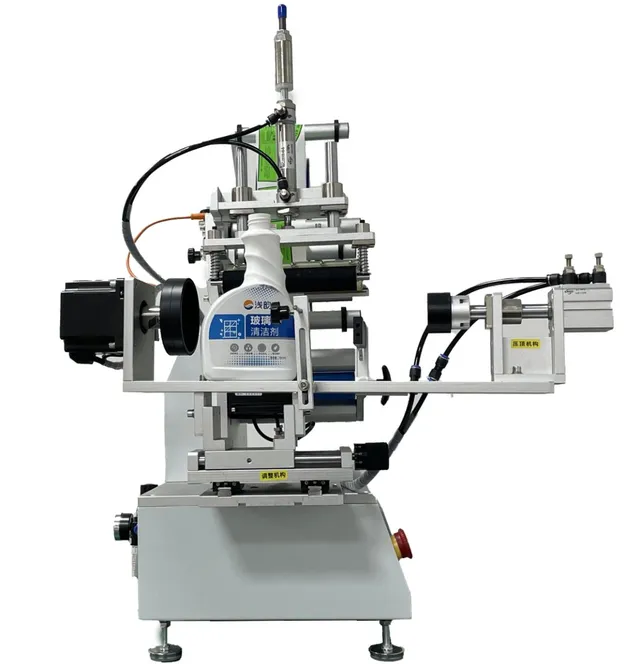

Brochure p. 29 ±0.5 mm The YIXING semi-automatic roll-on + rotary multi-face labeling machine combines front-and-back roll-on and rotary labeling in one unit. It labels round, square, flat, hexagonal and triangular bottles on one face or several, applies labels by rolling to avoid bubbles, and works at ±0.5 mm and 15–25 pcs/min.

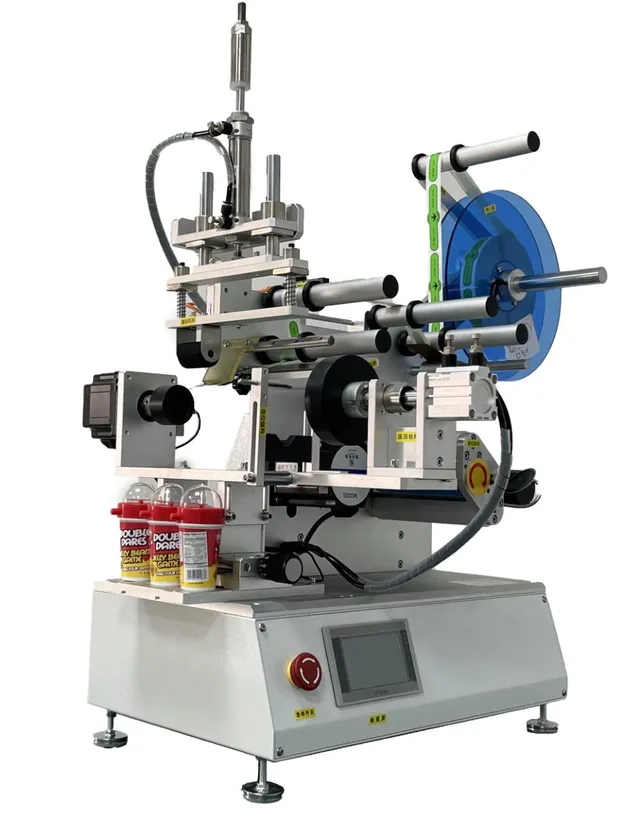

Brochure p. 31 ±0.5 mm The YIXING semi-automatic rotary multi-face labeling machine labels several faces of round, square, hexagonal and triangular bottles. The product sits in a fixture and is labeled by rotary roll-on action at ±0.5 mm and 15–25 pcs/min. It is used mainly in electronics and food, and tapered bottles can be custom-built.
For flat-surface labeling of bags, boxes, plastic lids, books, folders and cartons. Semi-automatic models position the product in a fixture and apply labels by suction or rolling with ±0.3–0.5 mm accuracy; automatic models label continuously on a conveyor — top, bottom or both at once — and the incline high-speed model reaches 120–200 pcs/min.
Brochure p. 22 ±0.5 mm The YIXING semi-automatic flat surface labeling machine applies labels to the top surface of bags, boxes and plastic lids by suction, with vacuum and air-blow working together. Products are placed one at a time in a fixture; accuracy is ±0.5 mm at 15–25 pcs/min, for items up to 200 × 200 mm and 120 mm tall.
Brochure p. 23 ±0.3 mm The YIXING semi-automatic high-precision labeling machine applies small labels to the top surface of electronic components, bags, boxes and plastic lids at ±0.3 mm accuracy. Products sit one at a time in a fixture and labels are applied by suction (vacuum + air-blow) at 15–25 pcs/min. It needs 0.4–0.6 MPa air.
Brochure p. 24 ±0.5 mm The YIXING semi-automatic front-and-back roll-on labeling machine is for phone-case film and products with large labels. The product is held in a fixture and the label is rolled on, which avoids air bubbles. It works at ±0.5 mm and 15–25 pcs/min, takes products up to 300 mm high and weighs 55 kg.
Brochure p. 20 ±0.5 mm The YIXING automatic high-precision labeling machine applies labels by suction (vacuum plus air blow) to products held one by one in a fixture. It reaches ±0.5 mm accuracy at 25–35 pcs/min and can be configured to label the top, the bottom or both surfaces of parts up to 150 × 150 mm.
Brochure p. 25 ±1 mm The YIXING automatic flat top-surface labeling machine labels the top of products carried one by one on a conveyor — books, folders, boxes, cartons and more. It works at ±1 mm accuracy and 40–120 pcs/min, takes products up to 400 × 300 mm and 0.2–150 mm high, and comes in a basic and a standard version.

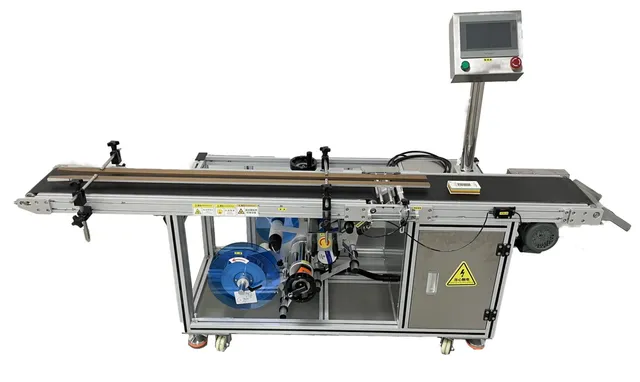

Brochure p. 26 ±2 mm The YIXING automatic bottom-surface labeling machine labels the underside of products as they travel on the conveyor, so nothing has to be flipped beforehand. It runs at ±2 mm accuracy and 40–80 pcs/min, is sized to the customer's samples, and can be linked to equipment before and after it.

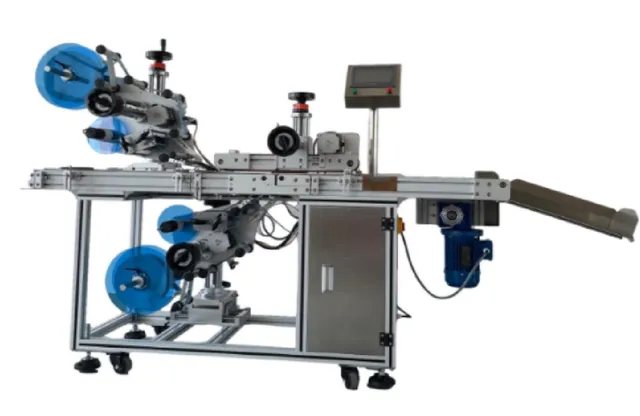

Brochure p. 40 ±1 mm (bottom ±2 mm) The YIXING automatic top-and-bottom labeling machine labels the top and bottom surfaces of a product at the same station and at the same time. It works at ±1 mm accuracy (±2 mm on the bottom surface) and 30–60 pcs/min, uses a label pressing mechanism matched to the product, and suits paper and plastic boxes.

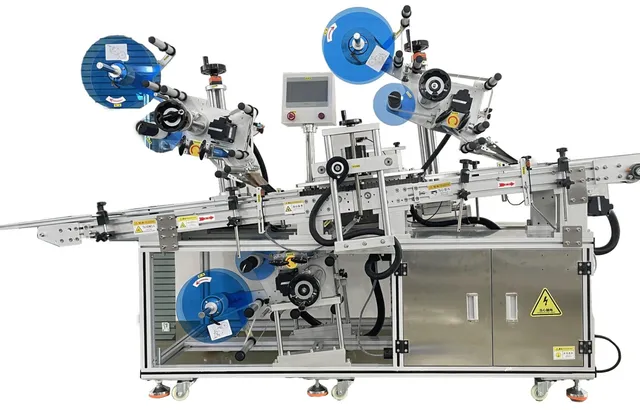

Brochure p. 37 ±2 mm The YIXING high-speed incline (climbing) labeling machine is a custom build that labels the top and bottom surfaces of products at the same time. It runs at 120–200 pcs/min with ±2 mm accuracy, takes products 10–400 mm long, 10–300 mm wide and 0.2–150 mm high, and can be customized to any size.
For side labeling, simultaneous two-side labeling of flat and square bottles, three-side labeling of square products, and 90° corner seal labels on boxes — shampoo, lubricant, engine-oil and detergent bottles, color boxes and more. A coder, inkjet printer or label printer can be added.

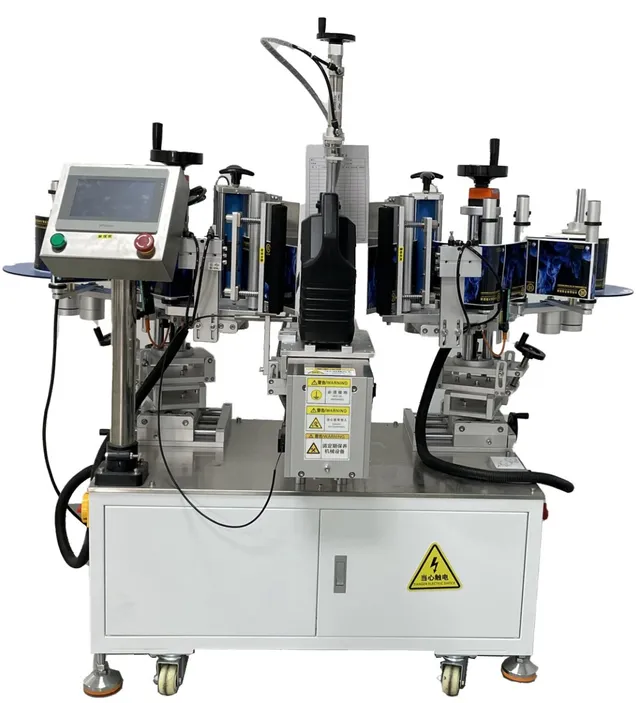

Brochure p. 30 ±1 mm The YIXING semi-automatic double-side labeling machine labels both sides of flat, round and square bottles at the same time as they pass on the conveyor, or just one side when needed. It works at ±1 mm accuracy and 25–60 pcs/min and takes labels 6–300 mm long with liner widths of 6–230 mm.

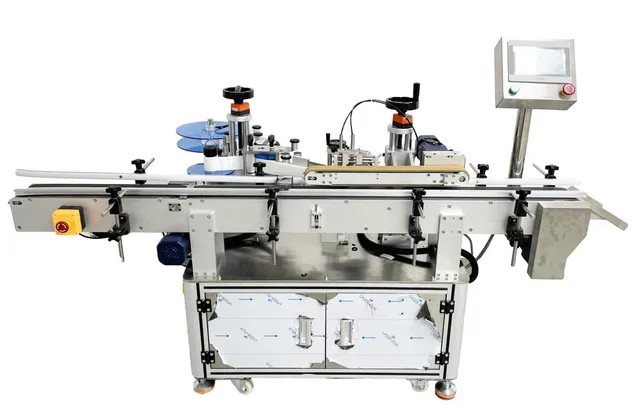

Brochure p. 38 ±1 mm The YIXING automatic side labeling machine labels the side of products carried one by one on a conveyor, at ±1 mm accuracy and 40–120 pcs/min. It comes in a basic and a standard version, and its powered top hold-down can be left out when the products are heavy.

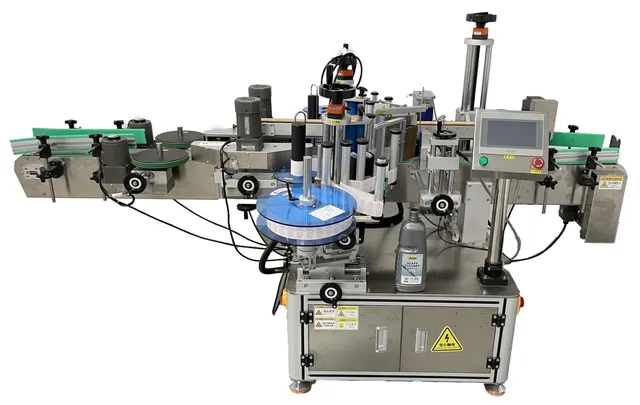

Brochure p. 41 ±2 mm (bottom ±2 mm) The YIXING automatic double-side labeling machine labels both sides of flat, round and square bottles at once on the conveyor, at 60–150 pcs/min and ±2 mm accuracy. It takes products 20–250 mm long, 30–90 mm wide and 60–280 mm high, and an optional round-bottle mechanism adds half or full wrap-around labeling.
Brochure p. 39 ±1 mm (bottom ±2 mm) The YIXING automatic three-side labeling machine labels three faces of square products at ±1 mm accuracy (±2 mm on the bottom surface) and 30–60 pcs/min. Products can be placed on the conveyor one by one or flow in directly from other equipment; the machine is rated at 1.7 kW and weighs 230 kg.

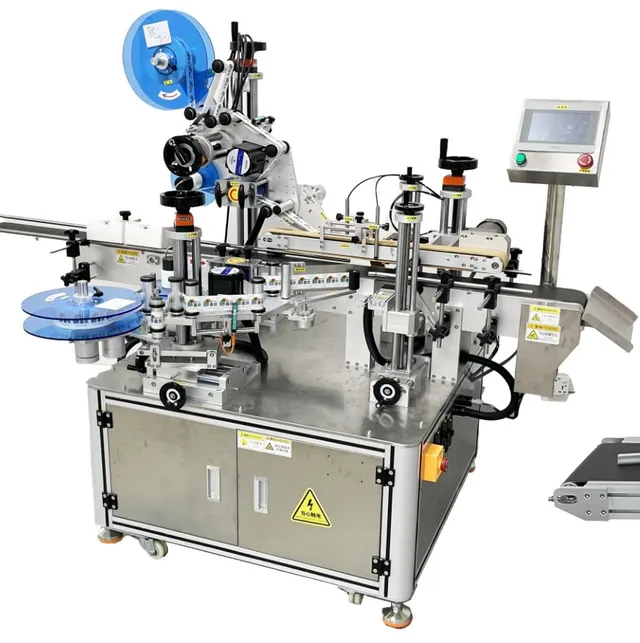

Brochure p. 42 ±1 mm The YIXING automatic corner seal labeling machine applies 90° corner seal labels to boxes and other products, one to four seals as required, at 40–80 pcs/min and ±1 mm accuracy. It runs stand-alone or connected to a cartoner, and is built to order in a basic or a standard version.
These machines take a stack of cards, bags, color boxes, hang tags or flat carton blanks, separate them one by one, label them and stack them — no manual placing. Choose by product stiffness and feeding method: card dispensing, vacuum page feeding for soft bags, a lifting platform for large loads, or the carton model. The card-dispensing, vacuum page-feeding and carton models can take an added coder, inkjet coder or label printer.

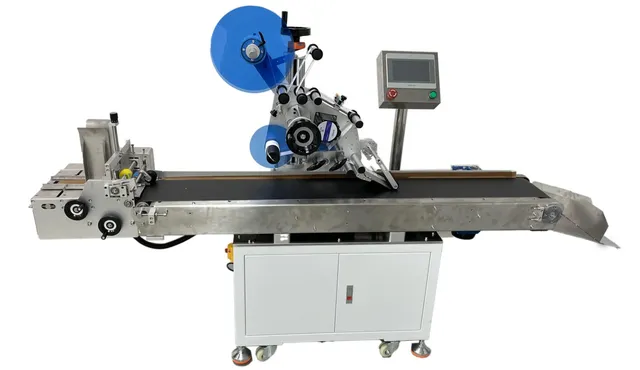

Brochure p. 46 ±1 mm The YIXING automatic card-dispensing labeling machine takes a stack of bags, color boxes or hang tags, separates them one at a time with a card dispenser, labels the top surface and collects them in a receiving tray. It runs at 40–120 pcs/min with ±1 mm accuracy for products 40–300 mm long and wide.

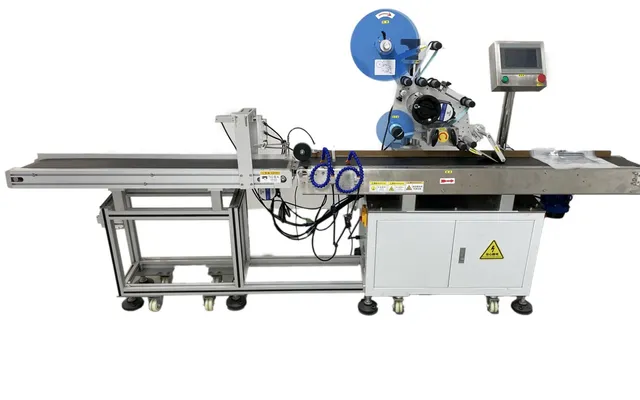

Brochure p. 47 ±1 mm The YIXING automatic vacuum page-feeding labeling machine uses suction to separate soft bags and irregular items from a stack one at a time onto the labeling conveyor, labels them and collects them in a receiving tray. It runs at 30–50 pcs/min with ±1 mm accuracy for products 60–400 mm long and 40–400 mm wide.

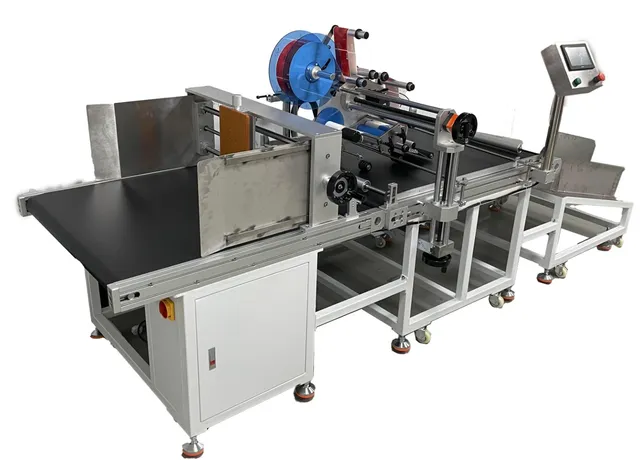

Brochure p. 27 ±1 mm The YIXING automatic flat carton labeling machine applies labels or self-adhesive film to the top surface of unfolded cartons, paper boxes, folders and large paper cards. A card dispenser feeds the stack one blank at a time and a receiving tray collects them; output is 30–60 pcs/min at ±1 mm accuracy.
Brochure p. 28 ±1 mm The YIXING automatic lifting-platform flat labeling machine holds a large load of light products on a lifting platform, which rises and lowers according to the product; each piece is drawn onto the conveyor by suction, labeled and collected in a receiving tray. Labeling speed is 30–60 pcs/min and accuracy ±1 mm.
The printer receives data and prints QR codes, barcodes, production dates or specifications in real time, and the label is applied automatically. The printer brand and model can be chosen. Machines can be mounted on your existing conveyor or supplied with their own conveyor.

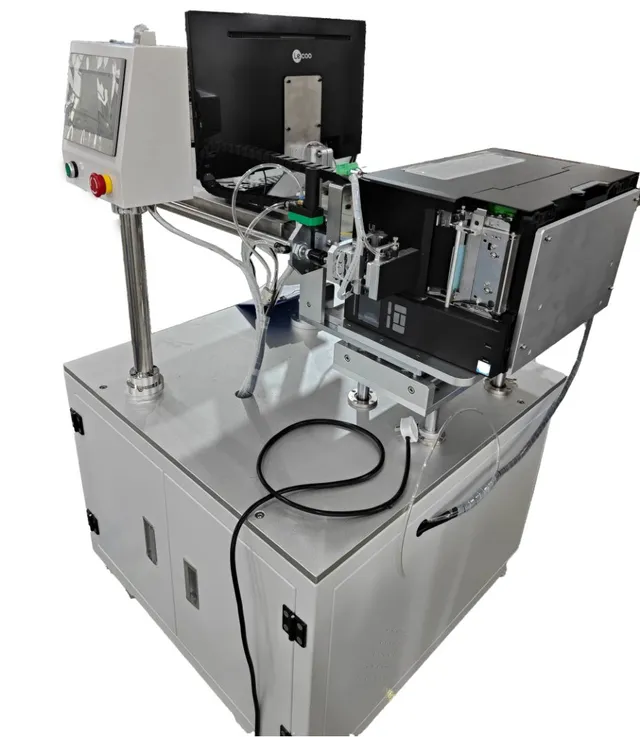

Brochure p. 32 ±1 mm The YIXING side print-and-apply labeling machine prints QR codes, barcodes, production dates and product specifications and applies the label to the side of packed cartons and drums. It runs at 15–30 pcs/min with ±1 mm accuracy, takes labels 20–104 mm wide, and lets you choose the printer brand and model.

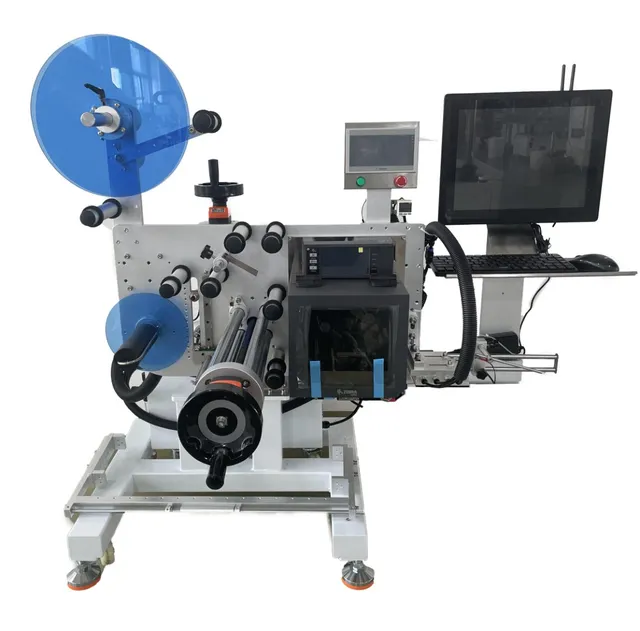

Brochure p. 43 ±3 mm The YIXING real-time print-and-blow labeling machine prints QR codes, barcodes, dates and specifications from the data its printer receives, then blows each label onto uneven products such as garments, frozen food, fruit and vegetables. It runs at 10–15 pcs/min with ±3 mm accuracy and takes labels 20–104 mm wide.

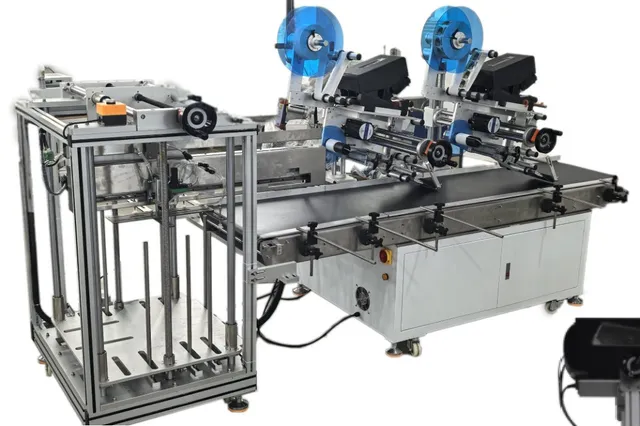

Brochure p. 45 ±1 mm The YIXING card-dispensing print-and-apply labeling machine with buffer separates stacked scratch cards, movie tickets, paper cards, cartons or PE bags one by one, applies a freshly printed QR code, barcode or date label to each, and collects them in a receiving tray. It runs at 30–60 pcs/min with ±1 mm accuracy.
Labels are folded over slim workpieces — power cords, data cables, wire harnesses, tubes, lollipop sticks, jelly cups, hardware — to form flag labels. Changing the fixture adapts the machine to other diameters; accuracy is ±0.3 mm.

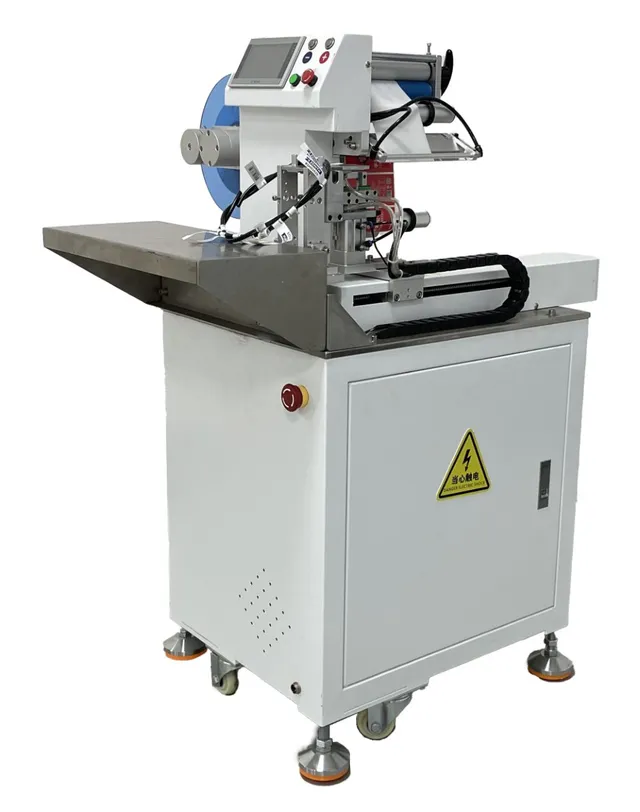

Brochure p. 34 ±0.3 mm The YIXING fold-over labeling machine is a semi-automatic unit with a display that folds pre-printed labels around wires, cables, tubes and other slim workpieces to form flag labels. It works at ±0.3 mm and 15–25 pcs/min on diameters of 2.2–6.5 mm or 6.5–10.5 mm, and a fixture change adapts it to other sizes.

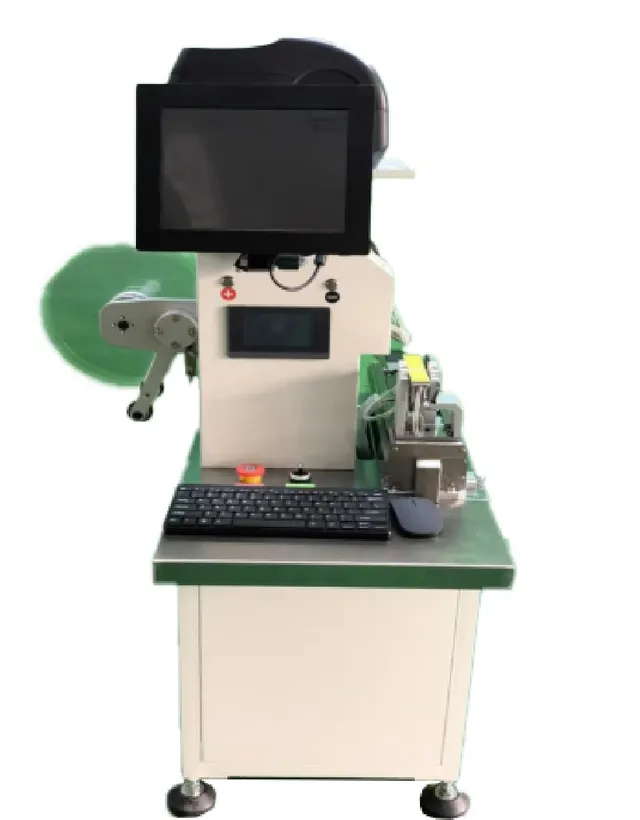

Brochure p. 35 ±0.3 mm The YIXING print-and-fold cable labeling machine is a semi-automatic unit with a display and a printer. It prints each label and applies it as a fold-over flag on cables, wire harnesses and tubes in one integrated step, at ±0.3 mm and 15–25 pcs/min, with fixtures for 1–3, 2–5, 3–7 and 4–10 mm (one set standard).
This group covers the vision-guided labeler (±0.05 mm, for chargers, PCBs and irregular precision parts), the roll-to-roll labeler (label-on-label and label-on-film), and five inline labeling heads that mount onto a customer's conveyor.
Brochure p. 44 ±0.05 mm The YIXING vision-guided labeling machine places labels and precision converted components at ±0.05 mm. A label feeder presents each label, an XYZR-axis module picks it up, and upper and lower cameras take positioning images before application. It runs at 15–25 pcs/min on chargers, PCBs and irregular-shaped products.

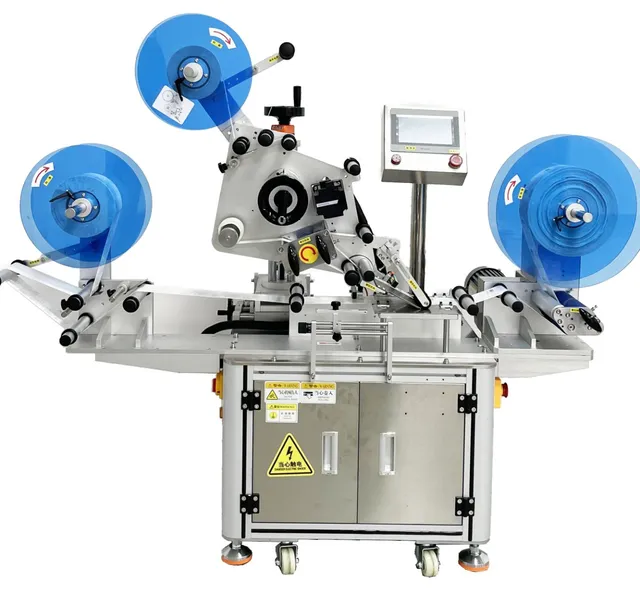

Brochure p. 33 ±0.5 mm The YIXING roll-to-roll labeling machine applies labels onto another label web or onto film. The base material runs from unwind to rewind, and the labeler in the middle detects each labeling point and applies the label. It runs at 100–200 pcs/min with ±0.5 mm accuracy and takes rolls up to 300 mm in outer diameter.

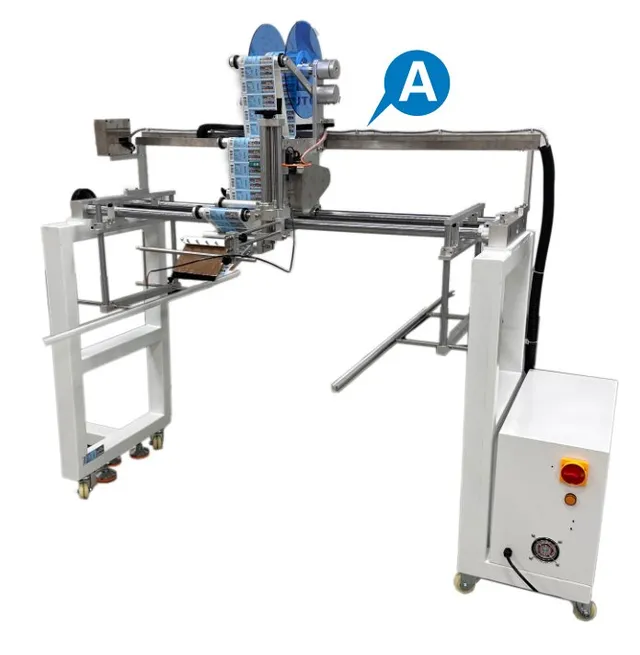

Brochure p. 36 ±1 mm YIXING inline labeling heads add a labeling station to an existing conveyor. Mounted beside the customer's line, they label the top or side of each product at the labeling position. Five head types (A–E) cover roll-on application for flat products and suction for recessed ones, at 1–120 pcs/min and ±1 mm.
Accuracy and speed from the printed catalog (standard models).
| Model | Type | Accuracy | Speed |
|---|---|---|---|
| Semi-Automatic Round Bottle Labeling Machine | Round Bottle and Multi-Face Bottle Labelers | ±0.5 mm | 15–30 pcs/min |
| Automatic Positioning Round Bottle Labeling Machine | Round Bottle and Multi-Face Bottle Labelers | ±1 mm | 30–60 pcs/min |
| Automatic Roll-Rubbing Wrap-Around Labeling Machine | Round Bottle and Multi-Face Bottle Labelers | ±2 mm | 60–120 pcs/min |
| Automatic Horizontal Round Bottle Labeling Machine | Round Bottle and Multi-Face Bottle Labelers | ±1 mm | 100–200 pcs/min |
| Semi-Automatic Roll-On + Rotary Multi-Face Labeling Machine | Round Bottle and Multi-Face Bottle Labelers | ±0.5 mm | 15–25 pcs/min |
| Semi-Automatic Rotary Multi-Face Labeling Machine | Round Bottle and Multi-Face Bottle Labelers | ±0.5 mm | 15–25 pcs/min |
| Semi-Automatic Flat Surface Labeling Machine | Flat Surface Labelers | ±0.5 mm | 15–25 pcs/min |
| Semi-Automatic High-Precision Labeling Machine | Flat Surface Labelers | ±0.3 mm | 15–25 pcs/min |
| Semi-Automatic Front-and-Back Roll-On Labeling Machine | Flat Surface Labelers | ±0.5 mm | 15–25 pcs/min |
| Automatic High-Precision Top & Bottom Labeling Machine | Flat Surface Labelers | ±0.5 mm | 25–35 pcs/min |
| Automatic Flat Top-Surface Labeling Machine | Flat Surface Labelers | ±1 mm | 40–120 pcs/min |
| Automatic Bottom-Surface Labeling Machine | Flat Surface Labelers | ±2 mm | 40–80 pcs/min |
| Automatic Top-and-Bottom Labeling Machine | Flat Surface Labelers | ±1 mm (bottom ±2 mm) | 30–60 pcs/min |
| High-Speed Incline (Climbing) Top-and-Bottom Labeling Machine | Flat Surface Labelers | ±2 mm | 120–200 pcs/min |
| Semi-Automatic Double-Side Labeling Machine | Side, Multi-Side and Corner Seal Labelers | ±1 mm | 25–60 pcs/min |
| Automatic Side Labeling Machine | Side, Multi-Side and Corner Seal Labelers | ±1 mm | 40–120 pcs/min |
| Automatic Double-Side Labeling Machine | Side, Multi-Side and Corner Seal Labelers | ±2 mm (bottom ±2 mm) | 60–150 pcs/min |
| Automatic Three-Side Labeling Machine | Side, Multi-Side and Corner Seal Labelers | ±1 mm (bottom ±2 mm) | 30–60 pcs/min |
| Automatic Corner Seal Labeling Machine | Side, Multi-Side and Corner Seal Labelers | ±1 mm | 40–80 pcs/min |
| Automatic Card-Dispensing Labeling Machine | Card-Dispensing and Page-Feeding Labelers | ±1 mm | 40–120 pcs/min |
| Automatic Vacuum Page-Feeding Labeling Machine | Card-Dispensing and Page-Feeding Labelers | ±1 mm | 30–50 pcs/min |
| Automatic Flat Carton Labeling Machine | Card-Dispensing and Page-Feeding Labelers | ±1 mm | 30–60 pcs/min |
| Automatic Lifting-Platform Flat Labeling Machine | Card-Dispensing and Page-Feeding Labelers | ±1 mm | 30–60 pcs/min |
| Side Print-and-Apply Labeling Machine | Print-and-Apply Labelers | ±1 mm | 15–30 pcs/min |
| Real-Time Print-and-Blow Labeling Machine | Print-and-Apply Labelers | ±3 mm | 10–15 pcs/min |
| Card-Dispensing Print-and-Apply Labeling Machine with Buffer | Print-and-Apply Labelers | ±1 mm | 30–60 pcs/min |
| Semi-Automatic Fold-Over (Flag) Labeling Machine for Cables | Fold-Over Labelers for Cables and Tubes | ±0.3 mm | 15–25 pcs/min |
| Semi-Automatic Print-and-Fold Cable Labeling Machine | Fold-Over Labelers for Cables and Tubes | ±0.3 mm | 15–25 pcs/min |
| Vision-Guided Precision Labeling Machine | Vision-Guided and Special-Purpose Labelers | ±0.05 mm | 15–25 pcs/min |
| Roll-to-Roll Labeling Machine (Label-on-Label / Label-on-Film) | Vision-Guided and Special-Purpose Labelers | ±0.5 mm | 100–200 pcs/min |
| Inline Labeling Heads for Conveyor Lines (5 Types) | Vision-Guided and Special-Purpose Labelers | ±1 mm | 1–120 pcs/min |
See which machines fit your industry.
PDFThe complete catalog in one file — company profile, tape applicators, labeling machines and custom models. Easy to forward to your team.
28 pages · PDF · 10.5 MB
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
