中文打印对折贴标机

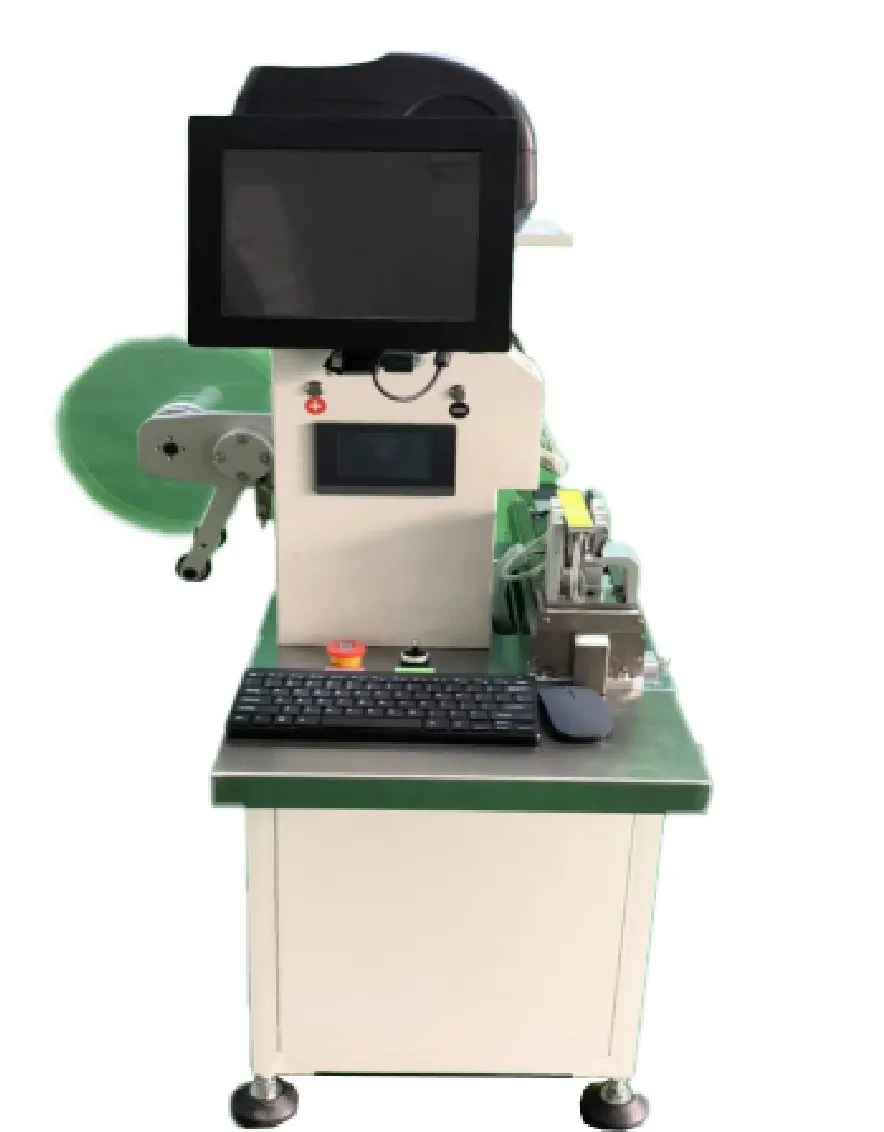

The YIXING print-and-fold cable labeling machine is a semi-automatic unit with a display and a printer. It prints each label and applies it as a fold-over flag on cables, wire harnesses and tubes in one integrated step, at ±0.3 mm and 15–25 pcs/min, with fixtures for 1–3, 2–5, 3–7 and 4–10 mm (one set standard).
Updated
Sample testing available Custom builds available

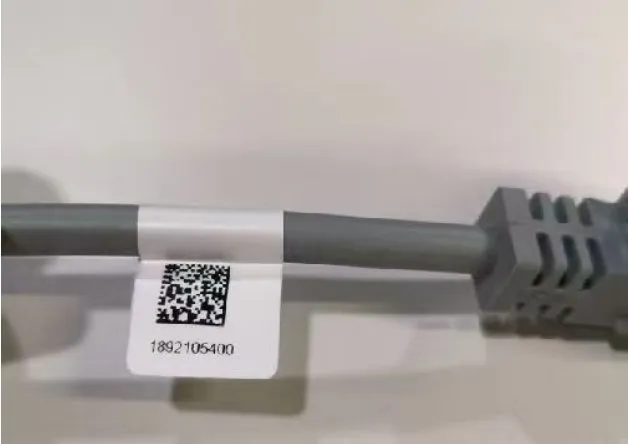

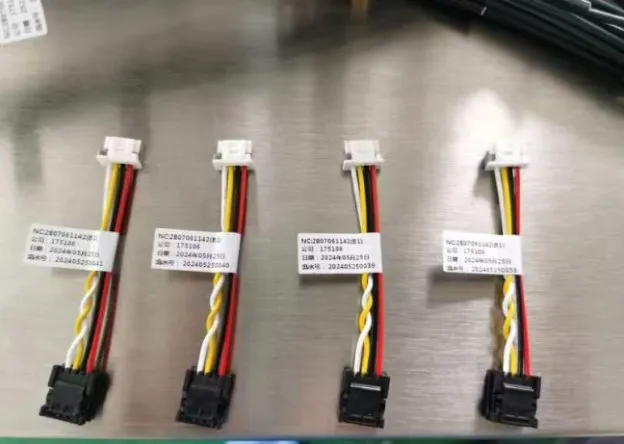

Built for plants that need printed flag labels on wires and cables, this machine pairs a printer with suction-assisted fold-over labeling. Each label is printed and then folded around the workpiece on the same machine, which removes a separate printing step and raises working efficiency. The samples show a printed QR-code label on a cable and printed fold-over labels on wire harnesses.
It covers the same kinds of work as a fold-over labeler: tubes, wires and cables, and craft items such as power cords, data cables, lollipops, jelly products and hardware. With the part in the fixture, the machine prints, picks up the label by suction and folds it over the part, at ±0.3 mm (excluding product and label tolerances) and 15–25 pcs/min depending on product and label size.
Fixtures are sized for 1–3, 2–5, 3–7 and 4–10 mm workpieces, with one set supplied as standard; swapping fixtures lets it handle other sizes. Labels can be 30–100 mm long and 20–100 mm wide, and larger labels can be custom-built. It runs on 220 V / 50 Hz with a 0.4–0.6 MPa air supply, in a machine body of approx. 910 × 800 × 1100 mm weighing 80 kg.
The printer is part of the machine, so each label is printed and folded onto the part without a separate printing step.
Applies printed QR-code labels and printed fold-over labels to cables and wire harnesses, with the content printed on the spot.
Fixtures for 1–3, 2–5, 3–7 and 4–10 mm workpieces; one set is standard, and swapping the fixture adapts the machine to other sizes.
Printed labels are folded on within ±0.3 mm (excluding product and label tolerances); speed varies with product and label size.
Label range 30–100 mm long by 20–100 mm wide, with larger labels available as custom builds.
One semi-automatic unit carrying both the display and the printer, approx. 910 × 800 × 1100 mm and 80 kg.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.3 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 15–25 pcs/min (depends on product and label size) |
| Product size range | 1–3 mm, 2–5 mm, 3–7 mm, 4–10 mm (one fixture set included as standard) |
| Label size range | Length 30–100 mm; width 20–100 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 910 × 800 × 1100 mm |
| Power supply | 220 V / 50 Hz |
| Air pressure | 0.4–0.6 MPa |
| Machine weight | 80 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Fixtures come in four sizes (1–3, 2–5, 3–7 and 4–10 mm), and one set is included as standard. Swapping in another fixture adapts the machine to other workpiece sizes.
Yes. The machine includes a printer, and printing and fold-over labeling are done in one integrated step; the sample shows a printed QR-code label on a cable.
Labels 30–100 mm long and 20–100 mm wide. Anything larger can be custom-built.
Between 15 and 25 per minute, depending on product and label size. Accuracy is ±0.3 mm, excluding product and label tolerances.
Both apply flag labels by suction-assisted folding. The print-and-fold model adds a printer so content is printed during labeling; the fold-over model has a display only, works with pre-printed labels and covers different size and label ranges.
220 V / 50 Hz power and compressed air at 0.4–0.6 MPa. The machine is approx. 910 × 800 × 1100 mm and weighs 80 kg.
Brochure p. 34 ±0.3 mm The YIXING fold-over labeling machine is a semi-automatic unit with a display that folds pre-printed labels around wires, cables, tubes and other slim workpieces to form flag labels. It works at ±0.3 mm and 15–25 pcs/min on diameters of 2.2–6.5 mm or 6.5–10.5 mm, and a fixture change adapts it to other sizes.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
