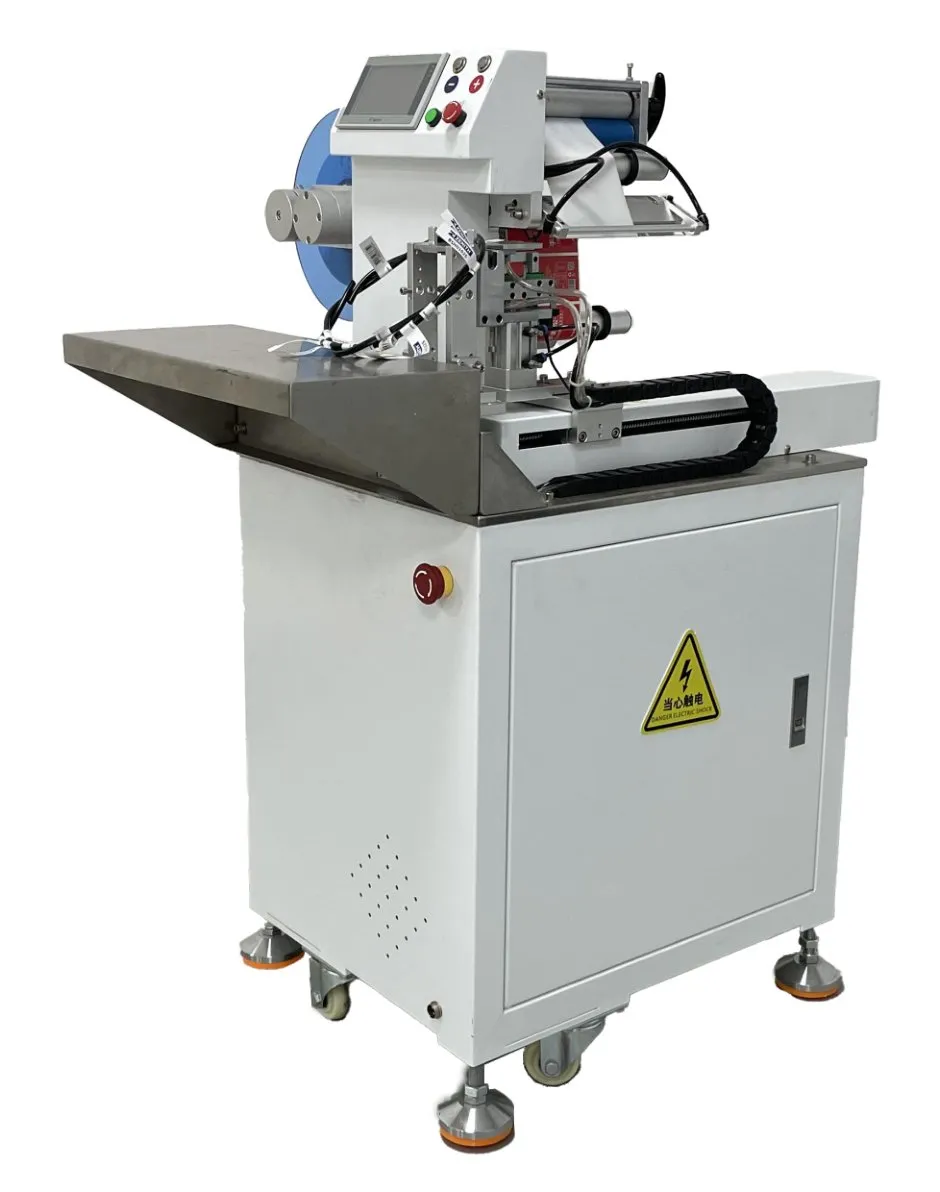

The YIXING fold-over labeling machine is a semi-automatic unit with a display that folds pre-printed labels around wires, cables, tubes and other slim workpieces to form flag labels. It works at ±0.3 mm and 15–25 pcs/min on diameters of 2.2–6.5 mm or 6.5–10.5 mm, and a fixture change adapts it to other sizes.
Updated
Sample testing available Custom builds available

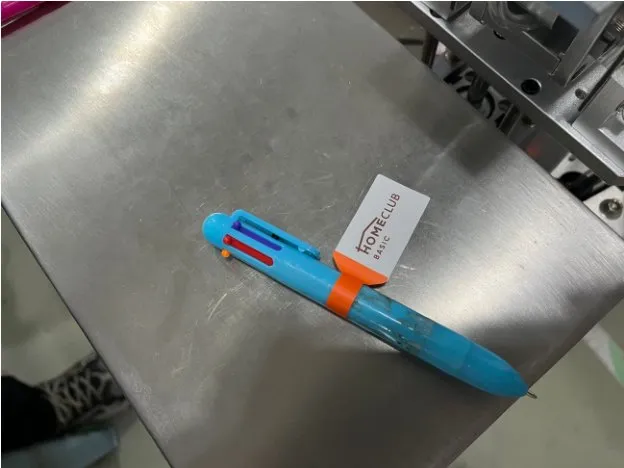

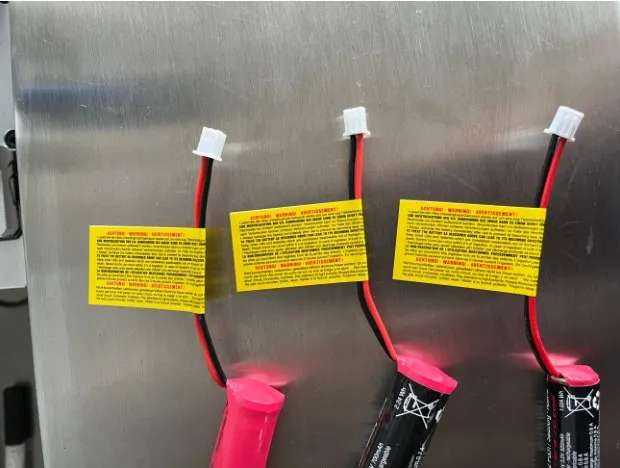

This machine applies fold-over (flag) labels to wires and cables, tubes and craft items. The label wraps around the workpiece and its two halves stick together, leaving a flag that stands out from the part. Typical jobs are power cords, data cables, lollipops, jelly products and hardware; the samples show flags on a pen barrel and on cables.
It is a semi-automatic machine with a display. The operator places each part on the fixture, and the machine holds the label by suction and folds it over the part. Labeling accuracy is ±0.3 mm (excluding product and label tolerances) and speed is 15–25 pcs/min, depending on product and label size. It covers two diameter ranges, 2.2–6.5 mm and 6.5–10.5 mm, and changing the fixture adapts it to workpieces of other sizes.
The machine runs pre-printed labels 6–28 mm long and 20–170 mm wide (liner width); larger labels can be custom-built. It measures approx. 910 × 800 × 1100 mm, weighs 80 kg and needs 220 V / 50 Hz power plus compressed air at 0.4–0.6 MPa.
The label is held by suction and folded onto the part, producing a flag label on power cords, data cables, pen barrels and other slim items.
±0.3 mm (excluding product and label tolerances) at 15–25 pcs/min, for cable products where the flag position matters.
Handles workpieces 2.2–6.5 mm or 6.5–10.5 mm in diameter; a different fixture adapts it to other sizes.
Accepts labels 6–28 mm long and 20–170 mm wide (liner width); larger labels can be custom-built.

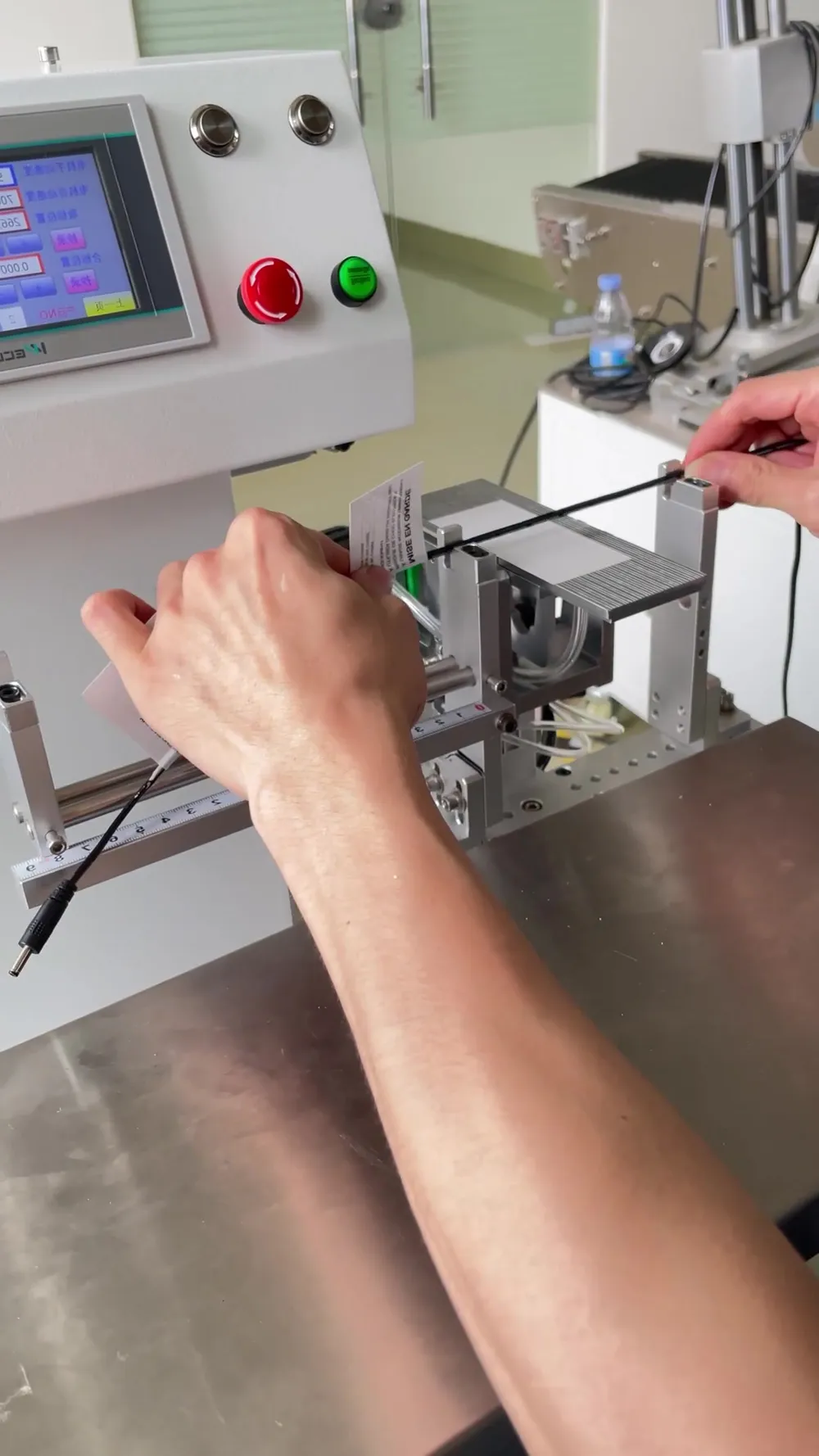

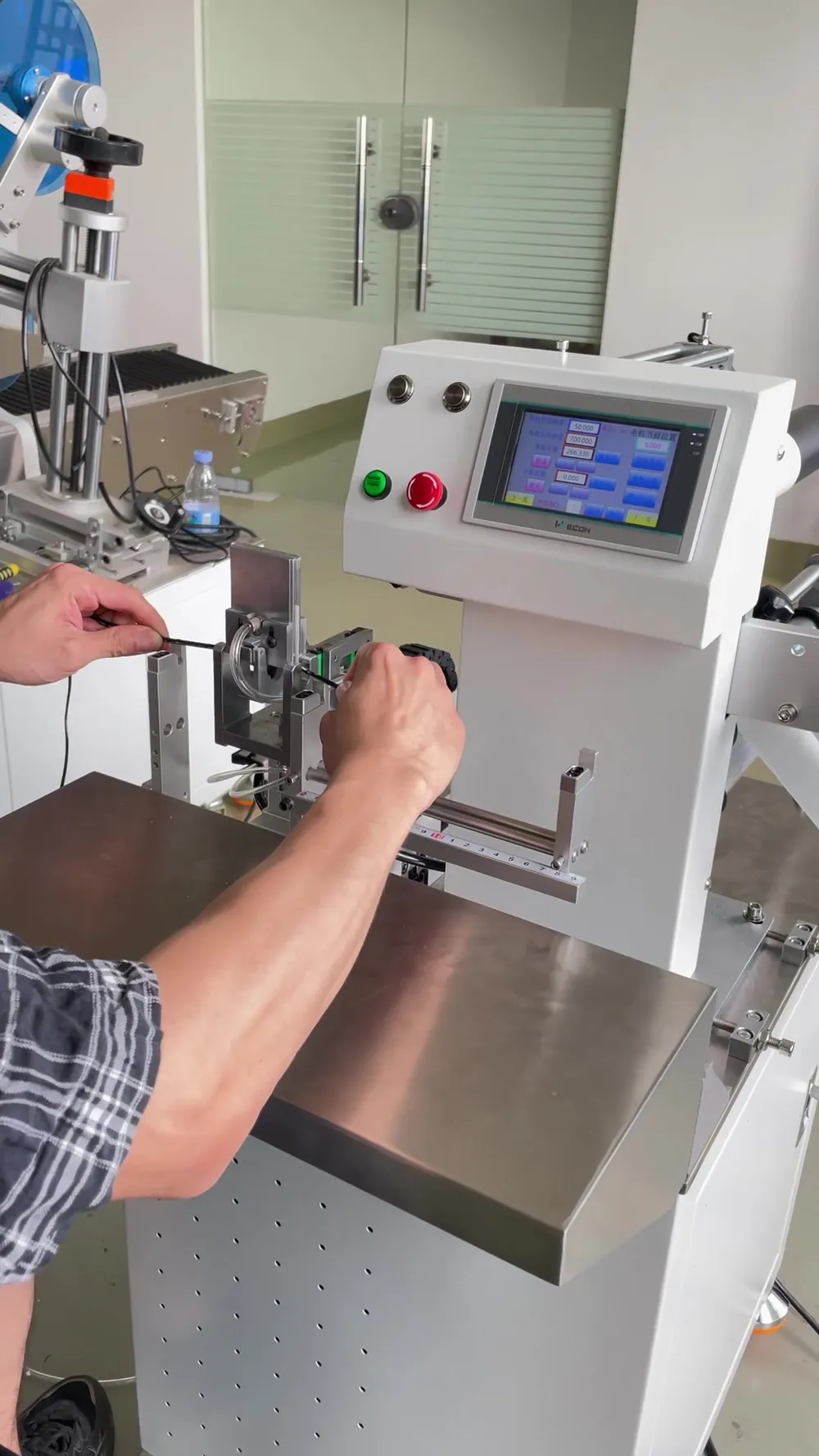

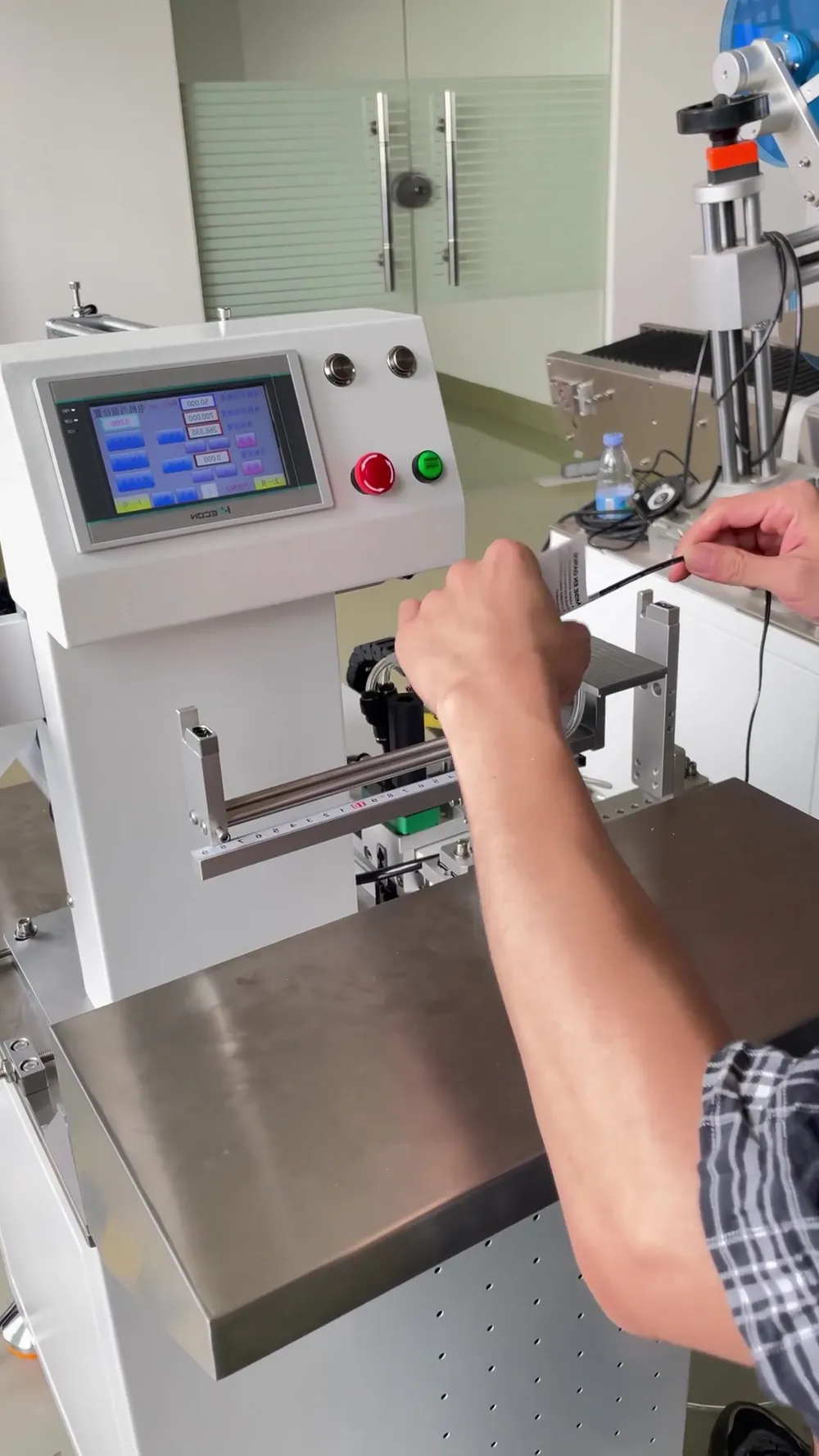

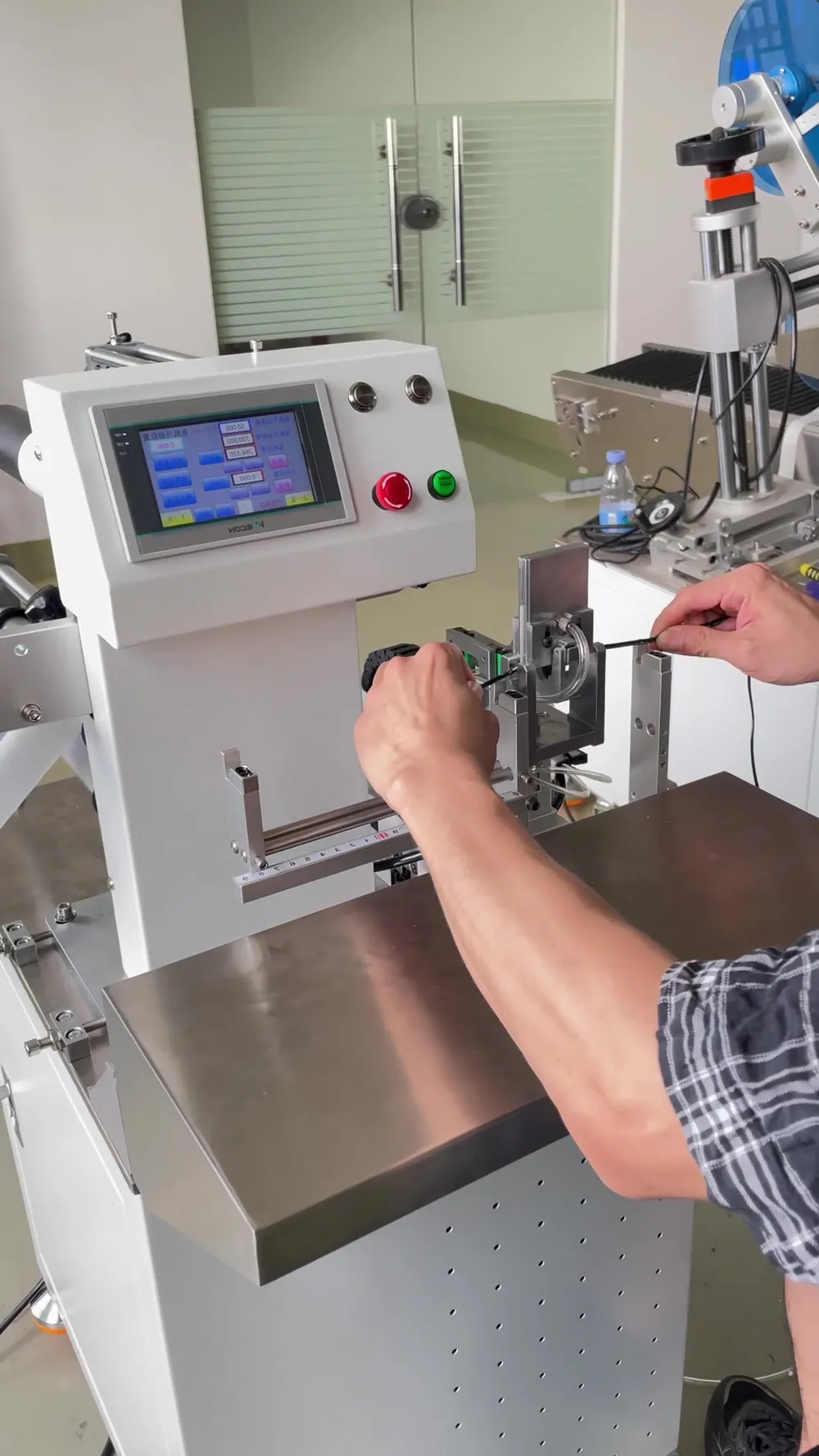

The operator loads and unloads parts while the machine does the fold-over, which suits frequent changes between cable and tube types.
Approx. 910 × 800 × 1100 mm and 80 kg, running on 220 V / 50 Hz with 0.4–0.6 MPa compressed air.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.3 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 15–25 pcs/min (depends on product and label size) |
| Product size range | Diameter 2.2–6.5 mm or 6.5–10.5 mm |
| Label size range | Length 6–28 mm; width (liner width) 20–170 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 910 × 800 × 1100 mm |
| Power supply | 220 V / 50 Hz |
| Air pressure | 0.4–0.6 MPa |
| Machine weight | 80 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Two ranges: 2.2–6.5 mm and 6.5–10.5 mm. Changing the fixture adapts the machine to workpieces of other sizes.
Labels 6–28 mm long and 20–170 mm wide (liner width). Larger labels can be custom-built.
15–25 pcs/min at ±0.3 mm (excluding product and label tolerances); actual speed depends on product and label size.
Yes. It needs an air supply of 0.4–0.6 MPa as well as 220 V / 50 Hz power.
No printer is included: the machine has a display and works with pre-printed labels. To print QR codes or other content during labeling, choose the print-and-fold cable labeling machine.
Tubes and craft items such as lollipops, jelly products and hardware, plus pen barrels as shown in the samples.
Brochure p. 35 ±0.3 mm The YIXING print-and-fold cable labeling machine is a semi-automatic unit with a display and a printer. It prints each label and applies it as a fold-over flag on cables, wire harnesses and tubes in one integrated step, at ±0.3 mm and 15–25 pcs/min, with fixtures for 1–3, 2–5, 3–7 and 4–10 mm (one set standard).
