中文流水线式贴胶机

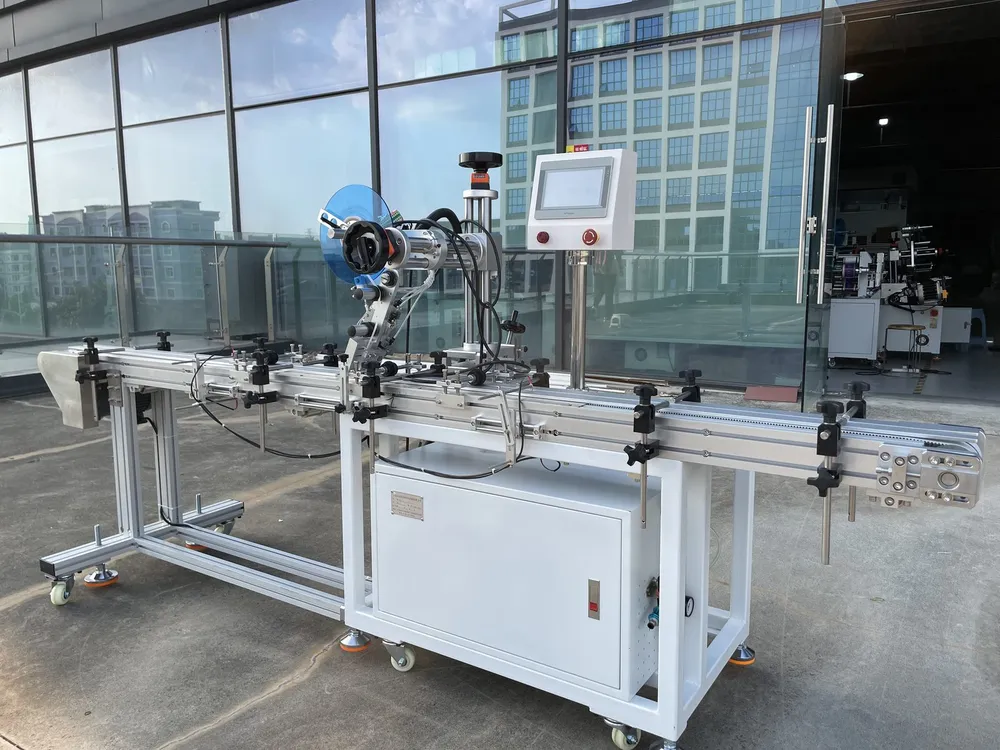

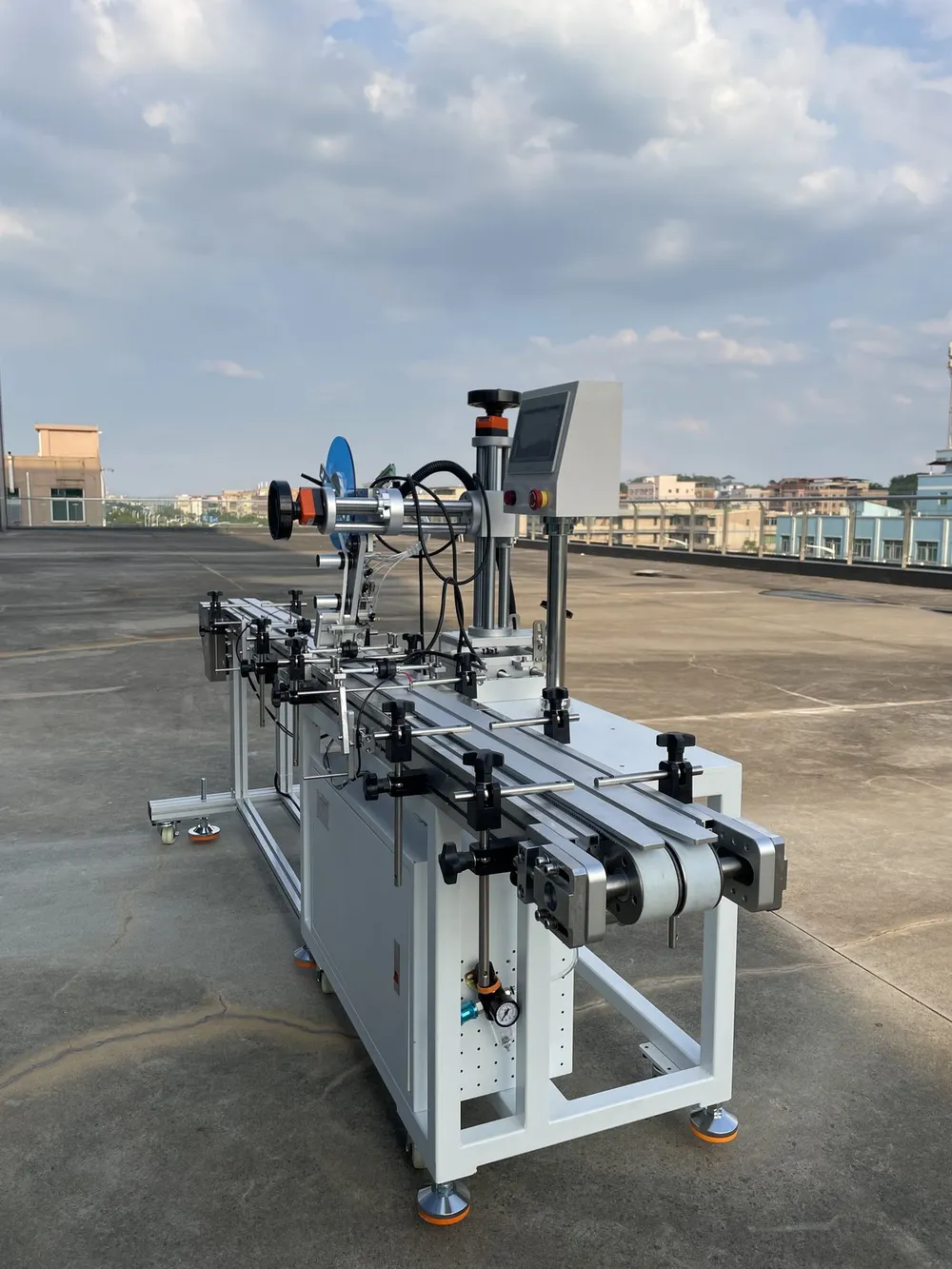

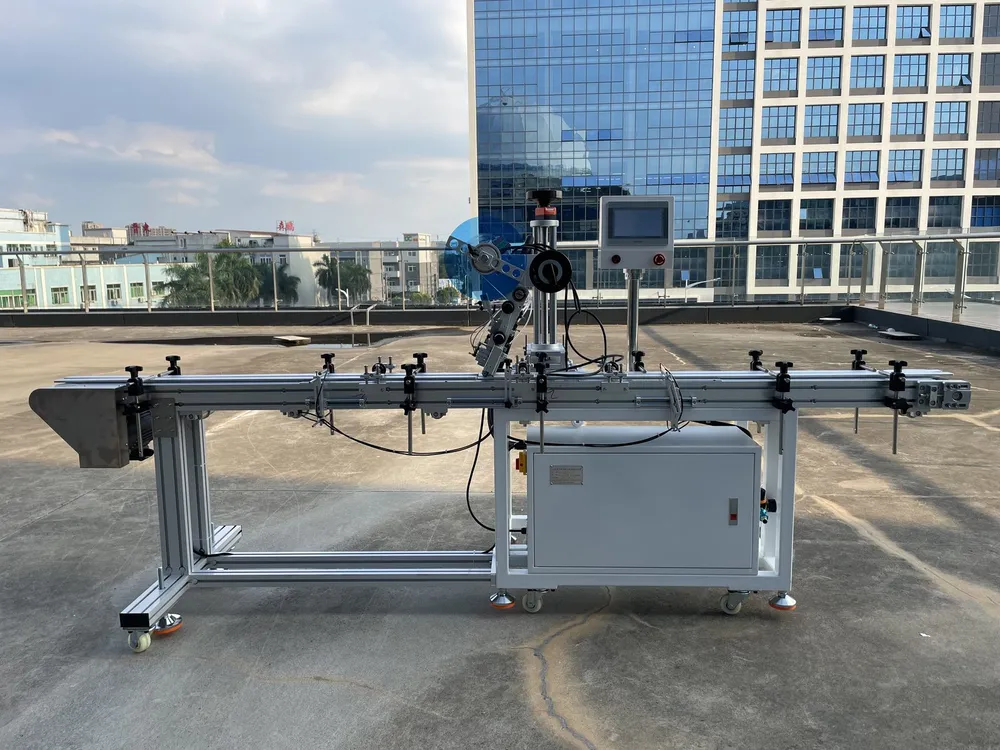

The YIXING inline conveyor tape applicator tapes flat parts in one continuous sequence: the part is loaded, the tape is cut automatically and applied, and the part is unloaded. An automatic part-separating function can be added and any size can be custom-built. It tapes at ±2 mm and 500 mm/s and weighs 150 kg.
Updated
Sample testing available Custom builds available

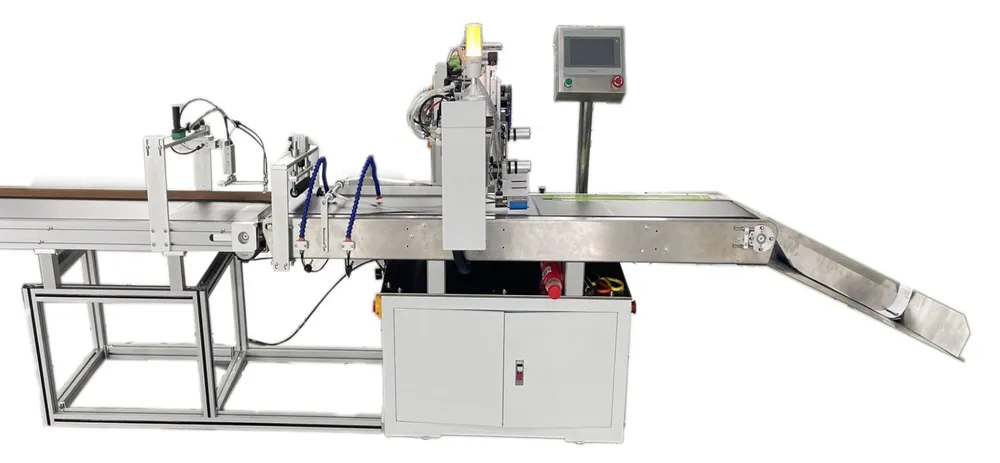

The inline conveyor model turns taping into a flow process for flat parts. After a part is loaded, the machine cuts the tape automatically, applies it to the part's flat face, and the part is then unloaded. Brochure samples are long plastic strips and flat strip-shaped parts.
An automatic part-separating function can be added to reduce manual handling, and the machine is built to order — any size can be customized. On the tape side, it handles double-sided, 3M, clear and high-temperature tape from 3 to 50 mm wide (liner width), wound on 76 mm cores with a 250 mm reel OD.
Taping accuracy is ±2 mm (excluding product and tape tolerances) and speed 500 mm/s. Overall dimensions are approx. 1500 × 780 × 1400 mm (L × W × H); it weighs 150 kg and runs on 220 V / 50 Hz.

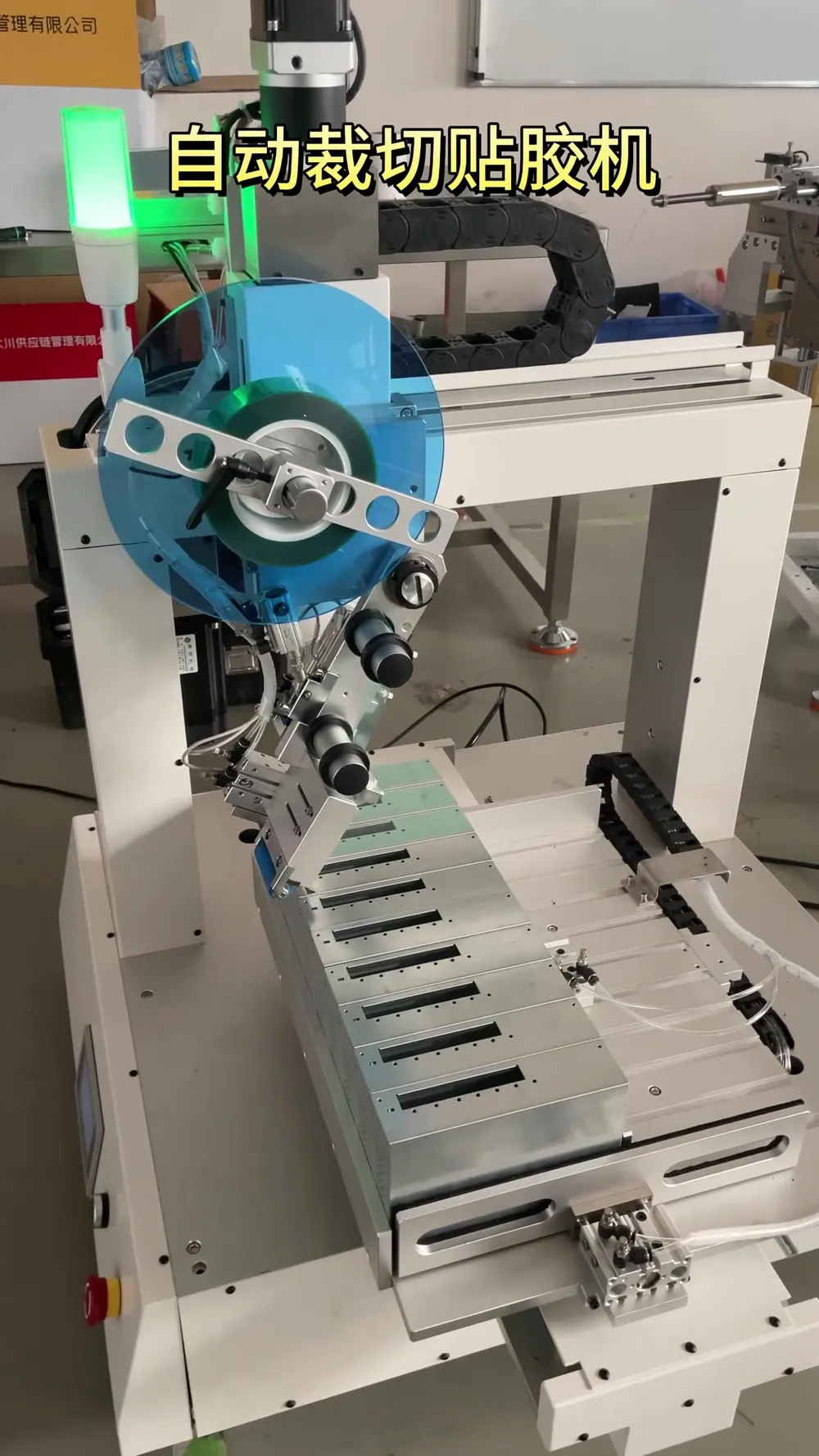

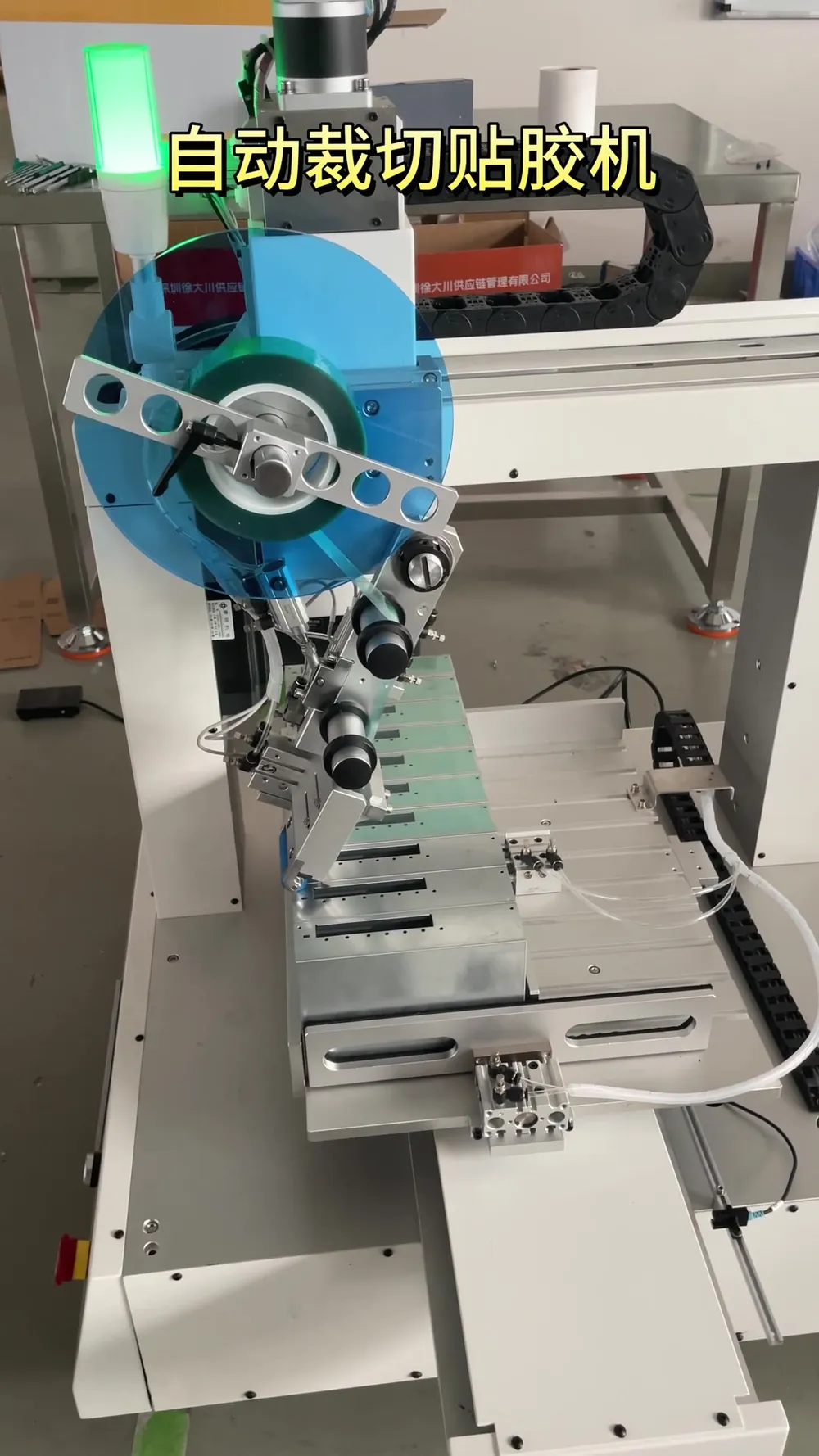

Loading, cutting, applying and unloading run in sequence, suited to flat parts in continuous production.

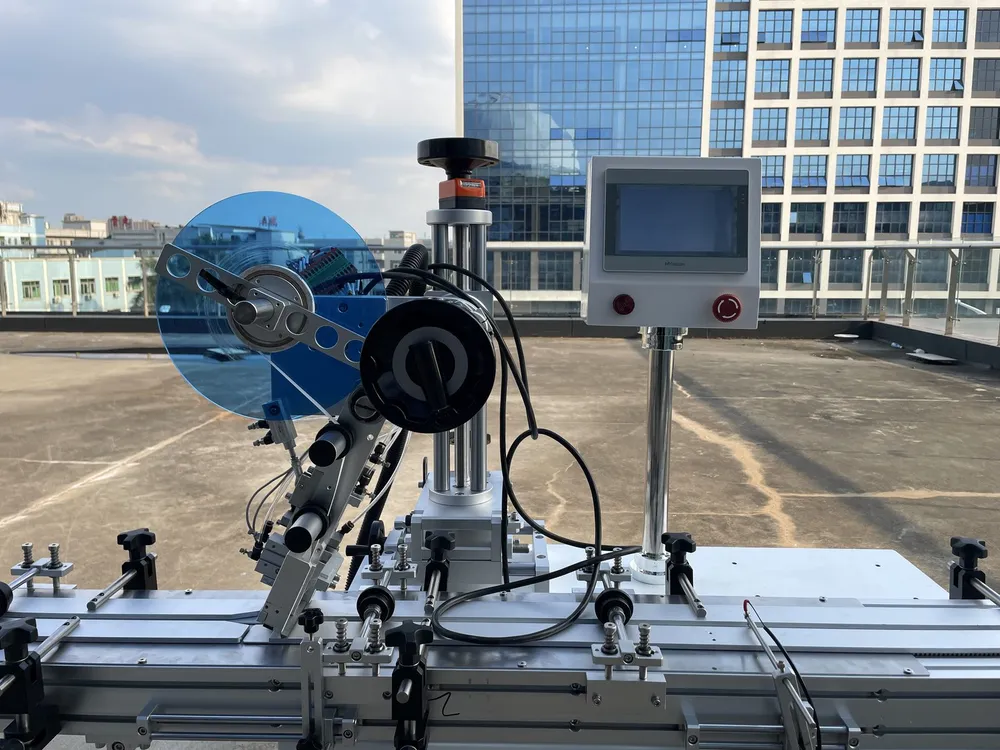

The tape is cut automatically before it goes onto the part.
Add the automatic part-separating function so parts do not have to be separated by hand.
A custom-built model; any size can be customized to the customer's product.
Taping accuracy ±2 mm (excluding product and tape tolerances) at a taping speed of 500 mm/s.
Approx. 1500 × 780 × 1400 mm and 150 kg, on 220 V / 50 Hz.

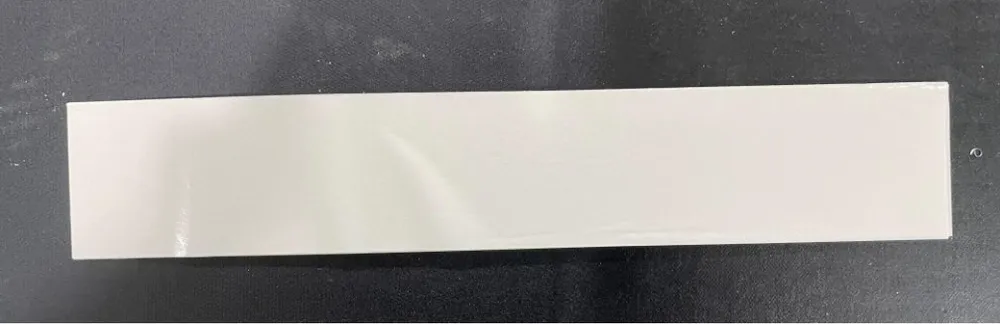

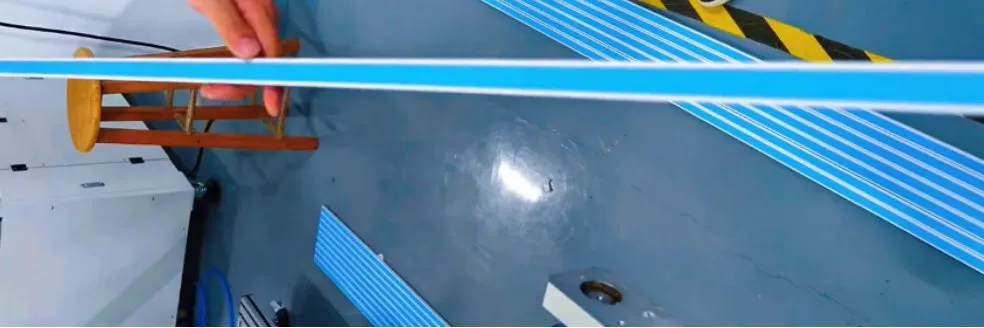

Real samples from the brochure, produced on this machine type
| Taping accuracy | ±2 mm (excluding product and tape tolerances) |
|---|---|
| Taping speed | 500 mm/s (depends on product and tape size) |
| Product size range | Custom-built to the customer's product |
| Tape specifications | Width (liner width) 3–50 mm; reel core ID 76 mm, reel OD 250 mm |
| Machine dimensions | Approx. 1500 × 780 × 1400 mm (L × W × H) |
| Power supply | 220 V / 50 Hz |
| Machine weight | 150 kg |
| Remarks | Any size can be customized |
Standard-model data from the brochure; accuracy excludes product and tape tolerances. Other ranges can be custom-built.
Flat parts taped on a flat face, such as the long plastic strips and flat strip-shaped parts in the brochure samples. Uneven parts suit the dual-head magnetic unloading model instead.
Load the part → the tape is cut automatically → the tape is applied → unload. An automatic part-separating function can be added.
±2 mm (excluding product and tape tolerances) at 500 mm/s; the speed reached in production varies with part and tape size.
Yes. It is a custom-built model, and any size can be customized.
Double-sided, 3M, clear or high-temperature tape. The width range is 3–50 mm by liner width, and reels fit a 76 mm core with a 250 mm OD.
It is approx. 1500 mm long, 780 mm wide and 1400 mm high, weighs 150 kg and uses a 220 V / 50 Hz supply.
Brochure p. 7 ±1 mm The YIXING floor-standing rotary-head tape applicator holds the part on its table by vacuum or a fixture and rotates the tape head to lay multiple horizontal and vertical strips. It covers a 500 × 1000 mm taping stroke at ±1 mm accuracy and 500 mm/s, and applies double-sided, 3M, clear and high-temperature tape.

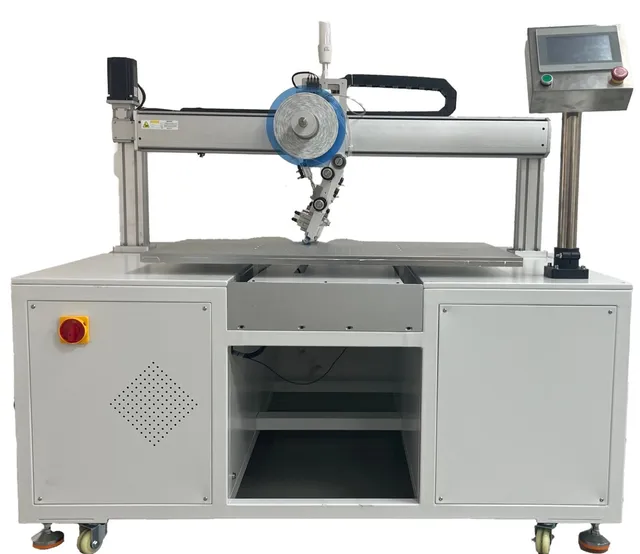

Brochure p. 8 ±1 mm The YIXING floor-standing 2-axis tape applicator splits the motion between two axes: the X axis drives the tape head and the Y axis moves the table carrying the part. It covers a 650 × 650 mm stroke at ±1 mm and 500 mm/s and suits parallel strips on sheets and foam boards.

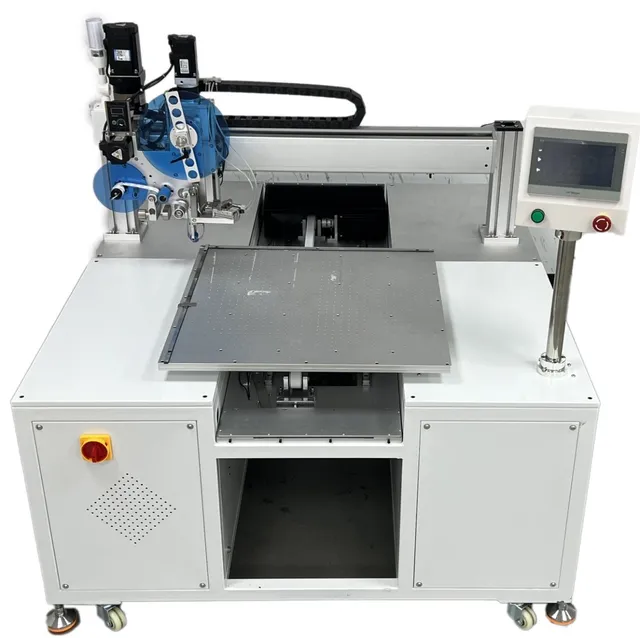

Brochure p. 9 ±1 mm The YIXING floor-standing rotary-platform tape applicator rewinds the release liner (or waste paper) as it applies the tape, cuts the tape automatically and leaves the part ready to unload. It covers a 650 × 650 mm taping stroke at ±1 mm and 500 mm/s, with tape 3–50 mm wide.
Brochure p. 10 ±1 mm YIXING offers three tape applicator heads: a liner-peeling head, a non-peeling head that leaves the liner on the tape, and a waste-rewinding head. Customers choose the head that matches how liner and waste must be handled. Each tapes at ±1 mm and 500 mm/s, measures approx. 600 × 300 × 500 mm and weighs 8 kg.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
