中文宽幅贴膜贴胶机（450mm）
Wide-format applicator that laminates protective film or tape up to 450 mm wide onto flat parts held on a vacuum platform, then cuts it automatically.
Updated
Sample testing available Custom builds available

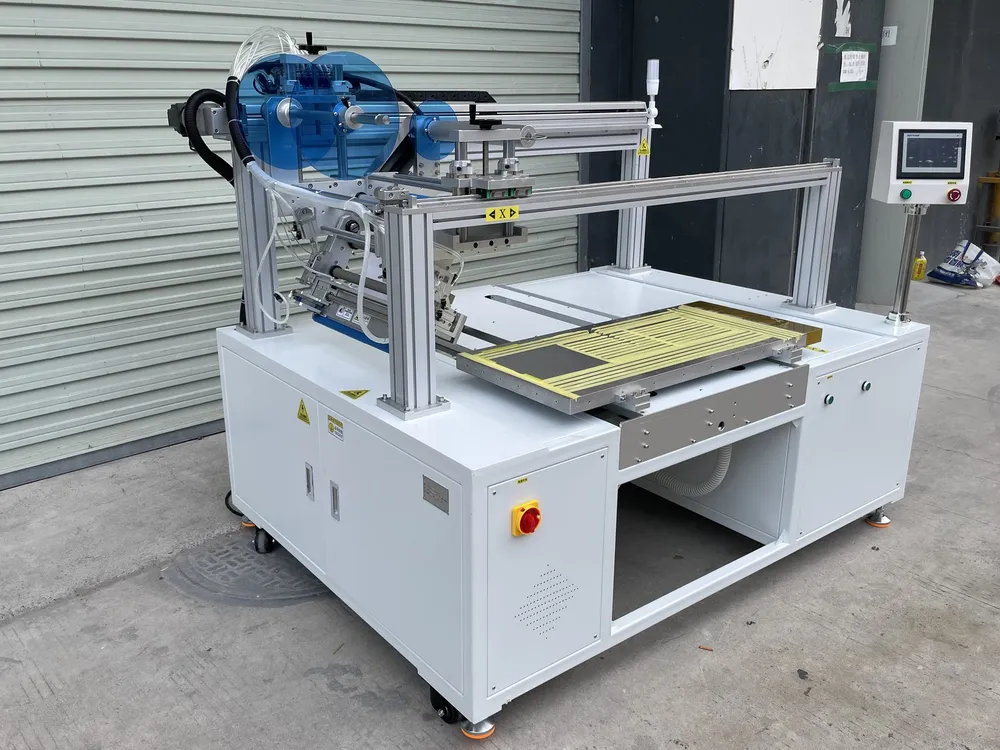

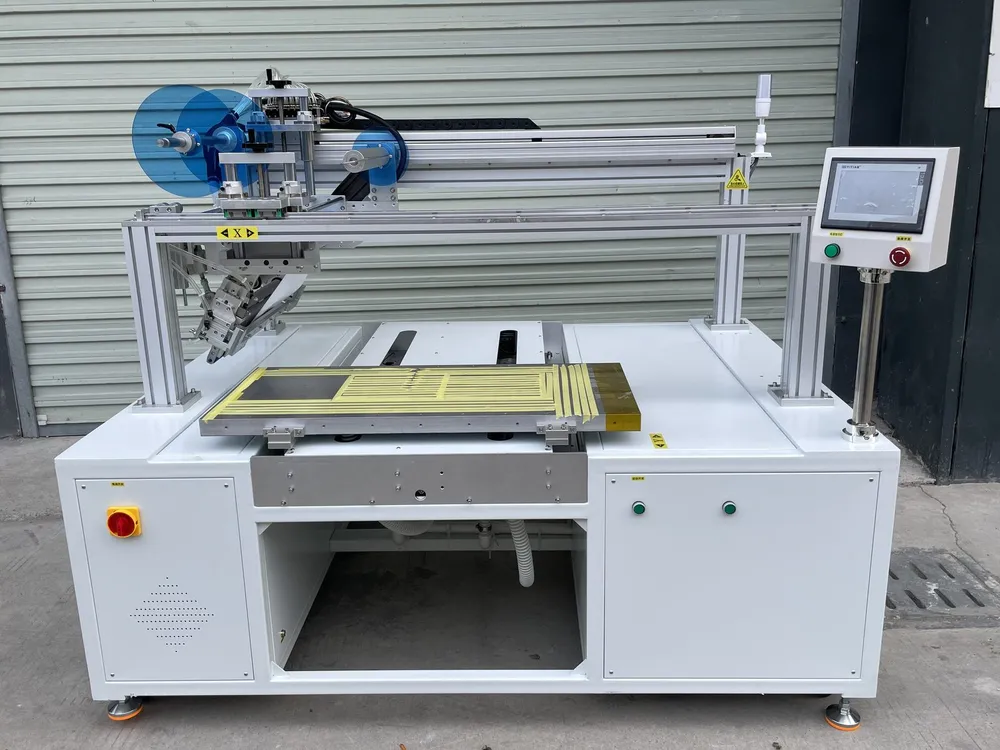

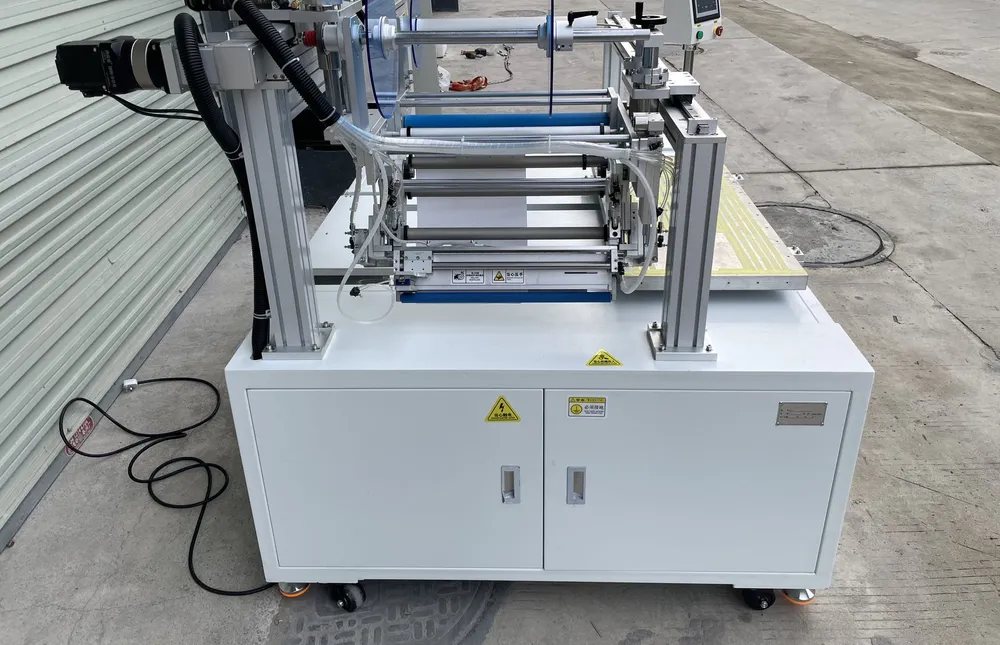

The wide-format applicator combines tape application and film lamination in one machine. Parts are loaded into a push-pull fixture on a vacuum adsorption platform, pneumatic clamps hold the film, and a roller laminates it flat before the film is cut automatically.

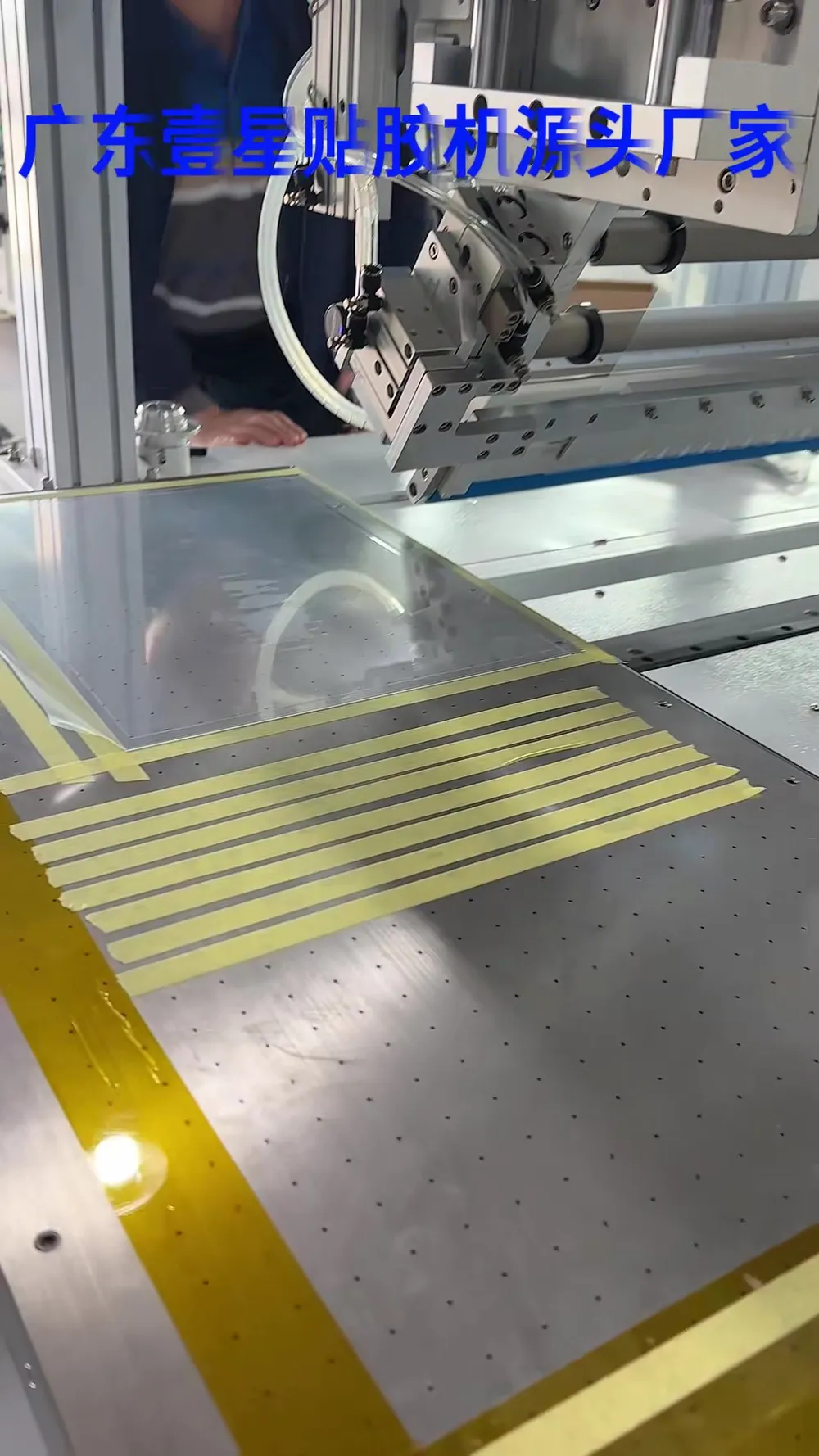

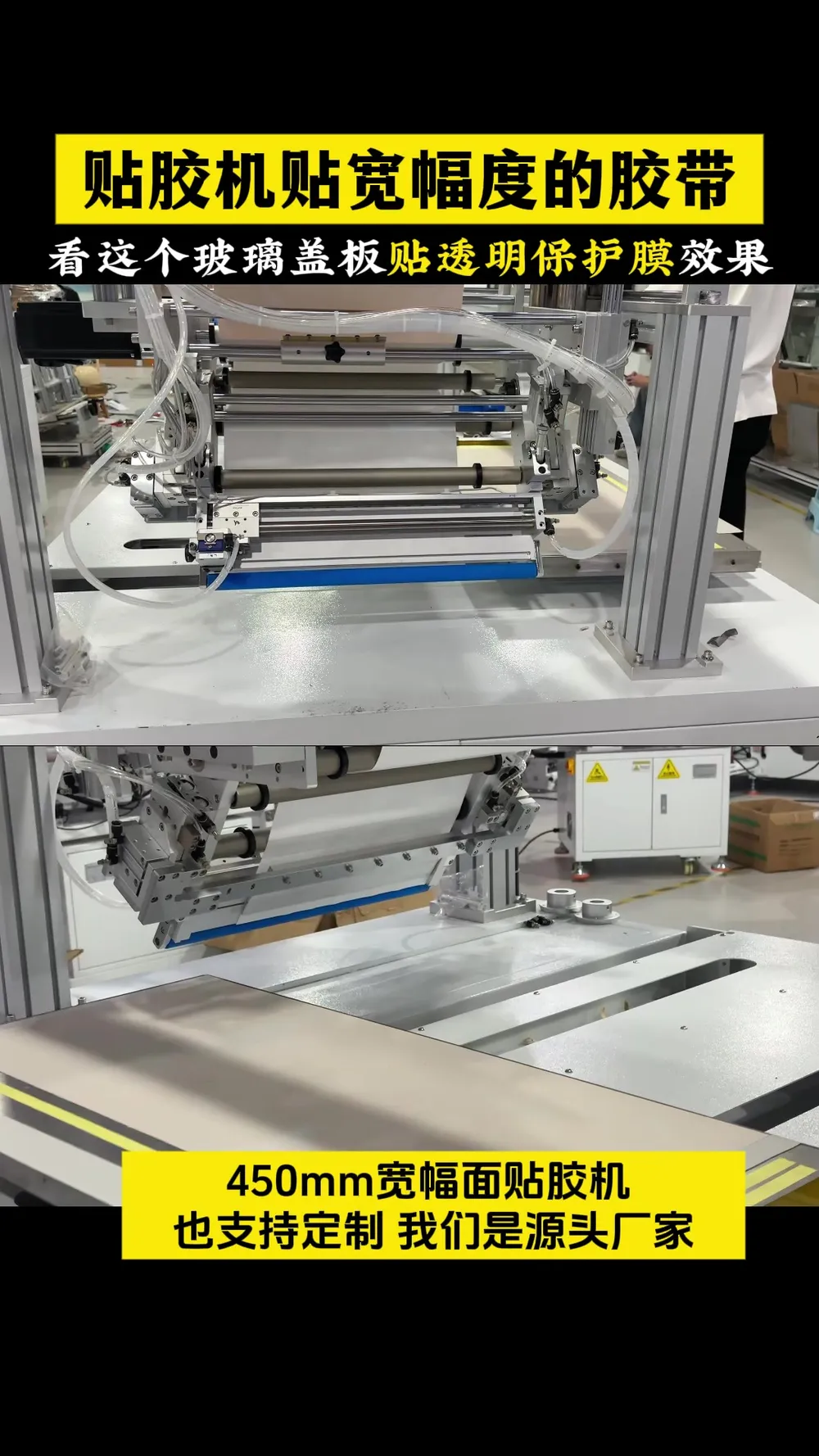

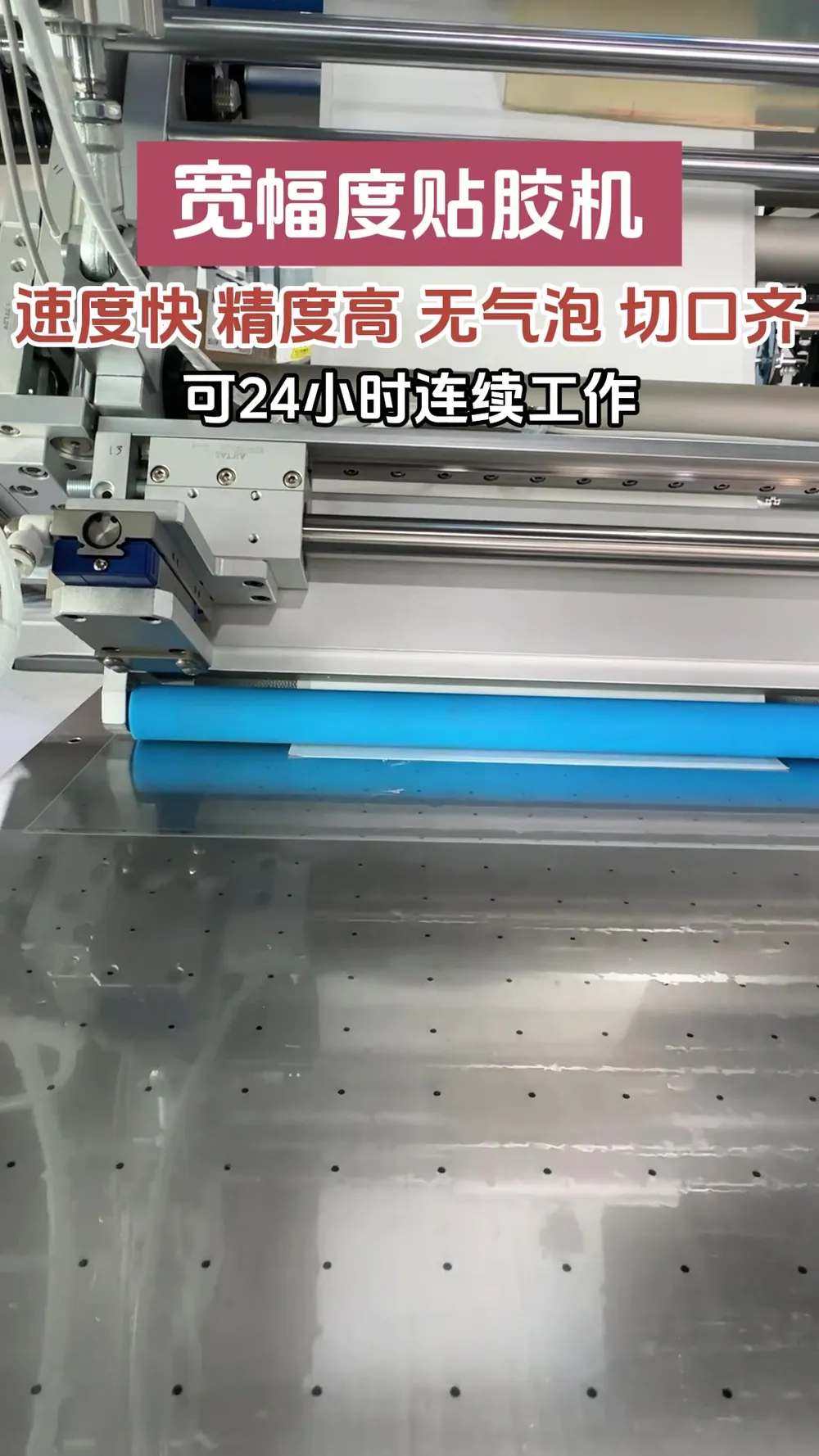

In the factory demo video the machine laminates five hardware parts in one cycle. Film width, fixture layout and platform size are built to your parts.
Laminates protective film or wide tape across parts up to 450 mm wide.

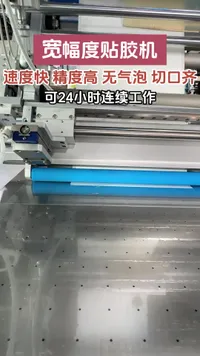

Parts are held flat by vacuum adsorption, which keeps the film flat and free of bubbles.
The film is cut automatically after lamination for a clean edge.
Fixture, width and platform size are customized, and several parts can be laminated per cycle.

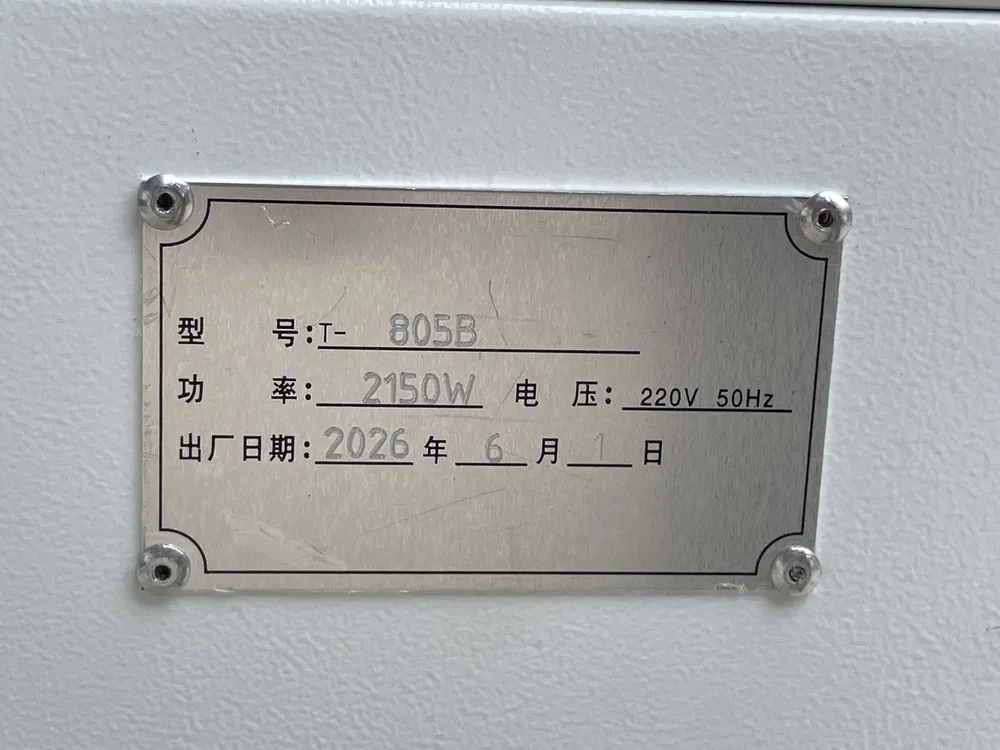

| Model | T-805B |
|---|---|
| Tape specifications | Film or tape width up to 450 mm |
| Remarks | Vacuum adsorption platform, pneumatic clamping, roller lamination, automatic cutting |
| Rated power | 2150 W |
| Power supply | 220 V / 50 Hz |
Protective film and wide adhesive tape up to 450 mm wide on flat parts such as panels, screens, housings and plates.
Parts are loaded by hand into a push-pull fixture; clamping, lamination and cutting are automatic.
Custom builds available Custom-built tape applicator with a gantry-mounted wide multi-roller head that applies wide tape or film to parts on a fixture table, plus an outfeed conveyor that carries finished parts away.
Brochure p. 8 ±1 mm The YIXING floor-standing 2-axis tape applicator splits the motion between two axes: the X axis drives the tape head and the Y axis moves the table carrying the part. It covers a 650 × 650 mm stroke at ±1 mm and 500 mm/s and suits parallel strips on sheets and foam boards.
Brochure p. 9 ±1 mm The YIXING floor-standing rotary-platform tape applicator rewinds the release liner (or waste paper) as it applies the tape, cuts the tape automatically and leaves the part ready to unload. It covers a 650 × 650 mm taping stroke at ±1 mm and 500 mm/s, with tape 3–50 mm wide.
Brochure p. 13 ±1 mm The YIXING desktop tape applicator is a benchtop taping machine: the operator loads the part, the machine applies the tape and cuts it automatically, and the part is unloaded by hand. It has a 300 × 300 mm taping stroke, takes tape 5–50 mm wide and weighs 78 kg; automatic loading and unloading can be custom-built.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
