Machines that feed, cut and apply double-sided, 3M, transparent and high-temperature tape — desktop, floor-standing, inline and vision-aligned models.
Updated
Tape applicators apply roll tape — double-sided tape, 3M tape, clear tape, high-temperature tape — onto parts that are held by a vacuum table or fixture, then cut the tape automatically. The YIXING brochure covers 8 taping solutions: a desktop unit (300 × 300 mm stroke), floor-standing 2-axis, 3-axis, rotary-head and rotary-platform liner-peeling machines, an inline conveyor model, a dual-head custom machine with magnetic unloading, and three stand-alone tape heads.
Most of our tape applicators — 7 of the 9 with a catalog rating — apply tape at ±1 mm; the full range is ±0.5 mm to ±2 mm, and the most accurate is the Vision-Aligned Tape Applicator with Auto Loading & Unloading. The figures exclude product and tape tolerances.
The standard models apply tape at 500 mm/s and take tape 3–50 mm wide (liner width). The Vision-Aligned Tape Applicator with Auto Loading & Unloading is rated by output: about 1,200 pcs/hour.
Yes. Send us your products with the labels or tape you use, and we test them on a matching machine free of charge before you decide.
Brochure p. 7 ±1 mm The YIXING floor-standing rotary-head tape applicator holds the part on its table by vacuum or a fixture and rotates the tape head to lay multiple horizontal and vertical strips. It covers a 500 × 1000 mm taping stroke at ±1 mm accuracy and 500 mm/s, and applies double-sided, 3M, clear and high-temperature tape.
Brochure p. 8 ±1 mm The YIXING floor-standing 2-axis tape applicator splits the motion between two axes: the X axis drives the tape head and the Y axis moves the table carrying the part. It covers a 650 × 650 mm stroke at ±1 mm and 500 mm/s and suits parallel strips on sheets and foam boards.
Brochure p. 9 ±1 mm The YIXING floor-standing rotary-platform tape applicator rewinds the release liner (or waste paper) as it applies the tape, cuts the tape automatically and leaves the part ready to unload. It covers a 650 × 650 mm taping stroke at ±1 mm and 500 mm/s, with tape 3–50 mm wide.
Brochure p. 10 ±1 mm YIXING offers three tape applicator heads: a liner-peeling head, a non-peeling head that leaves the liner on the tape, and a waste-rewinding head. Customers choose the head that matches how liner and waste must be handled. Each tapes at ±1 mm and 500 mm/s, measures approx. 600 × 300 × 500 mm and weighs 8 kg.
Brochure p. 11 ±1 mm The YIXING floor-standing 3-axis tape applicator is a custom-built taping machine. The X axis moves the tape head front to back while the Y and Z axes handle left-right moves, so it can tape around a panel's outline or at several positions on long panels. ±1 mm, 500 mm/s, full safety enclosure.

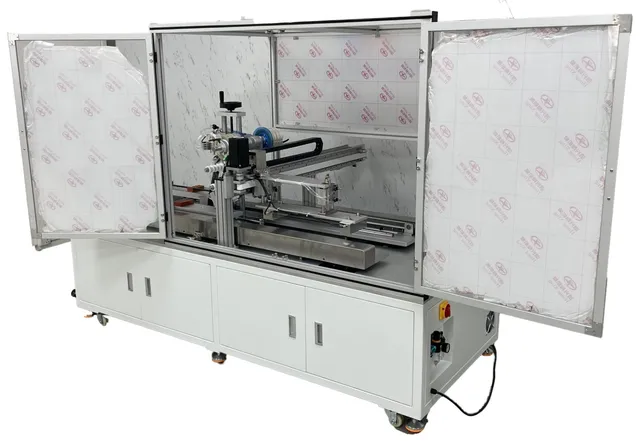

Brochure p. 12 ±1 mm The YIXING dual-head tape applicator is a custom build for taping flat faces on uneven parts that do not sit steadily. Parts are loaded into fixtures by hand, four strips go on at once, and a magnetic pick-up on a motion module unloads them; the two heads work in turn. Approx. 2000 × 1600 × 1500 mm, 260 kg.
Brochure p. 13 ±1 mm The YIXING desktop tape applicator is a benchtop taping machine: the operator loads the part, the machine applies the tape and cuts it automatically, and the part is unloaded by hand. It has a 300 × 300 mm taping stroke, takes tape 5–50 mm wide and weighs 78 kg; automatic loading and unloading can be custom-built.
Brochure p. 14 ±2 mm The YIXING inline conveyor tape applicator tapes flat parts in one continuous sequence: the part is loaded, the tape is cut automatically and applied, and the part is unloaded. An automatic part-separating function can be added and any size can be custom-built. It tapes at ±2 mm and 500 mm/s and weighs 150 kg.

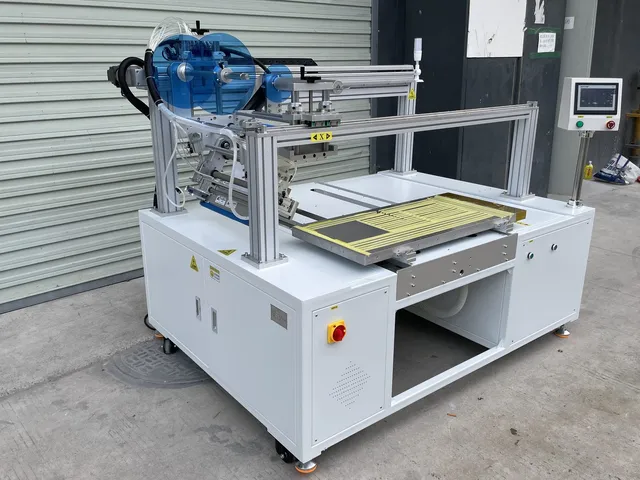

Custom builds available Wide-format applicator that laminates protective film or tape up to 450 mm wide onto flat parts held on a vacuum platform, then cuts it automatically.

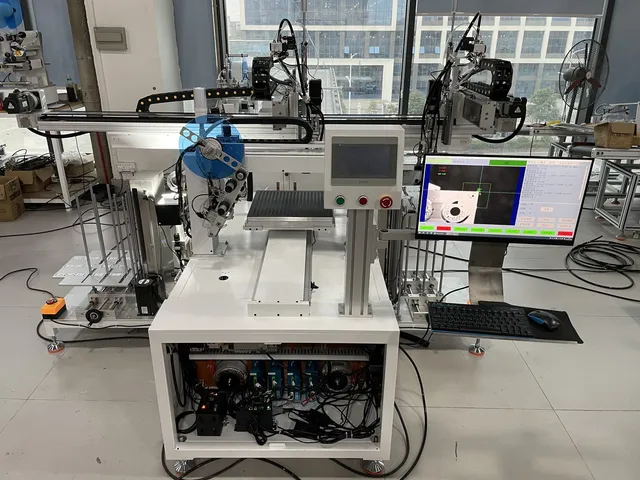

Custom builds available ±0.5mm Tape applicator with CCD vision alignment and automatic loading and unloading, for PCBs, sheets and hardware or plastic parts from 50 × 50 mm to 350 × 350 mm.

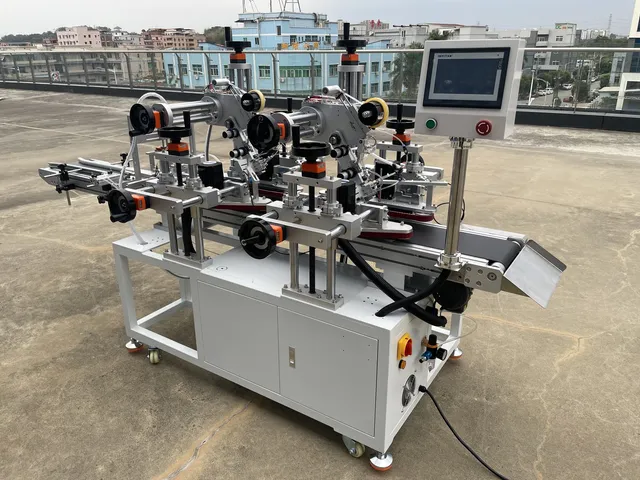

Custom builds available Inline tape applicator in which belts clamp each part and carry it past two tape heads, so two strips of tape go on in a single pass along the conveyor.

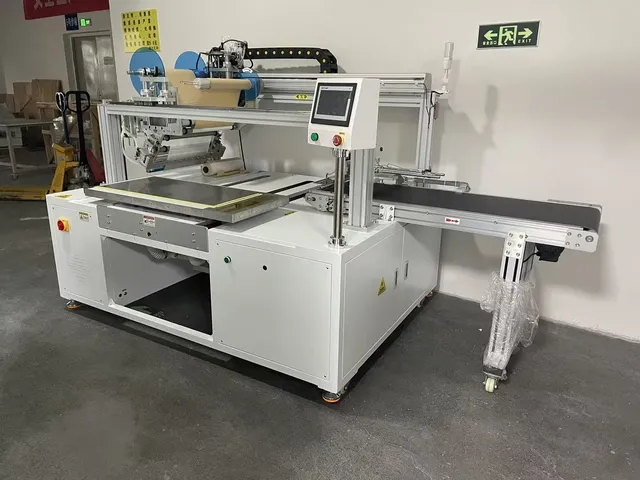

Custom builds available Custom-built tape applicator with a gantry-mounted wide multi-roller head that applies wide tape or film to parts on a fixture table, plus an outfeed conveyor that carries finished parts away.

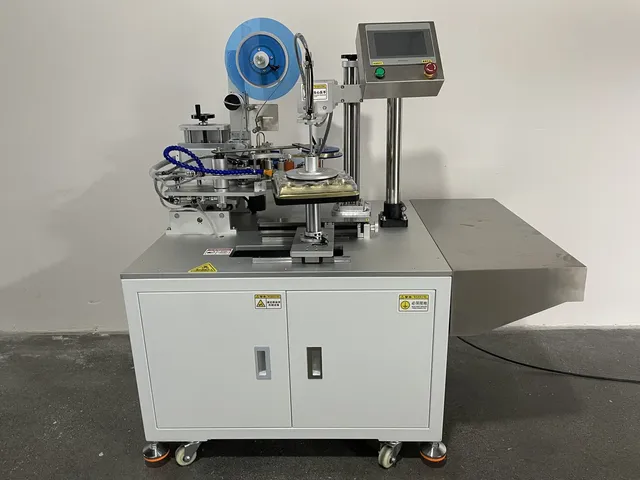

Custom builds available Compact tape applicator that clamps a square or rectangular box on a rotating fixture and wraps a band of tape around its four sides.

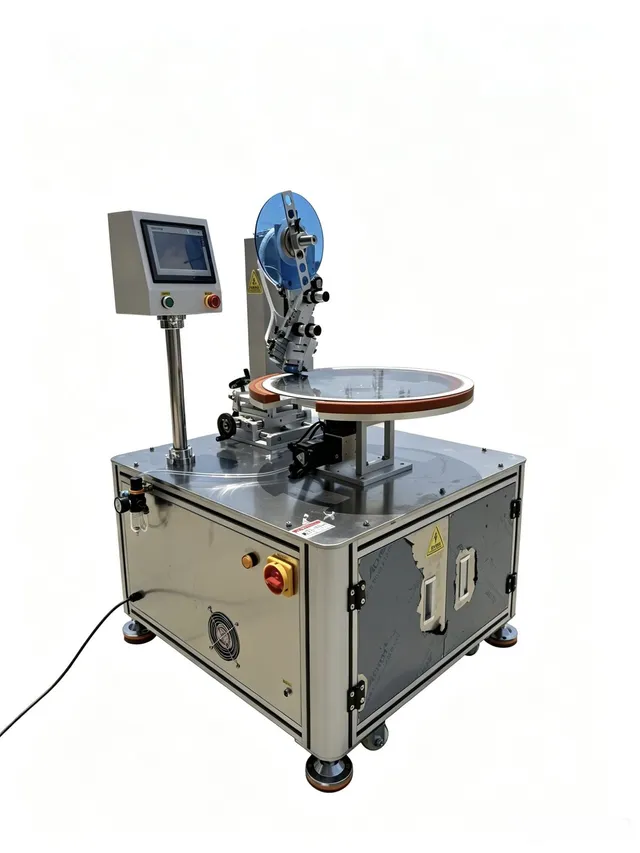

Custom builds available Tape applicator with a motor-driven turntable: a round washing-machine panel turns in a ring fixture while the tape head presses tape around its edge.

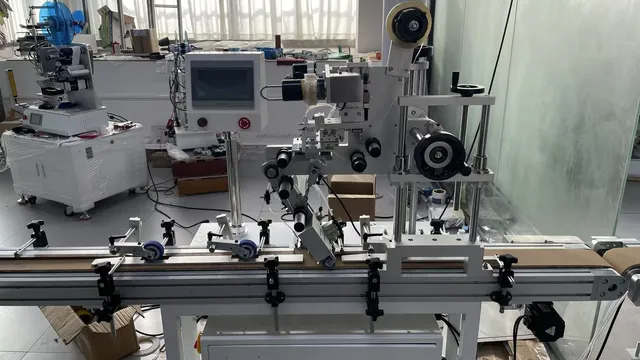

Custom builds available Inline tape applicator above a belt conveyor that tapes each passing part, cuts the tape automatically and hands the parts on to discharge conveyors.
Accuracy and speed from the printed catalog (standard models).
| Model | Accuracy | Speed |
|---|---|---|
| Floor-Standing Rotary-Head Tape Applicator | ±1 mm | 500 mm/s |
| Floor-Standing 2-Axis Tape Applicator | ±1 mm | 500 mm/s |
| Floor-Standing Rotary-Platform Tape Applicator with Liner Peeling | ±1 mm | 500 mm/s |
| Tape Applicator Heads: Liner-Peeling, Non-Peeling and Waste-Rewinding | ±1 mm | 500 mm/s |
| Floor-Standing 3-Axis Tape Applicator | ±1 mm | 500 mm/s |
| Dual-Head Tape Applicator with Magnetic Unloading | ±1 mm | 500 mm/s |
| Desktop Tape Applicator | ±1 mm | 500 mm/s |
| Inline Conveyor Tape Applicator | ±2 mm | 500 mm/s |
| Wide-Format Film & Tape Applicator (450 mm) | Built to order | — |
| Vision-Aligned Tape Applicator with Auto Loading & Unloading | ±0.5mm | About 1,200 pcs/hour |
| Clamping-Belt Dual-Head Tape Applicator | Built to order | — |
| Custom Wide-Format Tape Applicator with Outfeed Conveyor | Built to order | — |
| Square Box Tape Applicator | Built to order | — |
| Rotary Tape Applicator for Washing-Machine Panels (T-803) | Built to order | — |
| Inline Tape Applicator with Automatic Cutting and Discharge | Built to order | — |
See which machines fit your industry.
PDFThe complete catalog in one file — company profile, tape applicators, labeling machines and custom models. Easy to forward to your team.
28 pages · PDF · 10.5 MB
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
