The YIXING automatic corner seal labeling machine applies 90° corner seal labels to boxes and other products, one to four seals as required, at 40–80 pcs/min and ±1 mm accuracy. It runs stand-alone or connected to a cartoner, and is built to order in a basic or a standard version.
Updated
Sample testing available Custom builds available

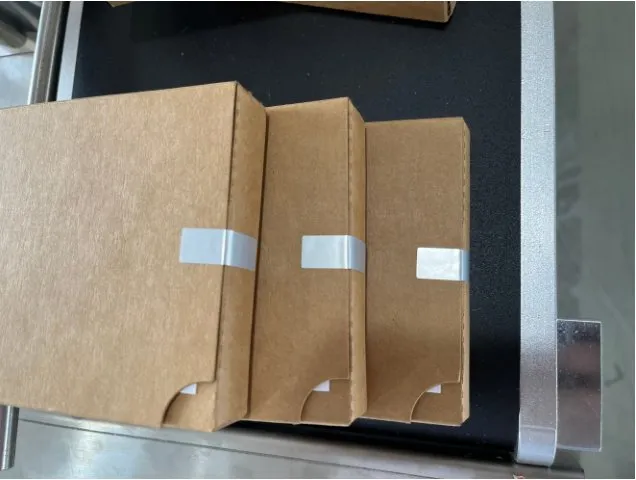

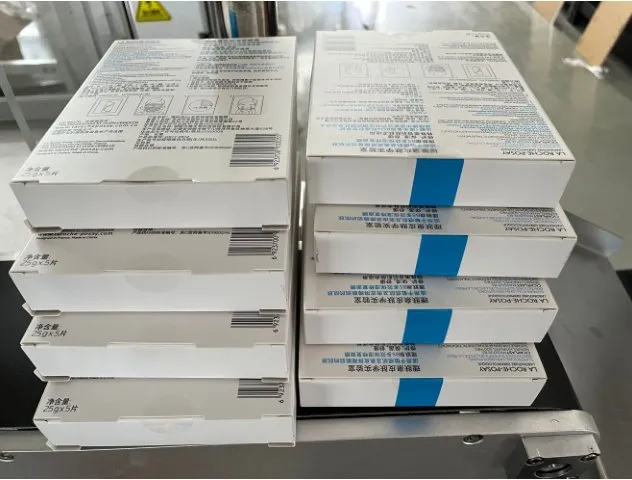

This machine applies seal labels to all kinds of products; each label turns a 90° corner and spans two adjacent faces of the box. The brochure samples show color boxes with corner seals and kraft boxes with clear corner seal labels. Depending on the requirement it applies one, two, three or four seals, and it is widely used in the electronics and toy industries.
Seal positions are flexible: two seals on the top surface, one on the top and one on the bottom, or two on the bottom surface. Products are placed on the conveyor one by one or arrive directly from a cartoner, and at the labeling station they receive the 90° corner label. For wipe-down, the pressing material is chosen to suit the stiffness of the label, so softer and stiffer seal labels can each be matched.
The machine can work stand-alone or be connected to a cartoner. It comes in a basic and a standard version, and machines of this type are built to order, with product handling customized to your samples. Accuracy is ±1 mm (excluding product and label tolerances), speed is 40–80 pcs/min, and labels can be 6–50 mm long and 6–50 mm wide (liner width). Its footprint is approx. 1700 × 1000 × 1350 mm, with a weight of 150 kg and a 220 V / 50 Hz supply.
Apply one, two, three or four seal labels per product, configured to the number of closures on your box.
Two top seals, one top and one bottom seal, or two bottom seals.
Runs stand-alone or connected to a cartoner, labeling boxes as they arrive from it.
The pressing material is chosen according to the stiffness of the seal label.

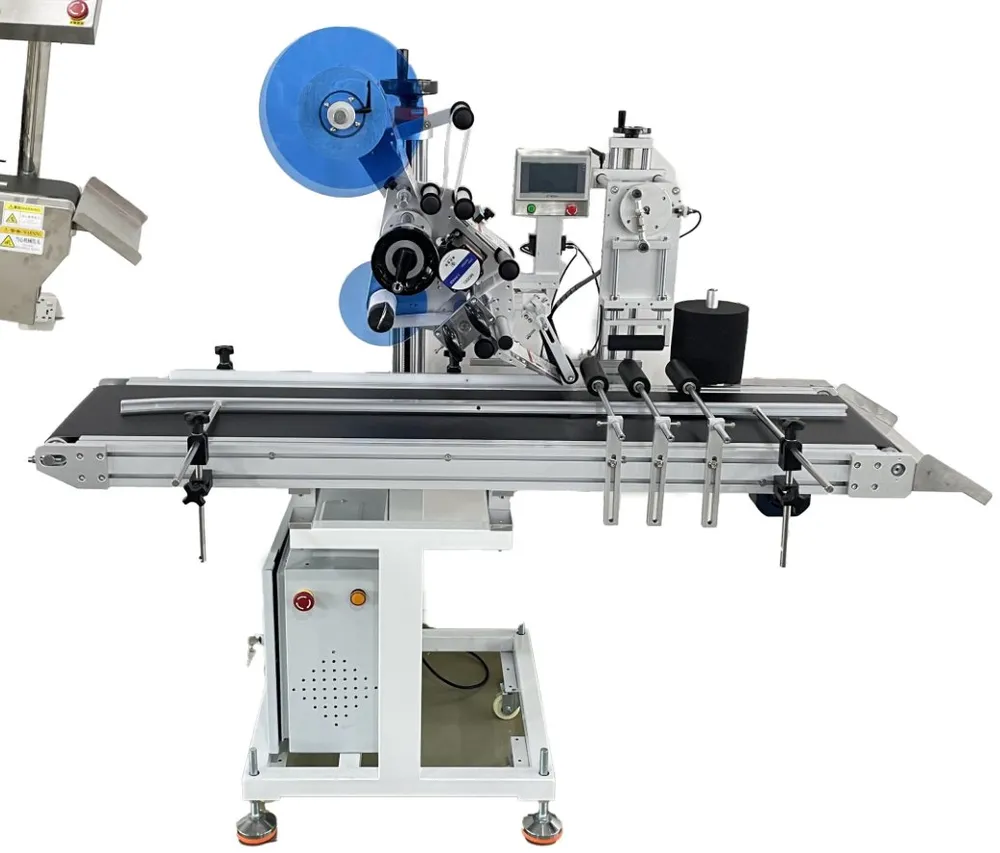

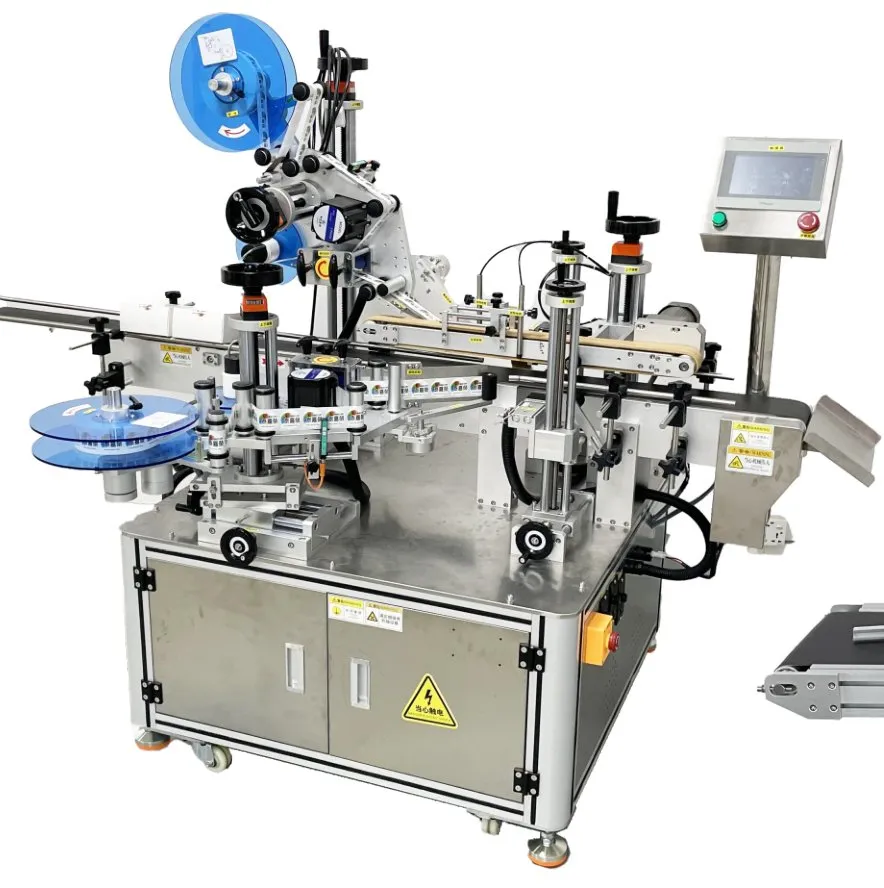

Available in a basic and a standard version; this type of machine is custom-built to your samples.
40–80 pcs/min at ±1 mm (excluding product and label tolerances), with labels 6–50 mm long and wide.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 40–80 pcs/min (depends on product and label size) |
| Applicable products | Customized to the customer's sample size |
| Label size range | Length 6–50 mm; width (liner width) 6–50 mm |
| Machine dimensions | Approx. 1700 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 150 kg |
| Remarks | This type of machine is built to order |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
One, two, three or four seal labels, depending on your requirement.
Two seals on the top surface, one on the top and one on the bottom, or two on the bottom surface.
Yes. It can run stand-alone or be connected to a cartoner, receiving boxes directly from it for 90° corner labeling.
40–80 pcs/min at ±1 mm (excluding product and label tolerances).
Labels 6–50 mm long and 6–50 mm wide (liner width); the product handling is built around your box samples.
The pressing material is selected according to the stiffness of the label. Since these machines are built to order, send samples of your boxes and labels to confirm the setup.
