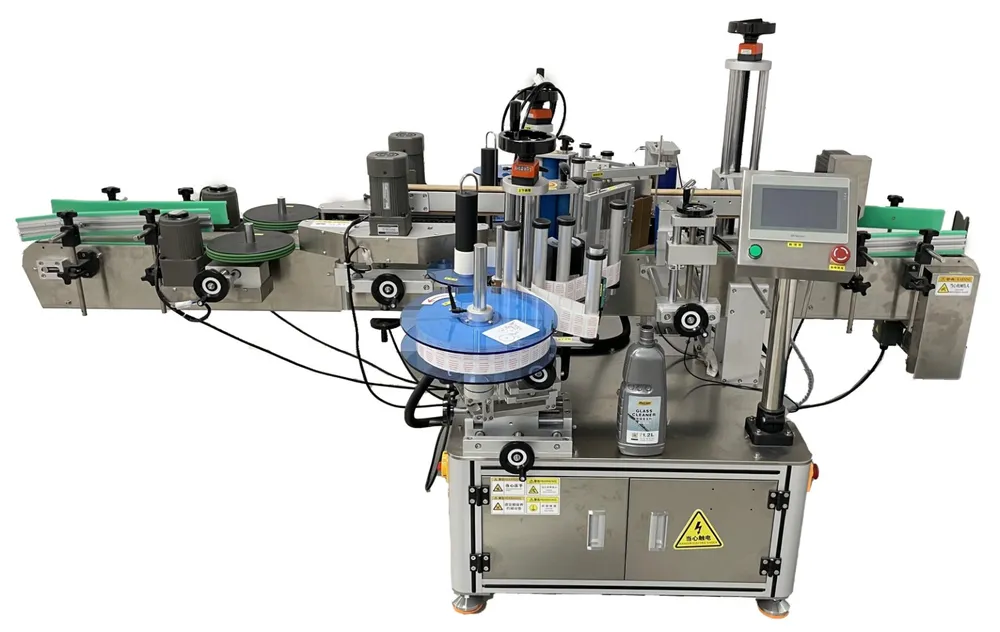

The YIXING automatic double-side labeling machine labels both sides of flat, round and square bottles at once on the conveyor, at 60–150 pcs/min and ±2 mm accuracy. It takes products 20–250 mm long, 30–90 mm wide and 60–280 mm high, and an optional round-bottle mechanism adds half or full wrap-around labeling.
Updated
Sample testing available Custom builds available
This machine is built for high-volume side labeling of flat and square bottles. Typical products are flat shampoo bottles, flat lubricant bottles and engine-oil bottles, and the brochure samples show flat and square laundry detergent bottles labeled on both sides. Products are placed on the conveyor one by one and labeled on both sides at the same time at the labeling station, at 60–150 pcs/min; single-side labeling is also possible.
Round bottles can run on the same machine: with the optional round-bottle labeling mechanism it applies half or full wrap-around labels, so flat, square and round products can share one labeler. Labels are placed within ±2 mm (excluding product and label tolerances). It handles products 20–250 mm long, 30–90 mm wide and 60–280 mm high, with labels 6–200 mm long and 6–160 mm wide (liner width); larger labels can be custom-built.
The machine measures approx. 2500 × 1450 × 1600 mm, weighs 280 kg and runs on 220 V / 50 Hz, sized for high-output personal care and lubricant lines. Dates, batch numbers or barcodes can be printed on the labels with an optional ribbon coder or inkjet coder.
Both sides are labeled simultaneously at 60–150 pcs/min for high-volume flat and square bottles.
Adds half or full wrap-around labeling of round bottles, so one machine covers flat, square and round products.
Handles single-side and double-side labeling of flat, round and square bottles.
Products 20–250 mm long, 30–90 mm wide and 60–280 mm high.
Labels 6–200 mm long and 6–160 mm wide (liner width), with larger labels custom-built; accuracy ±2 mm.
A ribbon coder or inkjet coder can be added to print dates, batch numbers or barcodes on each label.

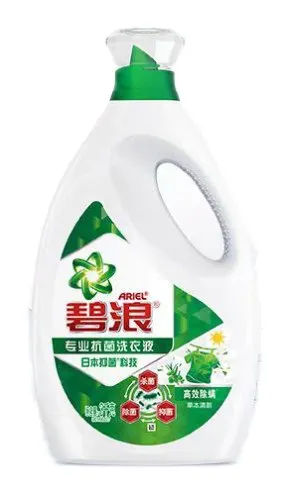

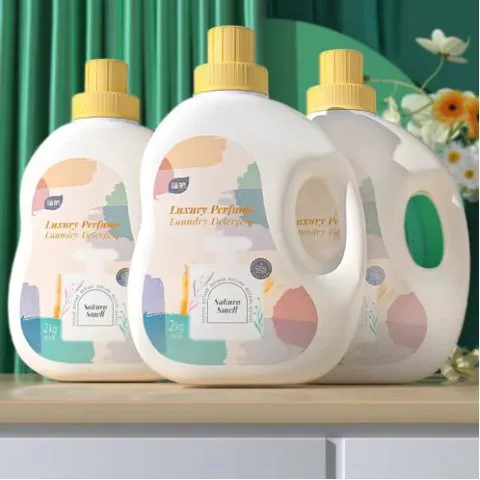

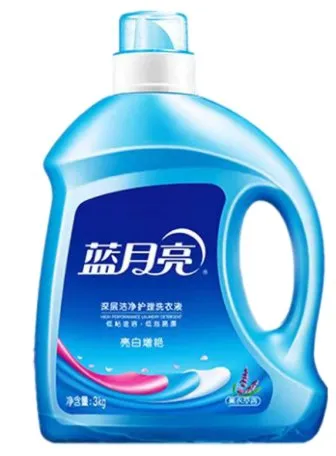

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±2 mm (bottom surface ±2 mm; excluding product and label tolerances) |
|---|---|
| Labeling speed | 60–150 pcs/min (depends on product and label size) |
| Product size range | Length 20–250 mm; width 30–90 mm; height 60–280 mm |
| Label size range | Length 6–200 mm; width (liner width) 6–160 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 2500 × 1450 × 1600 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 280 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
It labels both sides at once at 60–150 pcs/min; the actual rate varies with product and label size.
Yes. With the optional round-bottle labeling mechanism it applies half or full wrap-around labels to round bottles.
±2 mm (excluding product and label tolerances).
Products 20–250 mm long, 30–90 mm wide and 60–280 mm high; labels 6–200 mm long and 6–160 mm wide (liner width). Larger labels can be custom-built.
Yes, with an optional ribbon coder or inkjet coder that prints on the label.
Approx. 2500 × 1450 × 1600 mm and 280 kg, powered by 220 V / 50 Hz.
Brochure p. 30 ±1 mm The YIXING semi-automatic double-side labeling machine labels both sides of flat, round and square bottles at the same time as they pass on the conveyor, or just one side when needed. It works at ±1 mm accuracy and 25–60 pcs/min and takes labels 6–300 mm long with liner widths of 6–230 mm.
Brochure p. 38 ±1 mm The YIXING automatic side labeling machine labels the side of products carried one by one on a conveyor, at ±1 mm accuracy and 40–120 pcs/min. It comes in a basic and a standard version, and its powered top hold-down can be left out when the products are heavy.
Brochure p. 39 ±1 mm (bottom ±2 mm) The YIXING automatic three-side labeling machine labels three faces of square products at ±1 mm accuracy (±2 mm on the bottom surface) and 30–60 pcs/min. Products can be placed on the conveyor one by one or flow in directly from other equipment; the machine is rated at 1.7 kW and weighs 230 kg.
Brochure p. 42 ±1 mm The YIXING automatic corner seal labeling machine applies 90° corner seal labels to boxes and other products, one to four seals as required, at 40–80 pcs/min and ±1 mm accuracy. It runs stand-alone or connected to a cartoner, and is built to order in a basic or a standard version.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
