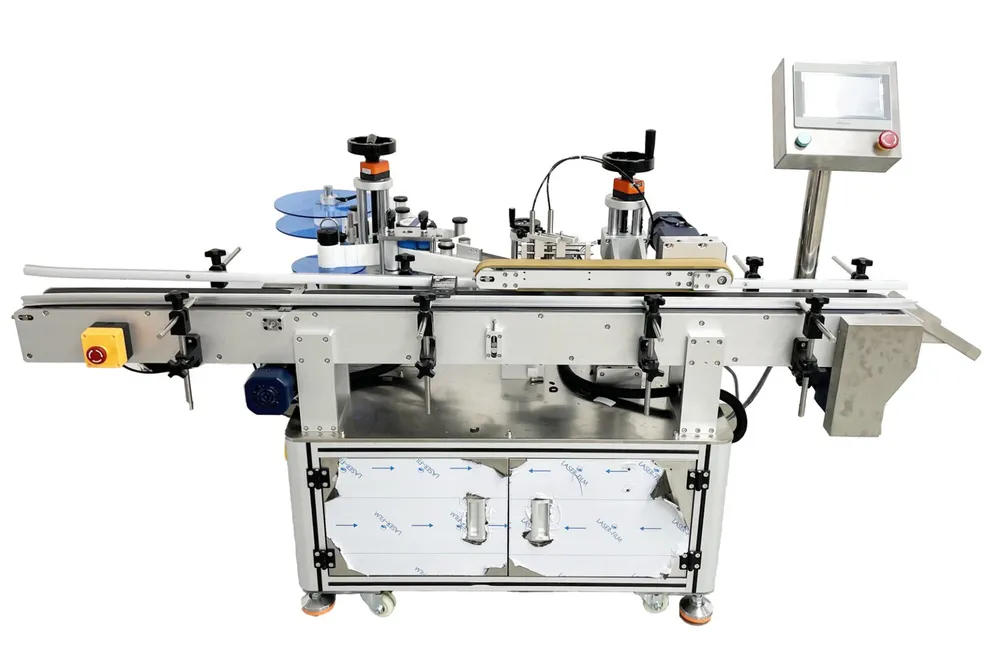

The YIXING automatic side labeling machine labels the side of products carried one by one on a conveyor, at ±1 mm accuracy and 40–120 pcs/min. It comes in a basic and a standard version, and its powered top hold-down can be left out when the products are heavy.
Updated
Sample testing available Custom builds available
Built for side labels, this machine handles all kinds of items; the brochure samples are a color box and a set of slim boxes, each labeled on the side. Products go onto the conveyor one at a time and pick up their side label as they pass the labeling station, so boxed products can be side-labeled in a continuous flow.
The machine has a powered top hold-down that keeps products steady from above; for heavy products this function can be left out. It is available in a basic and a standard version. Standard figures: ±1 mm accuracy (excluding product and label tolerances), 40–120 pcs/min, products 10–400 mm long, 10–300 mm wide and 0.2–150 mm high, and labels 6–250 mm long and 6–150 mm wide (liner width), with larger labels custom-built.
For coding, add a ribbon coder or inkjet coder to print production dates, batch numbers or barcodes on the label, or mount an inkjet coder on the conveyor to print on the product before or after labeling, which removes a separate step. The machine measures approx. 1500 × 1000 × 1350 mm, weighs 150 kg and runs on 220 V / 50 Hz.
Boxes pick up their side label as they travel past the labeling station, at 40–120 pcs/min.
The powered top hold-down steadies products from above and can be left out for heavy items.
Choose the basic or the standard version to match your product and line.
Side labels are placed within ±1 mm (excluding product and label tolerances), using labels 6–250 mm long on liners 6–150 mm wide.
Side labels on color boxes, slim boxes and similar items 10–400 mm long and 10–300 mm wide.
Print on the label with a ribbon or inkjet coder, or on the product with a conveyor inkjet coder before or after labeling.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 40–120 pcs/min (depends on product and label size) |
| Product size range | Length 10–400 mm; width 10–300 mm; height 0.2–150 mm |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 1500 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 150 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
It holds the product steady from above during labeling. When the products are heavy, this function can be left out.
Side labeling runs at 40–120 pcs/min, varying with product and label size, and accuracy is ±1 mm (excluding product and label tolerances).
There are two: a basic version and a standard version. Which one fits depends on your products and line layout.
The standard range is 10–400 mm in length, 10–300 mm in width and 0.2–150 mm in height; labels can be 6–250 mm long on liners 6–150 mm wide, and bigger labels can be custom-built.
Yes. A ribbon coder or inkjet coder handles printing on the label; to mark the product itself, fit an inkjet coder to the conveyor and print before or after labeling.
Approx. 1500 × 1000 × 1350 mm and 150 kg, powered by 220 V / 50 Hz.
