The YIXING automatic three-side labeling machine labels three faces of square products at ±1 mm accuracy (±2 mm on the bottom surface) and 30–60 pcs/min. Products can be placed on the conveyor one by one or flow in directly from other equipment; the machine is rated at 1.7 kW and weighs 230 kg.
Updated
Sample testing available Custom builds available
This machine labels three faces of square products; the brochure sample is a square glass bottle labeled on three faces. Products can be placed on the conveyor one by one or flow in directly from other equipment, and they are labeled on three faces at the labeling station, so the machine works either stand-alone or behind an upstream machine.
Labeling accuracy is ±1 mm, and ±2 mm on the bottom surface (excluding product and label tolerances); speed is 30–60 pcs/min, depending on product and label size. Product handling is customized to the samples you provide, and labels can be 6–250 mm long and 6–150 mm wide (liner width), with larger labels custom-built.
A ribbon coder, inkjet coder or label printer can be added to print production dates, batch numbers or barcodes on the label, and an inkjet coder on the conveyor can print on the product before or after labeling. The machine measures approx. 2000 × 1000 × 1350 mm, runs on 220 V / 50 Hz with a rated power of 1.7 kW, and weighs 230 kg.
Labels three faces of a square product; the brochure shows square glass bottles labeled this way.
Products can be loaded one by one or flow in directly from an upstream machine.
The bottom surface is specified at ±2 mm and the other faces at ±1 mm, excluding product and label tolerances.
Runs on 220 V / 50 Hz with a rated power of 1.7 kW, which keeps electrical planning simple.
Choose a ribbon coder, inkjet coder or label printer to put dates, batch numbers and barcodes on the label.
With an inkjet coder on the conveyor, dates, batch numbers and barcodes go directly on the product before or after labeling.

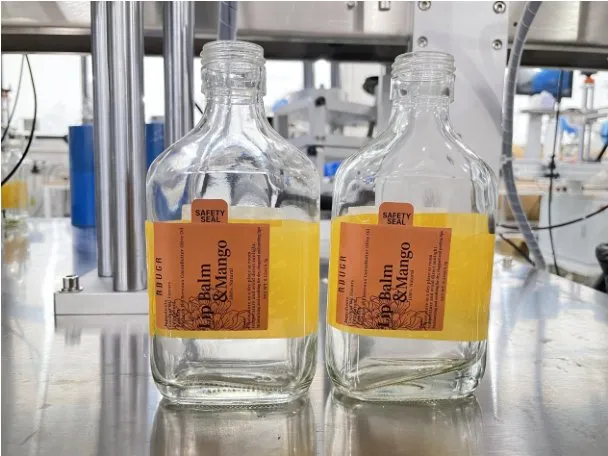

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (bottom surface ±2 mm; excluding product and label tolerances) |
|---|---|
| Labeling speed | 30–60 pcs/min (depends on product and label size) |
| Applicable products | Customized to the customer's sample size |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 2000 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Rated power | 1.7 kW |
| Machine weight | 230 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Square products that need labels on three faces, such as the square glass bottles shown in the brochure. Product handling is customized to your samples.
Not quite: the bottom surface is specified at ±2 mm, while the general labeling accuracy is ±1 mm (both excluding product and label tolerances).
Three-side labeling runs at 30–60 pcs/min, varying with product and label size.
Yes. Products can be placed on the conveyor one by one or flow in directly from other equipment.
220 V / 50 Hz with a rated power of 1.7 kW. The machine measures approx. 2000 × 1000 × 1350 mm and weighs 230 kg.
Yes. For the label, choose a ribbon coder, inkjet coder or label printer; for the product surface, add an inkjet coder to the conveyor and print before or after labeling.
