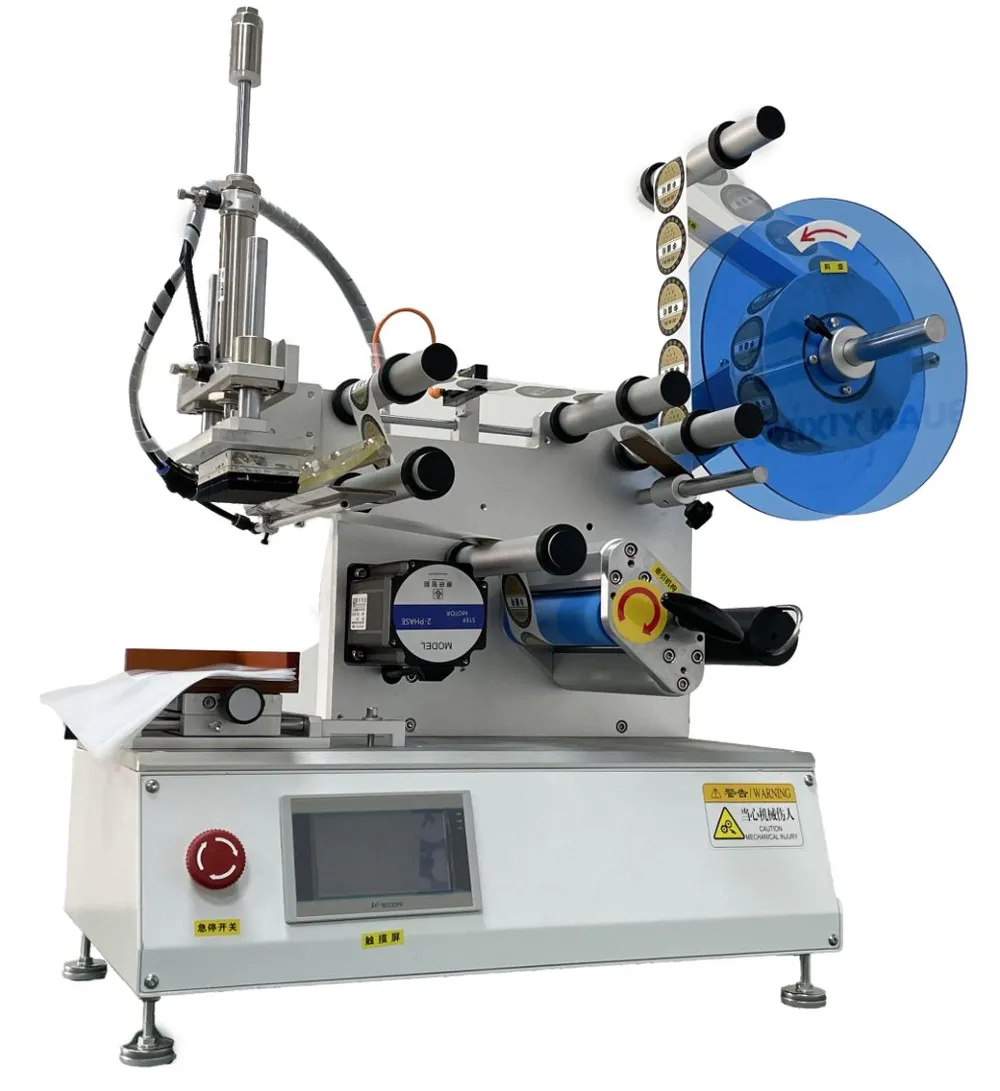

The YIXING semi-automatic flat surface labeling machine applies labels to the top surface of bags, boxes and plastic lids by suction, with vacuum and air-blow working together. Products are placed one at a time in a fixture; accuracy is ±0.5 mm at 15–25 pcs/min, for items up to 200 × 200 mm and 120 mm tall.
Updated
Sample testing available Custom builds available
This semi-automatic labeler puts labels on the top surface of packaging bags, boxes and plastic lids; the brochure samples also show clear sheets and irregular plastic parts. The operator places each product in a fixture, and the machine picks up the label by vacuum and applies it with a combined suction and air-blow action. It suits small batches of many SKUs and is a practical replacement for hand labeling.
The fixture keeps each product in the same position, giving ±0.5 mm labeling accuracy (excluding product and label tolerances) at 15–25 pcs/min, depending on product and label size. Products from 20 to 200 mm long, 20 to 200 mm wide and 0.2 to 120 mm high fit the machine, from thin sheets to fairly tall boxes.
Labels can be 15–100 mm long and 15–170 mm wide (liner width), and larger labels can be custom-built. Add the optional coder and dates and batch numbers are printed right on the label. At approx. 850 × 410 × 720 mm and 41 kg on 220 V / 50 Hz, the machine is easy to move and set up.
Vacuum suction and air-blow work together to place the label on the product's top surface.
Each product is located in a fixture for ±0.5 mm accuracy (excluding product and label tolerances).
Products 20–200 mm long and wide and 0.2–120 mm high: sheets, bags and boxes.
Labels 15–100 mm long and 15–170 mm wide (liner width); bigger labels to order.
Approx. 850 × 410 × 720 mm on 220 V / 50 Hz, easy to place in the workshop.
Print production dates and batch numbers on the label and drop a separate coding step.

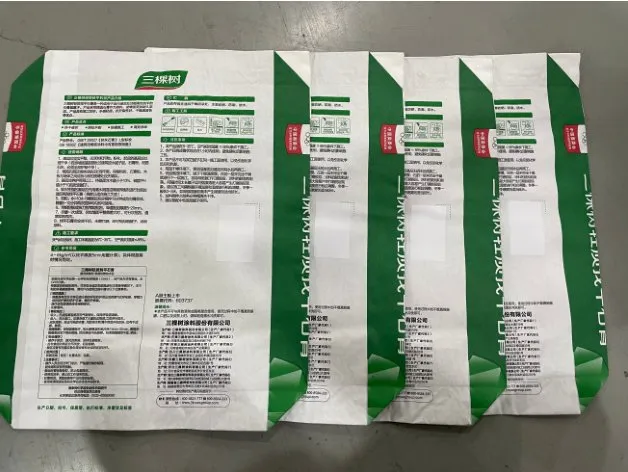

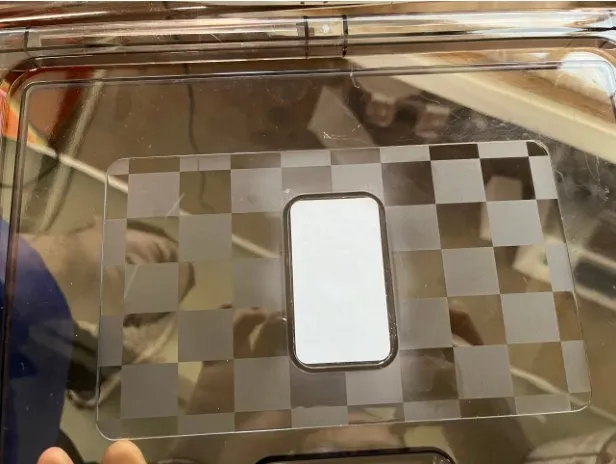

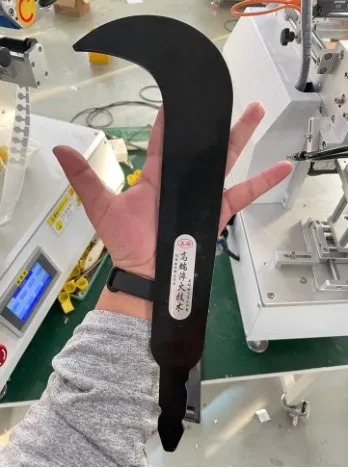

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.5 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 15–25 pcs/min (depends on product and label size) |
| Product size range | Length 20–200 mm; width 20–200 mm; height 0.2–120 mm |
| Label size range | Length 15–100 mm; width (liner width) 15–170 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 850 × 410 × 720 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 41 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
By suction: vacuum picks up the label, and suction and air-blow work together to apply it to the product's top surface.
The top surface of packaging bags, boxes and plastic lids; brochure samples also include clear sheets and irregular plastic parts.
Items 20–200 mm long and wide and 0.2–120 mm high, with labels 15–100 mm long and 15–170 mm wide (liner width); labels outside this range can be custom-built.
It labels 15–25 pieces a minute, depending on product and label size, with ±0.5 mm accuracy (excluding product and label tolerances).
Both use a fixture and suction top labeling. This model takes larger products and labels and is lighter; the high-precision model is more accurate and suited to small labels on electronic components.
Approx. 850 × 410 × 720 mm and 41 kg, powered by 220 V / 50 Hz.
Brochure p. 23 ±0.3 mm The YIXING semi-automatic high-precision labeling machine applies small labels to the top surface of electronic components, bags, boxes and plastic lids at ±0.3 mm accuracy. Products sit one at a time in a fixture and labels are applied by suction (vacuum + air-blow) at 15–25 pcs/min. It needs 0.4–0.6 MPa air.
Brochure p. 24 ±0.5 mm The YIXING semi-automatic front-and-back roll-on labeling machine is for phone-case film and products with large labels. The product is held in a fixture and the label is rolled on, which avoids air bubbles. It works at ±0.5 mm and 15–25 pcs/min, takes products up to 300 mm high and weighs 55 kg.
Brochure p. 20 ±0.5 mm The YIXING automatic high-precision labeling machine applies labels by suction (vacuum plus air blow) to products held one by one in a fixture. It reaches ±0.5 mm accuracy at 25–35 pcs/min and can be configured to label the top, the bottom or both surfaces of parts up to 150 × 150 mm.
Brochure p. 25 ±1 mm The YIXING automatic flat top-surface labeling machine labels the top of products carried one by one on a conveyor — books, folders, boxes, cartons and more. It works at ±1 mm accuracy and 40–120 pcs/min, takes products up to 400 × 300 mm and 0.2–150 mm high, and comes in a basic and a standard version.
