中文实时打印吹贴贴标机
The YIXING real-time print-and-blow labeling machine prints QR codes, barcodes, dates and specifications from the data its printer receives, then blows each label onto uneven products such as garments, frozen food, fruit and vegetables. It runs at 10–15 pcs/min with ±3 mm accuracy and takes labels 20–104 mm wide.
Updated
Sample testing available Custom builds available
This machine handles print-and-apply labeling of products whose surface is not flat — garments, frozen products, fruit and vegetables. Products travel on a conveyor to the labeling point, the printer receives the print data and prints the QR code, barcode, production date or product specification, and the label is then blown onto the product with air.

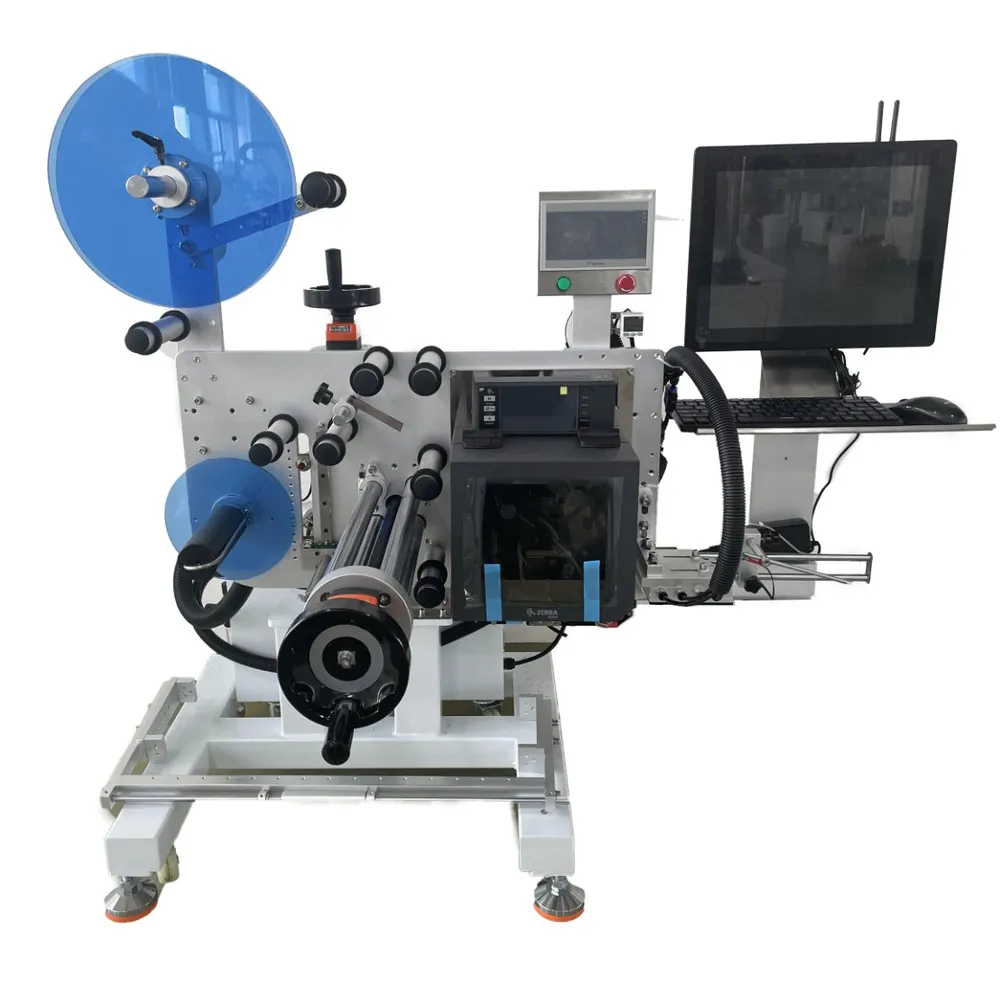

After the air-blow application, a label-pressing (wipe-down) structure chosen for the product's characteristics presses the label down before the product is discharged. The unit shown in the brochure includes a printer and a PC, and the printer brand and model can be chosen. The standard label range is 20–150 mm in length and 20–104 mm in liner width; other sizes are covered by selecting a different printer model.
Throughput is 10–15 pcs/min and varies with product, label size and printer model; accuracy is ±3 mm (excluding product and label tolerances). Product size has no fixed limit and depends on the conveyor line. The labeler can sit on your existing conveyor or be built as an all-in-one unit with its own conveyor; it measures approx. 1200 × 1000 × 1350 mm, weighs 160 kg and runs on 220 V / 50 Hz.
Labels are blown onto the product, which suits uneven items such as garments, frozen food and produce.
The printer prints each QR code, barcode, date or specification from the data it receives.
Different label-pressing structures are selected to suit each product's characteristics.
Standard labels are 20–150 mm long and 20–104 mm wide; other sizes are handled by choosing another printer model, and the brand is your choice.
Install it on your existing line or order it with its own conveyor; the machine is approx. 1200 × 1000 × 1350 mm.
Speed depends on product, label size and printer model; accuracy excludes product and label tolerances.
The brochure shows no sample photos for this machine — send us your product for a test.
| Labeling accuracy | ±3 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 10–15 pcs/min (depends on product, label size and printer model) |
| Applicable products | No specific limit (depends on the conveyor line) |
| Label size range | Length 20–150 mm; width (liner width) 20–104 mm; other sizes by selecting a different printer model |
| Machine dimensions | Approx. 1200 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 160 kg |
| Remarks | Can be mounted on the customer's existing conveyor, or supplied as an all-in-one unit with its own conveyor |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Uneven products such as garments, frozen products, fruit and vegetables.
Once the product reaches the labeling point, the printer prints the label from the data it receives and the label is blown onto the product with air. A label-pressing structure chosen for the product then presses it down before discharge.
10–15 pcs/min at ±3 mm (excluding product and label tolerances). Product, label size and printer model all affect the speed.
QR codes, barcodes, production dates and product specifications, and you can choose the printer brand and model.
The standard range is 20–150 mm in length and 20–104 mm in liner width; outside it, another printer model is chosen.
Not necessarily. It can be mounted on your existing conveyor, or built as an all-in-one unit with its own conveyor. The machine is approx. 1200 × 1000 × 1350 mm and 160 kg.
Brochure p. 32 ±1 mm The YIXING side print-and-apply labeling machine prints QR codes, barcodes, production dates and product specifications and applies the label to the side of packed cartons and drums. It runs at 15–30 pcs/min with ±1 mm accuracy, takes labels 20–104 mm wide, and lets you choose the printer brand and model.
Brochure p. 45 ±1 mm The YIXING card-dispensing print-and-apply labeling machine with buffer separates stacked scratch cards, movie tickets, paper cards, cartons or PE bags one by one, applies a freshly printed QR code, barcode or date label to each, and collects them in a receiving tray. It runs at 30–60 pcs/min with ±1 mm accuracy.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
