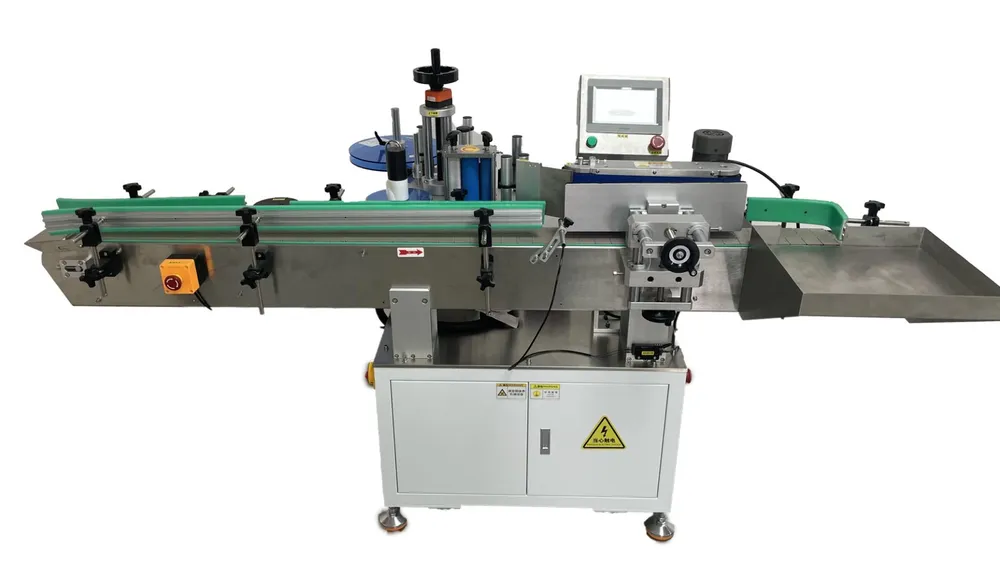

The YIXING automatic roll-rubbing wrap-around labeling machine is a high-speed single-label labeler for upright cylindrical bottles and jars. Products are conveyed to the labeling station, labeled, then roll-rubbed so the label wraps onto the body before discharge — at 60–120 pcs/min and ±2 mm, for Ø20–100 mm.
Updated
Sample testing available Custom builds available
This machine wraps a single label around cylindrical containers that stand on their own: xylitol gum bottles, cosmetic bottles, pharmaceutical bottles and chemical bottles. The brochure samples also include plastic cream jars, glass jars and small round jars. At 60–120 pcs/min (depending on product and label size) it runs faster than YIXING's automatic positioning round bottle labeler and is made for lines that run one label per container in volume.
Products stand upright on the machine and are conveyed to the labeling station, where the label is applied. A roll-rubbing (belt rolling) stage then turns the container so the label is pressed down around the body, and the product is discharged. Application and roll-rubbing run back to back, at ±2 mm labeling accuracy (excluding product and label tolerances).
It takes products from Ø20 to 100 mm in diameter, with labels 20–310 mm long and 15–130 mm wide (liner width); longer or wider labels can be made to order. An optional ribbon coder prints batch numbers and dates on the label, so coding and labeling happen on one machine. Footprint is approx. 2100 × 1100 × 1300 mm; the machine weighs 185 kg and uses a 220 V / 50 Hz supply.
Output of 60–120 pcs/min depending on product and label size — faster than YIXING's upright automatic positioning round bottle labeler.
Right after application, roll-rubbing presses the label around the container before it is discharged.
Suited to containers that carry one wrap-around label each.
Handles upright cylinders in this range, such as cream jars, glass jars, cosmetic and pharmaceutical bottles.
An optional ribbon coder prints batch numbers and dates on each label, so no separate coding pass is needed.
Standard labels 20–310 mm long and 15–130 mm wide (liner width); bigger labels on request.

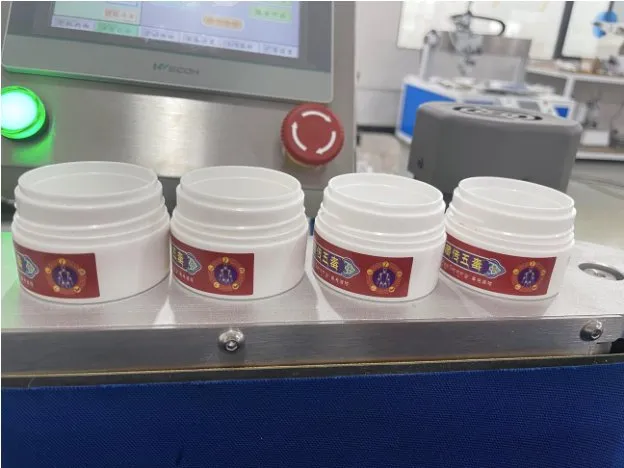

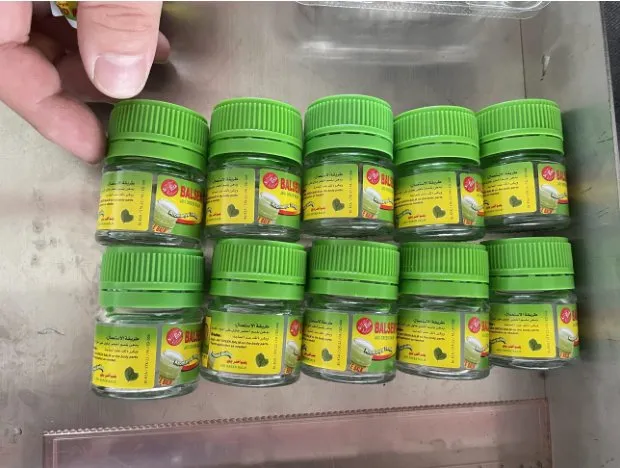

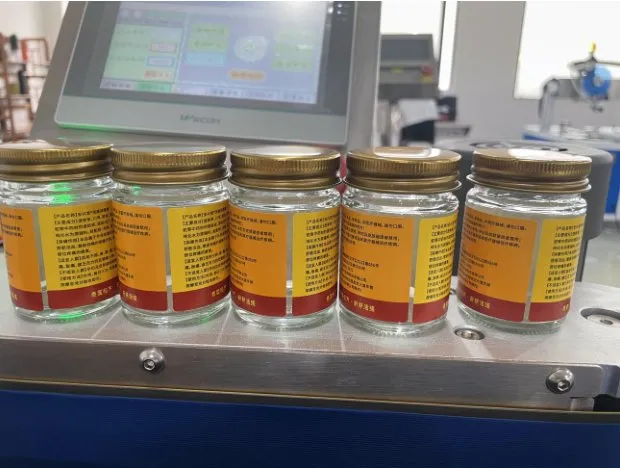

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±2 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 60–120 pcs/min (depends on product and label size) |
| Product diameter | Ø20–100 mm |
| Label size range | Length 20–310 mm; width (liner width) 15–130 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 2100 × 1100 × 1300 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 185 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
60–120 pcs/min, depending on product and label size, at ±2 mm labeling accuracy (excluding product and label tolerances).
After the label is applied, the machine rolls the container with a rubbing action so the label is pressed down around the body; the product is then discharged.
Upright cylindrical containers from Ø20 to 100 mm, such as xylitol gum, cosmetic, pharmaceutical and chemical bottles, plastic cream jars and glass jars.
It is suited to single labels. For double labels with adjustable spacing, or fixed-point labeling, choose the automatic positioning round bottle labeler.
Labels 20–310 mm long and 15–130 mm wide (liner width). Anything larger can be built to order.
Approx. 2100 × 1100 × 1300 mm and 185 kg, powered by 220 V / 50 Hz.
Brochure p. 17 ±0.5 mm The YIXING semi-automatic round bottle labeling machine wraps labels around cylindrical bottles that the operator places on the machine one at a time. It labels at ±0.5 mm accuracy and 15–30 pcs/min, takes bottles from Ø10 to 120 mm, and comes in a pneumatic-electric or an all-electric version.
Brochure p. 18 ±1 mm The YIXING automatic positioning round bottle labeling machine labels cylindrical bottles that stand on their own. Each bottle is conveyed upright to the labeling station, rotated one full turn as the label goes on, then discharged — at 30–60 pcs/min and ±1 mm, with single or double labels in partial or full wrap.
Brochure p. 21 ±1 mm The YIXING automatic horizontal round bottle labeling machine labels cylindrical products that will not stand steadily, such as filter cartridges, oral liquid vials, injection vials, syringes and lipstick tubes. A feed structure separates them one by one for full or partial wrap labeling at 100–200 pcs/min and ±1 mm.
Brochure p. 29 ±0.5 mm The YIXING semi-automatic roll-on + rotary multi-face labeling machine combines front-and-back roll-on and rotary labeling in one unit. It labels round, square, flat, hexagonal and triangular bottles on one face or several, applies labels by rolling to avoid bubbles, and works at ±0.5 mm and 15–25 pcs/min.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
