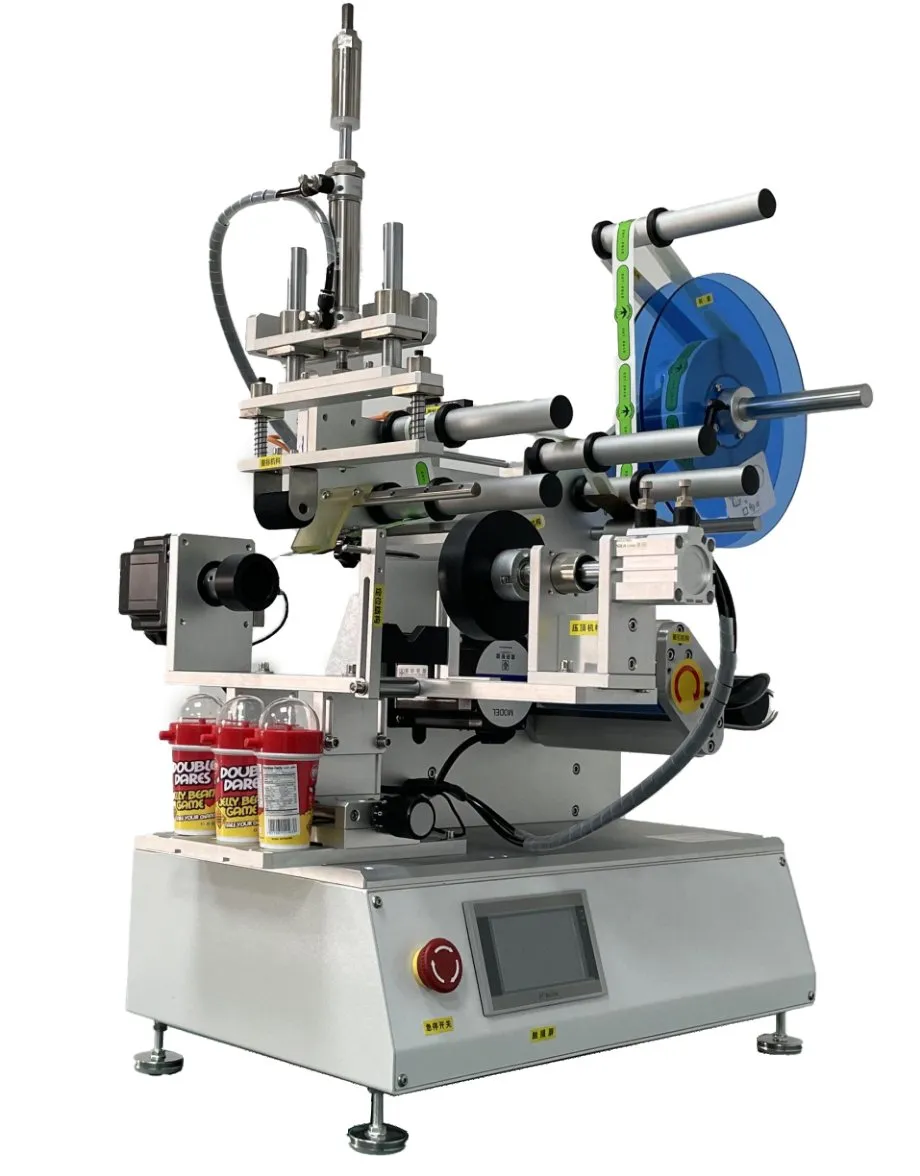

The YIXING semi-automatic rotary multi-face labeling machine labels several faces of round, square, hexagonal and triangular bottles. The product sits in a fixture and is labeled by rotary roll-on action at ±0.5 mm and 15–25 pcs/min. It is used mainly in electronics and food, and tapered bottles can be custom-built.
Updated
Sample testing available Custom builds available
This machine is built for multi-face work: when round, square, hexagonal or triangular bottles need labels on several faces, the operator places the product in a fixture and the labels are applied by rotary roll-on action. It is used mainly in the electronics and food industries; brochure samples include glass bottles with holographic labels and square glass liquor bottles.
Tapered bottles, whose diameter changes from top to bottom, can be handled with a custom build. The standard machine works at ±0.5 mm labeling accuracy (excluding product and label tolerances) and 15–25 pcs/min depending on product and label size, which fits varied multi-face jobs in modest volumes.
The standard range covers products 20–150 mm in length and width and 0.2–300 mm in height, with labels 15–100 mm long and 15–170 mm wide (liner width); oversize labels can be built to order. A ribbon coder can be fitted to print production dates and batch numbers. The unit measures approx. 850 × 410 × 720 mm, weighs 59 kg and uses a 220 V / 50 Hz supply.
Labels multiple faces of the same product: round, square, hexagonal and triangular bottles.
A custom build extends the machine to tapered bottles.

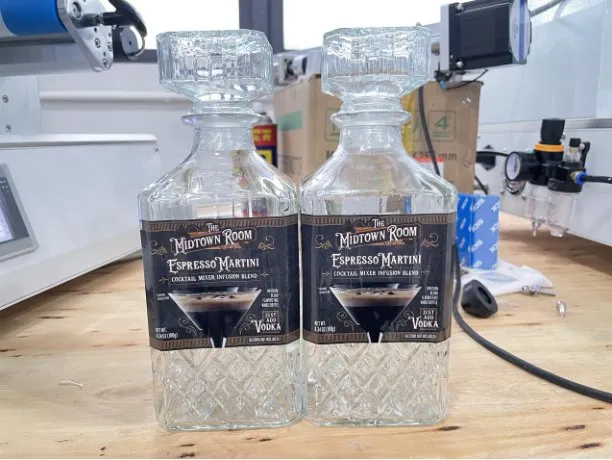

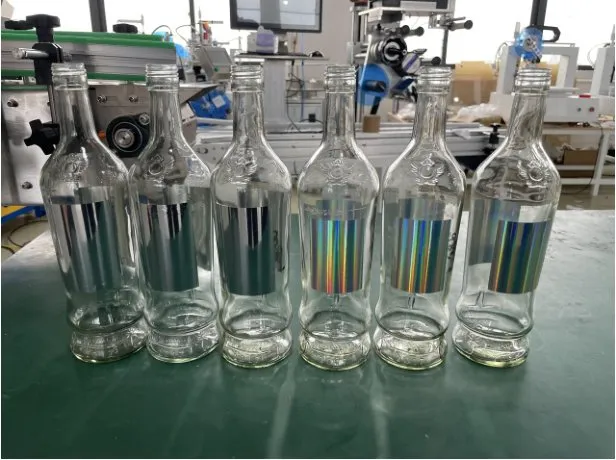

Mainly used in the electronics and food industries; samples include holographic labels on glass bottles and square glass liquor bottles.
The fixture holds each product in place for ±0.5 mm labeling accuracy (excluding product and label tolerances).
Prints production dates and batch numbers on the label, so no separate coding station is needed.
Approx. 850 × 410 × 720 mm and 59 kg, running on 220 V / 50 Hz.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.5 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 15–25 pcs/min (depends on product and label size) |
| Product size range | Length 20–150 mm; width 20–150 mm; height 0.2–300 mm |
| Label size range | Length 15–100 mm; width (liner width) 15–170 mm; larger labels can be custom-built |
| Machine dimensions | Approx. 850 × 410 × 720 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 59 kg |
| Remarks | Tapered bottles can be handled with a custom build |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
It labels several faces of round, square, hexagonal and triangular bottles. Tapered bottles can be handled with a custom build.
Yes, with a custom build. The standard machine covers products 20–150 mm in length and width and 0.2–300 mm in height.
The product is held in a fixture and the label is applied by rotary roll-on action, at ±0.5 mm accuracy (excluding product and label tolerances).
15–25 pcs/min depending on product and label size, with labels 15–100 mm long and 15–170 mm wide (liner width); bigger labels on request.
Choose the roll-on + rotary model for flat bottles, one-face labeling, or cosmetics and household products. Choose this rotary model for multi-face labeling of round, square, hexagonal and triangular bottles in electronics or food, or when you need tapered bottles.
Approx. 850 × 410 × 720 mm and 59 kg, powered by 220 V / 50 Hz. A ribbon coder can be added for dates and batch numbers.
