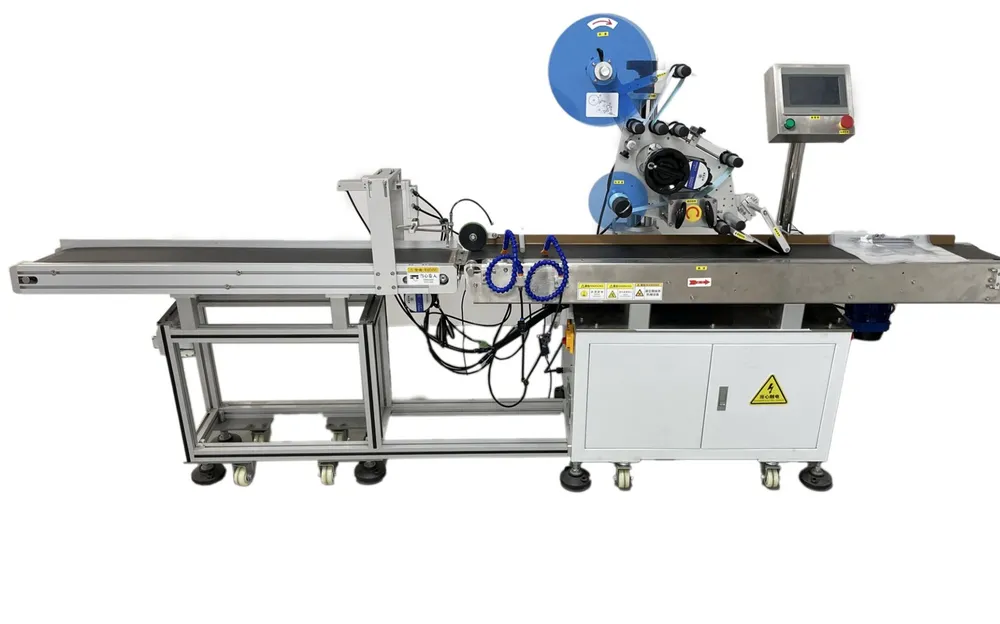

The YIXING automatic vacuum page-feeding labeling machine uses suction to separate soft bags and irregular items from a stack one at a time onto the labeling conveyor, labels them and collects them in a receiving tray. It runs at 30–50 pcs/min with ±1 mm accuracy for products 60–400 mm long and 40–400 mm wide.
Updated
Sample testing available Custom builds available
This labeler is aimed at softer bags and irregular products fed from a stack, and it also handles general flat-surface labeling. Rather than a card dispenser, it separates the pieces with suction: the operator places a stack on the page-feeding conveyor, each piece is drawn off by vacuum onto the labeling conveyor, labeled at the labeling position and collected in a receiving tray.
Its product range is 60–400 mm in length and 40–400 mm in width. It labels 30–50 pcs/min (the rate depends on product and label size) with ±1 mm accuracy, excluding product and label tolerances. It accepts labels 6–250 mm long on a 6–150 mm liner, and other label sizes can be custom-built. Brochure samples include foil bags, soft bags and clear plastic bags.
The frame is about 2800 mm long (approx. 2800 × 800 × 1350 mm overall) and weighs 180 kg on a 220 V / 50 Hz supply. If the bag label needs printed information, a ribbon coder, inkjet coder or label printer can be fitted to the machine as well.
Pieces are drawn off the stack by suction, an approach aimed at softer bags and irregular items.
Accepts products 60–400 mm long and 40–400 mm wide, so larger soft pouches can be page-fed too.
Speed varies with product and label size; the ±1 mm figure excludes product and label tolerances.

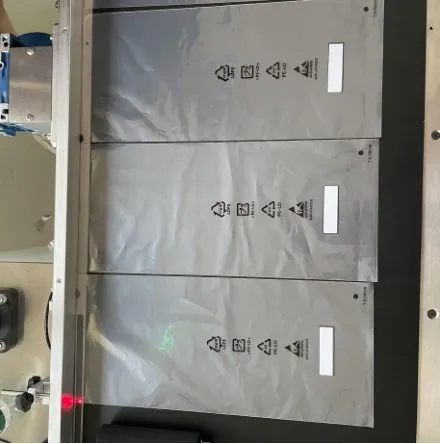

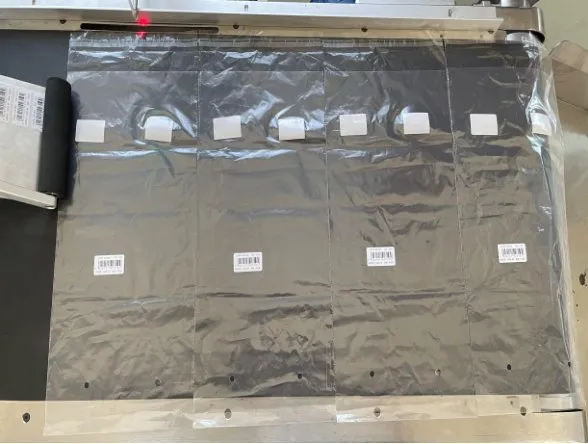

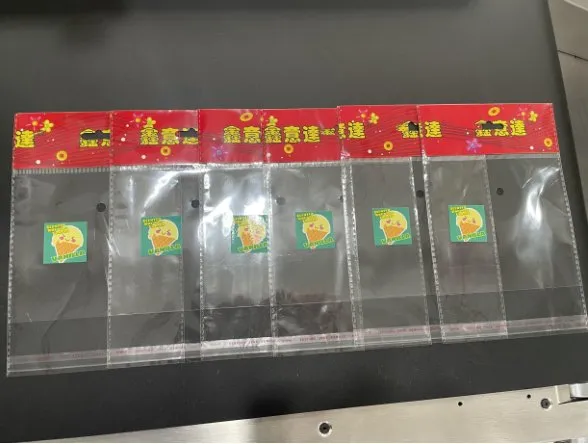

The brochure shows foil bags, soft bags and clear plastic bags labeled on this machine.
Put a stack on the page-feeding conveyor and the machine separates, labels and deposits each bag in the receiving tray.
Fit a ribbon coder, inkjet coder or label printer to add printed information to the bag label.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 30–50 pcs/min (depends on product and label size) |
| Applicable products | Length 60–400 mm; width 40–400 mm |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; other sizes can be custom-built |
| Machine dimensions | Approx. 2800 × 800 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 180 kg |
| Remarks | A ribbon coder, inkjet printer or label printer can be added |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Mainly for softer bags and irregular items fed from a stack, and for flat-surface labeling of flat products in general. Brochure samples include foil bags, soft bags and clear plastic bags.
The feeding method. This machine separates each piece by suction and is aimed at softer bags and irregular items, while the automatic card-dispensing labeler uses a card dispenser and is typically used for bags, color boxes and hang tags. This machine takes products 60–400 mm long and 40–400 mm wide.
Products 60–400 mm long and 40–400 mm wide; labels 6–250 mm long on a 6–150 mm liner, with other label sizes custom-built.
30–50 pcs/min depending on product and label size, at ±1 mm accuracy (excluding product and label tolerances).
Yes. The vacuum page-feeding labeler can be fitted with a ribbon coder, inkjet coder or label printer.
Approx. 2800 × 800 × 1350 mm and 180 kg, powered by 220 V / 50 Hz.
