The YIXING automatic flat carton labeling machine applies labels or self-adhesive film to the top surface of unfolded cartons, paper boxes, folders and large paper cards. A card dispenser feeds the stack one blank at a time and a receiving tray collects them; output is 30–60 pcs/min at ±1 mm accuracy.
Updated
Sample testing available Custom builds available

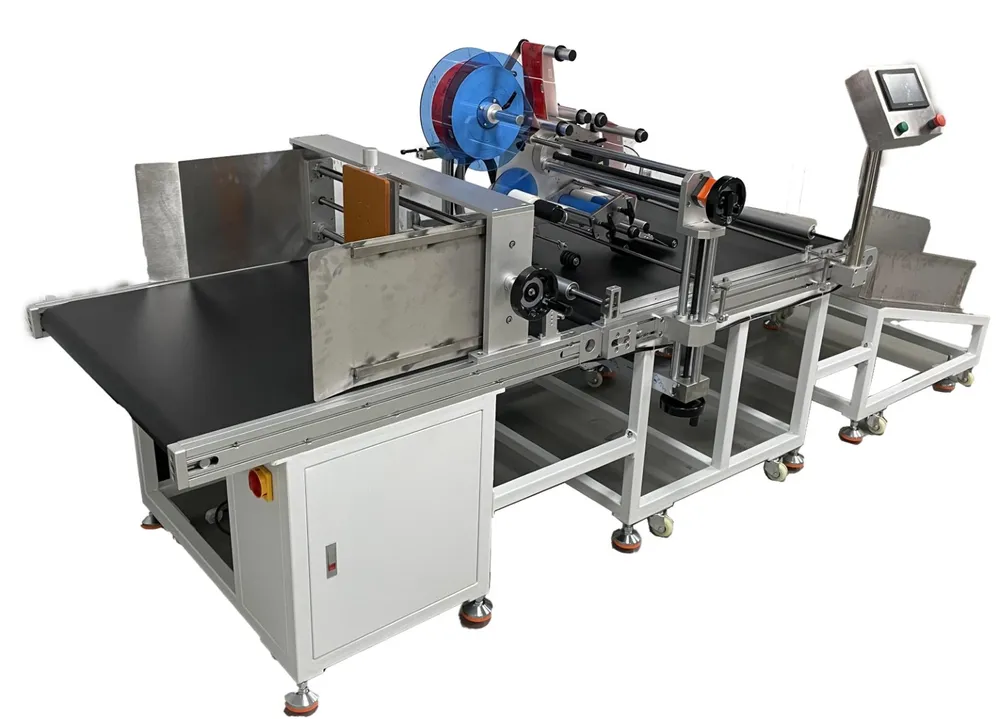

This machine labels cartons before they are folded. Unfolded cartons (flat blanks) are stacked on the card dispenser at the infeed, separated one at a time, conveyed to the labeling position and collected in a receiving tray after labeling. Besides cartons it handles paper boxes, folders and large paper cards, and it can apply either labels or self-adhesive film to the top surface.
Swapping the label-pressing (wipe-down) mechanism lets the machine label uneven surfaces as well. Speed is 30–60 pcs/min depending on product and label size, accuracy is ±1 mm (excluding product and label tolerances), and the product size range is built to the customer's samples. Standard labels run from 6 to 250 mm in length and 6 to 150 mm in liner width, and other label sizes can be made to order.
At approx. 3000 × 1000 × 1350 mm, the machine weighs 230 kg and runs on 220 V / 50 Hz. For dates, batch numbers or barcodes on the blanks, a ribbon coder, inkjet coder or label printer can be added.
Labels carton blanks on the top surface before folding; also handles paper boxes, folders and large paper cards.
Apply either a label or a piece of self-adhesive film to the top surface of the blank.
Change the label-pressing (wipe-down) mechanism to label uneven surfaces.
A stack of blanks goes on the card dispenser, which feeds them one by one, and a receiving tray collects the output.
Runs at 30–60 pcs/min, a figure that changes with product and label size, and labels within ±1 mm (product and label tolerances excluded).
The product size range is customized to the samples you provide, and a coder or printer can be added.

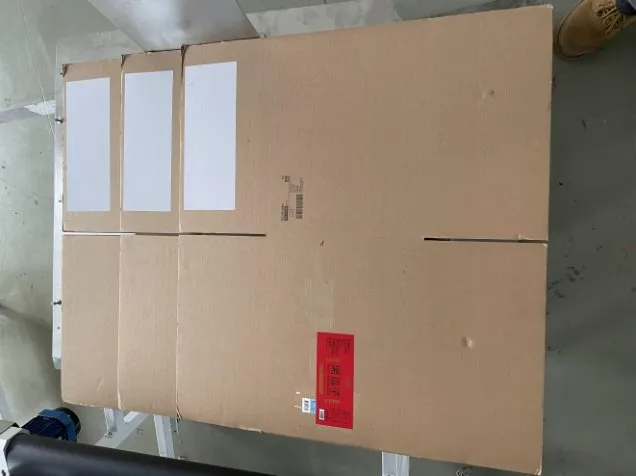

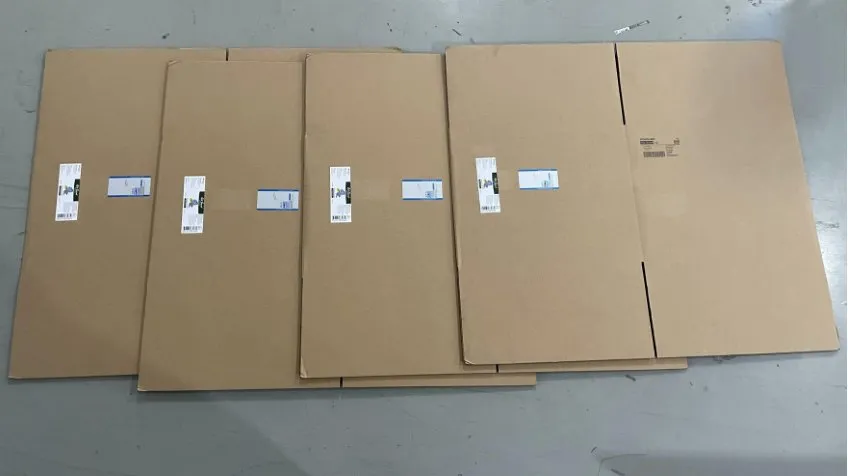

Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 30–60 pcs/min (depends on product and label size) |
| Applicable products | Customized to the customer's sample size |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; other sizes can be custom-built |
| Machine dimensions | Approx. 3000 × 1000 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 230 kg |
| Remarks | A ribbon coder, inkjet printer or label printer can be added |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
It is designed for the top surface of unfolded cartons (flat blanks). For packed, folded cartons that need a printed label on the side, look at the side print-and-apply labeler.
Yes. It applies labels or self-adhesive film to the top surface of unfolded cartons.
Yes, after the label-pressing (wipe-down) mechanism is changed for one suited to uneven surfaces.
Speed is 30–60 pcs/min and accuracy ±1 mm (excluding product and label tolerances). The product size range is built to your samples; labels are 6–250 mm long and 6–150 mm wide (liner width), with other sizes custom-built.
The machine measures approx. 3000 × 1000 × 1350 mm and weighs 230 kg; power is 220 V / 50 Hz.
Yes. A ribbon coder, inkjet coder or label printer can be added to the machine.
Brochure p. 46 ±1 mm The YIXING automatic card-dispensing labeling machine takes a stack of bags, color boxes or hang tags, separates them one at a time with a card dispenser, labels the top surface and collects them in a receiving tray. It runs at 40–120 pcs/min with ±1 mm accuracy for products 40–300 mm long and wide.
Brochure p. 47 ±1 mm The YIXING automatic vacuum page-feeding labeling machine uses suction to separate soft bags and irregular items from a stack one at a time onto the labeling conveyor, labels them and collects them in a receiving tray. It runs at 30–50 pcs/min with ±1 mm accuracy for products 60–400 mm long and 40–400 mm wide.
Brochure p. 28 ±1 mm The YIXING automatic lifting-platform flat labeling machine holds a large load of light products on a lifting platform, which rises and lowers according to the product; each piece is drawn onto the conveyor by suction, labeled and collected in a receiving tray. Labeling speed is 30–60 pcs/min and accuracy ±1 mm.
