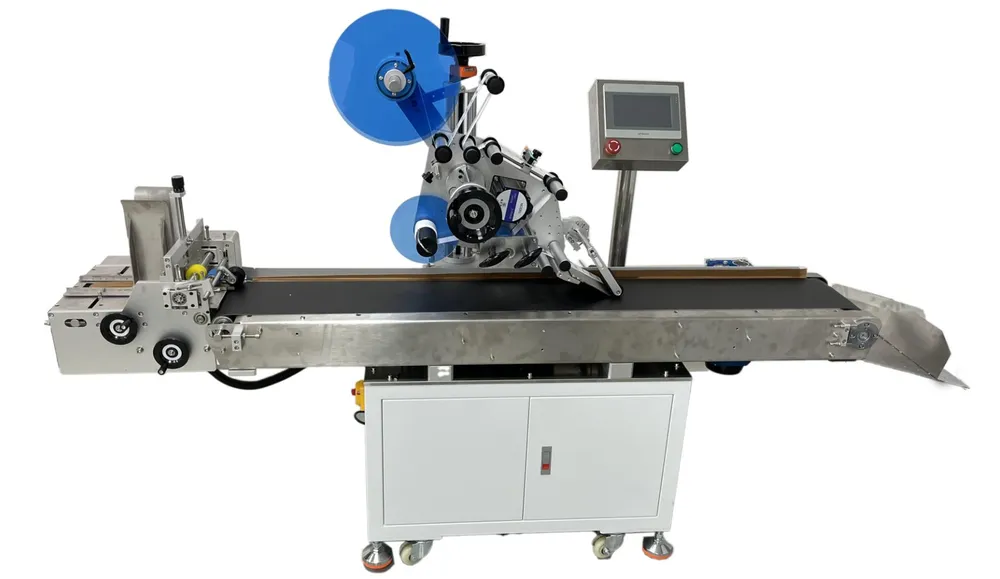

The YIXING automatic card-dispensing labeling machine takes a stack of bags, color boxes or hang tags, separates them one at a time with a card dispenser, labels the top surface and collects them in a receiving tray. It runs at 40–120 pcs/min with ±1 mm accuracy for products 40–300 mm long and wide.
Updated
Sample testing available Custom builds available
This machine is built for flat labeling of bags, color boxes, hang tags and similar flat items. Instead of placing each piece on a conveyor by hand, the operator loads a stack onto the card dispenser (friction feeder), which separates the pieces one by one and sends them to the labeling station. Labeled pieces are collected in a receiving tray.
It handles products 40–300 mm long and 40–300 mm wide at 40–120 pcs/min (depending on product and label size), with a labeling accuracy of ±1 mm excluding product and label tolerances. Labels can be 6–250 mm long and 6–150 mm wide (liner width); other sizes can be custom-built.
Overall size is approx. 2200 × 800 × 1350 mm, with a weight of 180 kg and a 220 V / 50 Hz supply. When dates, batch numbers or barcodes need to go on the label, a ribbon coder, inkjet coder or label printer can be added to the machine so labeling and coding happen at one station.
Load a whole stack onto the card dispenser; it feeds the pieces one by one, so nobody has to place each item on the conveyor.
Labeling speed of 40–120 pcs/min, depending on product and label size, for batch runs of bags, boxes and tags.
Takes products 40–300 mm long and 40–300 mm wide — check cards, tags, pouches and color boxes against these limits.
±1 mm labeling accuracy (excluding product and label tolerances) keeps the label in the same position across a batch.
Labeled pieces gather in the receiving tray, so feeding, labeling and collection run as one continuous process.
A ribbon coder, inkjet coder or label printer can be added to the machine to print information in the same pass.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 40–120 pcs/min (depends on product and label size) |
| Applicable products | Length 40–300 mm; width 40–300 mm |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; other sizes can be custom-built |
| Machine dimensions | Approx. 2200 × 800 × 1350 mm |
| Power supply | 220 V / 50 Hz |
| Machine weight | 180 kg |
| Remarks | A ribbon coder, inkjet printer or label printer can be added |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Mainly bags, color boxes and hang tags, plus other flat items that need a label on the top surface. Products must be 40–300 mm long and 40–300 mm wide.
40–120 pcs/min at ±1 mm accuracy (excluding product and label tolerances). Actual speed depends on product and label size.
No. They load a stack onto the card dispenser, which separates the pieces one at a time and conveys them to the labeling position; labeled pieces go to the receiving tray.
Labels 6–250 mm long and 6–150 mm wide (liner width) as standard; other sizes can be custom-built.
Yes — a ribbon coder, inkjet coder or label printer can be added. If each label needs its own printed QR code or barcode, the card-dispensing print-and-apply labeler is another option.
Approx. 2200 × 800 × 1350 mm, 180 kg, 220 V / 50 Hz.
