中文全自动自动升降平面贴标机

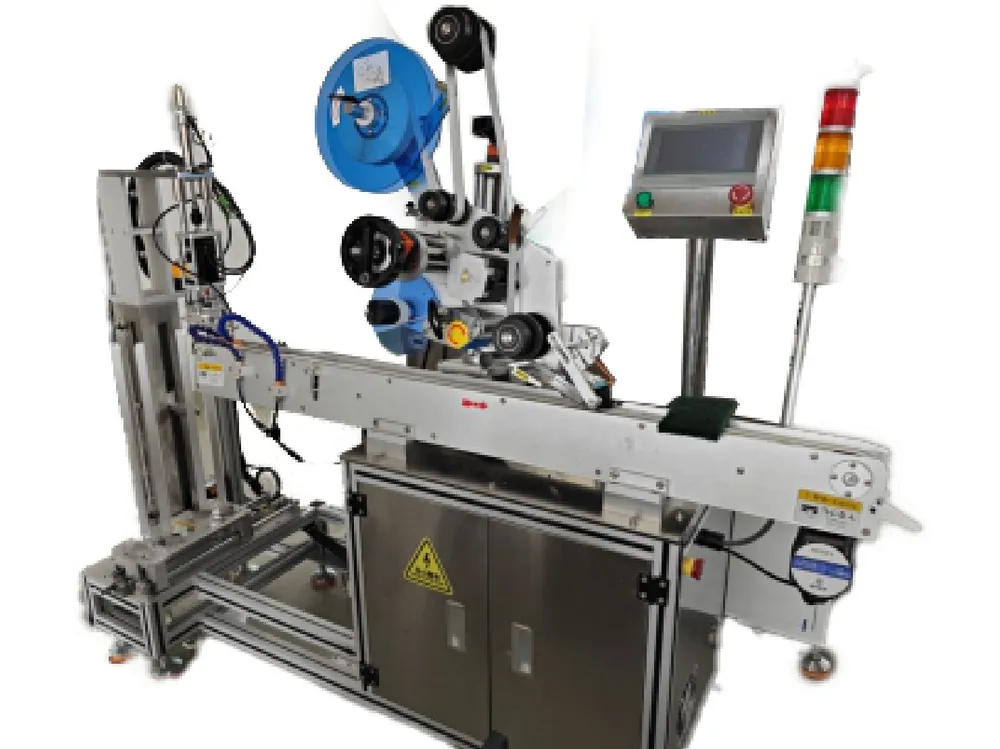

The YIXING automatic lifting-platform flat labeling machine holds a large load of light products on a lifting platform, which rises and lowers according to the product; each piece is drawn onto the conveyor by suction, labeled and collected in a receiving tray. Labeling speed is 30–60 pcs/min and accuracy ±1 mm.
Updated
Sample testing available Custom builds available
This machine labels bags, cartons, silicone pads and protective film. It suits light products and lets the operator load a large quantity at once, so refilling is needed less often.
Several products are placed on the lifting platform, the platform rises and lowers according to the product, and each piece is drawn by suction onto the conveyor, carried to the labeling position and labeled, then collected in the receiving tray. Brochure samples show two uses: die-cut double-sided adhesive applied to round silicone pads, and a barcode label on a carton.
Output is 30–60 pcs/min depending on product and label size; placement accuracy is ±1 mm, not counting product and label tolerances. The product size range is customized to the customer's samples, and the standard label window is 6–250 mm in length and 6–150 mm in liner width, with other sizes customized. The machine weighs 230 kg and runs on 220 V / 50 Hz.
Several products go onto the lifting platform at once, so the machine runs longer between refills.
Suited to light items such as bags, cartons, silicone pads and protective film.
As the platform adjusts its height to the product, each piece is drawn onto the conveyor by suction.
The brochure shows die-cut double-sided adhesive applied to round silicone pads, alongside a carton with a barcode label.
Speed depends on product and label size; labeling accuracy is ±1 mm excluding product and label tolerances.
The product size range is customized to your samples, and non-standard label sizes can be customized too.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±1 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 30–60 pcs/min (depends on product and label size) |
| Applicable products | Customized to the customer's sample size |
| Label size range | Length 6–250 mm; width (liner width) 6–150 mm; other sizes can be customized |
| Power supply | 220 V / 50 Hz |
| Machine weight | 230 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
Bags, cartons, silicone pads and protective film — especially light products that you want to load in large quantities at once.
Several products are placed on the platform, which rises and lowers according to the product. Each piece is drawn onto the conveyor by suction, carried to the labeling position and labeled, and then collected in the receiving tray.

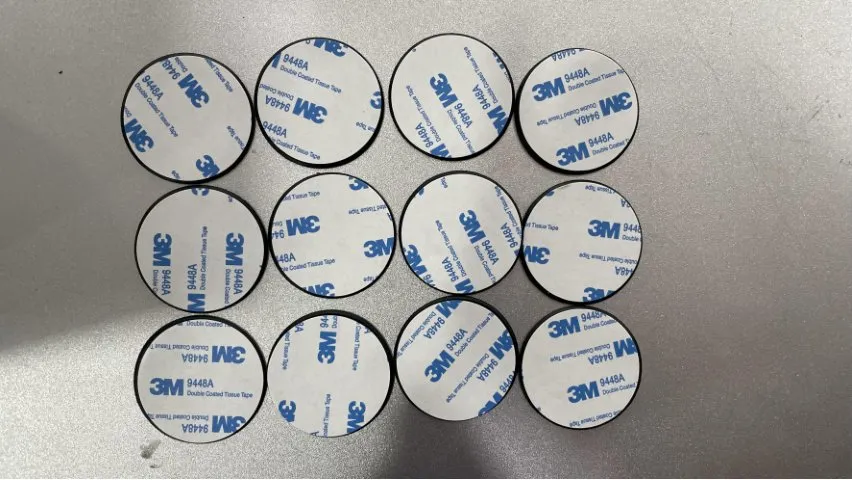

The brochure sample shows die-cut double-sided adhesive applied to round silicone pads on this machine. Because the product size range is customized, your own parts are confirmed against samples.
It labels 30–60 pcs/min with ±1 mm accuracy (excluding product and label tolerances); the rate depends on product and label size.
Labels from 6 to 250 mm long and 6 to 150 mm in liner width; other sizes can be customized.
The machine weighs 230 kg and runs on 220 V / 50 Hz.
