The YIXING roll-to-roll labeling machine applies labels onto another label web or onto film. The base material runs from unwind to rewind, and the labeler in the middle detects each labeling point and applies the label. It runs at 100–200 pcs/min with ±0.5 mm accuracy and takes rolls up to 300 mm in outer diameter.
Updated
Sample testing available Custom builds available

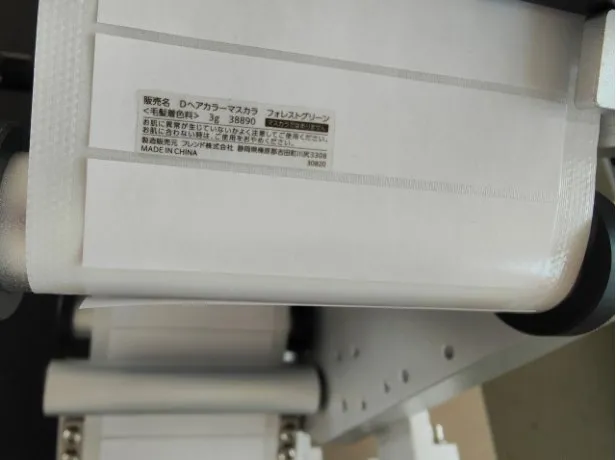

This machine is for jobs where the item being labeled is itself a roll: label-on-label, where a label goes onto another label web, or label-on-film. The samples show QR-code labels applied onto film and labels applied onto a roll material. Rather than handling pieces one at a time, the whole roll is processed and rewound after labeling.

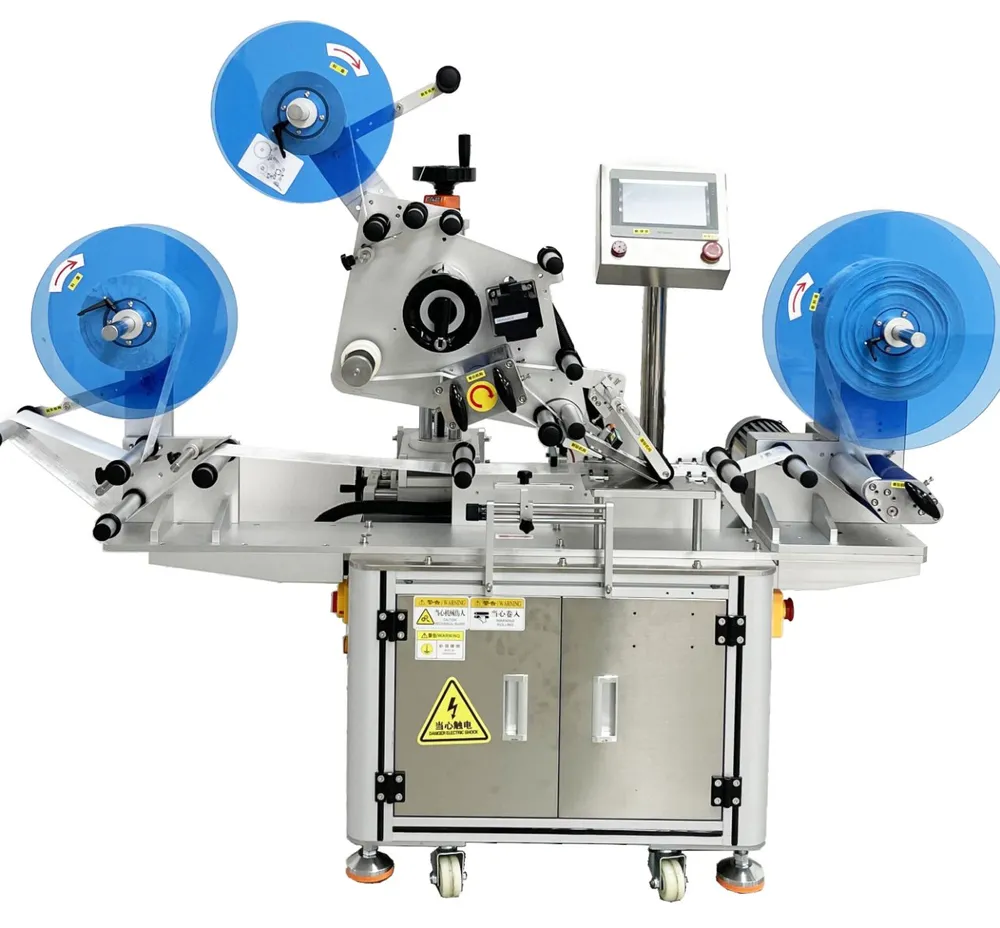

The base roll sits on the unwind and is collected by the rewind. As the material passes the middle of the machine, the labeler detects the labeling point and applies the label. Speed is 100–200 pcs/min and accuracy ±0.5 mm (excluding product and label tolerances), and any roll up to 300 mm in outer diameter can be loaded.
The label range depends on the application method: suction (tamp) application takes labels 6–100 mm long and 6–100 mm wide (liner width), roll-on application 6–150 mm long and 6–150 mm wide. The machine is approx. 1550 mm long, 720 mm wide and 1350 mm high, weighs 160 kg and takes 220 V / 50 Hz power.
Applies labels onto another label web or onto film; one sample has QR-code labels on film.
The material runs from unwind to rewind while the labeler in the middle detects each labeling point, keeping the process continuous.
A labeling speed of 100–200 pcs/min suits processing complete rolls in volume.
Labels are placed at the detected labeling point with ±0.5 mm accuracy, excluding product and label tolerances.
Suction application: labels 6–100 mm long and wide (liner width). Roll-on application: labels 6–150 mm long and wide.
Takes rolls up to 300 mm outer diameter; approx. 1550 × 720 × 1350 mm (L × W × H), 160 kg, 220 V / 50 Hz.
Real samples from the brochure, produced on this machine type
| Labeling accuracy | ±0.5 mm (excluding product and label tolerances) |
|---|---|
| Labeling speed | 100–200 pcs/min |
| Product size range | Rolls up to 300 mm outer diameter |
| Label size (suction / tamp application) | Length 6–100 mm; width (liner width) 6–100 mm |
| Label size (roll-on application) | Length 6–150 mm; width (liner width) 6–150 mm |
| Machine dimensions | Approx. 1550 × 720 × 1350 mm (L × W × H) |
| Power supply | 220 V / 50 Hz |
| Machine weight | 160 kg |
Standard-model data from the brochure; accuracy excludes product and label tolerances. Other ranges can be custom-built.
It applies labels onto another label web (label-on-label) or onto film (label-on-film). The material runs from unwind to rewind and is labeled in between.
Any roll up to 300 mm in outer diameter.
It labels at 100–200 pcs/min, with placement accuracy of ±0.5 mm (product and label tolerances excluded).
Suction application: 6–100 mm long and 6–100 mm wide (liner width). Roll-on application: 6–150 mm long and 6–150 mm wide.
As the material passes the middle of the machine, the labeler detects the labeling point and applies the label there.
Approx. 1550 × 720 × 1350 mm (L × W × H) and 160 kg, powered by 220 V / 50 Hz.
