中文自动下料侧面+圆周贴标机
The YIXING side and wrap-around labeling machine with automatic discharge is a custom combined labeler. One conveyor carries a wrap-around station and a side labeling head, with a coding unit, a touchscreen and a long chute on the left. No standard specs are listed; it is built to the product and label plan.
Updated
Sample testing available Custom builds available
This custom machine combines side labeling, wrap-around labeling and coding in one unit. The brochure photo shows a wrap-around labeling station and a side labeling head on the same conveyor, a coding unit and a touchscreen, and a long chute on the left; the machine's name indicates automatic discharge. It is built to the product and label plan, so its specifications are not fixed and follow the design agreed for each project.
Each labeling method has a standard counterpart. The automatic side labeling machine conveys products one by one to the labeling position for side labels, comes in basic and standard versions, can omit the powered top hold-down for heavy products, and accepts an optional coder or inkjet printer for dates, batch numbers or barcodes on the label. The automatic positioning round bottle labeler takes upright cylindrical products, rotates each one a full turn at the labeling position, covers half or full wraps, and with the optional circumferential positioning sensor labels at a fixed point.
For reference, the standard side labeler runs at 40–120 pcs/min and the standard positioning round bottle labeler at 30–60 pcs/min, both at ±1 mm. Those are standard-model figures; the combined machine's speed and accuracy are assessed from your product and station layout. For a quote, send samples, the sizes and positions of both the side and wrap-around labels, what must be coded, your target output, what happens after discharge and the floor dimensions available.

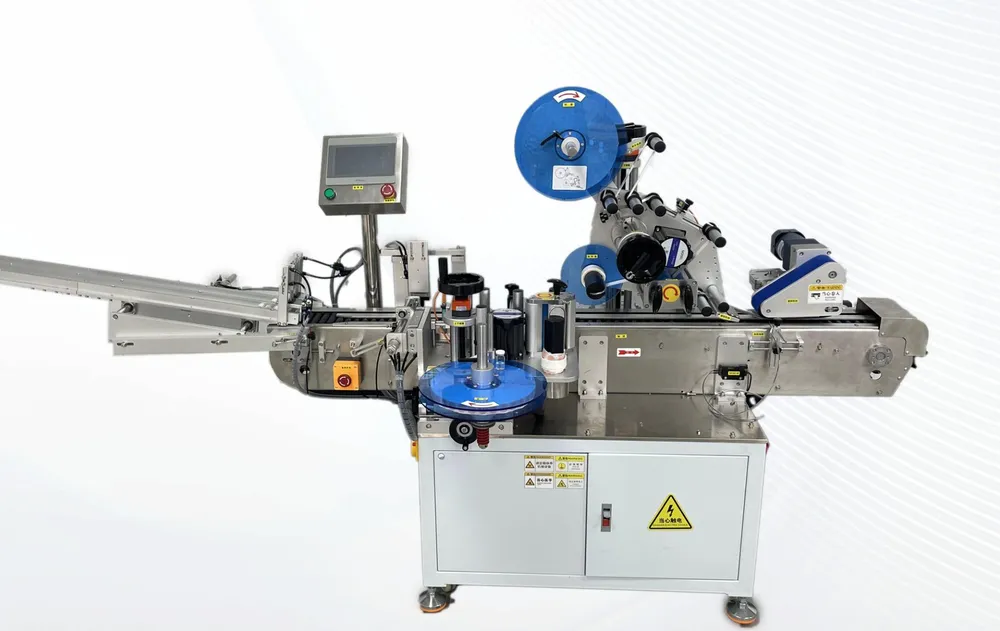

Photo: a long chute on the left, a wrap-around labeling station and a side labeling head on the same conveyor, plus a coding unit and touchscreen.
A wrap-around station and a side labeling head share one conveyor, so one machine covers both labeling methods.
The photo shows a coding unit; on the related standard models, the coder prints dates and batch numbers on the label.
As the name says, discharge is handled by the machine, cutting down on manual unloading.
A long chute sits on the left of the machine in the brochure photo; how it links to the conveyor is designed per project.
Both labeling stations and the coding unit sit on one machine, operated from a touchscreen.
No standard specs: station order, label sizes and cycle time are designed around the product and labels.
The brochure shows no sample photos for this machine — send us your product for a test.
Shown in the brochure's custom-model section without standard specifications; each machine is designed around the customer's product, label or tape layout and output target.
Per the brochure photo, one conveyor carries a wrap-around labeling station and a side labeling head, plus a coding unit, and the machine's name indicates automatic discharge. The station order and exact combination are set by the product and label plan.
On the related standard models, an optional coder or inkjet printer prints production dates, batch numbers or barcodes on the label. What this machine codes, and how, is confirmed in the project design.
No specs are listed for this machine. The standard automatic side labeler runs at 40–120 pcs/min at ±1 mm and the standard positioning round bottle labeler at 30–60 pcs/min at ±1 mm (excluding product and label tolerances), for reference; the combined machine's figures are assessed from your actual product.
Based on the related standard models: side labeling covers the sides of many items such as color boxes and slim boxes, and wrap-around labeling covers upright cylindrical products such as xylitol gum, cosmetic, pharmaceutical, chemical and liquor bottles. Send samples to check whether one machine can handle your mix.
If one line needs both side labels and wrap-around labels, a combined machine carries both stations and a coding unit on one machine; whether that beats two separate machines depends on your product and output, which the factory can assess.
Samples, side and wrap-around label samples with dimensions, the coding content and its position, target output, where products go after discharge, and the floor dimensions available.
Brochure p. 38 ±1 mm The YIXING automatic side labeling machine labels the side of products carried one by one on a conveyor, at ±1 mm accuracy and 40–120 pcs/min. It comes in a basic and a standard version, and its powered top hold-down can be left out when the products are heavy.
Brochure p. 18 ±1 mm The YIXING automatic positioning round bottle labeling machine labels cylindrical bottles that stand on their own. Each bottle is conveyed upright to the labeling station, rotated one full turn as the label goes on, then discharged — at 30–60 pcs/min and ±1 mm, with single or double labels in partial or full wrap.
Brochure p. 49 The YIXING card-dispensing dual-head labeling machine is a custom build. A card-dispensing infeed separates stacked items one by one, two heads above the belt apply the labels, and an inclined chute discharges them. No standard specs are published; each unit is built to the customer's product and output.
Brochure p. 49 The YIXING metal edge wrapping machine is a custom machine for the edge-wrapping step of metal parts. The brochure photo shows a stainless-steel cabinet with a touchscreen and emergency stop, plus a vertical feeding mechanism and several pneumatic actuators on the table top. No standard specs are listed.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
