中文三标头平面贴标机
The YIXING three-head flat surface labeling machine is a custom build with three top-labeling heads (several blue label reels) above the conveyor and a touchscreen, for products whose top face needs several labels or label positions. Specs are not published and depend on the product and label positions.
Updated
Sample testing available Custom builds available
The three-head flat surface labeling machine places three top-labeling heads above the conveyor; the brochure photo shows several blue label reels and a touchscreen. Products pass beneath the three heads, which suits items whose top face needs several labels, or labels in several positions.
Two standard models explain the labeling method. The automatic flat top-surface labeler conveys products one by one to the labeling position for top labeling of books, folders, boxes and cartons, and comes in basic and standard versions. The automatic high-precision labeler applies labels by suction (vacuum and air-blow working together) on the top, bottom or both faces; its brochure photo shows a dual-head configuration, and its speed depends partly on the number of heads. The three-head custom build carries three heads over the belt.
As a custom machine it has no published specs; label positions, label sizes and cycle time are designed around the actual product. For reference only, the standard flat top-surface labeler runs at 40–120 pcs/min with ±1 mm accuracy, and the high-precision labeler at 25–35 pcs/min with ±0.5 mm. When requesting a quote, send product samples with the three label positions marked, each label's size and roll specs, the target output and the line length available.

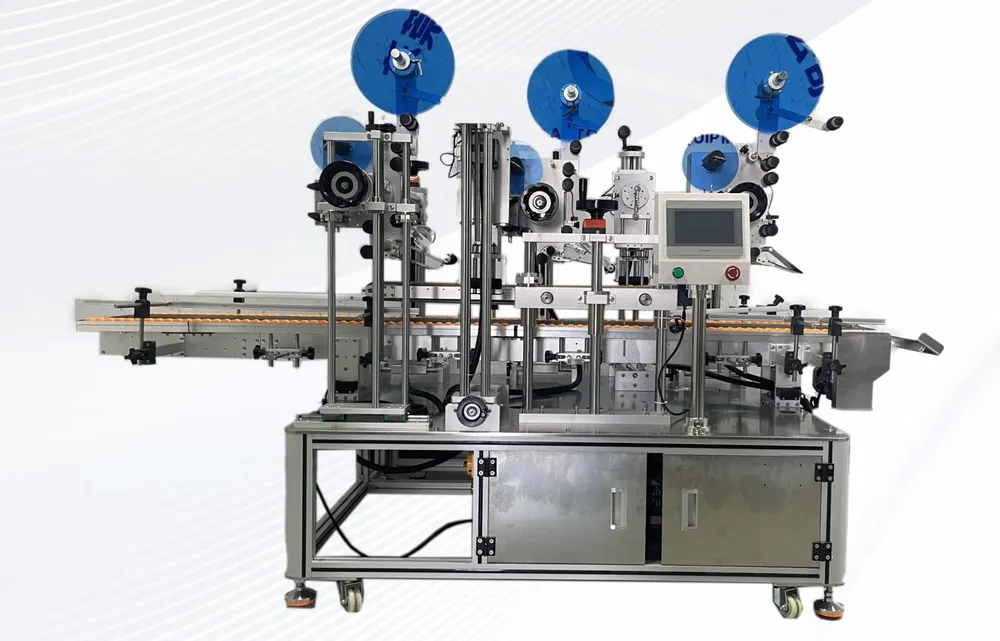

Photo: three top-labeling heads (several blue label reels) arranged above the conveyor, with a touchscreen.
Three heads over the conveyor handle several labels on the top face in a single pass.
The heads can hold three different labels, or one label type placed at different points, as the project requires.
Instead of running products through a single-head machine more than once or touching up by hand, the three heads cover several positions on one line.
The photo shows a single touchscreen as the operator interface.
Head spacing, application method and conveyor width are designed around the product and label positions; no standard specs are published.
The brochure shows no sample photos for this machine — send us your product for a test.
Shown in the brochure's custom-model section without standard specifications; each machine is designed around the customer's product, label or tape layout and output target.
When one product's top face needs several labels, or labels at several points, the three heads can apply them in sequence on one conveyor instead of repeated passes. How the heads share the work is set in the project design.
The brochure publishes no figures for the three-head version. For reference, the standard automatic flat top-surface labeler runs at 40–120 pcs/min and ±1 mm, and the automatic high-precision labeler at 25–35 pcs/min (speed also depends on the number of heads) and ±0.5 mm. The custom machine's figures are confirmed in its design.
Each head has its own label reel, so the heads can carry different labels or the same label for different positions, depending on the product and label plan.
Based on the related standard models: books, folders, boxes, cartons, gift boxes, food pouches, plastic parts, packaging boxes, plastic lids and electronic products. Send samples for evaluation.
The standard flat top-surface labeler accepts an optional coder or inkjet printer for dates, batch numbers and barcodes on the label, or an inkjet printer on the conveyor that prints directly on the product before or after labeling. Whether the three-head machine gets one is decided per project.
Product samples with the three label positions marked, label samples or dimensions for each label, label roll specs, target output, the line length available, and whether the machine must link to other equipment.
Brochure p. 25 ±1 mm The YIXING automatic flat top-surface labeling machine labels the top of products carried one by one on a conveyor — books, folders, boxes, cartons and more. It works at ±1 mm accuracy and 40–120 pcs/min, takes products up to 400 × 300 mm and 0.2–150 mm high, and comes in a basic and a standard version.
Brochure p. 20 ±0.5 mm The YIXING automatic high-precision labeling machine applies labels by suction (vacuum plus air blow) to products held one by one in a fixture. It reaches ±0.5 mm accuracy at 25–35 pcs/min and can be configured to label the top, the bottom or both surfaces of parts up to 150 × 150 mm.
Brochure p. 49 The YIXING card-dispensing dual-head labeling machine is a custom build. A card-dispensing infeed separates stacked items one by one, two heads above the belt apply the labels, and an inclined chute discharges them. No standard specs are published; each unit is built to the customer's product and output.
Brochure p. 49 The YIXING metal edge wrapping machine is a custom machine for the edge-wrapping step of metal parts. The brochure photo shows a stainless-steel cabinet with a touchscreen and emergency stop, plus a vertical feeding mechanism and several pneumatic actuators on the table top. No standard specs are listed.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
