The YIXING three-head positioning round bottle labeling machine is a custom line: a stainless-steel frame with three labeling stations along the conveyor and a touchscreen, for bottles that need several labels or fixed label positions. There is no standard spec sheet; each line is built to the bottle and label layout.
Updated
Sample testing available Custom builds available
This custom machine is a round bottle labeling line on a stainless-steel frame. The brochure photo shows three labeling stations along the conveyor and a touchscreen. Compared with the single- or double-label setups common on round bottle labelers, three stations can share out more labels or more label positions, which suits bottles that carry several labels; how the stations divide the work is decided per project from the bottle and label design.
Its related standard models are the automatic positioning round bottle labeler and the automatic roll-rubbing wrap-around labeler. The first handles larger cylindrical products that stand upright: each bottle travels upright to the labeling position, turns one full rotation while the label is applied, then exits. It applies single or double labels with freely adjustable spacing, covers half or full wraps, and with the optional circumferential positioning sensor places labels at a fixed point. The second also takes upright bottles, applies one label and finishes it by roll-rubbing. The word "positioning" in this machine's name refers to positioned labeling; the method is chosen to suit the bottle.
For reference, the standard positioning labeler is rated at ±1 mm and 30–60 pcs/min; those are standard-model figures, and the three-head line's bottle range, speed and accuracy are set in its own design. For a quote, send bottle samples in every size, the size and position of each label, whether labels must avoid seams or artwork, your target output and how the line connects to upstream and downstream equipment.

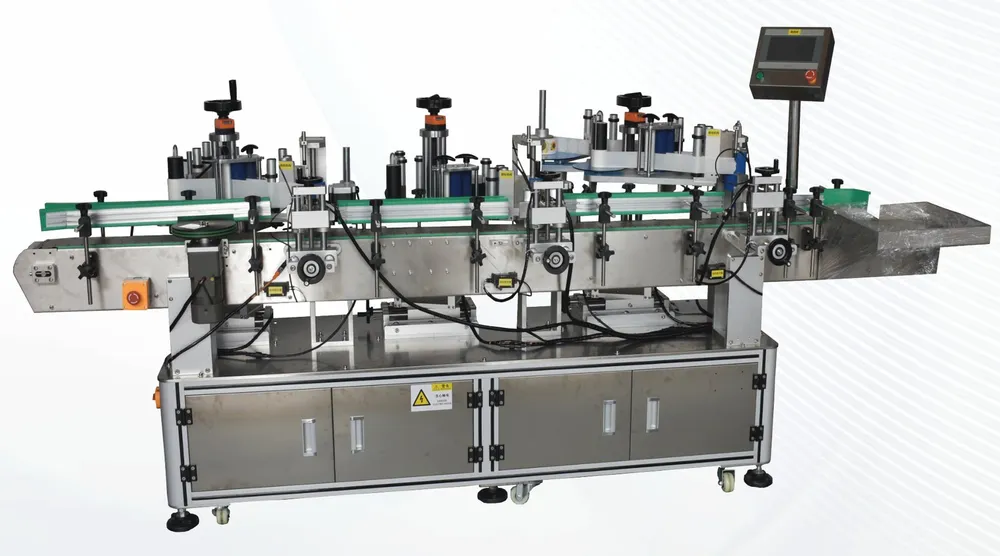

Photo: a stainless-steel round bottle labeling line with three labeling stations along the conveyor and a touchscreen.
Three stations along the conveyor let several labels on one bottle be applied on the same line.
"Positioning" means placing labels at set points; the standard positioning model uses an optional circumferential sensor, and the custom line's method is chosen per bottle.
The brochure shows the whole labeling line built on a stainless-steel frame.
Settings and operation are handled on the touchscreen shown in the photo.
No standard specs: station spacing, label sizes and cycle time follow the bottle and label design.
The brochure shows no sample photos for this machine — send us your product for a test.
Shown in the brochure's custom-model section without standard specifications; each machine is designed around the customer's product, label or tape layout and output target.
The standard automatic positioning round bottle labeler applies single or double labels with adjustable spacing. The three-head machine has three labeling stations along the conveyor for bottles with more labels or more positions, and its specs are set by the bottle and label design.
The brochure lists no specs for this machine. As a reference point, the standard automatic positioning round bottle labeler is rated at ±1 mm (excluding product and label tolerances) and 30–60 pcs/min; the three-head line's actual figures are fixed in its project design.
Placing the label at a set point on the bottle. The standard positioning labeler offers an optional circumferential positioning sensor for fixed-point wrap labeling; the positioning method on the three-head line depends on the bottle and label design.
Based on the related standard models, cylindrical products that stand upright: xylitol gum bottles, cosmetic, pharmaceutical, chemical and liquor bottles, glass jars and plastic cream jars. Send samples so the factory can check your bottle.
Both related standard models accept an optional ribbon coder that prints batch numbers and dates on the label. Whether the three-head line gets one is decided in the project design.
Bottle samples in each size, label samples or dimensions for every label, how the three labels are positioned relative to each other, target output, the floor length available, and whether the line must connect to filling or capping equipment.
