The YIXING dual-head label fold-over machine is a custom fold-over labeler: two labeling heads face each other across a central fixture table, carrying white label rolls, on a cabinet base. It has no published specs and is built to the customer's workpiece and label plan.
Updated
Sample testing available Custom builds available
The dual-head label fold-over machine brings fold-over labeling and a two-head layout together in one machine. In the brochure photo, two labeling heads face each other from left and right, carrying white label rolls, with a fixture table between them and a cabinet underneath. No specs are published; the fixtures and the label plan are defined by the customer's workpiece.
Two standard models explain the fold-over process. The semi-automatic fold-over labeling machine holds the product in a fixture and folds the label over it by suction, labeling power cords, data cables, tubes, lollipop sticks, jelly cups and hardware; changing the fixture adapts it to other workpiece sizes. The print-and-fold labeling machine includes a printer, so content such as QR codes or serial numbers is printed and applied in one step. When the label is folded over a slim workpiece, it forms the familiar flag label.
For reference, both standard fold-over models are rated at ±0.3 mm and 15–25 pcs/min, and the print-and-fold model uses fixtures for 1–3, 2–5, 3–7 and 4–10 mm, with one set included. These are standard-model figures; the dual-head machine's performance is fixed in its project design. For a quote, send workpiece samples with the diameter or outline dimensions, samples and sizes of both labels, where the folded labels must sit, and your target output.

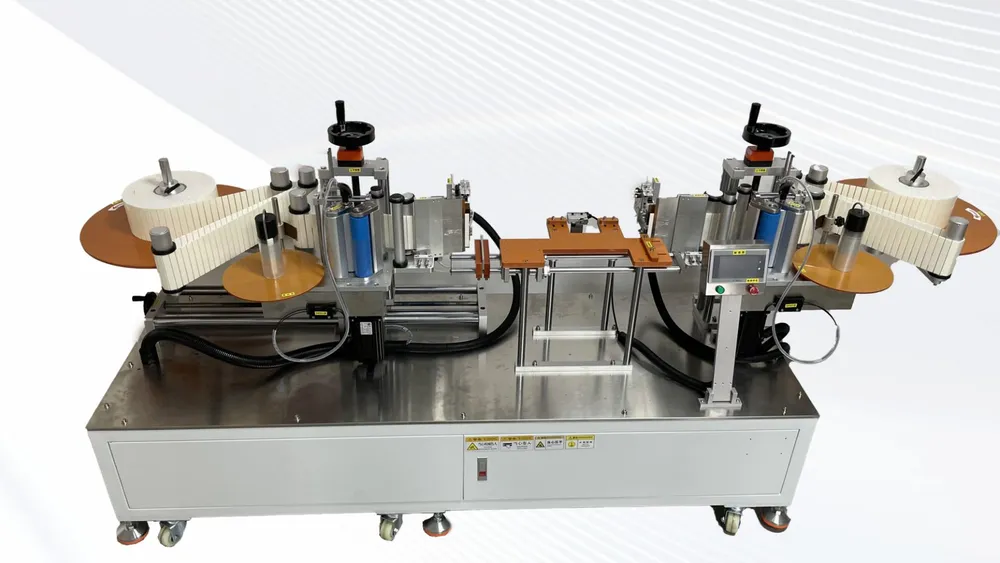

Photo: two labeling heads facing each other (white label rolls) with a fixture table in the middle, on a cabinet base.
Two heads face each other from left and right, both pointing at the central fixture table.
Workpieces are located on the fixture table in the middle, with fixtures made to the part; the standard fold-over models adapt to other sizes by changing fixtures.
The label is folded over the slim workpiece to form a flag label, a common way to mark cables and tubes.
A cabinet forms the lower part of the machine, with the heads and fixture table above it.
No standard specs: fixture sizes, label dimensions and how the two heads share the work follow the customer's workpiece and labels.
The brochure shows no sample photos for this machine — send us your product for a test.
Shown in the brochure's custom-model section without standard specifications; each machine is designed around the customer's product, label or tape layout and output target.
The standard fold-over labeler is a semi-automatic machine that holds the product in a fixture and folds the label over it by suction. The dual-head machine has two heads facing each other from left and right, a fixture table between them and a cabinet base, with specs set by the workpiece and label plan.
Based on the standard fold-over models: slim items such as tubes, wires and cables, and craft items, including power cords, data cables, wire harnesses, pens, lollipop sticks, jelly cups and hardware parts. Send samples for confirmation.
The label is folded over the slim workpiece to form a flag label, a common marking on power cords and data cables.
This machine has no published figures. Both standard fold-over models are rated at ±0.3 mm (excluding product and label tolerances) and 15–25 pcs/min, for reference only; the dual-head machine's figures are confirmed in its design.
The standard print-and-fold labeling machine includes a printer and prints and applies in one step. Whether the dual-head machine gets a printer is decided during project design.
Workpiece samples (with diameter or outline dimensions), samples and sizes of both labels, where the folded labels must sit, target output and your site conditions.
Brochure p. 34 ±0.3 mm The YIXING fold-over labeling machine is a semi-automatic unit with a display that folds pre-printed labels around wires, cables, tubes and other slim workpieces to form flag labels. It works at ±0.3 mm and 15–25 pcs/min on diameters of 2.2–6.5 mm or 6.5–10.5 mm, and a fixture change adapts it to other sizes.
Brochure p. 35 ±0.3 mm The YIXING print-and-fold cable labeling machine is a semi-automatic unit with a display and a printer. It prints each label and applies it as a fold-over flag on cables, wire harnesses and tubes in one integrated step, at ±0.3 mm and 15–25 pcs/min, with fixtures for 1–3, 2–5, 3–7 and 4–10 mm (one set standard).
Brochure p. 49 The YIXING card-dispensing dual-head labeling machine is a custom build. A card-dispensing infeed separates stacked items one by one, two heads above the belt apply the labels, and an inclined chute discharges them. No standard specs are published; each unit is built to the customer's product and output.
Brochure p. 49 The YIXING metal edge wrapping machine is a custom machine for the edge-wrapping step of metal parts. The brochure photo shows a stainless-steel cabinet with a touchscreen and emergency stop, plus a vertical feeding mechanism and several pneumatic actuators on the table top. No standard specs are listed.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
